Product Overview
Description
Products Description

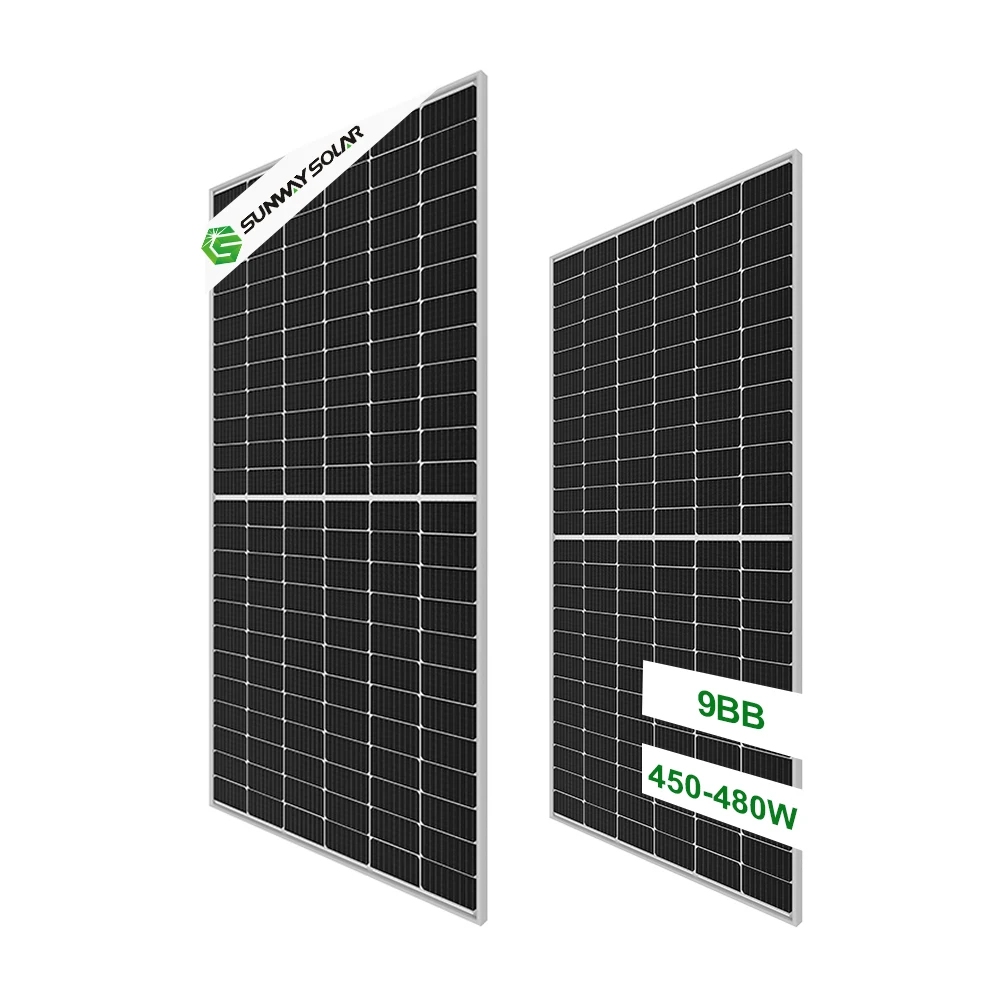

Higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.
Electrical Characteristics(STC) | ||||||||||||||
Module | SK440W-144 ~ SK480M-144 | |||||||||||||
Maximum Power (Pmax) | 440W | 445W | 450W | 455W | 460W | 470W | 480W | |||||||
Maximum Power Voltage (Vmp) | 40.50V | 40.80V | 41.00V | 41.20V | 41.60V | 42.10V | 42.60V | |||||||
Maximum Power Current (Imp) | 10.86A | 10.92A | 10.98A | 11.04A | 11.16A | 11.28A | 11.40A | |||||||
Open-circuit Voltage (Voc) | 49.00V | 49.20V | 49.50V | 49.80V | 50.30V | 50.80v | 51.30v | |||||||
Short-circuit Current (Isc) | 11.30A | 11.36A | 11.42A | 11.48A | 11.60A | 11.72A | 11.84A | |||||||
Module Efficiency (%) | 19.62% | 20.14% | 20.37% | 20.60% | 21.04% | 21.79% | 22.54% | |||||||
Power Tolerance | 0~+5W | |||||||||||||
Temperature Coeffcient of Isc | +0.05%/℃ | |||||||||||||
Temperature Coeffcient of Voc | -0.29%/℃ | |||||||||||||
Temperature Coeffcient of Pmax | -0.37%/℃ | |||||||||||||

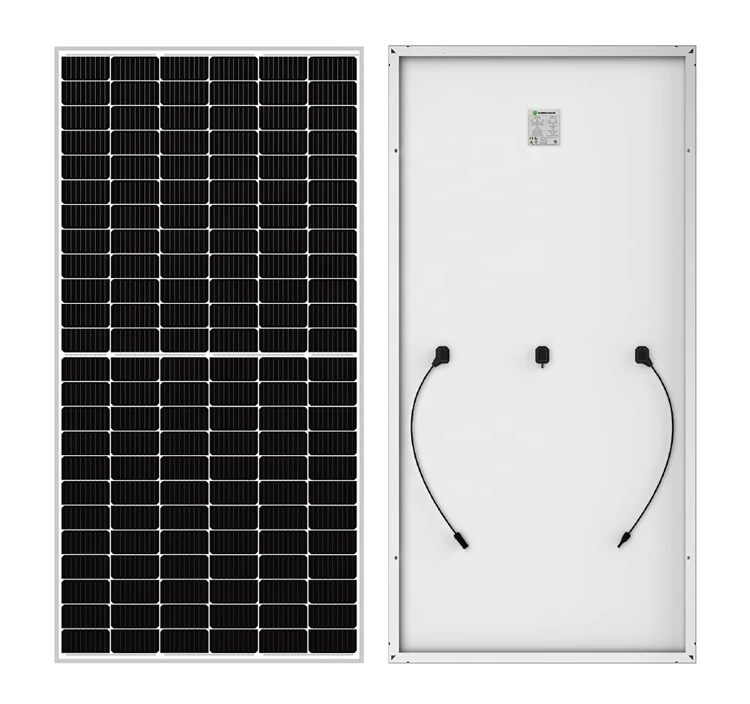

Product Display
*Anti-reflective glass
*High-transmittance and low reflection Increase model efficiency
*High mechanical strength
*High-transmittance and low reflection Increase model efficiency
*High mechanical strength
Solar Cell
*High model efficiency up to 20%
*High shunt-resistance: adapt the several environmental conditions
*High PID resistant
*Low breakage rate
*Uniform color
*High PID resistant
*Low breakage rate
*Uniform color
Frame
*Optional silvery or black frame
*Tensile Strength Frame
*Boost bearing capability and prolong service life
*Tensile Strength Frame
*Boost bearing capability and prolong service life
Junction Box
*Waterproofness Junction Box
*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
*Heat dissipation
*Long service life
*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit, reduced internal power loss Quality diode ensures module running safety
*Heat dissipation
*Long service life

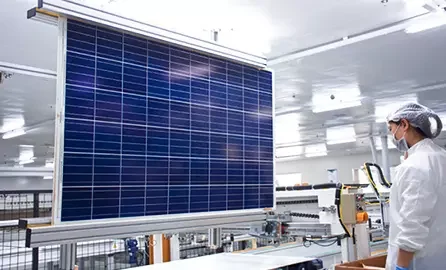

Production & QC
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate
typeset the battery string. High precision, high efficiency, low defect rate
Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
previous process
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.

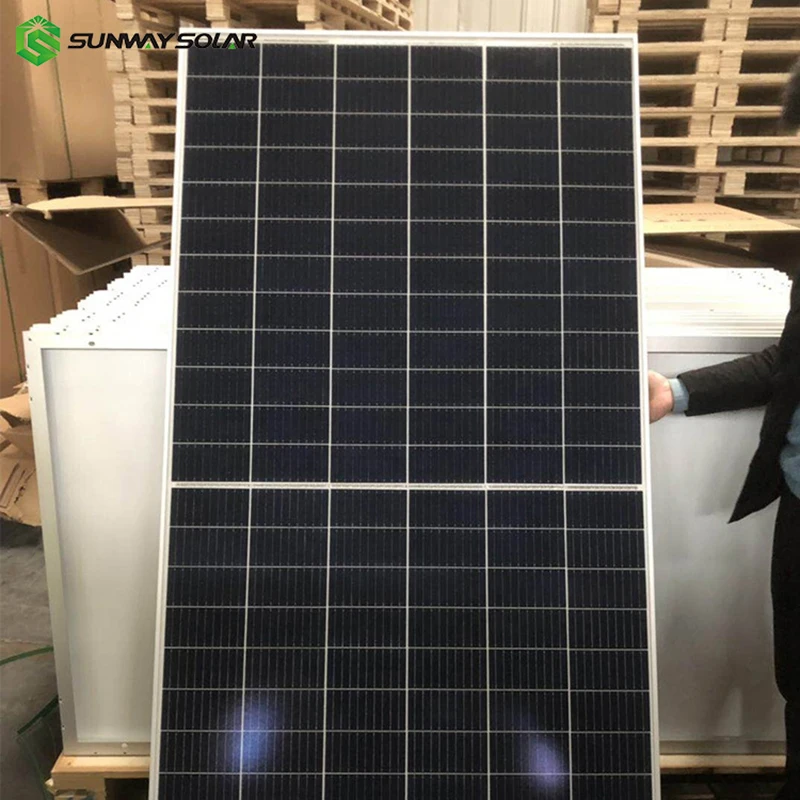

Product Details

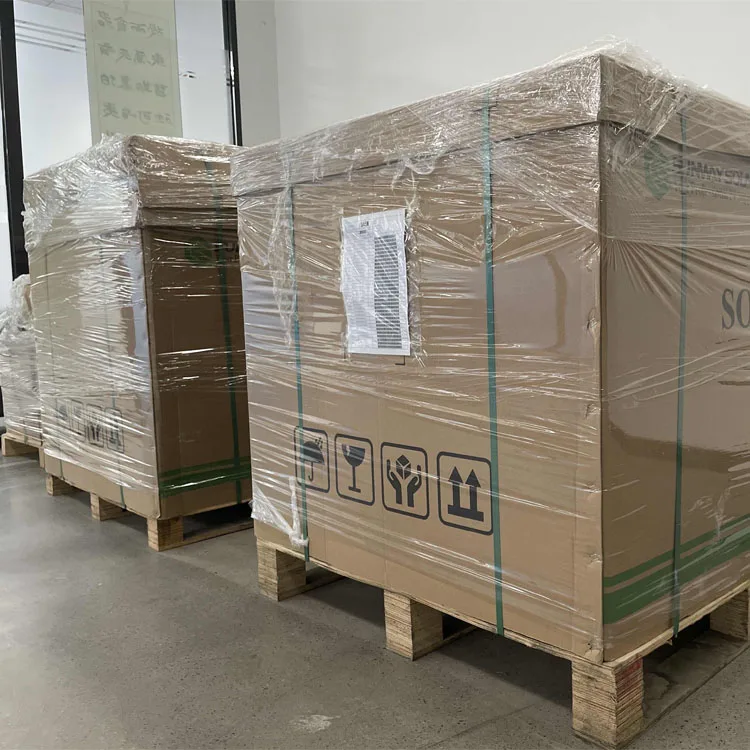

Product packaging
PACKAGE CONFIGURATION | ||||||||
Container | 310W-340W | 360W-410W | 440W-480W | 500W-660W | ||||
Pallet | 35Pcs | 30pcs | 27pcs | 27pcs | ||||
20GP | 390Pcs | 360pcs | 270pcs | 180pcs | ||||
40GP | 924Pcs | 840pcs | 780pcs | 660pcs | ||||
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

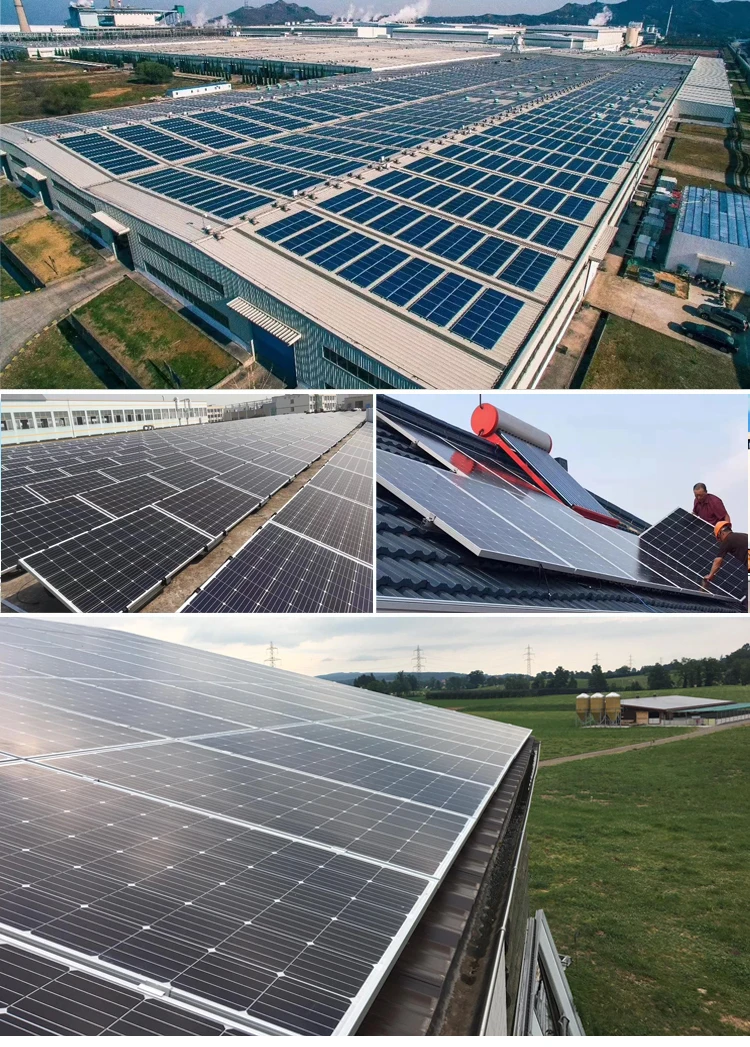

Application
