XCMG Hot Sale XC6 3007K 3 Ton Telehandler 7M 4X4 Telescopic Forklift Teleskoptruck
- Category: >>>
- Supplier: Xuzhou,Construction,Machinery,Group,Import,&,Export,Co.,Ltd.
Share on:
Product Overview
Description
Write In Front
Hi , my dear friend:
If you don't know which one to trust when you face so many similar products and factories. Please remember a Chinese proverb：People's Eyes Are Bright .
Without the choice of so many users, XCMG could not be the NO.1 in China Construction Machinery Industry.
Without the choice of so many users, XCMG could not be the NO.1 in China Construction Machinery Industry.
XCMG for your success, thank you for choosing XCMG.
XCMG
2022-2-7
Products Description

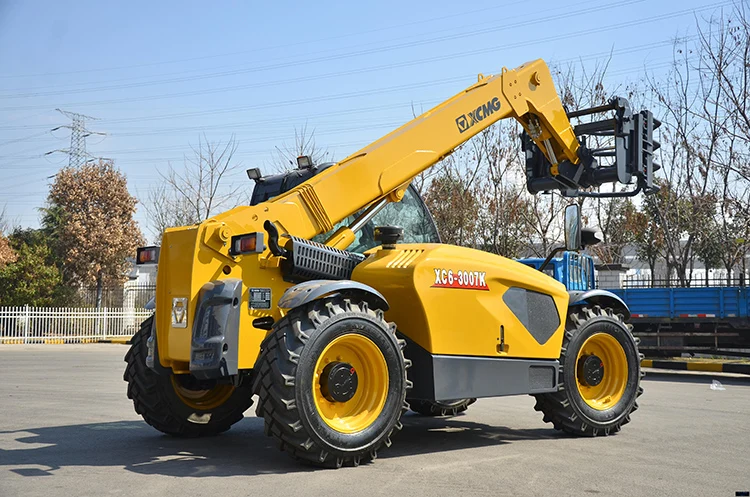

XCMG Hot Sale XC6-3007K 3 Ton Telehandler 7M 4X4 Telescopic Forklift
The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable
operations. The intelligent independent cooling system features high energy-saving and efficiency.
Advantages and Highlights:
* The panoramic cab and the XCMG's visual identity appearance design feature good fashion and elegance.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong
off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users'
individual needs.
XC6 is the latest XCMG agricultural version telehandler which features the highest operation simplicity, safety and efficiency.
The electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable
operations. The intelligent independent cooling system features high energy-saving and efficiency.
Advantages and Highlights:
* The panoramic cab and the XCMG's visual identity appearance design feature good fashion and elegance.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong
off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
* The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users'
individual needs.
Product Paramenters
Unit | Item | XC6-4517K | XC6-3514K | XC6-3007K |
Gross weight | kg | 13500 | 10500 | 7450 |
Engine power | kW | 82(CUMMINS)/74.9(DDE) | 74.9 | 90 |
Rated load | kg | 4500 | 3500 | 3000 |
Maximum lifting height | mm | 16700 | 13700 | 6950 |
Maximum forward reach | mm | 12600 | 9600 | 3690 |
Center distance of load | mm | 600 | 600 | 500 |
Luffing angle | ° | -4~73 | -4~73 | -3~65 |
Fork angle | ° | -90~18 | -90~18 | -90~18 |
Maximum traction force | kN | ≥70 | ≥55 | ≥55 |
Gradeability | ° | ≥25 | ≥25 | ≥25 |
Maximum traveling speed | km/h | 36 | 30 | 40 |
Turning radius | mm | ≤5000 | ≤4750 | ≤4020 |
Braking distance | m | ≤10 (Initial speed 32±2km/h) | ≤8 | ≤8 |
Overall length | mm | 6960 | 6380 | 4820 |
Overall width | mm | 2500 | 2500 | 2355 |
Overall height | mm | 2850 | 2740 | 2460 |
Wheelbase | mm | 3900 | 2980 | 2850 |
Wheel tread | mm | 2060 | 2060 | 1920 |
