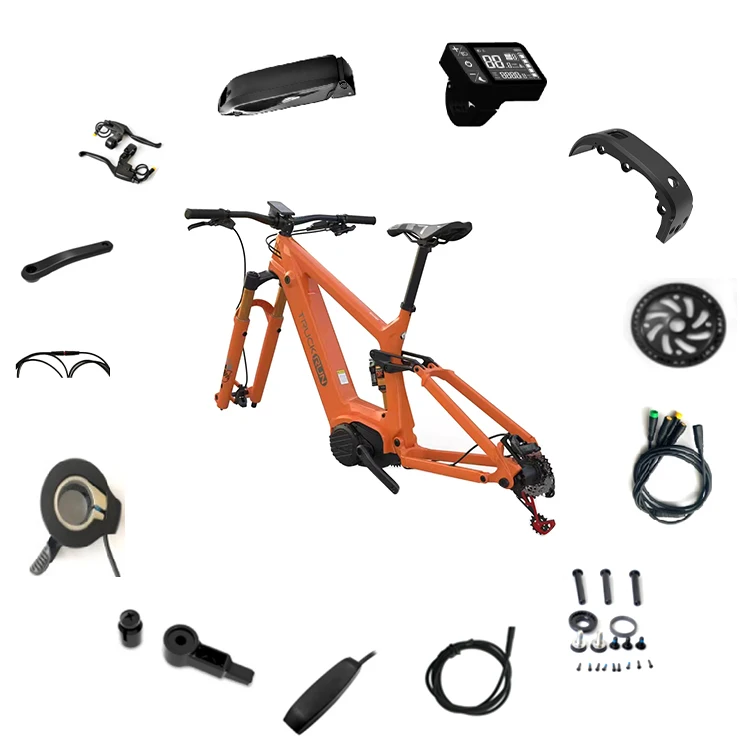

TRUCK RUN M09 Brushless Mid Motors 48v 1000w Electric Bicycle Motor For Electric Bicycle
- Category: >>>
- Supplier: Wuxi Truckrun Motor Co. Ltd.
Share on (1600478919476):
Product Overview
Description
Products Description
high performance
As the core product of W+, TM09 mid-drive system is equipped with M01 motor. By improving the mechanical performance of the product and the vector controller, coupled with the application of the torque sensor, TM01 can more delicately and sensitively sense the riding speed and scene requirements, grasp the supply of auxiliary forces, and bring users a natural, smooth and hearty experience. Riding experience.
Intelligent
The motor has high-sensitivity torque sensor and speed sensor, which can realize precise control of the whole vehicle. The
parameter setting of the upper computer maximizes the energy efficiency and achieves the effect of the vehicle being freelycontrolled according to people's wishes
Strong power
The motor can provide sufficient power performance, and the maximum torque can reach more than160 N.m
Modular
Cost-effective

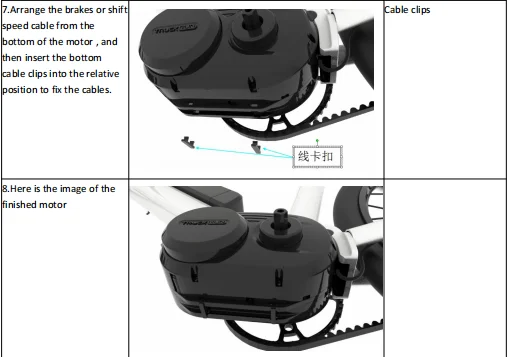

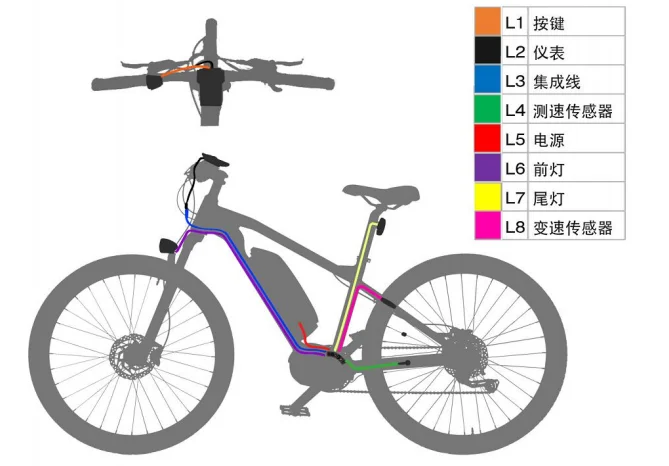

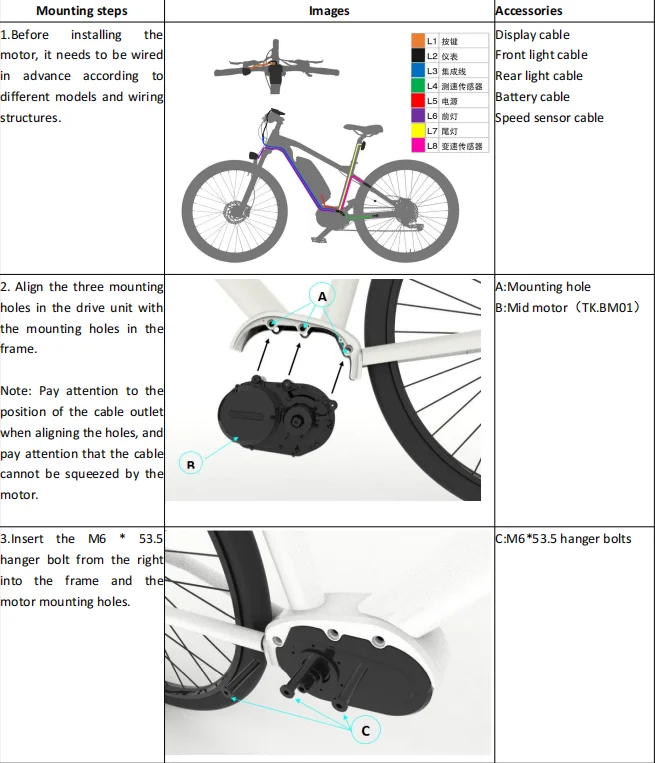

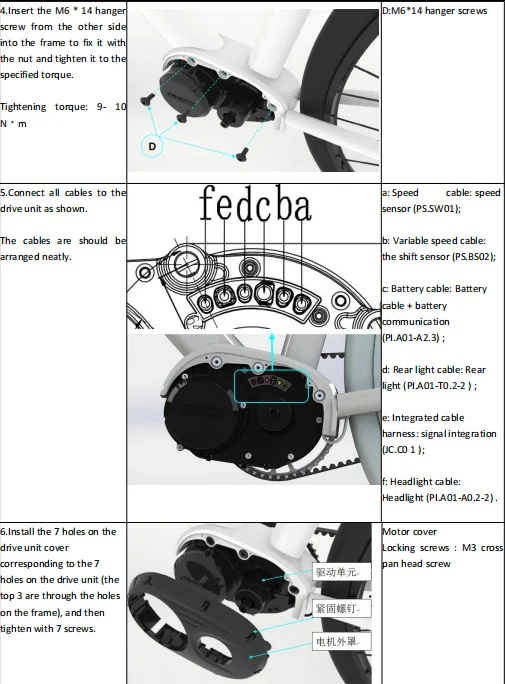

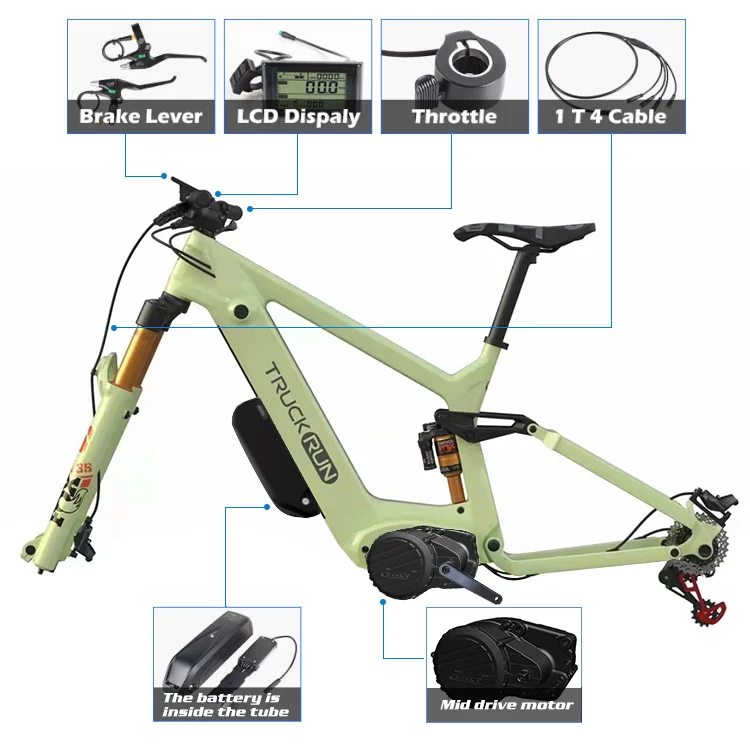

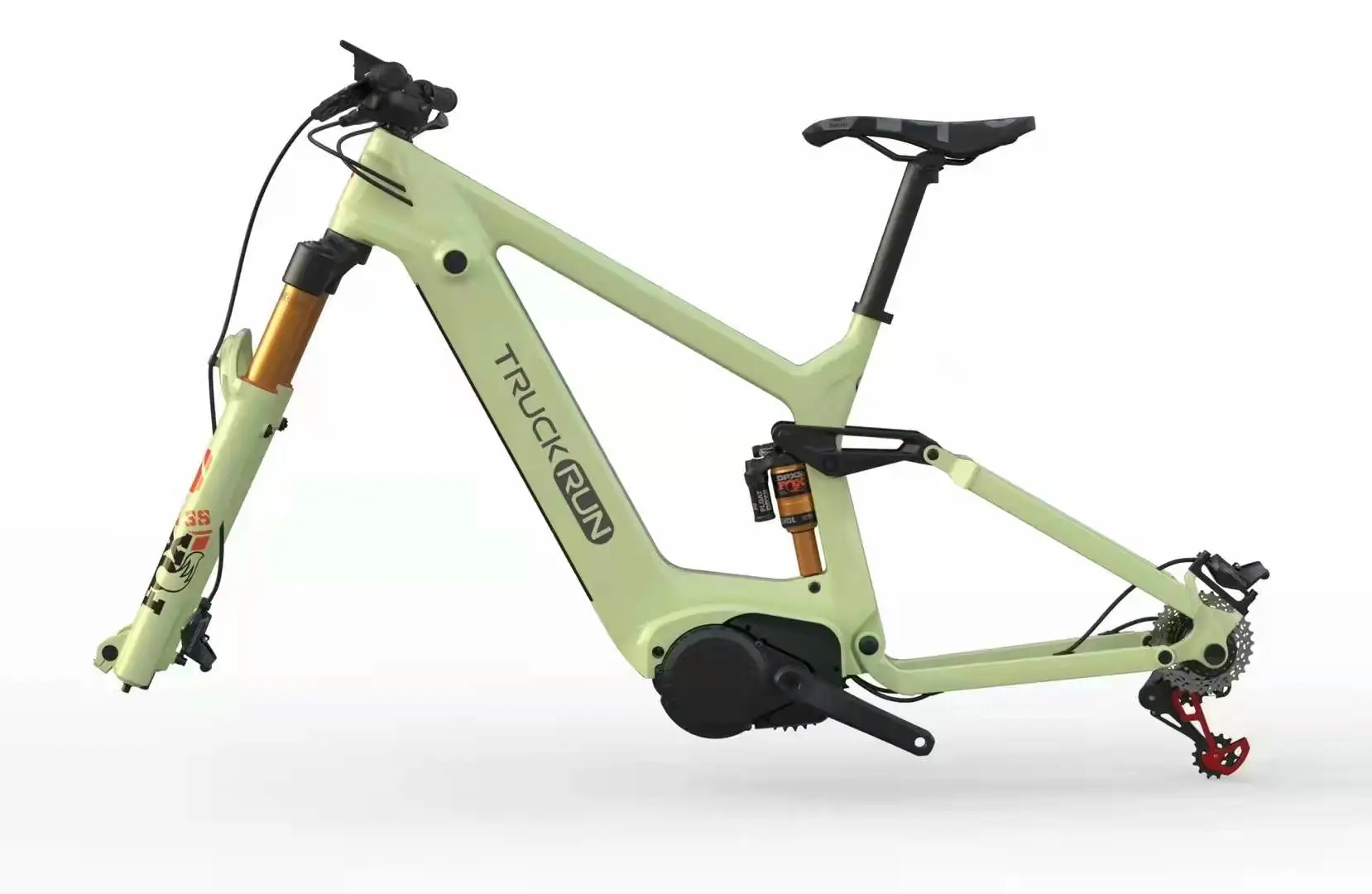

Install the mid drive motor

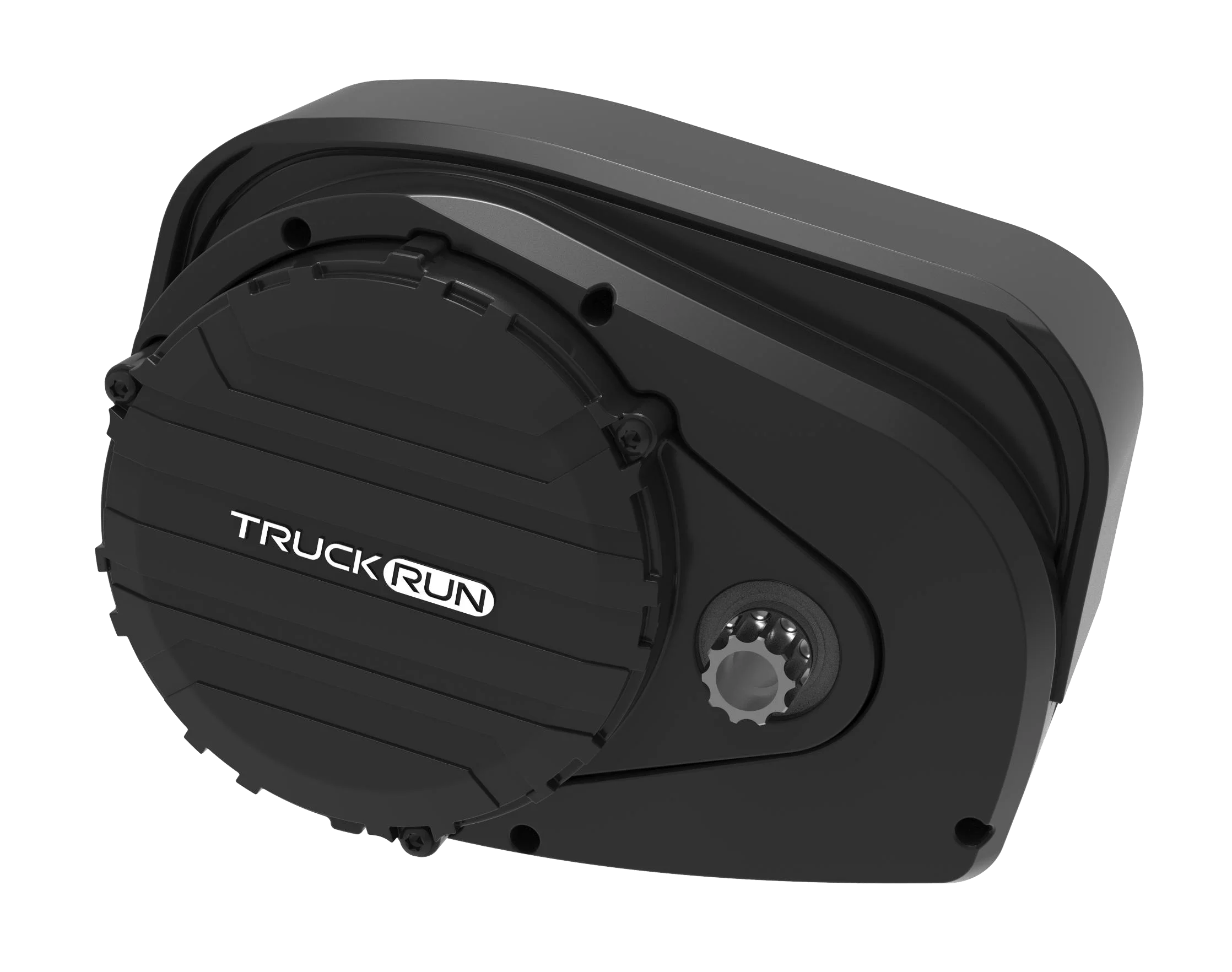

M09 | ||||
Installation location | Mid drive motor | |||
L*W*H/L*W*H(mm) | 236.8*151.7*127.3 | |||
Rated voltage (DCV) | 48 | |||
Rated power (W) | 1000W | |||
Rated speed (RPM) | 140±5 | |||
No-load speed (RPM) | 155±6 | |||
Max torque (N.M) | ≥180 | |||
Effeciency(%) | ≥80 | |||
Weight (Kg) | 6.1 | |||
Match teeth | 38T/42T/44T | |||
Chain center line CL (mm) | 48 | |||
Noise (dB) | ＜55 | |||
colour | Mattle-black | |||
Operating environment | -20℃-55℃ | |||
sensor | Speed and torque sensor | |||
Power off | brake/E- | Optional | ||
BrakeVariable | speed | Optional | ||
breaker Lighting (DCV/W) | DCV6V3W | |||
Salt spray test (h) | 96（h） | |||
waterproof level | IP65 | |||
Certification | EN15194/UL/ROHS | |||
