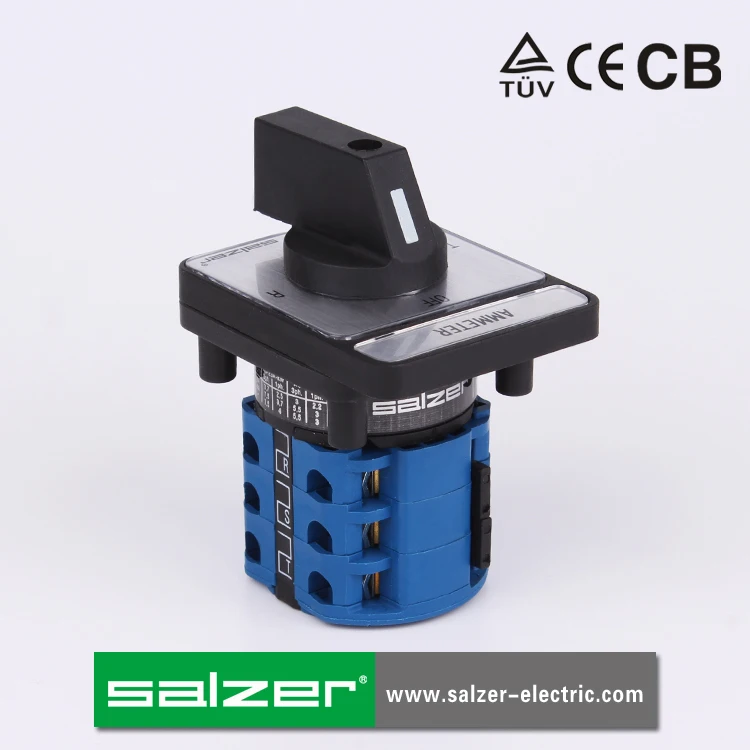

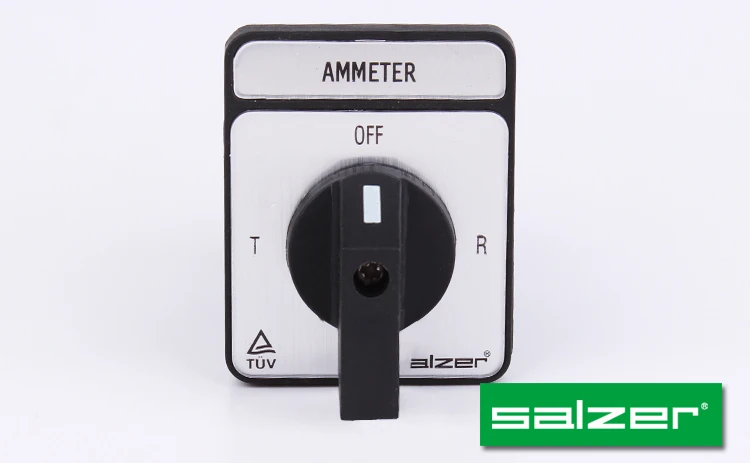

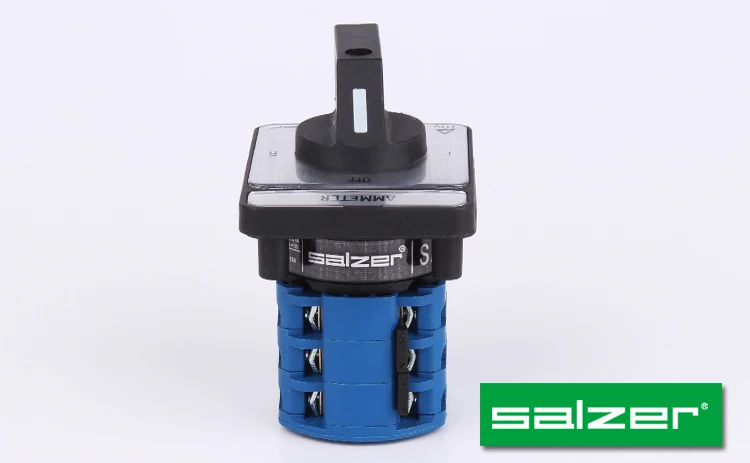

Salzer Ammeter Switch SA16 16 Amp OFF-R-Y-B 61325 48X60mm Rotary cam switch selector switch (TUV,CE and CB Approved)
Ammeter Switch
The ammeter cam switch is designed to measure the current flowing through each phase, and it is mainly used in combination with ammeter and current transformer.
General Information
| Switch Type | SA16 |
| Current | 16A |
| Max. Voltage | 690VAC |
| Plate Size | 48X60mm, 64x80mm |
| Faceplate | OFF-R-B |
| Degree of Rotation | 90° |
| Ingress Protection | IP20 with finger protection |
Technical parameters
| Description | SA10 | SA16 | SA25 | SA32 | SA63 | SA125 | SA160 | SA315 | |||||||||||||
| Rated insulation voltage Ui | V | 440 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | 660/690 | ||||||||||||
| Rated thermal current lth | A | 10 | 16 | 25 | 32 | 63 | 125 | 160 | 315 | ||||||||||||
| Rated working voltage Ue | V | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 120 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Rared working current le | |||||||||||||||||||||
AC-21A AC-22A | A | 10 | 10 | 16 | 16 | 25 | 25 | 32 | 32 | 63 | 63 | 100 | 100 | 150 | 150 | 315 | 315 | ||||
AC-23A | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
| AC-2 | A | 7.5 | 7.5 | 13 | 13 | 22 | 22 | 30 | 30 | 57 | 57 | 90 | 90 | 135 | 135 | 265 | 265 | ||||
AC-3 | A | 5.5 | 5.5 | 11 | 11 | 15 | 15 | 22 | 22 | 36 | 36 | 75 | 75 | 95 | 95 | 110 | 110 | ||||
| AC-4 | A | 1.75 | 1.75 | 3.5 | 3.5 | 6.5 | 6.5 | 11 | 11 | 15 | 15 | 30 | 30 | 55 | 55 | 95 | 95 | ||||
| AC-15 | A | 2.5 | 1.5 | 5 | 4 | 8 | 5 | 14 | 6 | ||||||||||||
DC-13 | A | 0.25 | 1.5 | 25 | 11 | ||||||||||||||||
Rated control power | |||||||||||||||||||||
AC-23A | kW | 1.8 | 3 | 3.7/2.5 | 7.5/3.7 | 5.5/3 | 11/5.5 | 7.5/4 | 15/7.5 | 15/10 | 30/18.5 | 30/15 | 45/22 | 37/22 | 75/37 | 75/37 | 132/55 | ||||
AC-2 | kW | 2.5 | 3.7 | 4 | 7.5 | 5.5 | 11 | 7.5 | 15 | 18.5 | 30 | 30 | 45 | 37 | 35 | 55 | 95 | ||||
AC-3 | kW | 1.5 | 2.2 | 3/2.2 | 5.5/3 | 4/3 | 7.5/3.7 | 5.5/4 | 11/5.5 | 11/6 | 18.5/11 | 15/7.5 | 30/13 | 22/11 | 37/18.5 | 37/22 | 55/30 | ||||
AC-4 | kW | 0.37 | 0.55 | 0.55/0.75 | 1.5/1.5 | 1.5 | 3/2.2 | 2.7/1.5 | 5.5/3 | 5.5/2.4 | 7.5/4 | 6/3 | 12/5.5 | 10/4 | 15/7.5 | 15/7.5 | 25/11 | ||||
main product
our company
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
Packaging & Shipping
FAQ
Please don't hesitate to contact us if any special specifications are needed.
