Photovoltaic panels Monocrystalline Solar panels 450 W Energy panel

Product Overview

Description

We manufacture solar panels with installation worldwide for big Farms.

We offer 25 years warranty with european standard.

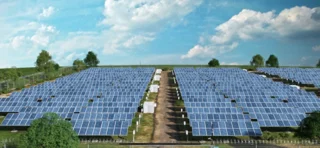

FARM PHOTOVOLTAIC SOLAR PARK

Technology for development



DESCRIPTION

The solar park will be built in phase 1 on an area of 25,000 m2, prepared to generate 3.15 Megawatts with 7,000 solar panels, 5 transformation centers, a distribution center, with modular technology that allows it to be expanded to 4.4 and 5 .05 mw projected in a total area of 63,000 m2 in phase 3.

OVERALL OBJECTIVE

Achieve the generation of clean and sufficient energy to supply the general consumption network from the solar plant for the consumption of the farm.



Specific objective 1

Scalability, the photovoltaic park had to be designed and projected for future expansion.



Specific objective 2

Quality of the complex and optimization of the available resources, the components had to be of quality to guarantee the highest performance and durability.



Specific objective 3

Generate ecological and sustainable electrical energy, reducing CO2 emissions and protecting the environment.



Solution 1

The technology developed and the high-quality components will allow for modular expansions in three phases of 3.15 MW, 4.40 MW and 5.05 MW



Solution 2

All the components comply with the most demanding regulations and international standards for this type of installation, however, the technological design used reduces the number of critical components and generates savings in maintenance and repairs.



Solution 3

Clean energy is produced and the environment is protected







THE RESULT



The photovoltaic power generation park is projected to be expanded in the future in three stages and will be built with top quality components and standards and under a design with innovative technology.



THE SOLAR PARK IN NUMBERS



We point out the magnitude and characteristics of the different components of the facilities









POWER

Projected in number of megawatts generated.



REQUIRED AREA

 25,000 M2 Phase 1

 45,000 M2 Phase 2

 63,000 M2 Phase 3



7,000 SOLAR PANELS

high-quality 430 - 450 W / 144 cells, monocrystalline module, meets the most demanding international standards with a 25-year warranty.

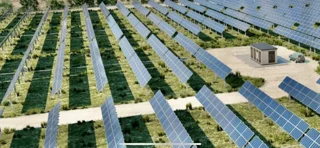

5 TRANSFORMATION CENTERS IN PHASE 1

Compact concrete units that integrate inside, inverters, transformers, protection cells, etc. This technology centralizes the control and supervision of the different functionalities of the solar park, increasing safety and generating savings in maintenance processes.



O1 DISTRIBUTION CENTER

Concrete structure that contains medium voltage cells, to evacuate energy to the general network.





COMPONENTS OF A TRANSFORMATION CENTER

Plant inverters, distribution panels, medium voltage transformer.

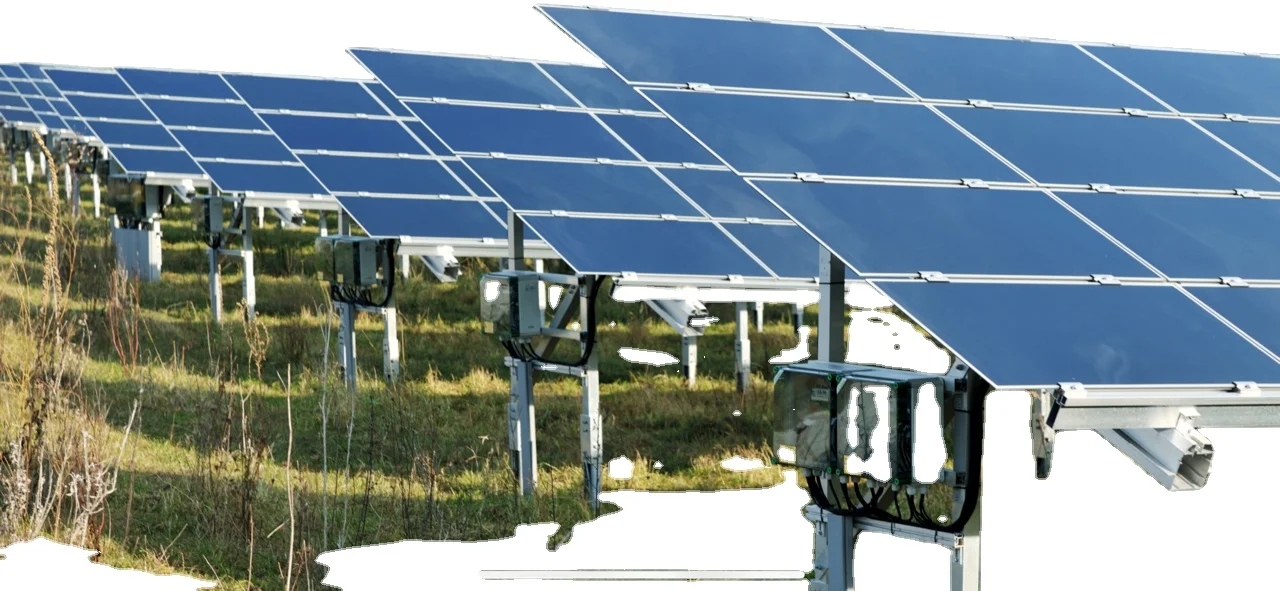

20,000 METERS OF SUPPORT SYSTEM

Rutan rammed structure, used for the implementation of photovoltaic modules in Vertical / Horizontal with variable inclination, the modules are fixed with INOX A-2-M8 screws and the ground structure with C-section steel profiles with Magnelis anticorrosive treatment.



FOR A SUSTAINABLE AND BETTER WORLD.
