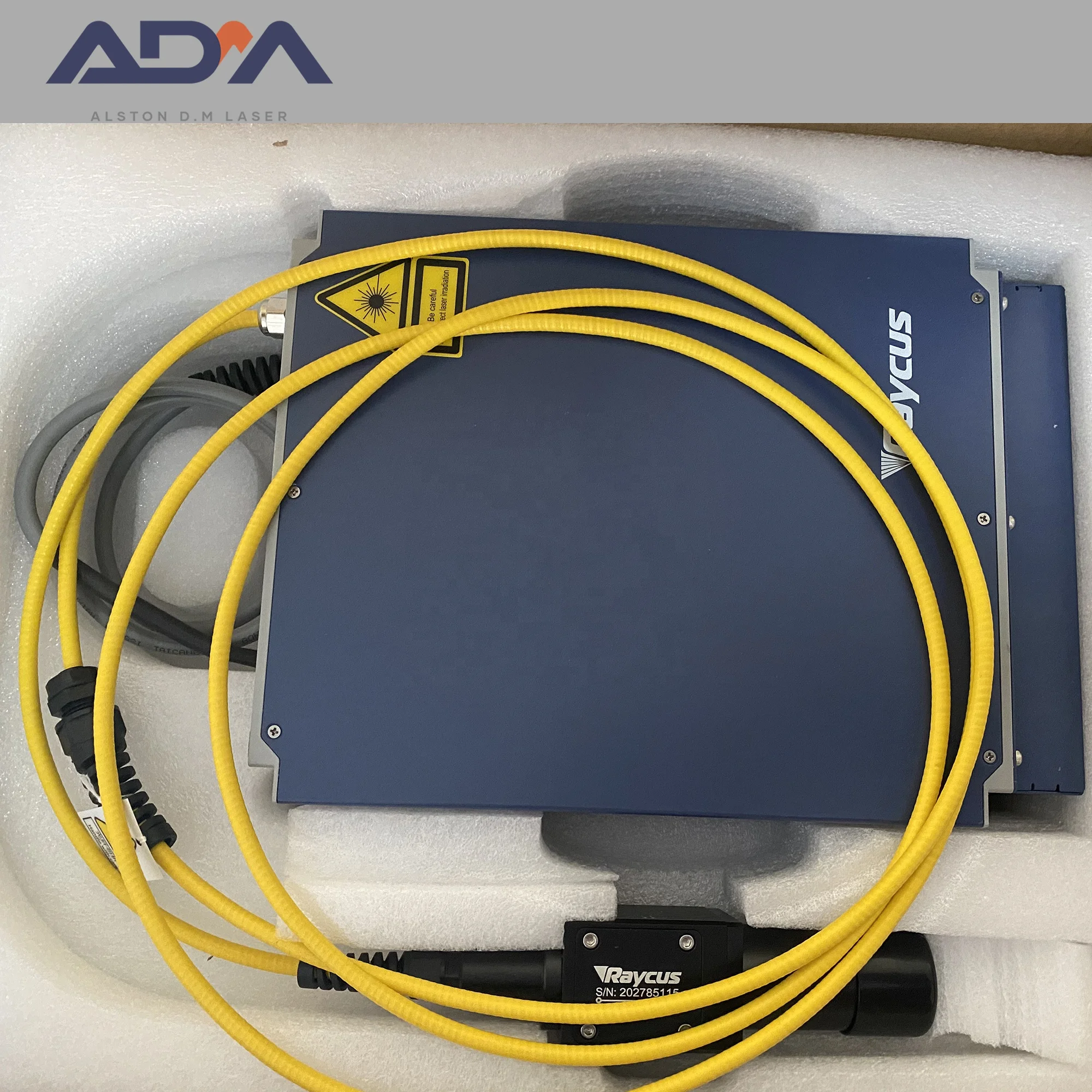

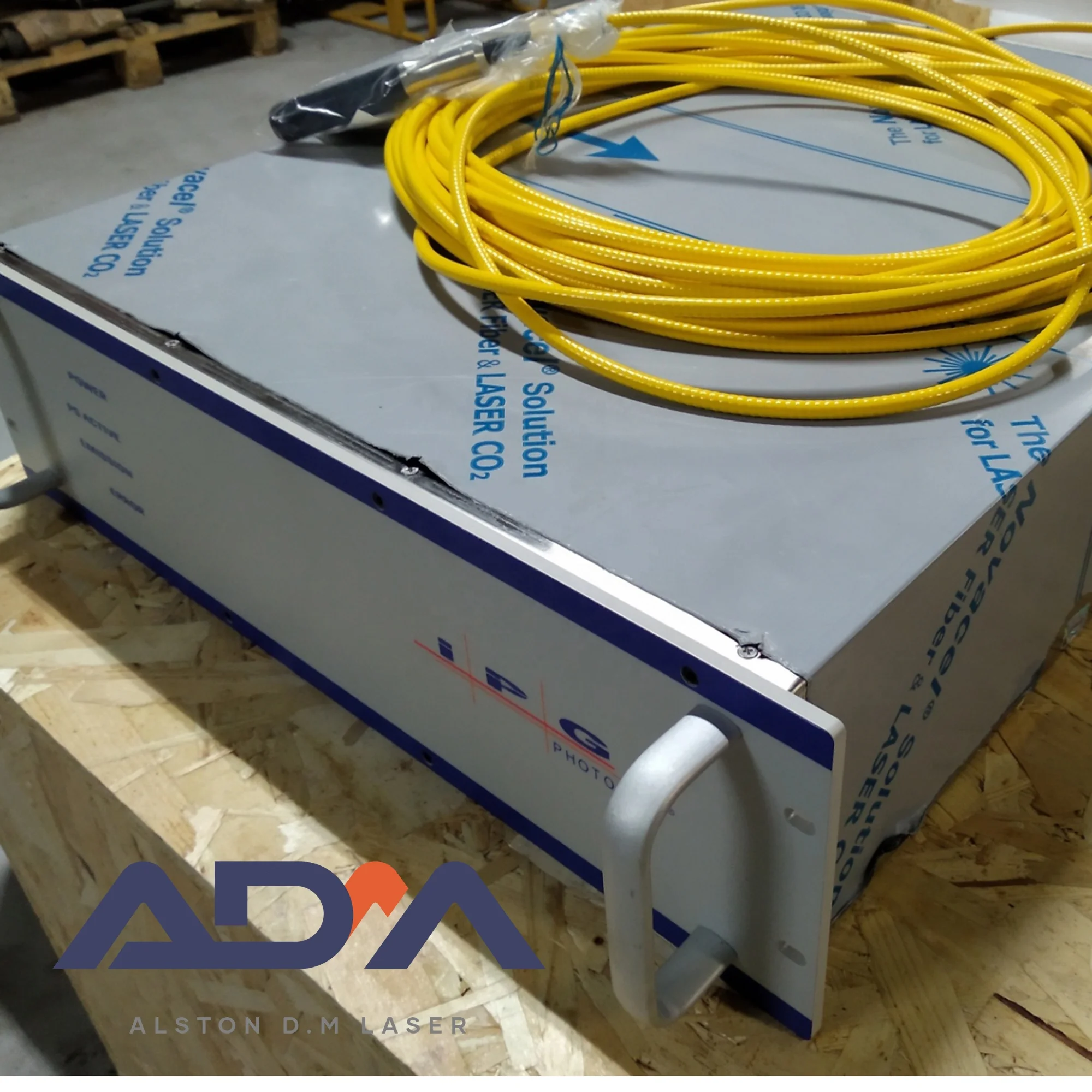

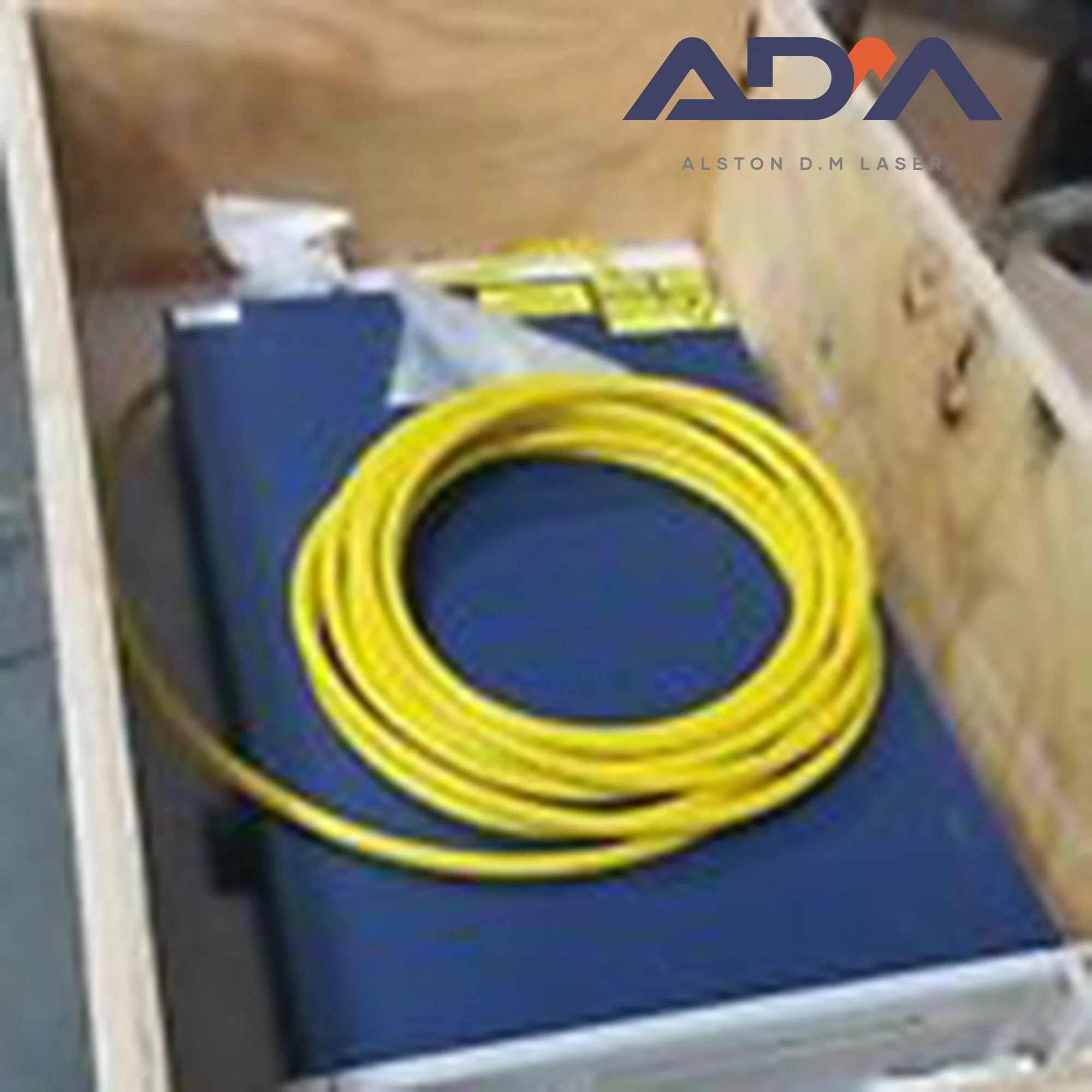

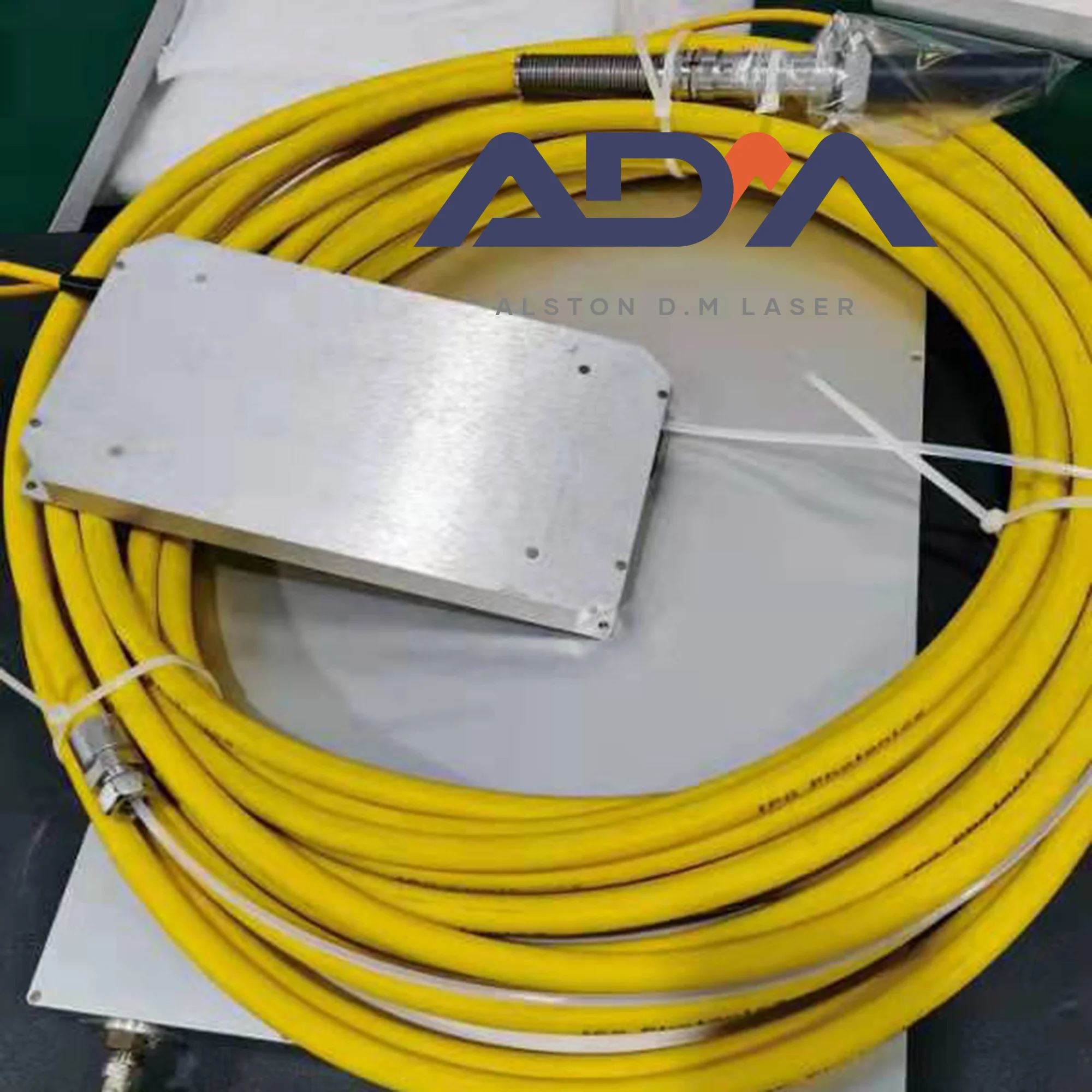

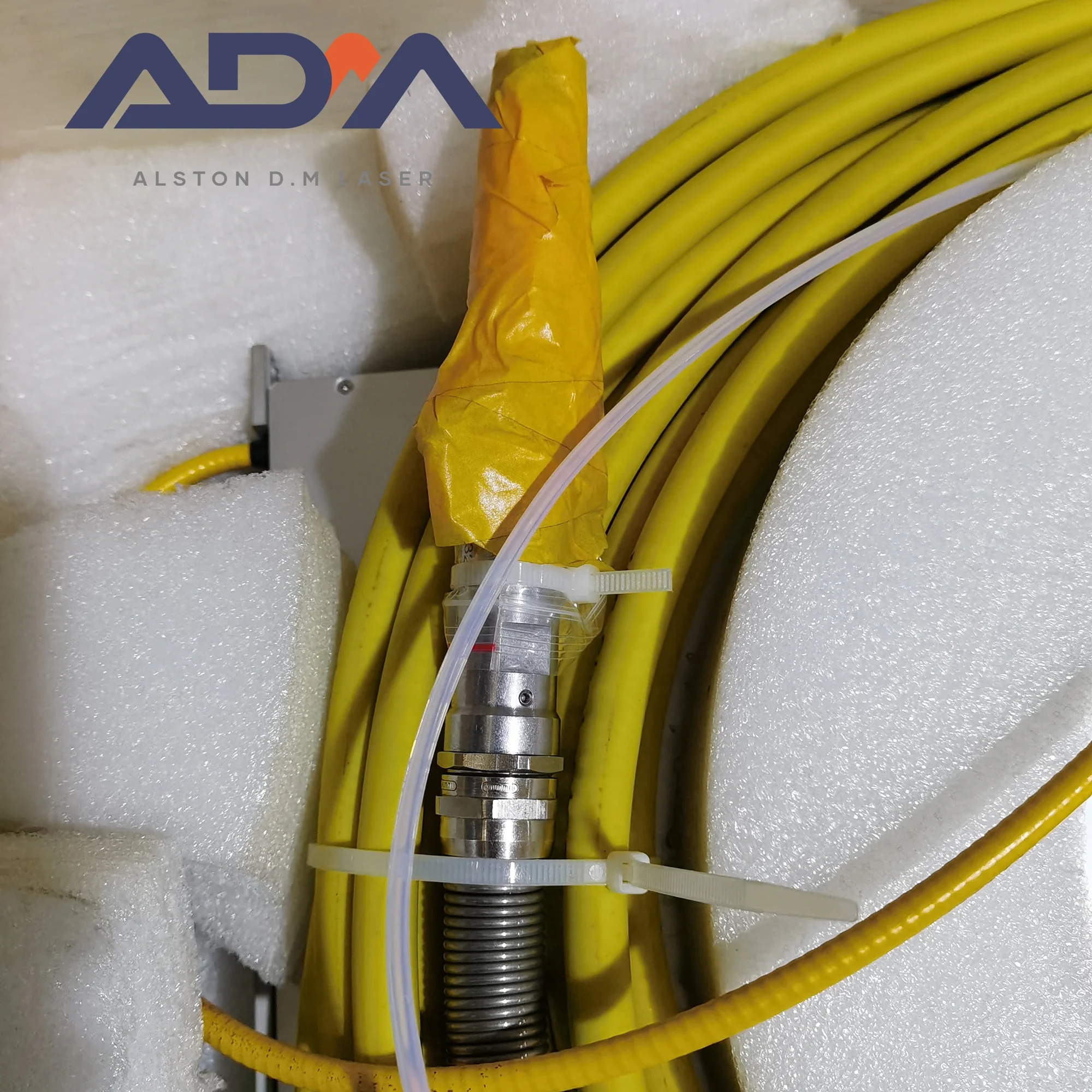

20/25/50um Optical Fiber Yellow Cable For IPG Raycus MAX JPT Reci Customized QBH Fiber Laser Cable
- Category: >>>
- Supplier: Suzhou Alston D.M Laser Technology Co. Ltd
Share on (1600479284984):
Product Overview
Description
Products Description
Our Advantages
Why use our Optical Fiber upgrade solution for Machines instead of Buying New Machines?
5. Combining with Wuhan Raycus laser source Company, we have mastered the core technology of the fiber laser source. The service of maintenance and upgrade is guaranteed for lifetime, and there is no worries about further cooperation.
6. Bystronic Laser Cutting CNC System and hardware platform are fixed, and the system after software rebooting and updating is more smooth and efficient.
7. A new Bystronic fiber machine costs about almost 600 thousand--1 million USD. Upgrading the existing CO2 machine costs less than 300 thousand USD, which is a much economic than new machine purchaser.
There are many Chinese laser cutting machines manufacturers, but many of them can not offer high power laser cutting, and if chooses wrong supplier, their machine tools can not use in long time and unstable. The cost is higher than upgrading. Instead of spending more money, it is better to improve the power of laser, cutting efficiency and quality is higher!
1. Bystronic is the second largest cutting machine company in the worldwide. The machine tool performance is excellent. Optical-mechanical-electrical is only too weak in the optical field. We are just filling the short-coming.
2. International cooperation and development of core technology, only laser replacement, maintaining the excellen performance of original machinery, electricity and software. Bystronic machine tool has good dynamic response, large output per unit time,convenient operation and good human-computer interaction.
3.Avoid spending a lot of money on new machines. Now the economic downturn is under great pressure. Enterprises invest cautiously to save costs and generally avoid large investments in new equipment.
4.Save the much work and time of machine installation, debugging and training, save time and reduce costs.
2. International cooperation and development of core technology, only laser replacement, maintaining the excellen performance of original machinery, electricity and software. Bystronic machine tool has good dynamic response, large output per unit time,convenient operation and good human-computer interaction.
3.Avoid spending a lot of money on new machines. Now the economic downturn is under great pressure. Enterprises invest cautiously to save costs and generally avoid large investments in new equipment.
4.Save the much work and time of machine installation, debugging and training, save time and reduce costs.
5. Combining with Wuhan Raycus laser source Company, we have mastered the core technology of the fiber laser source. The service of maintenance and upgrade is guaranteed for lifetime, and there is no worries about further cooperation.
6. Bystronic Laser Cutting CNC System and hardware platform are fixed, and the system after software rebooting and updating is more smooth and efficient.
7. A new Bystronic fiber machine costs about almost 600 thousand--1 million USD. Upgrading the existing CO2 machine costs less than 300 thousand USD, which is a much economic than new machine purchaser.
There are many Chinese laser cutting machines manufacturers, but many of them can not offer high power laser cutting, and if chooses wrong supplier, their machine tools can not use in long time and unstable. The cost is higher than upgrading. Instead of spending more money, it is better to improve the power of laser, cutting efficiency and quality is higher!
Our Service and Supplying
Configurations: | ||||||
Components | Solution with IPG | Solution with Raycus | Note | |||
Laser Source | IPG 2000W-6000W | Raycus 2000W-6000W | ||||
Laser Cutting head | Raytool | Raytool | BM111/114S/115 | |||
CNC Controller | TA6000 | TA6000 | ||||
Chiller | TongFei | TongFei | 2000W-6000W | |||
Drag chain | Igus | Igus | Germany | |||
Spare parts for upgrade | Corresponding | Corresponding | ||||
1-year consumable parts | Lens,Nozzles,Ceramic ring…… | Lens, Nozzles, Ceramic ring…… | ||||
Solution details
Main features of the upgraded fiber laser cutting machine
Innovative fiber lasers can achieve unprecedented efficiency and precision in cutting thin metal sheets
High-tech fiber technology combined with sophisticated mechanical systems
Fiber laser energy is high in energy efficiency, high in output, easy to operate, more economical and
environmentally friendly.
2.1 Machine structure after upgrade (without change)
High-speed stable gantry structure, open operating space
The most convenient access to the machine working area
No need for clamping, automatic edge finding, automatic positioning, fast order processing
High quality, long-term stability and reliability, minimum maintenance
2.2 After the upgrade the drive system (without change)
AC servo disc motor is directly driven, no intermediate gearbox, high momentum, low inertia
High dynamic performance (acceleration), high precision, long-term stability and reliability
Closed drive system, centralized lubrication for long-term protection
Main features of the upgraded fiber laser cutting machine
Innovative fiber lasers can achieve unprecedented efficiency and precision in cutting thin metal sheets
High-tech fiber technology combined with sophisticated mechanical systems
Fiber laser energy is high in energy efficiency, high in output, easy to operate, more economical and
environmentally friendly.
2.1 Machine structure after upgrade (without change)
High-speed stable gantry structure, open operating space
The most convenient access to the machine working area
No need for clamping, automatic edge finding, automatic positioning, fast order processing
High quality, long-term stability and reliability, minimum maintenance
2.2 After the upgrade the drive system (without change)
AC servo disc motor is directly driven, no intermediate gearbox, high momentum, low inertia
High dynamic performance (acceleration), high precision, long-term stability and reliability
Closed drive system, centralized lubrication for long-term protection
Warranty and Compromise.
---We offer 2 years warranty for the laser source. One year for other parts.
---Guarantee the excellent mechanical and electrical performance of the Bystronic cutting machine, and it can be used for another 10 years.
---The machine stays in the same place and does not require large-scale construction.
---The operator does not need to do the training after upgrading the equipment. The operation is exactly the same as before.
---Preparation in advance, and complete the whole installation and commissioning work within 2--3 days, even can work and finish in the weekend. No delay in production.
---We offer 2 years warranty for the laser source. One year for other parts.
---Guarantee the excellent mechanical and electrical performance of the Bystronic cutting machine, and it can be used for another 10 years.
---The machine stays in the same place and does not require large-scale construction.
---The operator does not need to do the training after upgrading the equipment. The operation is exactly the same as before.
---Preparation in advance, and complete the whole installation and commissioning work within 2--3 days, even can work and finish in the weekend. No delay in production.
Cutting parameters
3000W Cutting Parameters | ||||||||||||
Mild Steel O2 | ||||||||||||
Thickness (mm) | Cutting Power （W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
6 | 3000W | 3 | O2 | 0.6-1.0 | D1.0/D1.2 | 3--3.2 | ||||||
8 | 3000 | 3 | O2 | 0.6-1.0 | D1.2 | 2--2.3 | ||||||
10 | 3000 | 3 | O2 | 0.6-1.0 | D1.2 | 1.5--1.7 | ||||||
12 | 3000 | 3 | O2 | 0.6-1.0 | D2.0/D2.5 | 0.8--1 | ||||||
14 | 3000 | 3 | O2 | 0.6-1.0 | D2.5/D3.0 | 0.8--0.9 | ||||||
16 | 3000 | 3 | O2 | 0.6-1.0 | D3.0 | 0.7--0.85 | ||||||
20 | 3000 | 4 | O2 | 0.6-1.0 | D3.5 | 0.65--0.8 | ||||||
Mild Steel Air | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | Air | 16 | S2.0 | 25--30 | ||||||
2 | 3000 | -2 | Air | 16 | S2.0 | 12--15 | ||||||
Stainless Steel N2 | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | N2 | 12 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | N2 | 12 | S2.0 | 15--18 | ||||||
3 | 3000 | -2.5 | N2 | 13 | S2.0 | 8--10 | ||||||
4 | 3000 | -3.5 | N2 | 13 | S2.5 | 5.4--6 | ||||||
5 | 3000 | -4 | N2 | 16 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -4.5 | N2 | 16 | S3.0 | 1.8--2.6 | ||||||
8 | 3000 | -5.5 | N2 | 16 | S3.0 | 1.0--1.3 | ||||||
10 | 3000 | -6 | N2 | 16 | S3.5 | 0.6--0.8 | ||||||
12 | 3000 | -7 | N2 | 20 | S4.0 | 0.5--0.7 | ||||||
Stainless Steel Air | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1 | Air | 16 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | Air | 16 | S2.0 | 15--18 | ||||||
3 | 3000 | -2.5 | Air | 16 | S2.0 | 8--10 | ||||||
4 | 3000 | -3.5 | Air | 16 | S2.5 | 5.4--6 | ||||||
5 | 3000 | -4 | Air | 16 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -4.5 | Air | 16 | S3.0 | 1.8--2.6 | ||||||
8 | 3000 | -5.5 | Air | 16 | S3.0 | 1.0--1.3 | ||||||
10 | 3000 | -6 | Air | 16 | S3.5 | 0.6--0.8 | ||||||
12 | 3000 | -7 | Air | 16 | S4.0 | 0.5--0.7 | ||||||
AL N2 | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -1.0 | N2 | 12 | S2.0 | 30--40 | ||||||
2 | 3000 | -1.5 | N2 | 12 | S2.0 | 15--20 | ||||||
3 | 3000 | -2.0 | N2 | 12 | S2.0 | 8--10 | ||||||
4 | 3000 | -2.5 | N2 | 13 | S2.5 | 5--6.5 | ||||||
5 | 3000 | -3.0 | N2 | 14 | S2.5 | 2.8--3.5 | ||||||
6 | 3000 | -3.5 | N2 | 14 | S3.0 | 2--2.5 | ||||||
8 | 3000 | -4.0 | N2 | 15 | S3.0 | 0.8--1.3 | ||||||
10 | 3000 | -4.5 | N2 | 15 | S3.0 | 0.5--0.65 | ||||||
12 | 3000 | -5.0 | N2 | 16 | S3.0 | 0.3--0.45 | ||||||
Copper | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | 0 | N2 | 8 | S1.5 | 15--18 | ||||||
2 | 3000 | -1 | O2 | 10 | S1.5 | 7--9 | ||||||
3 | 3000 | -2.5 | O2 | 10 | S1.5 | 3--3.5 | ||||||
4 | 3000 | -3 | O2 | 10 | S2.0 | 1.5--2 | ||||||
5 | 3000 | -4 | O2 | 10 | S2.5 | 0.8--1 | ||||||
Brass N2 | ||||||||||||
Thickness (mm) | Cutting Power（W） | Focus （mm） | Cutting Gas | Gas pressure（bar） | Nozzle type (S-Single，D-Double) | Cutting Speed (M/Min) | ||||||
1 | 3000 | -0.5 | N2 | 12 | S2.0 | 22--30 | ||||||
2 | 3000 | -1.5 | N2 | 13 | S2.0 | 10--14 | ||||||
3 | 3000 | -2.5 | N2 | 14 | S2.0 | 5--7 | ||||||
4 | 3000 | -3 | N2 | 14 | S2.5 | 3--4 | ||||||
5 | 3000 | -3.5 | N2 | 15 | S2.5 | 2--2.5 | ||||||
6 | 3000 | -4 | N2 | 16 | S3.0 | 1.3--1.5 | ||||||
8 | 3000 | -4.5 | N2 | 16 | S3.0 | 0.5--0.8 | ||||||
Note: 1) All the lens inside the laser head need clean. 2) Cutting gas purity meets the requirements O2:99.95%,N2:99.99%. 3) Plate meets laser cutting requirements (smooth surface, no rust, no paint, etc.) 4) AL is high reflection lens, Mass produce thickness is 1-6MM. | ||||||||||||
Company Profile
About ADM
Suzhou Alston D.M Laser Technology Co., Ltd is an integration of laser cutting machine manufacturer and
industrial machinery trading company based in south central China, Suzhou city.
Suzhou Alston D.M Laser Technology Co., Ltd
Suzhou Alston D.M Laser Technology Co., Ltd is dedicated and committed to represent the highest quality
in equipment and customer service.
Who we are
1. An ambitious laser cutting machine manufacturer that enjoys a leaping growth over the past 6 continuous years.
2.Laser cutting machine and parts exporter in China.
3.Metal sheet processing machinery & parts international trading and exporting.
4. Tech service provider, including machine installation, debugging, upgrading, maintenance, trouble-shooting.
5.Purchasing service provider, we help purchase all the industrial machinery and parts for clients.
Suzhou Alston D.M Laser Technology Co., Ltd is an integration of laser cutting machine manufacturer and
industrial machinery trading company based in south central China, Suzhou city.
Suzhou Alston D.M Laser Technology Co., Ltd
Suzhou Alston D.M Laser Technology Co., Ltd is dedicated and committed to represent the highest quality
in equipment and customer service.
Who we are
1. An ambitious laser cutting machine manufacturer that enjoys a leaping growth over the past 6 continuous years.
2.Laser cutting machine and parts exporter in China.
3.Metal sheet processing machinery & parts international trading and exporting.
4. Tech service provider, including machine installation, debugging, upgrading, maintenance, trouble-shooting.
5.Purchasing service provider, we help purchase all the industrial machinery and parts for clients.
Device model naming rules:
1. Solar system
2. The Milky Way (English: Milky Way Galaxy)
3. Andromeda Galaxy (English: Andromeda Galaxy; M31; NGC 224; once known as the Andromeda Nebula)
SS economic version
MWG quality version
AG high configuration version (VIP customer NGC 224)
1. Solar system
2. The Milky Way (English: Milky Way Galaxy)
3. Andromeda Galaxy (English: Andromeda Galaxy; M31; NGC 224; once known as the Andromeda Nebula)
SS economic version
MWG quality version
AG high configuration version (VIP customer NGC 224)
FAQ
1. What is your Fiber Laser Cutting Machine Advantages?
Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers’ who have built relationship
with us for more than 10 years
2. Do You Have Agents or Distributors in Our Country?
We have ender-users all over the world.At present, we have agency in India, Vietnam and Russia.If you are interested in agency cooperation, please contact us for detailed agency policy.
3. Are you a factory or a trading company?
We are factory, with headquarter in Suzhou,JIangsu province , and branch in Wuhan,Hubei province.
4. When I got this machine, but I don’t know how to use it. What should I do?
We will provide user manual and video of the machine. In addition, our engineer can also provide training online. If necessary, we can also provide door-to-door service
5. If some problems happen to this machine during the warranty period, what should I do?
We will provide 2-3 Year Warranty, and will supply free parts during the machine warranty period if the machine has some problems.
We also supply free life long after-sales service. Thus, any problems, just feel free to let us know, we will provide you
solutions.
6. How to make the payment and how about the delivery time?
We accept to make the payment by T/T, Credit Card ,Online Bank Payment,etc.Lead time 10-15 working days for the standard machine;Lead time 20-27 working days for a non-standard machine.
7. Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?
8. Q: If we need Yosoontechnician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning, 1-3 working days.(Every one learning ability is
different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s business travelling
ticket / room and board/ and additional 100 USD per day.
9. About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
10. What’s package, will it protect the products?How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement . Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.
Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers’ who have built relationship
with us for more than 10 years
2. Do You Have Agents or Distributors in Our Country?
We have ender-users all over the world.At present, we have agency in India, Vietnam and Russia.If you are interested in agency cooperation, please contact us for detailed agency policy.
3. Are you a factory or a trading company?
We are factory, with headquarter in Suzhou,JIangsu province , and branch in Wuhan,Hubei province.
4. When I got this machine, but I don’t know how to use it. What should I do?
We will provide user manual and video of the machine. In addition, our engineer can also provide training online. If necessary, we can also provide door-to-door service
5. If some problems happen to this machine during the warranty period, what should I do?
We will provide 2-3 Year Warranty, and will supply free parts during the machine warranty period if the machine has some problems.
We also supply free life long after-sales service. Thus, any problems, just feel free to let us know, we will provide you
solutions.
6. How to make the payment and how about the delivery time?
We accept to make the payment by T/T, Credit Card ,Online Bank Payment,etc.Lead time 10-15 working days for the standard machine;Lead time 20-27 working days for a non-standard machine.
7. Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?
8. Q: If we need Yosoontechnician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning, 1-3 working days.(Every one learning ability is
different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s business travelling
ticket / room and board/ and additional 100 USD per day.
9. About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
10. What’s package, will it protect the products?How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement . Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for seaworthy transportation.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
