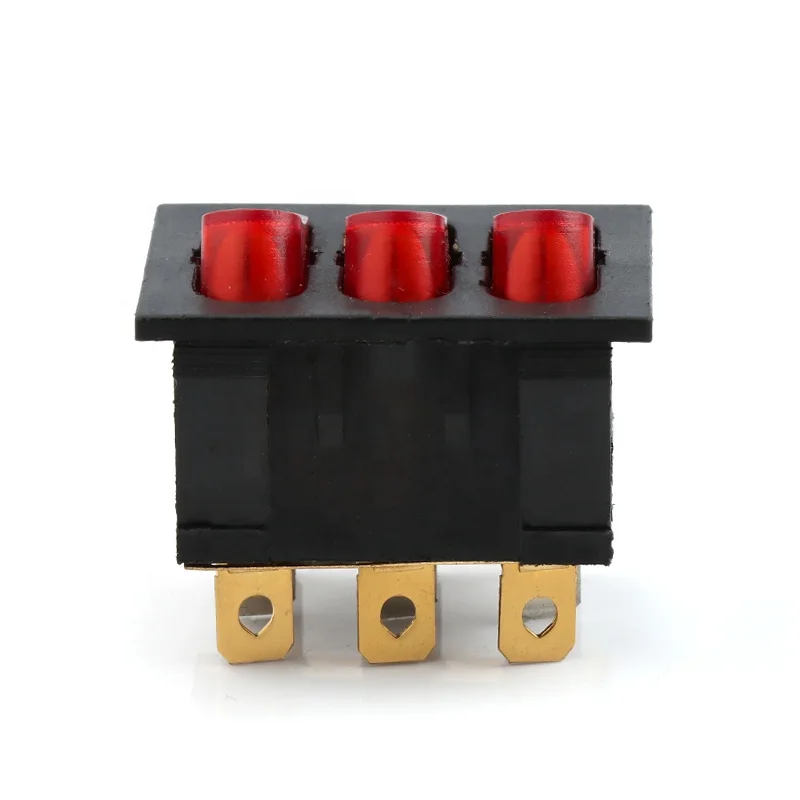

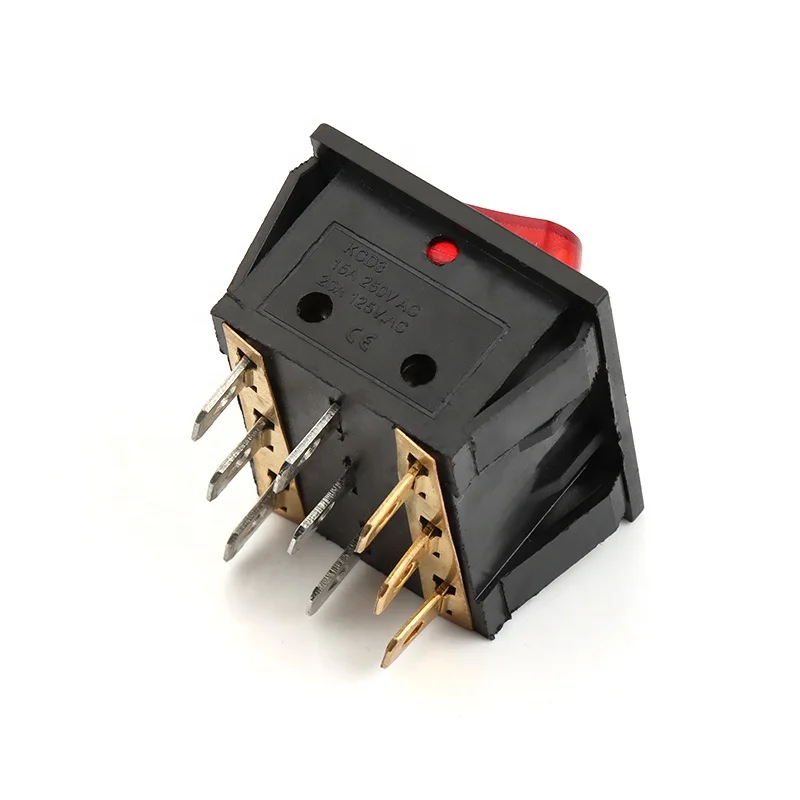

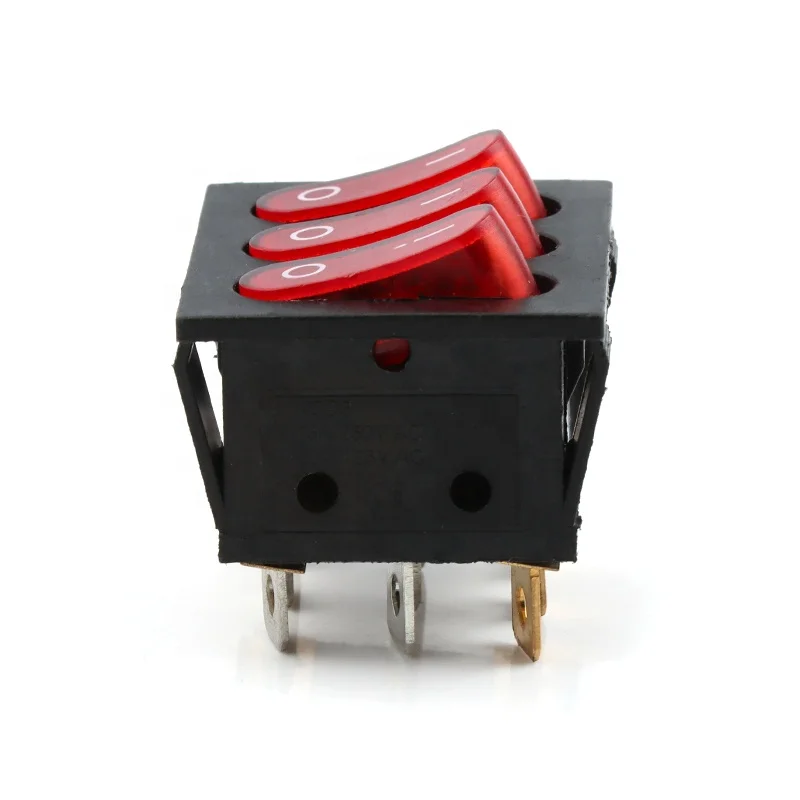

KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power
KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power
KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power
KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power
KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power
KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power

KCD3 rocker switches 9pins 2position illuminated Triple rocker switch with light power

Share on (1600479341981):


Price:

Quantity:


Product Overview

Description



Specification


Funtion
ON-OFF
Ambient Temperature
-10°C~+85°C
Electronic Life
>10000CYCLES
Storage Temperature
-25°C~+85°C
Mechanical Life
>10000CYCLES
Rating
15A 250VAC/20A 125V AC
Contact Resistance
<50MΩ
Color
Black/Red/Green
Insulation Resistance
>1000MΩ
Withstand Voltage
>1500V/MINUTE


Rocker switch is an on/off switch that rocks (rather than trips) when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth. Rocker switch may have a circle (for "on") on one end and a horizontal dash or line (for "off") on the other to let the user known if the device is on or off.
If you need more information or similar product,please contact us!


Product Description


KCD3-303

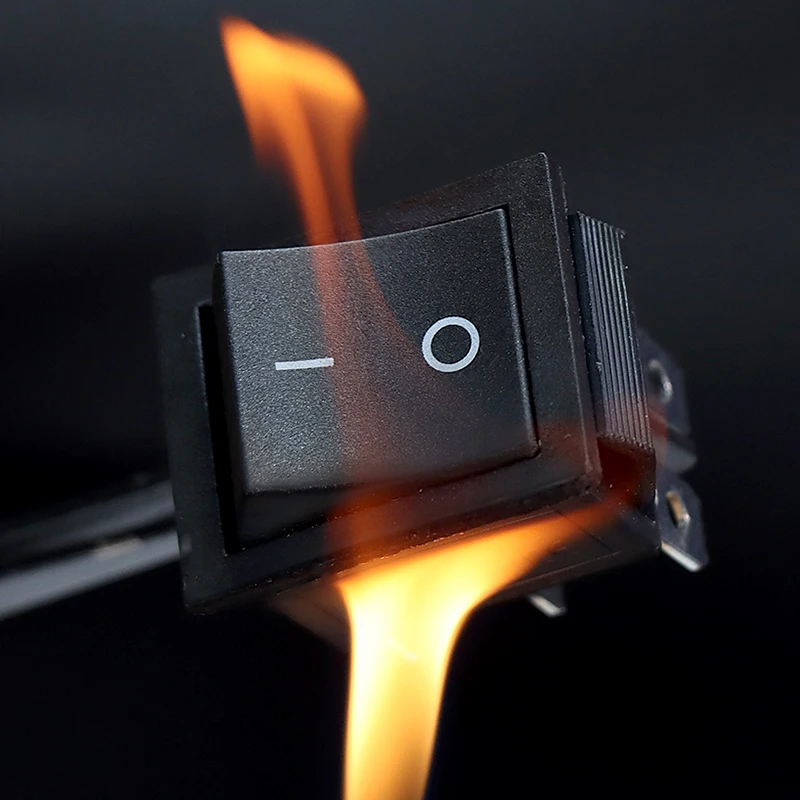

Temperature test
