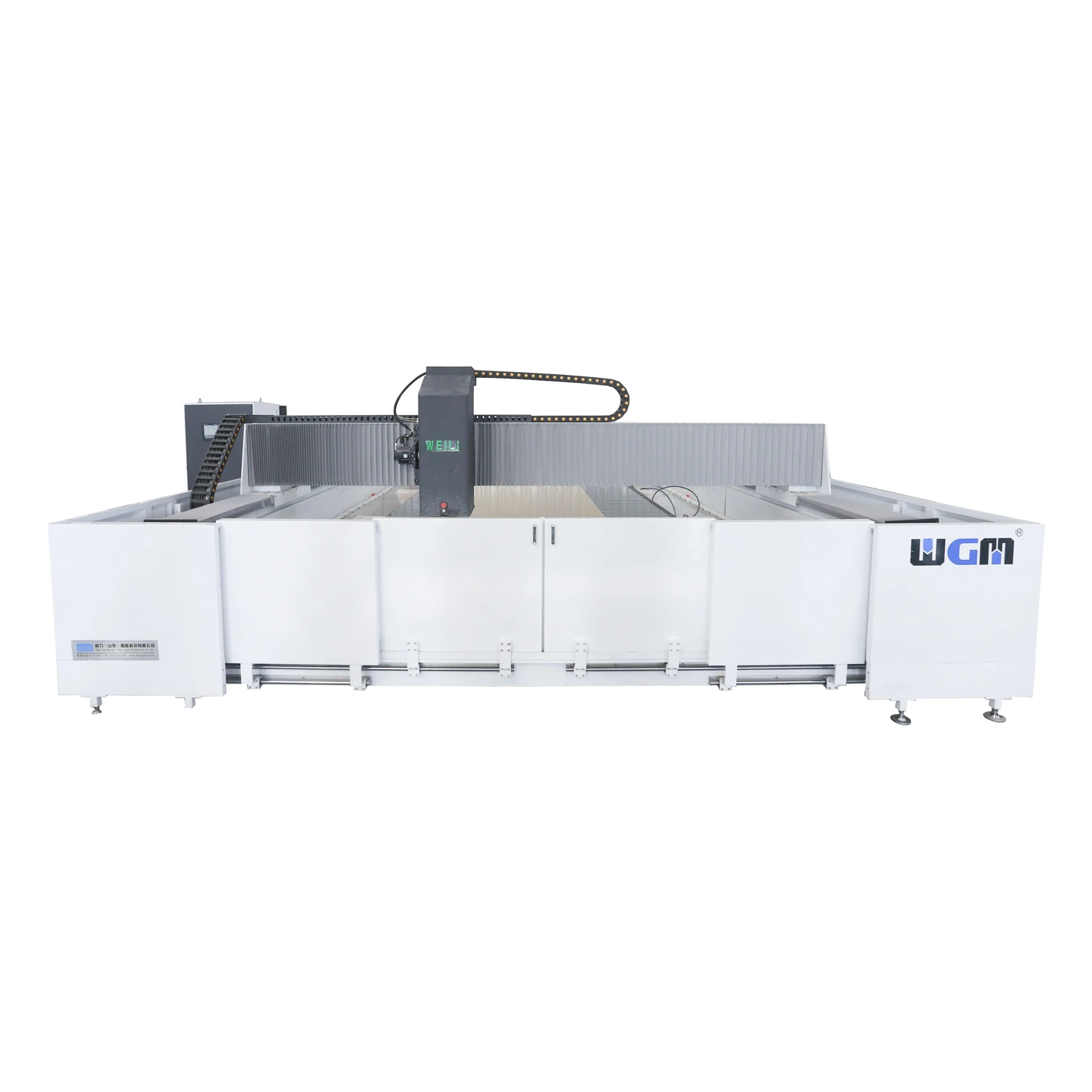

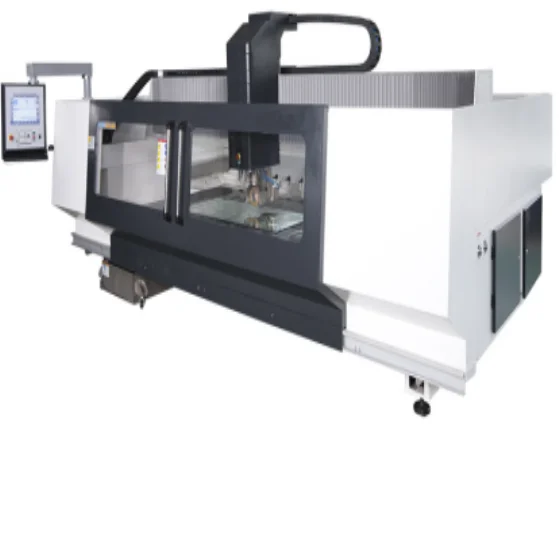

CNC Glass Engraving Machine

Share on:

Price:$45,000.00 - $70,000.00
Price in USD:Details


Product Overview


Product Description


Maximum size
1500 * 3000mm
Glass thickness
Grinding wheel specification
 Φ 110mm - Φ 160mm
Total power
20 kW
Machine size
6700 * 3000 * 1800 mm
Feed speed
X-axis 40 m/min Y-axis 40 m/min
Z-axis 20m/min C-axis 30 rpm
14 * 1

Company Profile



The work surface is made of rust-proof metal material, and the surface is hung with high-quality imported rubber. It is a special rubber work surface developed by technical engineers after repeated experiments. It has the excellent quality of long-term use without deformation and aging.

The Spindle Part
This part is one of the most important parts of the glass engraving machine. The main shaft parts of the engraving machine of our company have the following characteristics: the main shaft part is the water circuit, the gas circuit and the electric circuit, which are handled by experienced engineers with special structure, and the main shaft system structure is rationally used. The layout makes the spindle system structure durable. The maximum constant torque output, the output rated power is 3.7KW, the grinding head runs smoothly, reliably and durable.important parts of the glass engraving machine.

Control System
The control system adopts the advanced Japanese Mitsubishi control system to realize the dynamic management and accurate speed control of each axis, and the man-machine operation interface is simple and convenient.
The main features of the system include:
1.Design and control of man-machine interface;
2.Reduce the error of machine tool and improve the machining accuracy of parts;
3.Simple backup / restore;
4.Provide excellent product quality and ensure the reliability of machine tools;
