Wear Resisting Alumina Ceramic Wheel 95 Grinding Ceramic Parts
US $26.00-$32.00
11A2 Resin Diamond Carbide Tool Grinding Wheel for Carbide Drills and Milling Cutter Inserts for Deburring
- Category: Grinding Wheels >>>
- Supplier: Zhengzhou,Ruizuan,Diamond,Tool,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

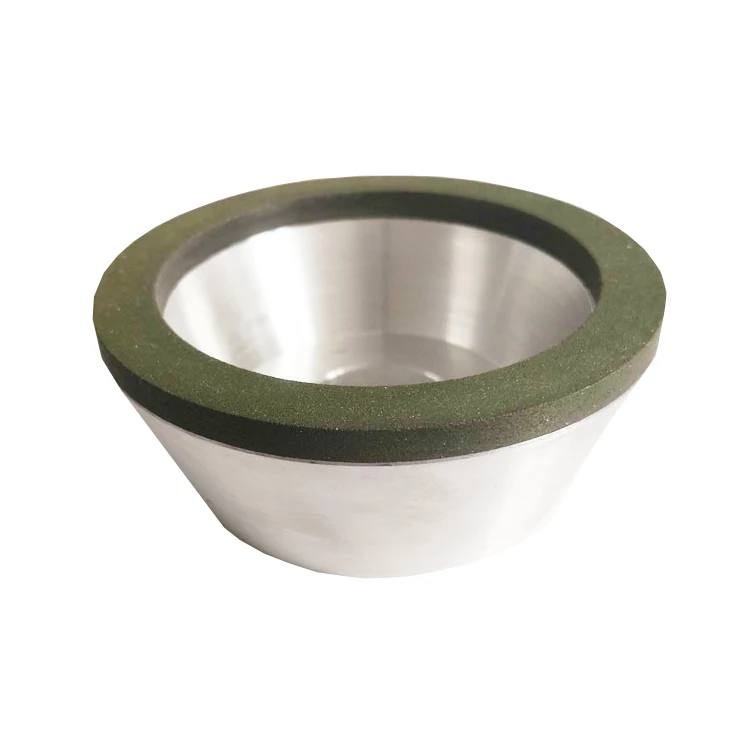

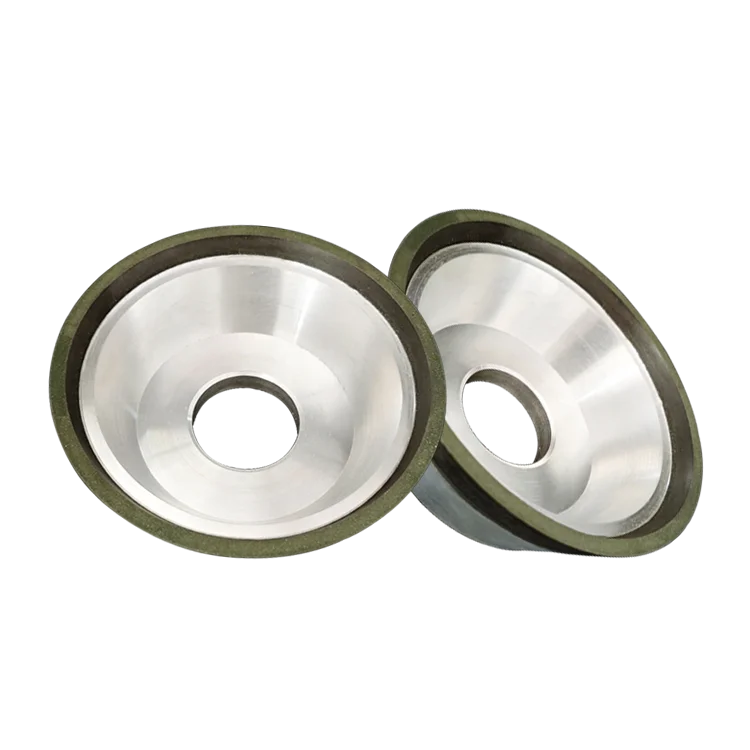

6A2 resin bond diamond grinding wheel disc for carbide burr end mills lathe tool router bits
A resinoid bond plain wheel is mainly used for surface grinding ,cylindrical grinding of hand carbide measuring tools ,cutting tools,moulds and also for plunge-cut grinding as well as for grinding.
Diamond Grinding Wheels For Sharpening Carbide Burr End Mills Lathe Tool Router Bits.
Our company deigned an excellent Resin Bond Diamond Grinding Wheels for grinding and sharpening TCT Circular Saw Blades. It performs well on face grinding, top grinding, Teeth Grinding, carbide tips grinding, carbide inserts grinding and also cylinder grinding. And our diamond wheels can work both for wet grinding and also dry grinding. Welcome to wholesale & OEM & ODM.
6A2 resin bond diamond grinding wheel disc for carbide burr end mills lathe tool router bits | ||||||||||
Shape | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) | |||||
100 | 25-40 | 16, 20, 31.75, 32 | 2-6 | 3-10 | ||||||
125 | 25-40 | 16, 20, 31.75, 32 | 2-6 | 3-10 | ||||||
150 | 25-40 | 16, 20, 31.75, 32 | 2-6 | 3-10 | ||||||
Wheel Shape | 11V9, 11A2, 4A2, 6A2, 1A1, 12A2, 12V9 | |||||||||
Any nonstandard size and grits size can customised (tell us size or drawing is enought) | ||||||||||
Product Features.
1. Good self-sharpening and sharp cutting
2. High efficiency and high precision
3. High resistence and best polishing
4. Low roughness of work piece surface
5. Less heat generating
6. Without burning work piece
2. High efficiency and high precision
3. High resistence and best polishing
4. Low roughness of work piece surface
5. Less heat generating
6. Without burning work piece
Application
The resin bond diamond grinding wheel is divided into two parts, a diamond working layer, and an aluminum base. The working layer is made of diamond powder and a resin binder (resin powder, and other mixed powder) and is solidified under heat and pressure.Then firmly bonded to the aluminum substrate, a diamond grinding tool with a certain shape.
Applicable machine brand:TM TOOLMASTER,CUTTERMASTERS,DECKEL,MICHAEL DECKEL,ISOG.
Applicable machine brand:TM TOOLMASTER,CUTTERMASTERS,DECKEL,MICHAEL DECKEL,ISOG.
Selection of grinding wheel elements.
1.hard grinding material, choose the soft, fine grit grinding wheel. Soft grinding material, should choose a hard, coarse grit grinding wheel. By doing this ,grinding wheel loss is small, also not easy to plug.
2. when doing the rough grinding ,in order to increase the productivity, the coarse grit, soft grinding wheel should be chosen,In order to improve the surface quality of the work piece during accurate grinding , the fine grit ,hard grinding wheel should be chosen.
3.the large area of grinding or thin-walled work piece grinding should choose the coarse grit, soft grinding wheel. This wheel is not easy to plug, the surface of the work piece is not easy to burn, the work piece is not easy to deformation.
4. form grinding process to select the fine grit, the small organization, and the hard grinding wheel to maintain the profile of the grinding wheel.
2. when doing the rough grinding ,in order to increase the productivity, the coarse grit, soft grinding wheel should be chosen,In order to improve the surface quality of the work piece during accurate grinding , the fine grit ,hard grinding wheel should be chosen.
3.the large area of grinding or thin-walled work piece grinding should choose the coarse grit, soft grinding wheel. This wheel is not easy to plug, the surface of the work piece is not easy to burn, the work piece is not easy to deformation.
4. form grinding process to select the fine grit, the small organization, and the hard grinding wheel to maintain the profile of the grinding wheel.
Related Products
Electroplated CBN Grinding Wheels for Band Saw
Diamond Resin Grinding Wheels for Circular Saw
Customer Reviews
Company Profile
Our Advantages
Packing & Delivery
PACKAGE:
SINGLE BOX PER WHEEL,
10 t0 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
SINGLE BOX PER WHEEL,
10 t0 20 WHEELS PER CARTON
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
