Product Overview

Description



Product Description

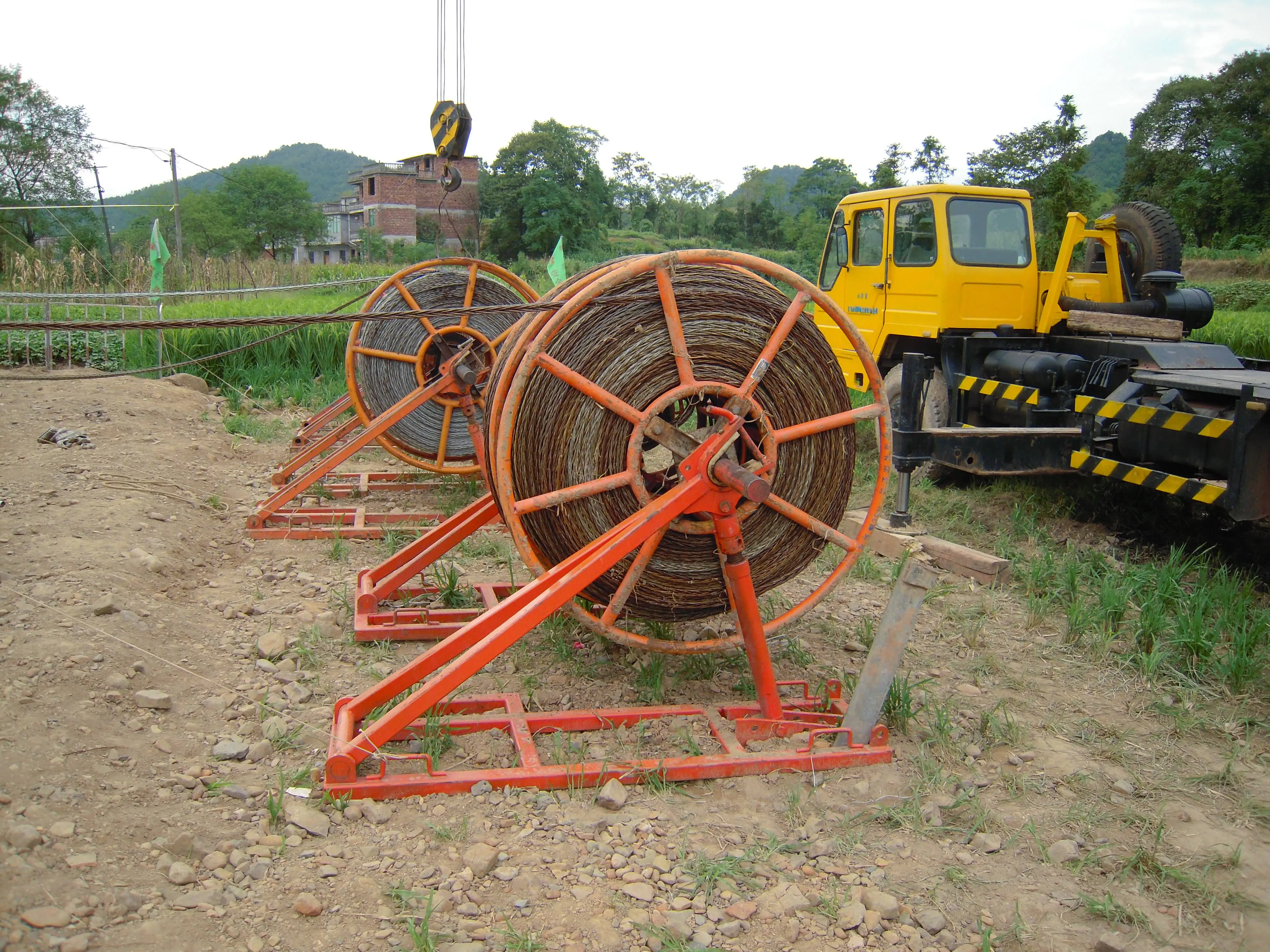

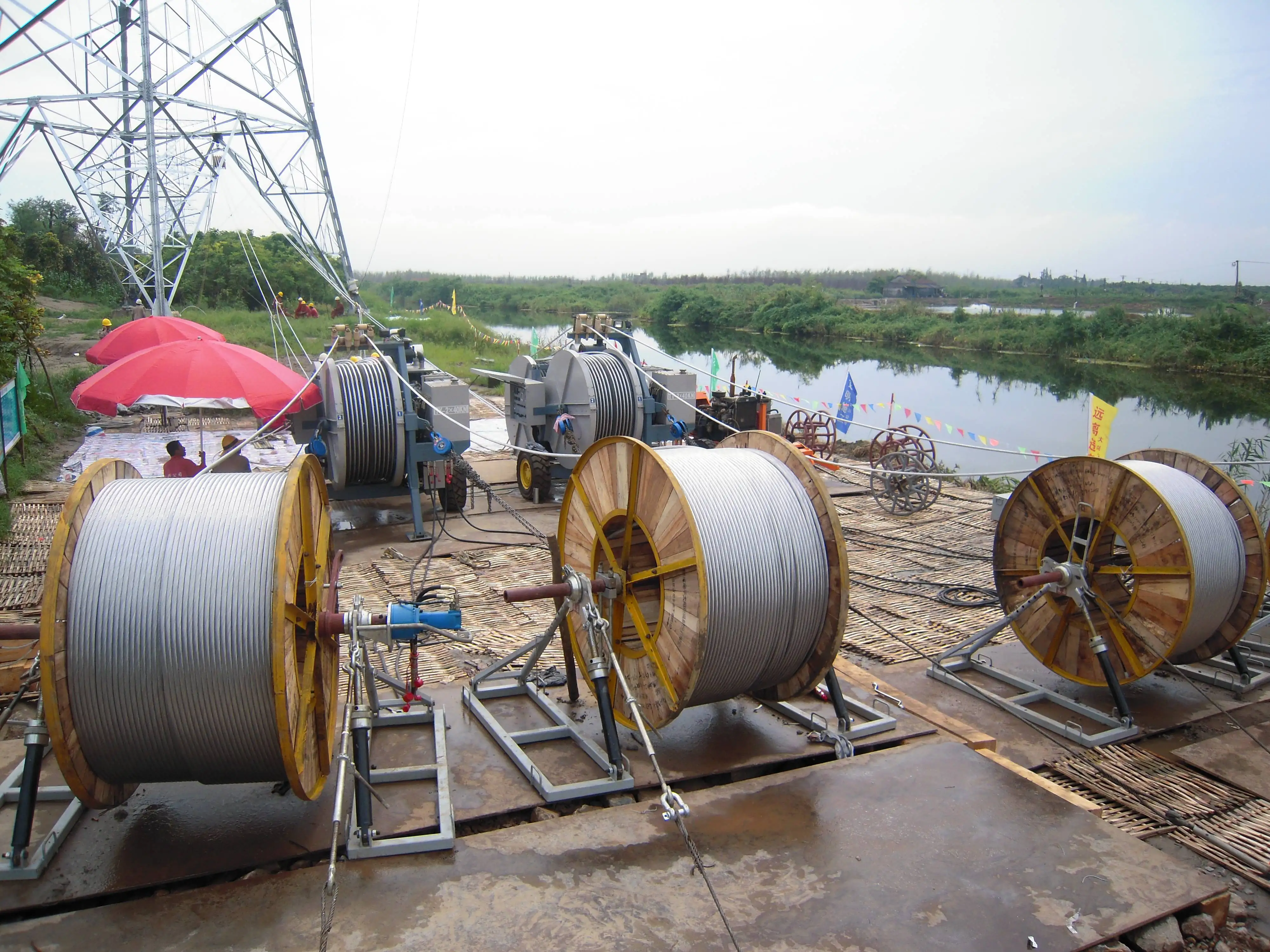

GLBOF Reels
The reels are made of welded steel with protective coating. Each reel is provided with two cross supports and
connecting bolts in separate package (need to order).


Model
Dimensions (mm)
Width for rope(mm)
Weight
(mm)
A
B
C
D
GLBOF-850
420
530
560
850
450
32
GLBOF-1000
420
530
560
1000
450
37
GLBOF-1100
420
530
560
1100
450
52
GLBOF-1250
420
530
560
1250
450
60
GLBOF-1400
420
530
560
1400
450
74
GLBOF-1440
420
530
560
1440
450
78
GLBOF-1600
420
530
560
1600
450
116






Additional Devices
2 cross supports and connecting bolts (need to order).

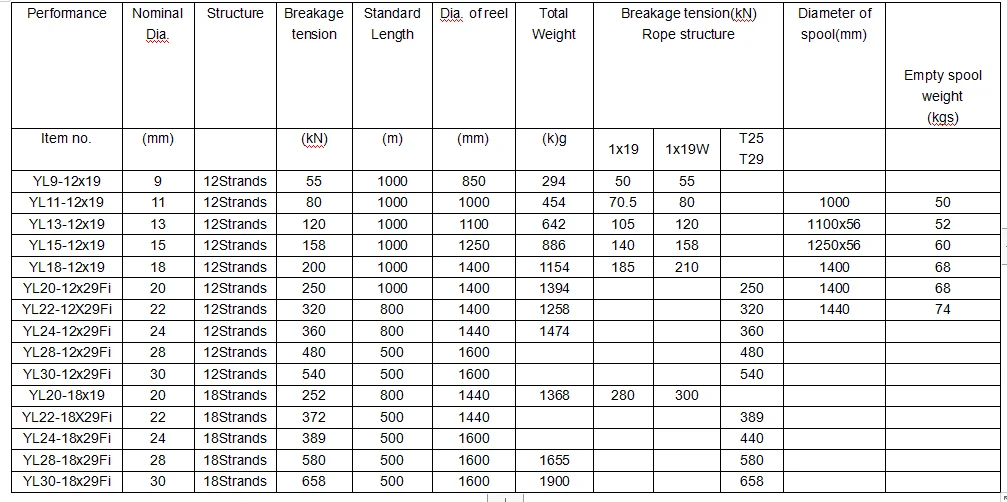

Specification

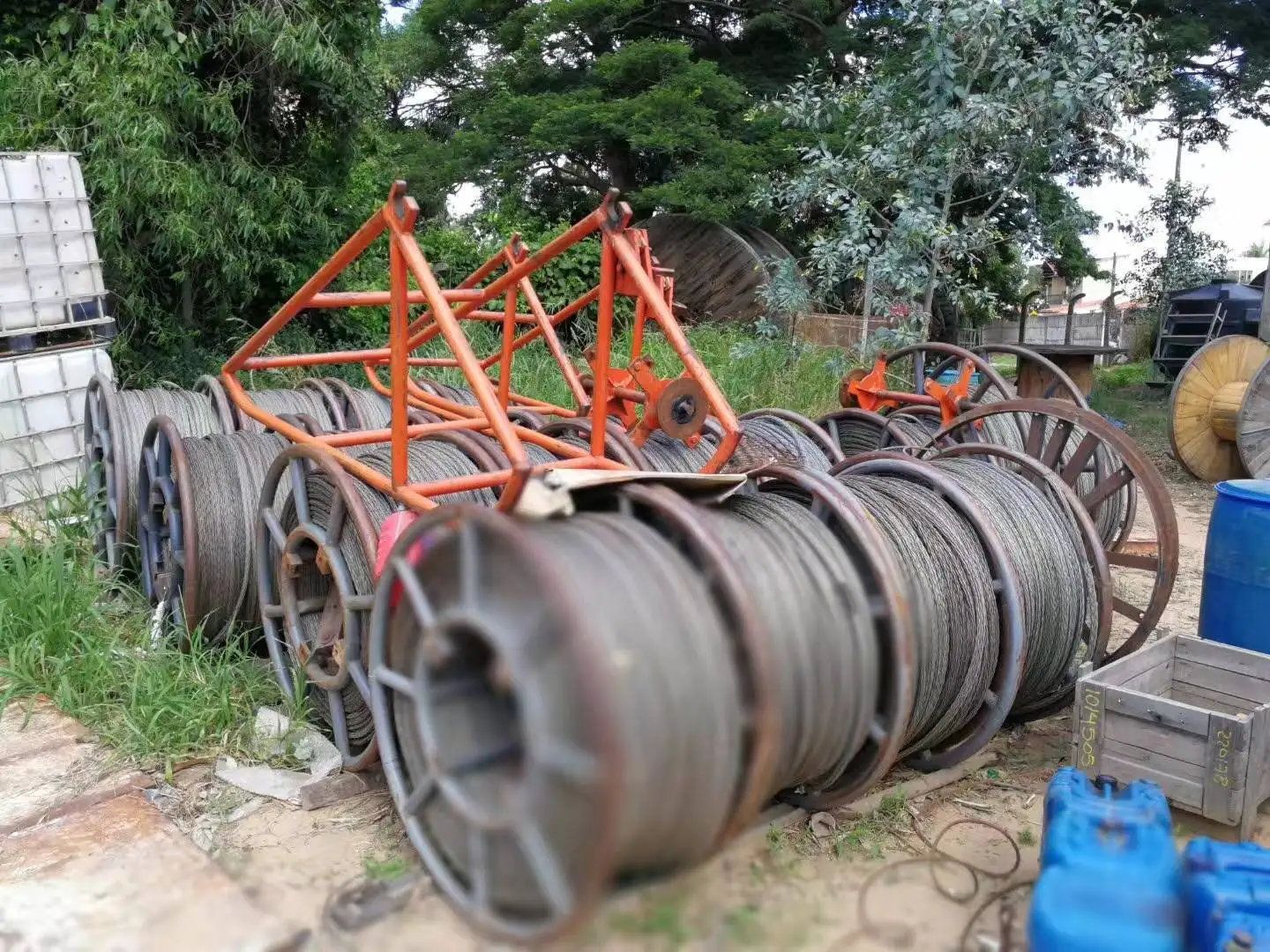

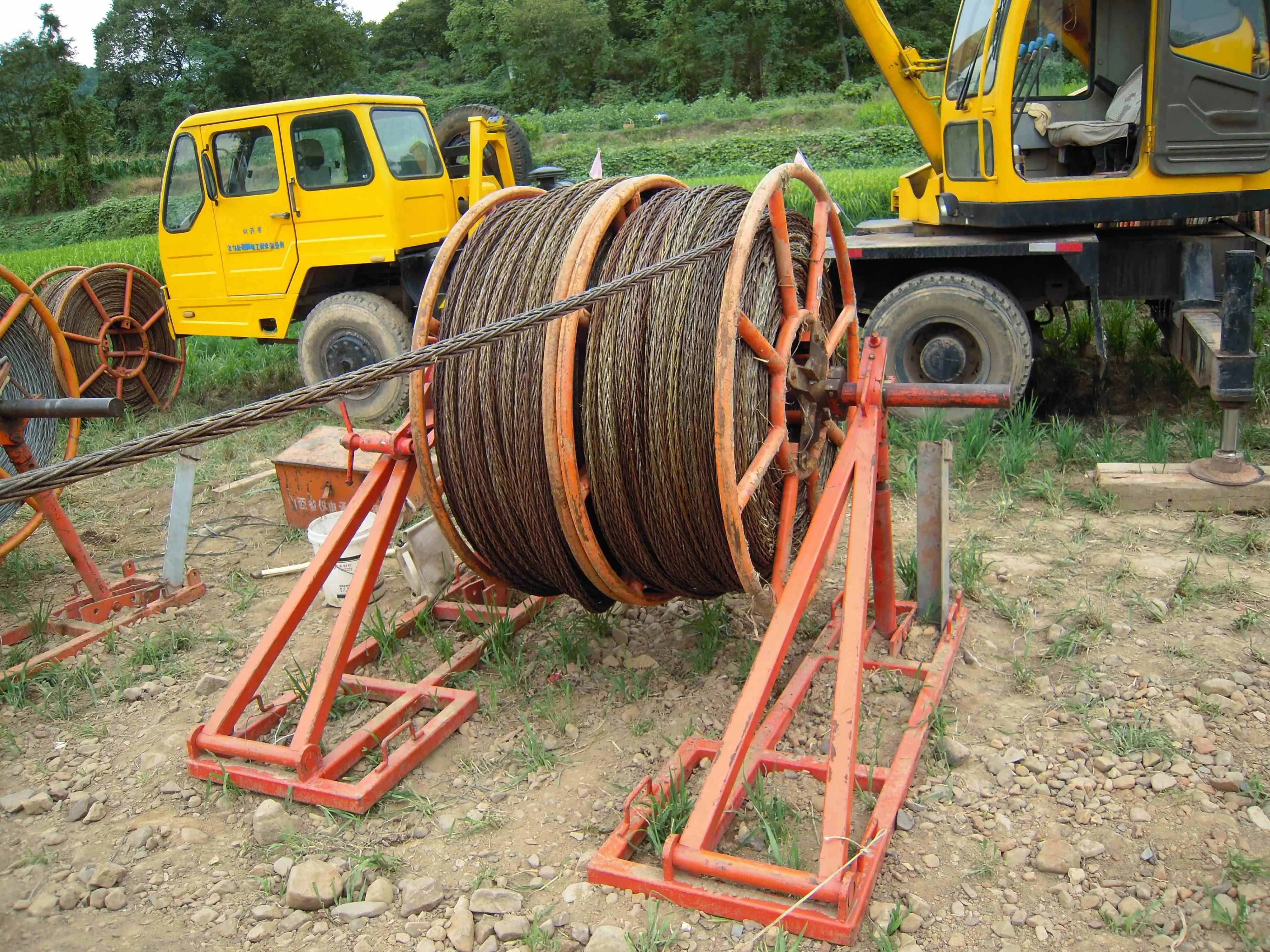

Anti-Twisting Steel Braided Rope
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.




Specification


GLCOH Synthetic Fiber Ropes-Polyethylene Ropes
Innovative synthetic rope, very light, wear and UV resistant. floating and water proofed. Made by braided strands, it can be easily spliced.


Model
Diameter
(mm)
Breaking load(KN)
Weight
(kg)
GLCOH006
6
17
26
GLCOH008
8
30
60
GLCOH010
10
55
70
GLCOH012
12
90
115
GLCOH014
14
128
146
GLCOH016
16
150
176
GLCOH018
18
200
GLCOH020
20
175


Specifications


GLCOA Synthetic Fiber Ropes-Nylon Ropes
The rope is made up of an external polyester mesh sock and a high strength nylon core.


Model
Diameter(mm)
Rope mass
Breaking
load
Standard
length
GLCOA002
2
0.016
0.8
1000
GLCOA004
4
0.019
4
1000
GLCOA006
6
0.028
6
1000
GLCOA008
8
0.046
11
1000
GLCOA010
10
0.073
18
1000
GLCOA012
12
0.120
40
1000
GLCOA014
14
0.145
55
1000
GLCOA016
16
0.196
80
1000
GLCOA018
18
0.240
100
1000
GLCOA020
20
0.295
130
1000

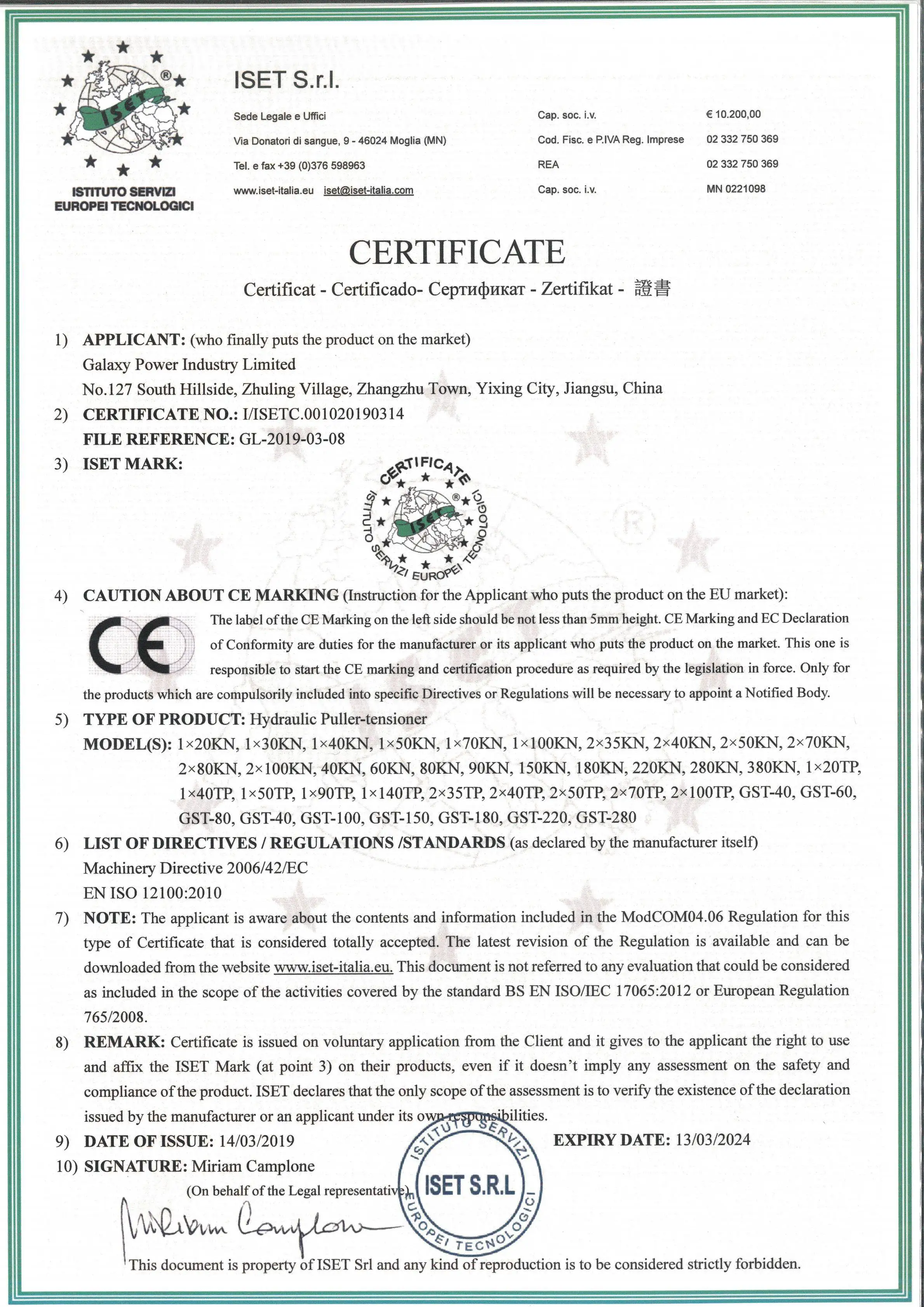

Certifications

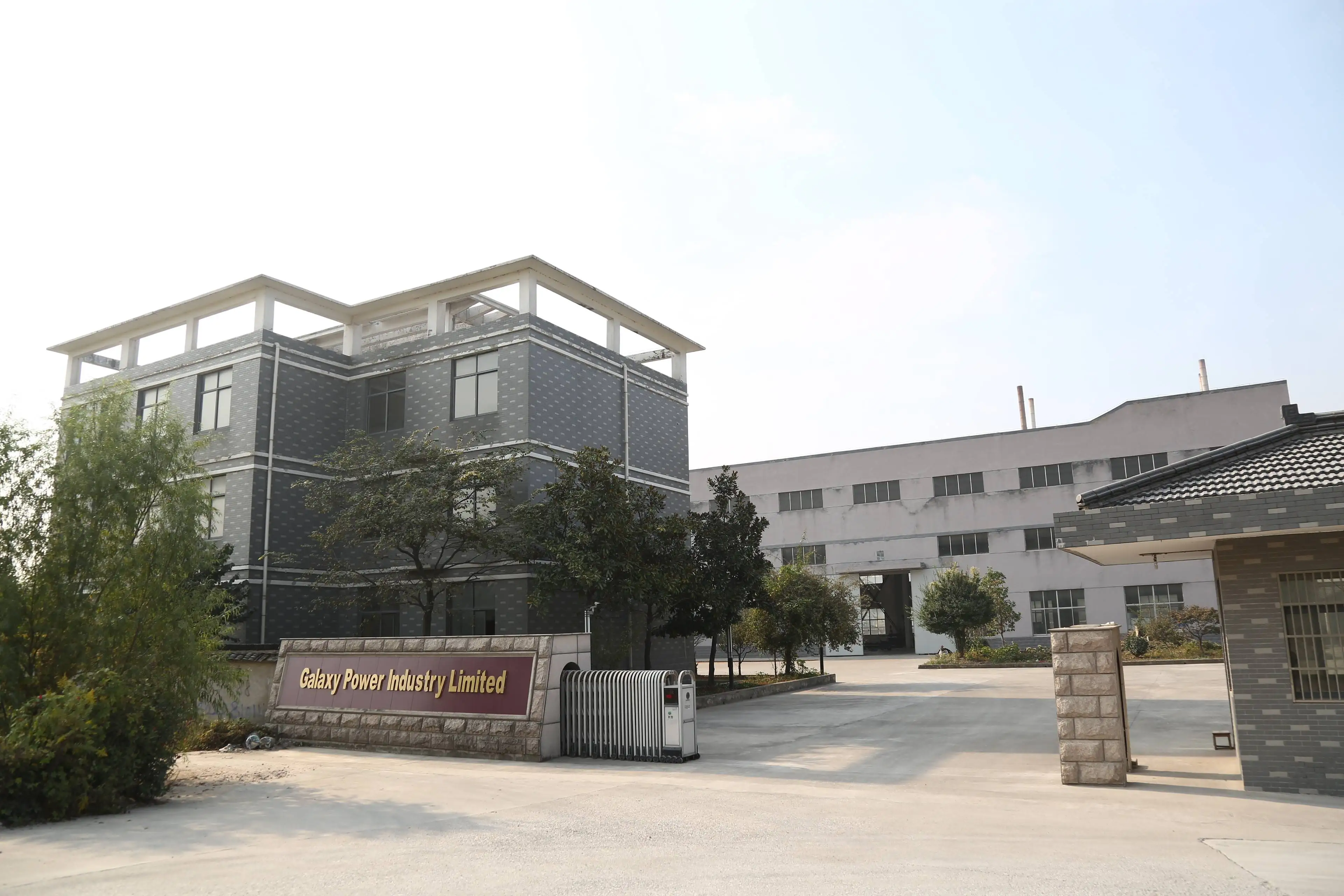

Company Profile


Milkyway Group,not only Jiangsu Milky Way Steel Poles ,but also include Galaxy Power Industry Limited-------- Established in 2016, . is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a High-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sells in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Sudan, Pakistan
etc. Our products are also very popular in china.

1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
Operating handle: German Rexroth

2. We have one year quality guarantee, if internal components go wrong within one year, we will change another for
free.

3. We can supply the specific components to the buyers with cost price after warranty
