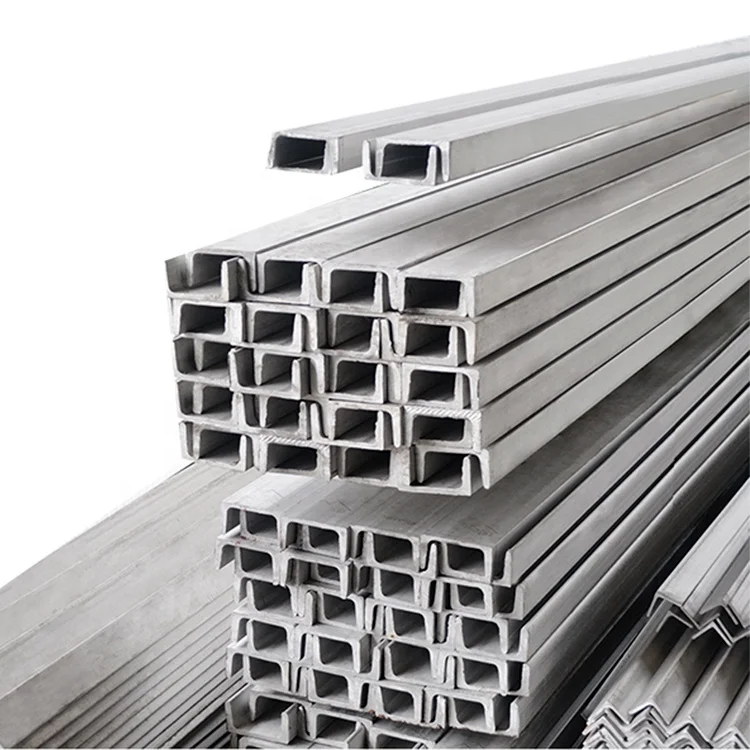

HDMANN Strut Channel Unistrut Slotted Channel
US $1.00-$10.00
hot rolled galvanized steel u channel bar from wuxi
- Category: Steel Channels >>>
- Supplier: Jiangsu,TISCO,Hongwang,Metal,Products,Co,Ltd
Share on:
Product Overview
Description

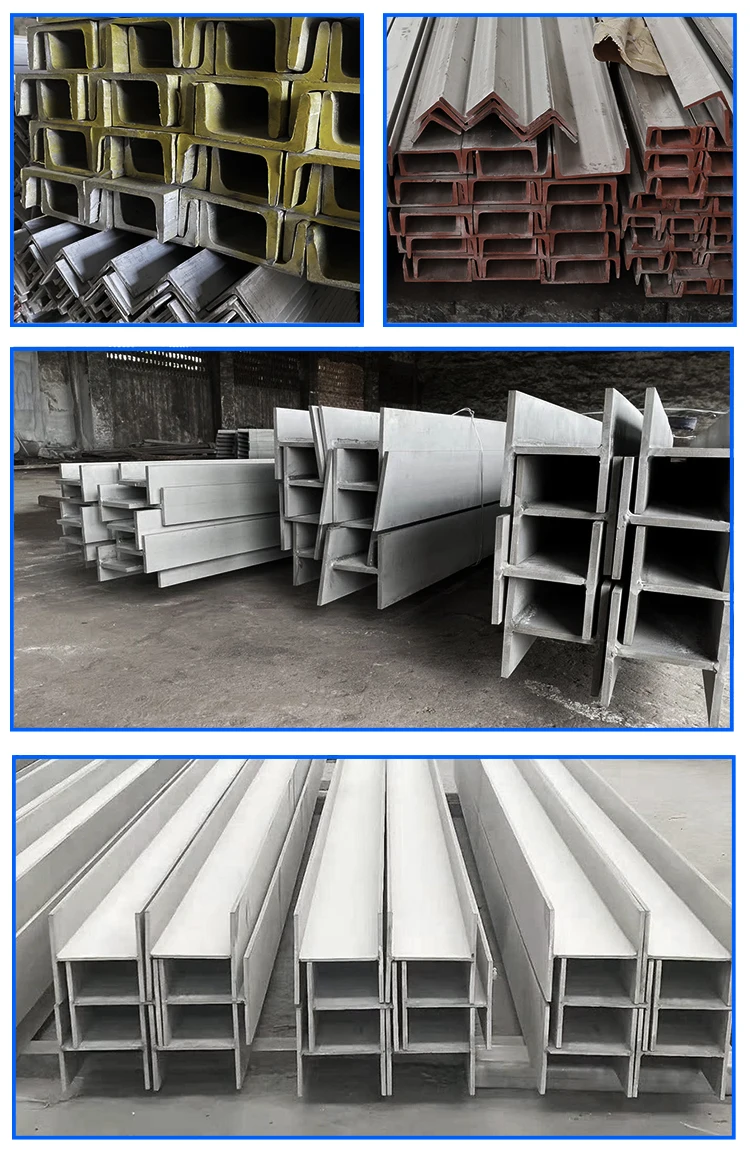

Product Name | Stainless steel channel |
Size | 100*50*5*7 mm~700*300*13*24 mm |
Material | 201,304,309,316,316L,321,410,430,904 |
OEM | Yes |

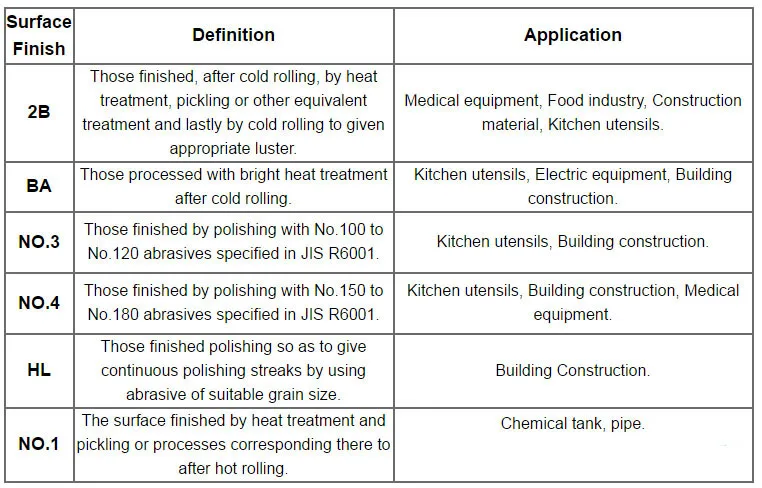

Surface | NO.1 NO.4 Bright |
Standard | AiSi, ASTM, bs, DIN, GB, JIS |

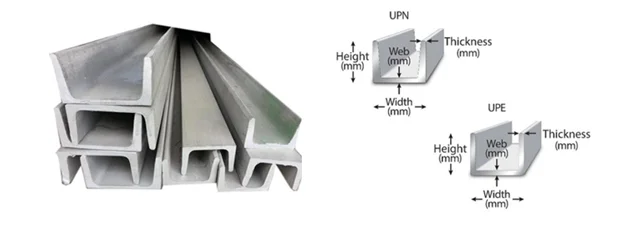

Sectional Dimension | Kg/m | Sectional Dimension | Kg/m |
100*50*5*7 | 9.54 | 344*354*16*16 | 131 |
100*100*6*8 | 17.2 | 346*174*6*9 | 41.8 |
125*60*6*8 | 13.3 | 350*175*7*11 | 50 |
125*125*6.5*9 | 23.8 | 344*348*10*16 | 115 |
148*100*6*9 | 21.4 | 350*350*12*19 | 137 |
150*75*5*7 | 14.3 | 388*402*15*15 | 141 |
150*150*7*10 | 31.9 | 390*300*10*16 | 107 |
175*90*5*8 | 18.2 | 394*398*11*18 | 147 |
175*175*7.5*11 | 40.3 | 400*150*8*13 | 55.8 |
194*150*6*9 | 31.2 | 396*199*7*11 | 56.7 |
198*99*4.5*7 | 18.5 | 400*200*8*13 | 66 |
200*100*5.5*8 | 21.7 | 400*400*13*21 | 172 |
200*200*8*12 | 50.5 | 400*408*21*21 | 197 |
200*204*12*12 | 72.28 | 414*405*18*28 | 233 |
244*175*7*11 | 44.1 | 440*300*11*18 | 124 |
244*252*11*11 | 64.4 | 446*199*7*11 | 66.7 |
248*124*5*8 | 25.8 | 450*200*9*14 | 76.5 |
250*125*6*9 | 29.7 | 482*300*11*15 | 115 |
250*250*9*14 | 72.4 | 488*300*11*18 | 129 |
250*255*14*14 | 82.2 | 496*199*9*14 | 79.5 |
294*200*8*12 | 57.3 | 500*200*10*16 | 89.6 |
300*150*6.5*9 | 37.3 | 582*300*12*17 | 137 |
294*302*12*12 | 85 | 588*300*12*20 | 151 |
300*300*10*15 | 94.5 | 596*199*10*15 | 95.1 |
300*305*15*15 | 106 | 600*200*11*17 | 106 |
338*351*13*13 | 106 | 700*300*13*24 | 185 |
Chemical composition and mechanical properties
of stainless steel
Grade | Chemical Composition (%) | Mechanieal Performece | ||||||||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | ||||||||
201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.03 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 | |||||||
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.00/20.00 | - | HB≤187,HRB≤90,HV≤200 | |||||||
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 | |||||||
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00/14.00 | 16.0/18.0 | 2.00/3.00 | HB≤187, HRB≤90 HV≤200 | |||||||
410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.03 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 | |||||||
430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.00/18.00 | - | HB≤183, HRB≤88 HV≤200 | |||||||
Company Profile
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:Can I go to your factory to visit?
Q8:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.

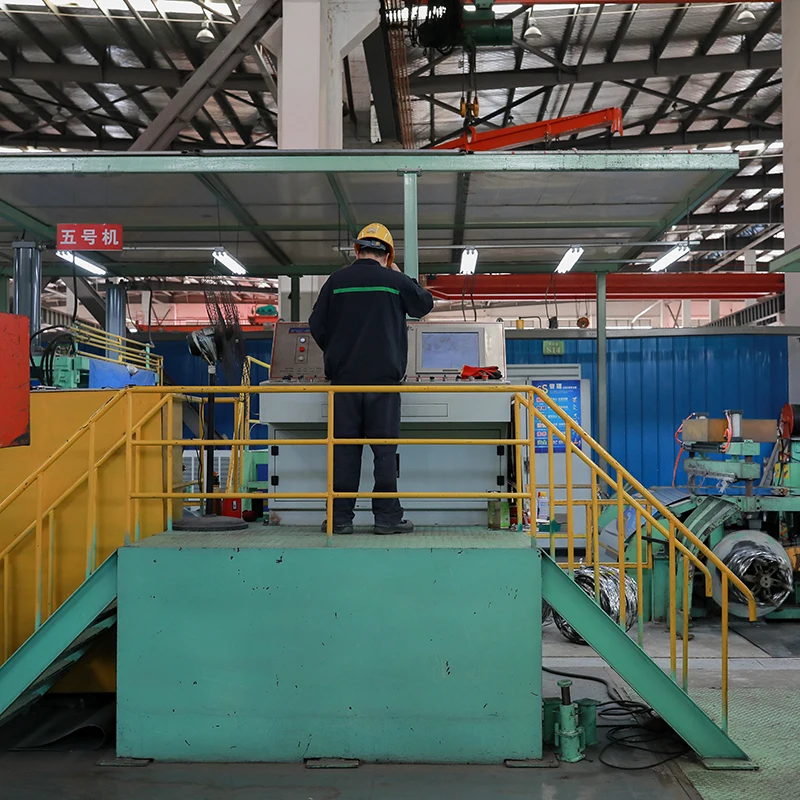

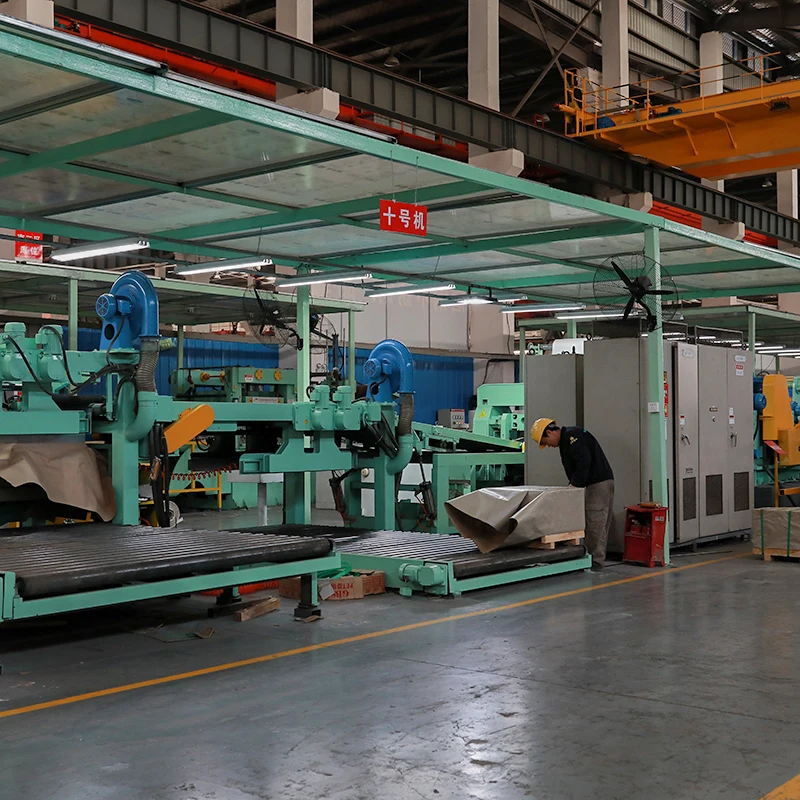

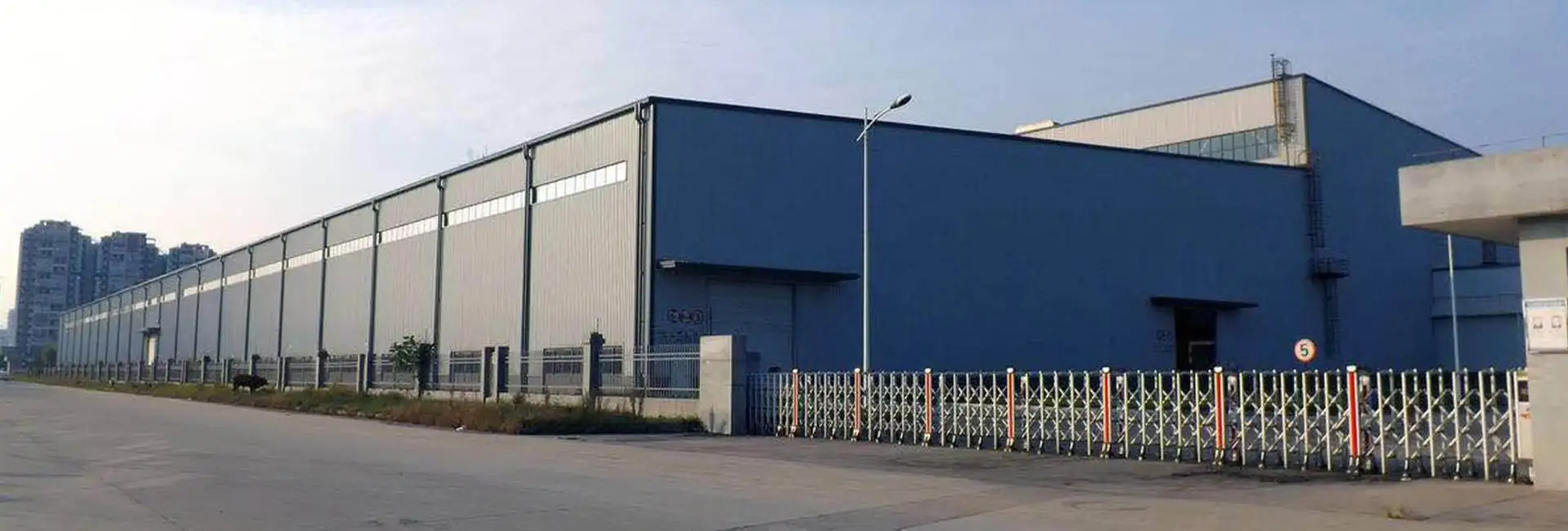

Factory Workshop

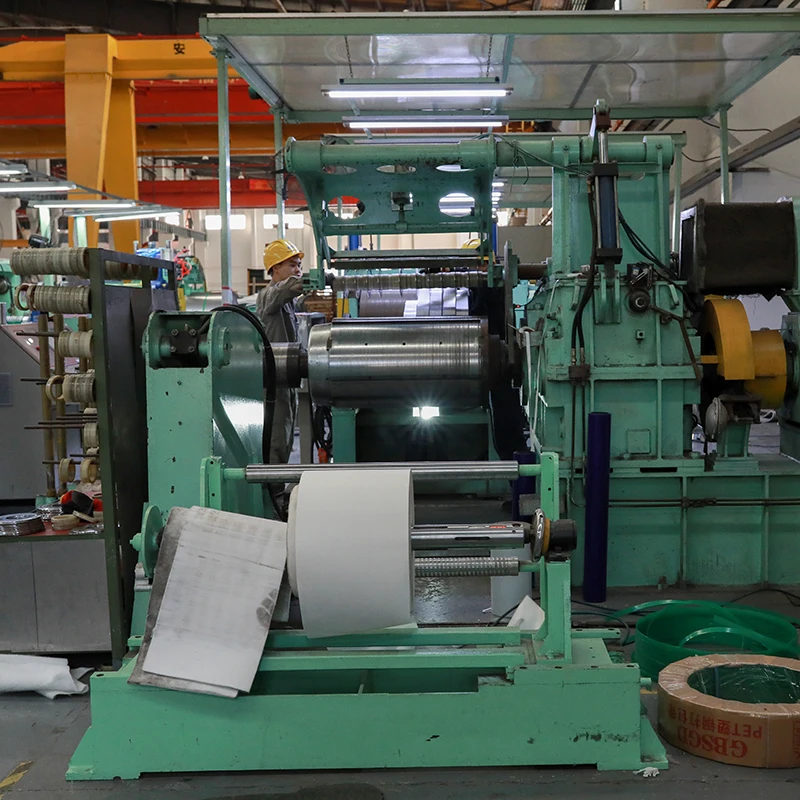

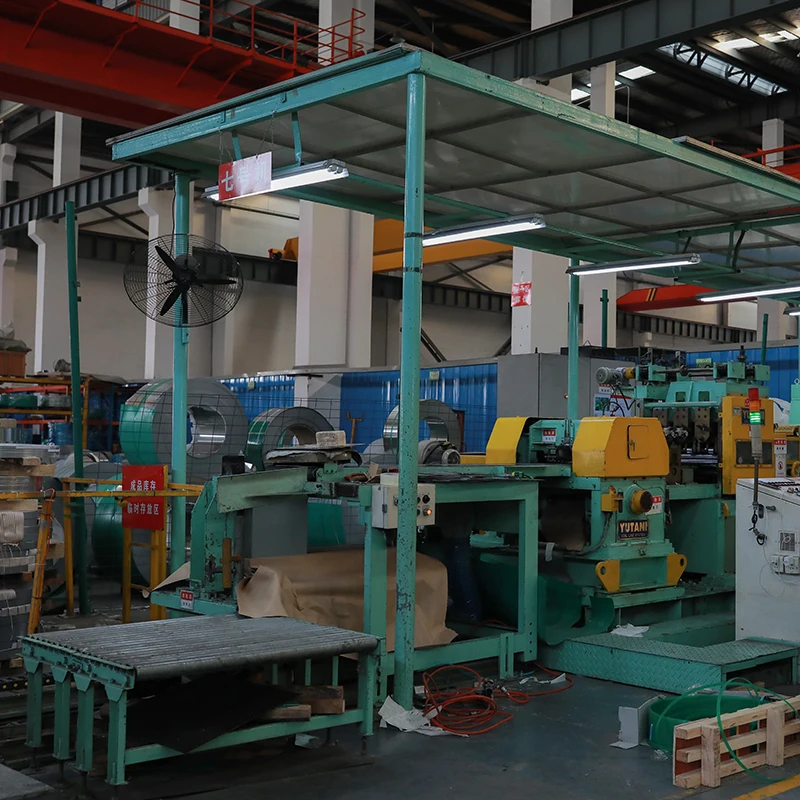

Production Processing
Cutting mashine
Laser cutting
Lettering
Mild grinding
Polishing
Sawing machine

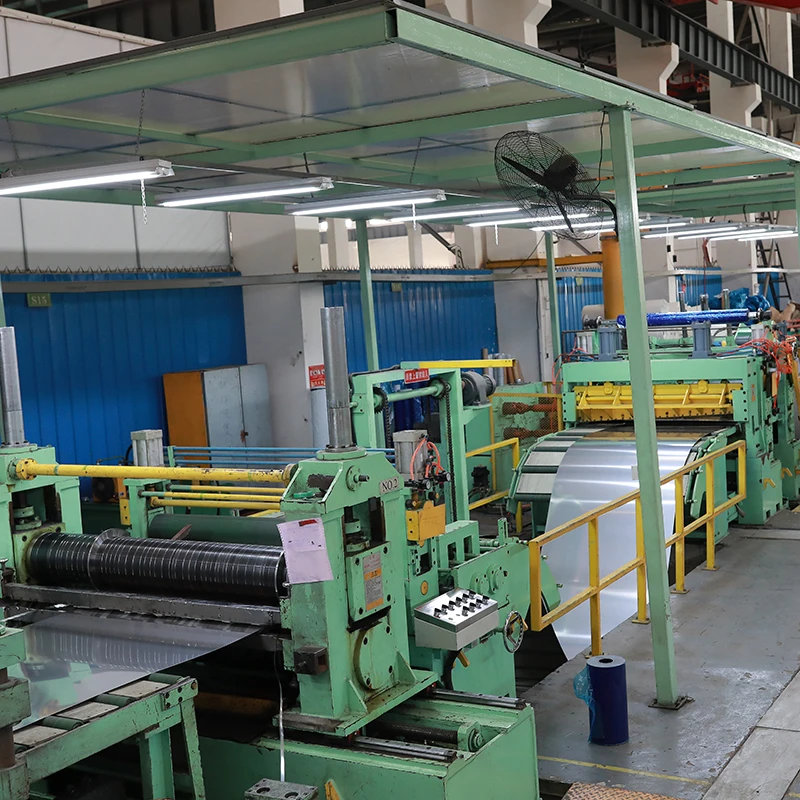

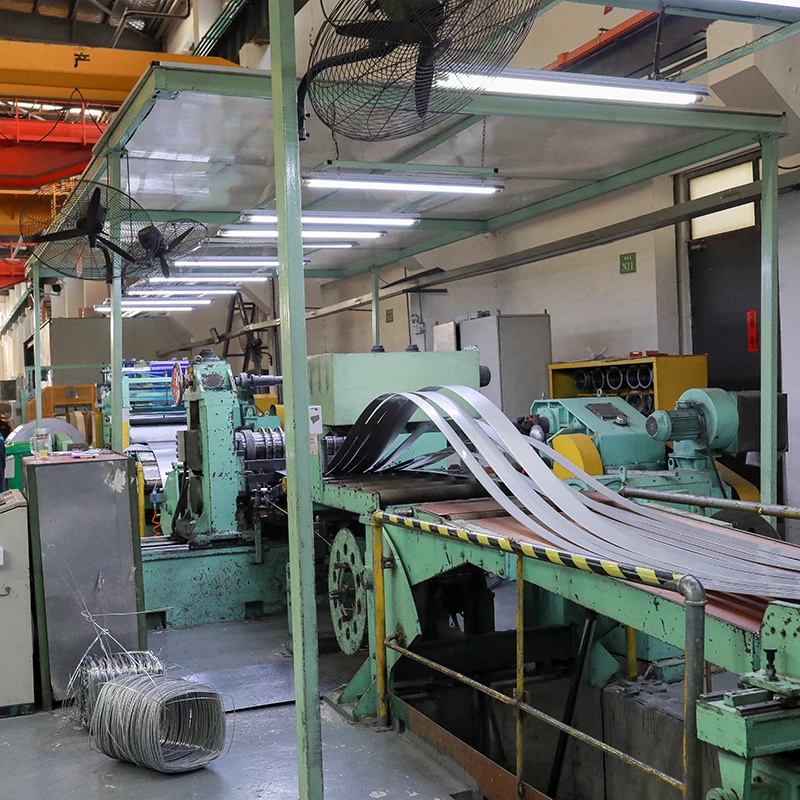

Sliting
Water cutting
Weled
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:Can I go to your factory to visit?
Q8:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
