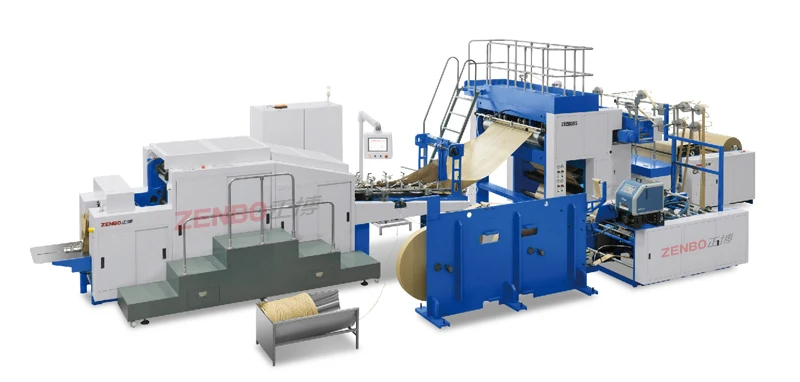

Fully automatic Square Bottom Roll feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS
Fully automatic Square Bottom Roll-feeding paper small bag making machine ZB260RS

Fully automatic Square Bottom Roll feeding paper small bag making machine ZB260RS

Share on (1600479739131):


Price:$250,000.00 - $260,000.00

Quantity:


Product Overview

Description



Product Description

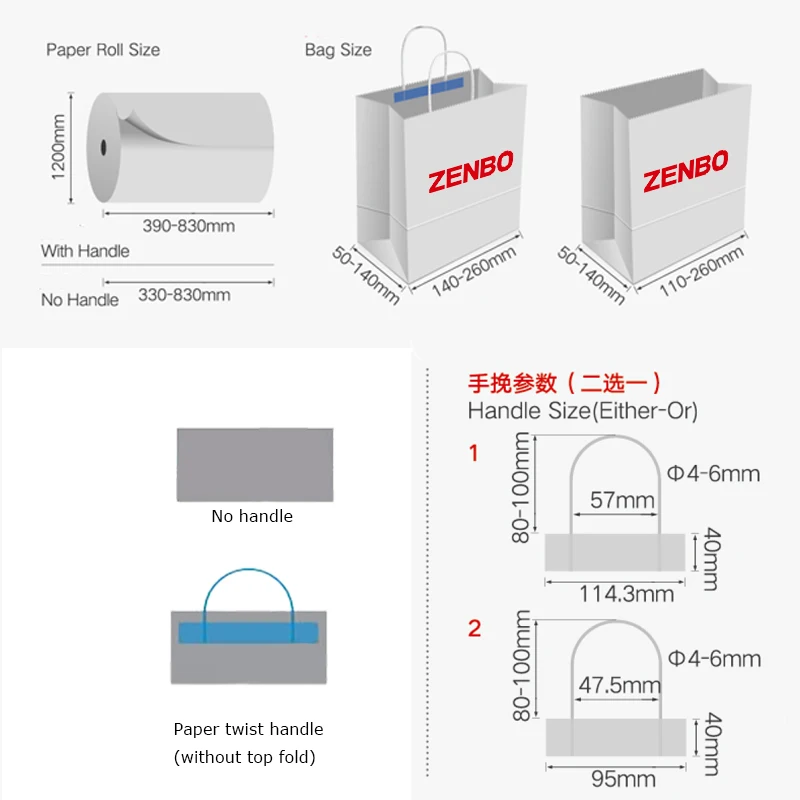

Main Techinical Parameters  2
Paper Roll Width390-830mm330-830mm
Max.Paper Roll DiameterΦ1200mmΦ1200mm
Core DiameterΦ76mm(3″)Φ76mm(3″)
Paper Thickness50--140g/m^250--140g/m^2
Bag Body Width140-260mm/120-260mm110-260mm
Paper Tube Length190-370mm190-470mm
Bag Bottom Size50-140mm50-140mm
Handle Rope Height80-100mm-
Handle Rope DiameterΦ4-6mm-
Handle Patch Length114.3mm/95mm-
Paper Rope Center Distance57mm/47.5mm-
Handle Patch Width40mm-
Handle Patch Roll DiameterΦ1200mm-
Handle Patch Roll WidthΦ80mm-
Paper Patch Thickness100-140g/m^2-
Max Production Speed150bags/min200bags/min
Total Power28KW
Overall Diamension11300*5000*3300
Total Weight20000KGS
