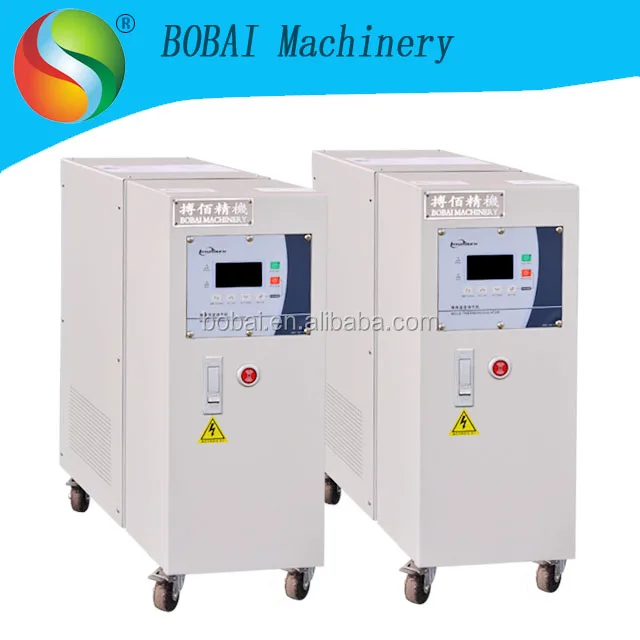

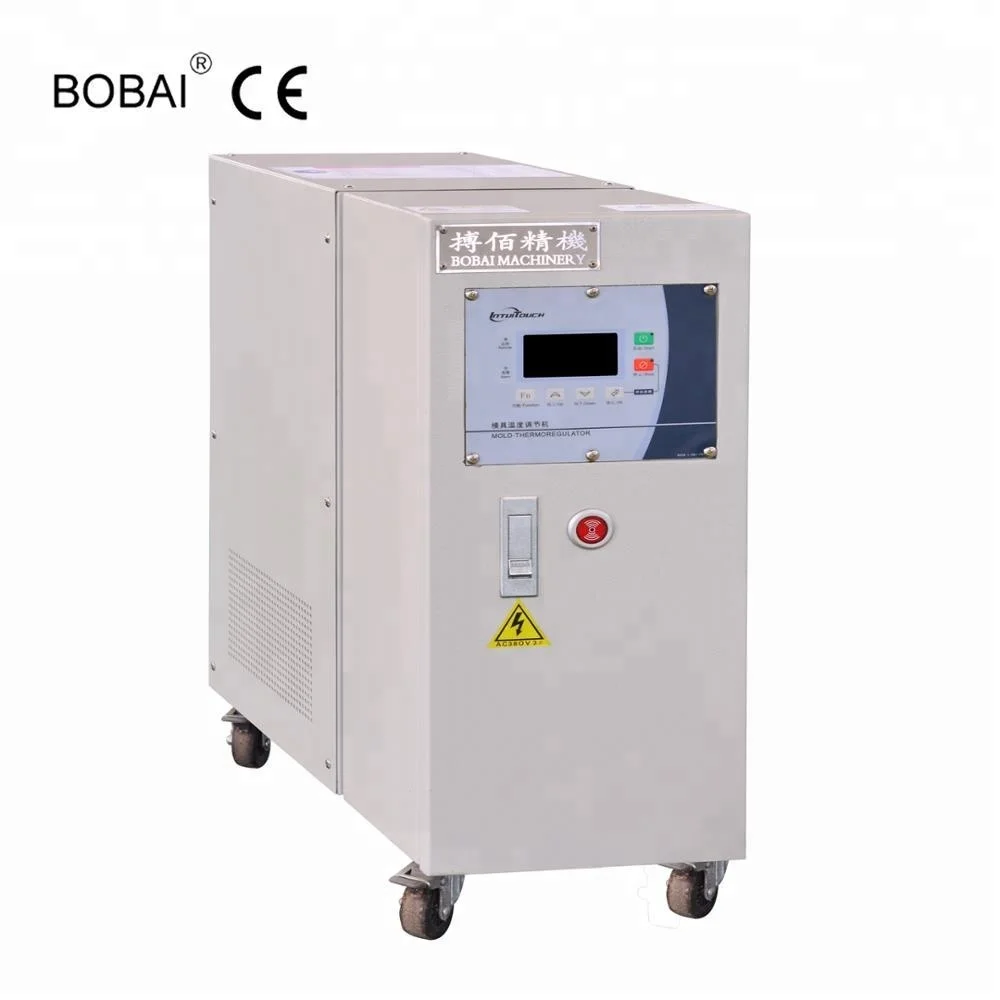

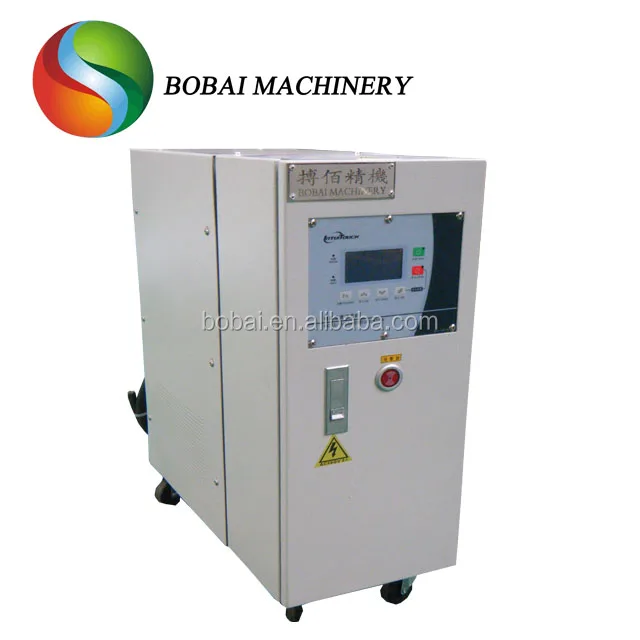

24KW Water type mold temperature machine best selling plastic mould temperature

Product Overview

Description

injection mold temperature controller



Application:

Reaction kettles, extrusion forming equipment, rubber forming machinery, cast film production lines, cable extrusion production lines,the dies for precise plastic molding, the dies for the compression casting of magnesium/aluminum/zinc alloy, roller pressing applied in rubber/plastic and leather industries, crude oil heating of the oil sinks on tankships, paper making industry, bottle blowing, and so on. This Mold Temperature Control System has been designed to maintain a constant temperature, using water or oil as medium.

 Mold temperature controller is used to control temperature in various industrial fields.



Machine introduction and Characteristics:

• 1. PID adopted to control the temperature. Controling error within ±0.1°C.


• Keeping long time constant temper-ature, high efficiency and energy saving.


• 2. Six protective measures: alarm for thermo- couple open circuit, phase fault protect,


• pump protect, overheat p- rotect, water shortage protect.


• 3.Dual digital display shows the actual temperature and the seat temperature.


• 4.Equipped with a 7-inch color touch screen,easy to read and operate


• Visual and easy to operate, easy to maintain


• 5.Stainless steel tank without leakage and durable


• 6. Circumfluence type is able to recollect the diathermanous oil easily and rapidly


• 7. Exquisite appearance and small in size


•







































































































































  Model	Unit	BRD-05	BRD-20	BRD-30	BRD-50	BRD-75	BRD-100
  Control range	℃	98
  Temp control accuracy		PID±1℃
  Power		AC3φ380V 50HZ 3P+E(5M)
  Heat transfer medium		WATER
  Cooling method		INDIRECT COOLING
  Heating capacity	KW	6	12	18	24	36	48
  Pump power	KW	0.37	1.5	2.2	4	5.5	7.5
  Max power flow	L/MIN	23	183	210	270		530
  Pump Lift	M	18	18	22	30	4.5	30
  Power supply	KW	6.5	14	21	28	42	56
  Alert function		incomplete phase /waters shortage/overload/pump reversal
  Cooling water pipe	INCH	1/2	1/2	3/4	1	1	1
  Circulation oil pipe	INCH	3/8*2	1	1	1-1/5	1-1/2	2
  LxWxh	MM	530*240*550	625*325*585	930*420*850	1150*420*1000	1170*520*1250	1650*630*1300
  Weight	KG	45	62	72	180	220	260
