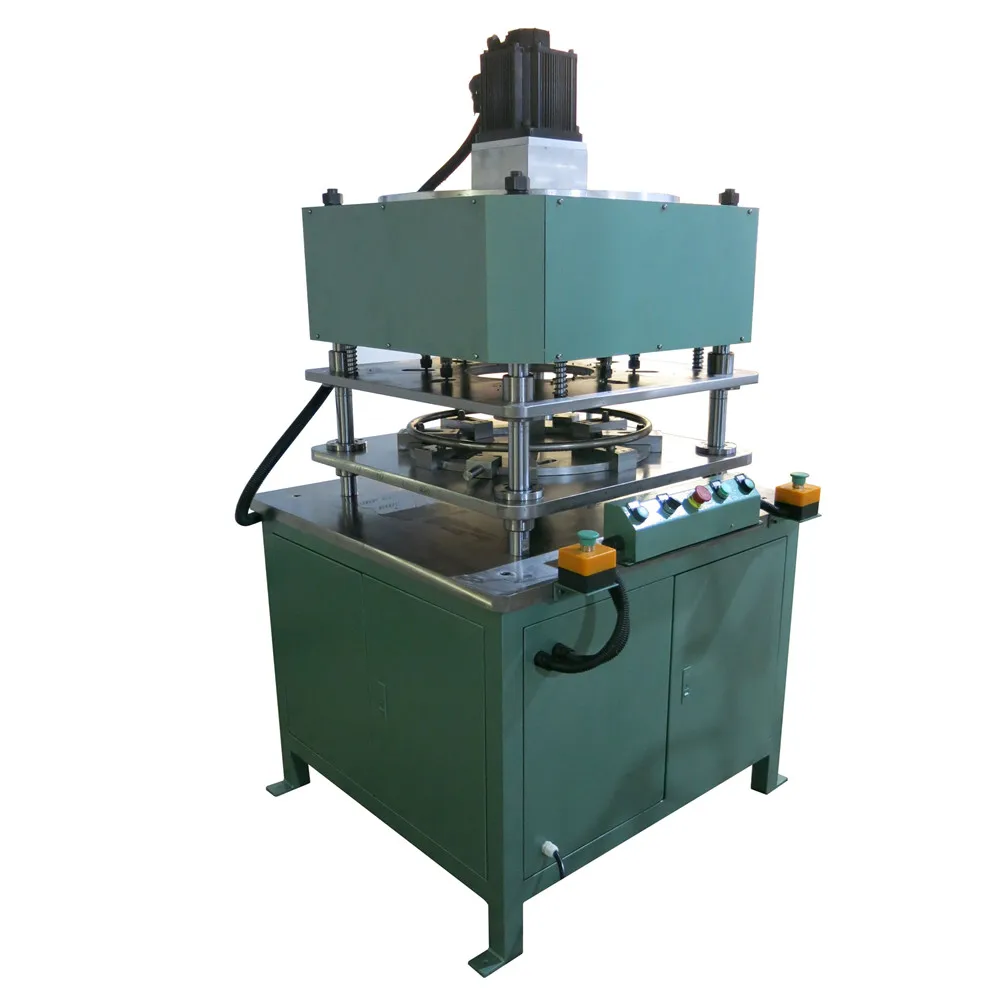

Iron ring steel hoop multi holes multi spindle multi holes drilling machine automatic
This machine adopts AC drive with subdivided current loop to control low energy consumption, and adopts servo motor for full numerical control system control, and the parameter setting is easy. The servo motor drives the main shaft to rotate and drive the main shaft to feed according to the setting; the speed adjustment is convenient and suitable for the processing of various parts. The castings of the whole machine are made of high-strength wear-resistant cast iron, which is durable and extremely low in deformation after aging treatment. Imported alloy steel is used for important processing parts, and high-quality chrome steel and carbon steel are scientifically heat treated. It is equipped with a nozzle cooling system, so the whole machine works stably and has high precision.
FEATURES AT A GLANCE
Manual feeding and unloading
Customized clamping system
Drilling 8 holes simultaneously
PLC control
Right elevation
Left elevation

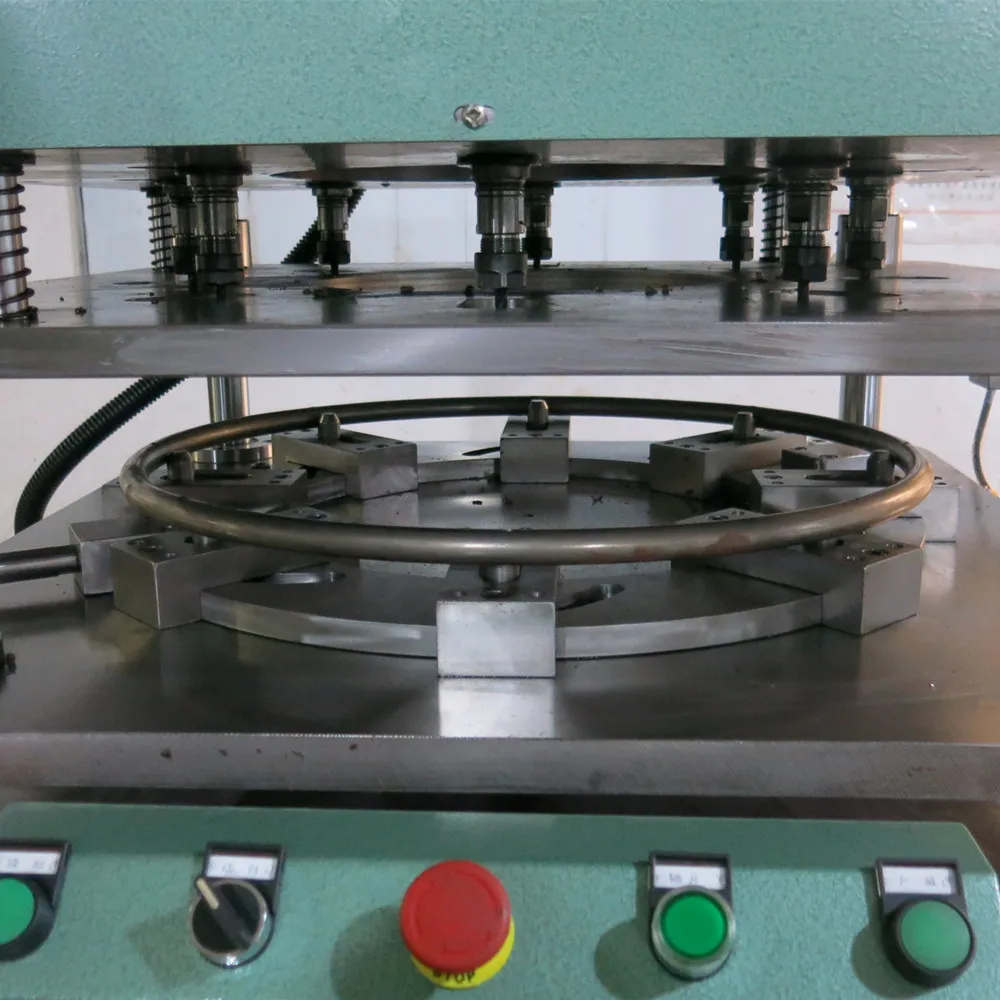

Clamping fixture
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Machine size (L*W*H) | 800mm*950mm*1000mm |
2 | Weight | about 500-600Kg |
3 | Maximum diameter of drilling hole | Φ8mm |
4 | Maximum spindle quantity | 8 spindles |
5 | Spindle rotation speed | 0-2000rpm |
6 | Spindle servo motor power | 3KW |
7 | Total machine power | 4.5KW |
Successful Project
LED products
Aluminum Parts
Square tubes
SIMILAR PRODUCTS
Company Profile
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.
Q3: What's the Payment Terms ?
A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q4: What's the MOQ?
A4: 1set
Q5: What's the warranty?
A5: One year.
