wet drum separator magnets
- Category: >>>
- Supplier: Jiangxi Gandong Mining Equipment Machinery Manufacturer
Share on (1600480242802):
Product Overview
Description
Product Overview
2 Set CTB1530 to Venezuela
Our high quality magnetic separator can be Non-demagnetization for 10 years, this is not all suppliers can do. So can buy our equipments trustingly.
Wet Drum Permanent Magnetic Separator
Descriptions
Wet Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.
Wet Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.
When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.
This machine has three kinds of tank: CTB, CTS and CTN, the same kind of drum could match those three tanks, to suitable different separation work and different requirement:
lCTS is suitable for the roughing and cleaning of particle size in 6-0mm;
lCTN is suitable for the cleaning and scavenging of fine particle size in 0.6-0mm , and it is often applied to recycle heavy medium in coal;
CTB is suitable for the roughing and cleaning of ores in size of 0.5-0mm, especially suitable for the cleaning of ores in size of 0.15-0mm.
lCTS is suitable for the roughing and cleaning of particle size in 6-0mm;
lCTN is suitable for the cleaning and scavenging of fine particle size in 0.6-0mm , and it is often applied to recycle heavy medium in coal;
CTB is suitable for the roughing and cleaning of ores in size of 0.5-0mm, especially suitable for the cleaning of ores in size of 0.15-0mm.
This wet drum permanent magnetic separator can continuously feeding ores and discharge ores ,with large magnetic field intensity, high magnetic field gradient, big working clearance, higher processing ability and little magnetic flux leakage, low energy consumption, fine beneficiating results, simple structure and easy to maintain.

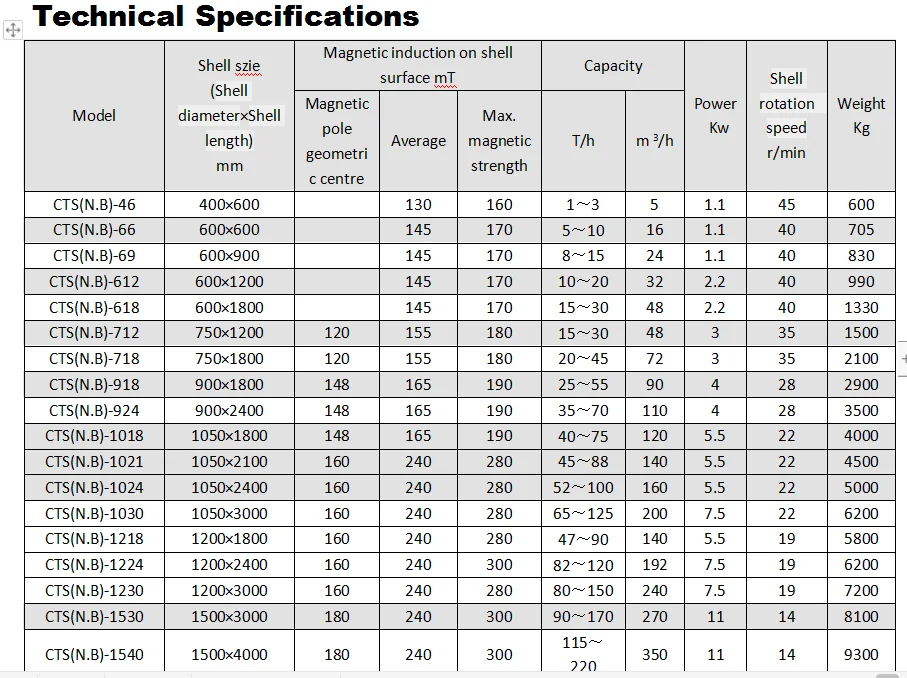

PRODUCT SPECIFICATIONS
Successful Project

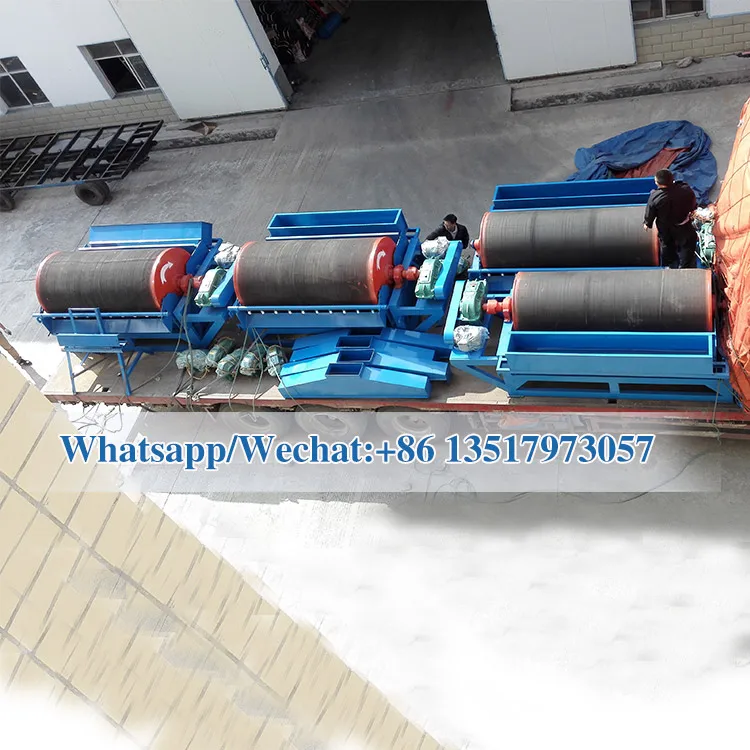

Laos 4set CTB1230 Wet Magnetic Separators
We build and sell all kinds of mining equipment including dry and wet magnetic separators, high intensity or low intensity. single roller or double roller even three rollers etc
Vietnam 1 set CTB1530 Wet Magnetic Separator
We can build and sell complete set mineral processing equipments for you.

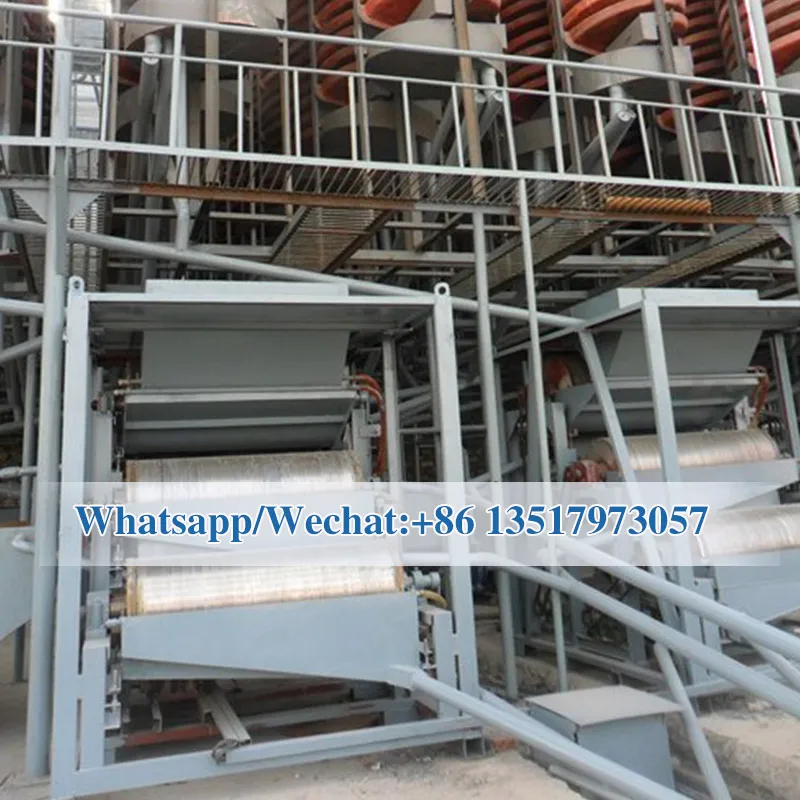

Project in Laos
Project in Vietnam
Project in Philippines
