New Hydraulic 1.5 Tons 2.5m Self Load Portable Forklift Semi Electric Stacker
- Category: >>>
- Supplier: Zhejiang Kaixun Mechanical And Electrical Co. Ltd.
Share on (1600480282988):
Product Overview
Description
PRODUCT DESCRIPTION

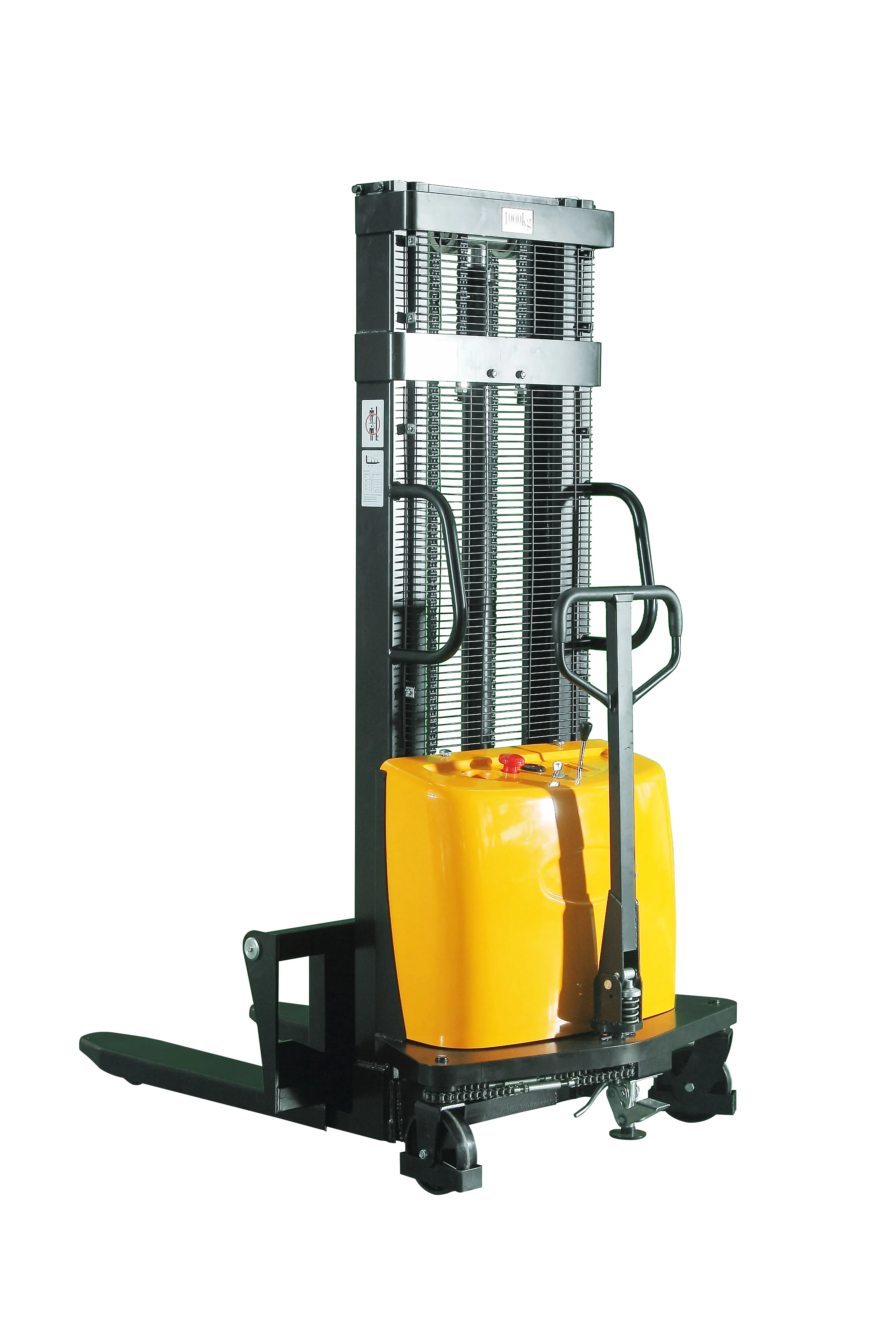

KX-CDSD Semi-Electric Stacker
1. 910mm/1150mm fork length and adjustable width from 340mm to 1000mm
2. Fixed straggle legs with width 685mm/550mm
3. 1480mm turning radius
4. 1.6 Kw lifting motor
5. 12V 100Ah lead-acid battery
2. Fixed straggle legs with width 685mm/550mm
3. 1480mm turning radius
4. 1.6 Kw lifting motor
5. 12V 100Ah lead-acid battery
Advantages
* Reasonable design and compact structure
* steady lifting, flexible moving, and convenient operation
* High efficient pumps makes the controlor easier to operate
* Metal grid protects user from lift chains
* 12V lead-acid battery keeps long working hours
* Small size and 58.26" turning radius can be easy used at narrow space
* With brake system to ensure safety during operation.
* Easy service
* steady lifting, flexible moving, and convenient operation
* High efficient pumps makes the controlor easier to operate
* Metal grid protects user from lift chains
* 12V lead-acid battery keeps long working hours
* Small size and 58.26" turning radius can be easy used at narrow space
* With brake system to ensure safety during operation.
* Easy service
PRODUCT SPECIFICATIONS
Articles/Model | Unit | KX-CDSD-10 | KX-CDSD-15 | KX-CDSD-20 | |||
Main characteristics | Rated load capacity | kg | 1000 | 1500 | 2000 | ||
N.W. | kg | 330 390 405 420 435 | 363 417 436 458 478 | 382 424 444 464 484 | |||
Max.mast height | mm | 2068/2568/3068/3568/4068 | |||||
Wheel specification | Wheel material | PU/Nylon | |||||
Wheel specification | Carrying wheel | mm | Φ80×70 | ||||
Driving wheel | mm | Φ180×50 | |||||
Wheel base | mm | 1200 | |||||
Size | Lifting height | mm | 1600/2000/2500/3000/3500 | ||||
Fork length | mm | 910/1150 | |||||
Fork adjustable width | mm | 340-1000 | |||||
Overall width | mm | 1045 | |||||
Overall length | mm | 1585 | |||||
Turning radius | mm | 1480 | |||||
Motor battery | Battery voltage/rated capacity | V/Ah | 12/100 | ||||
Performance parameter | Lifting motor | kw | 1.6 | ||||

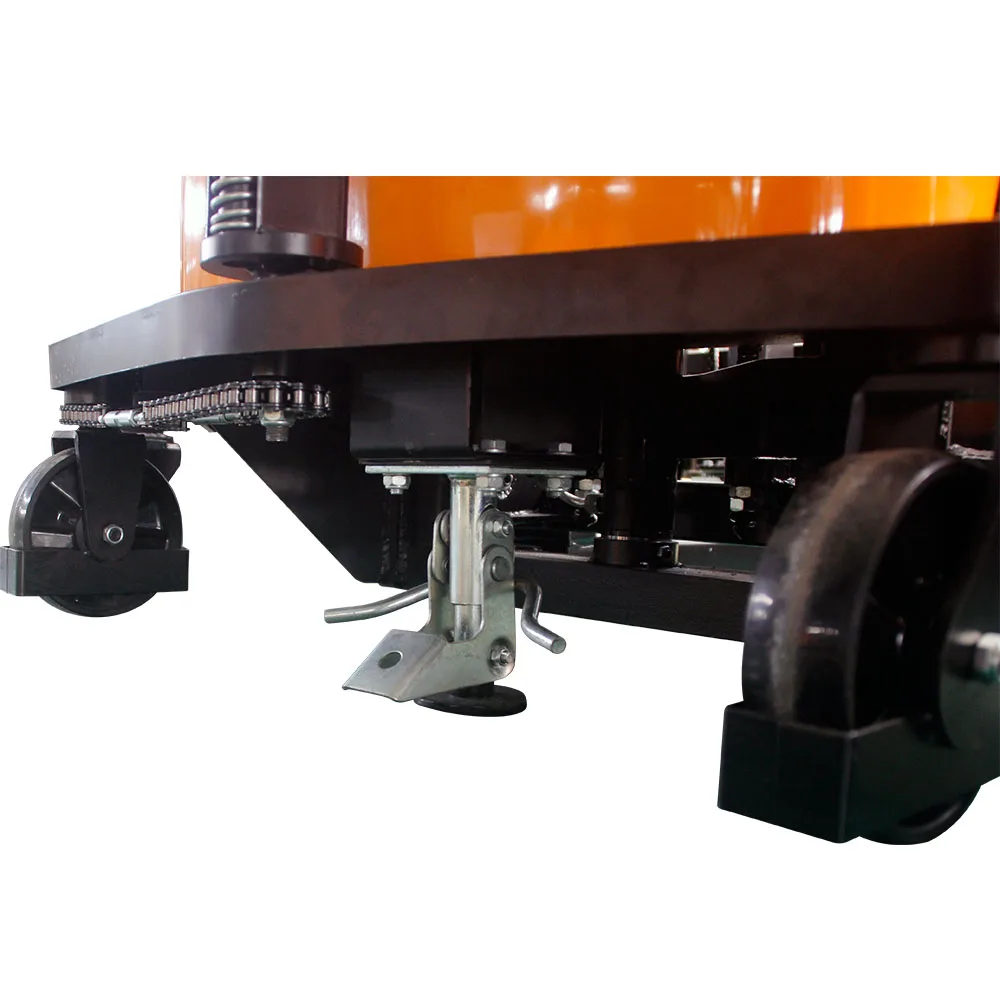

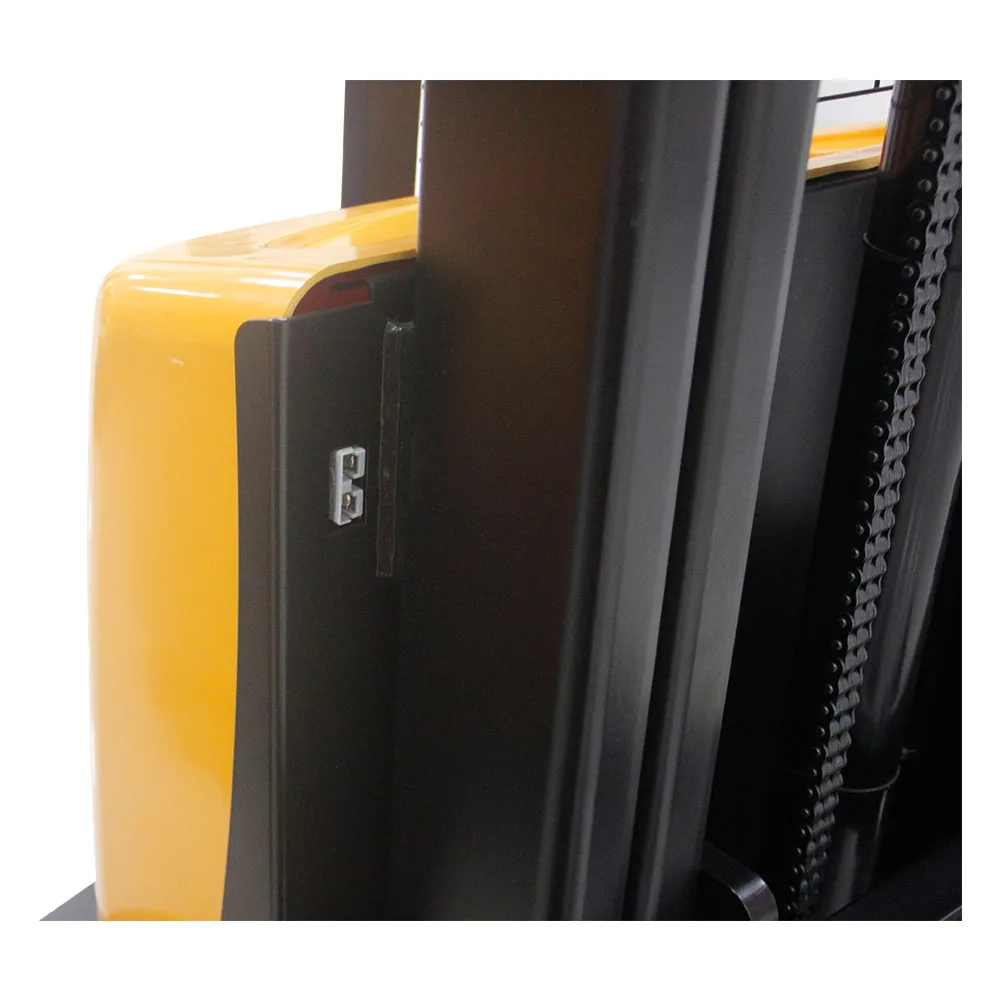

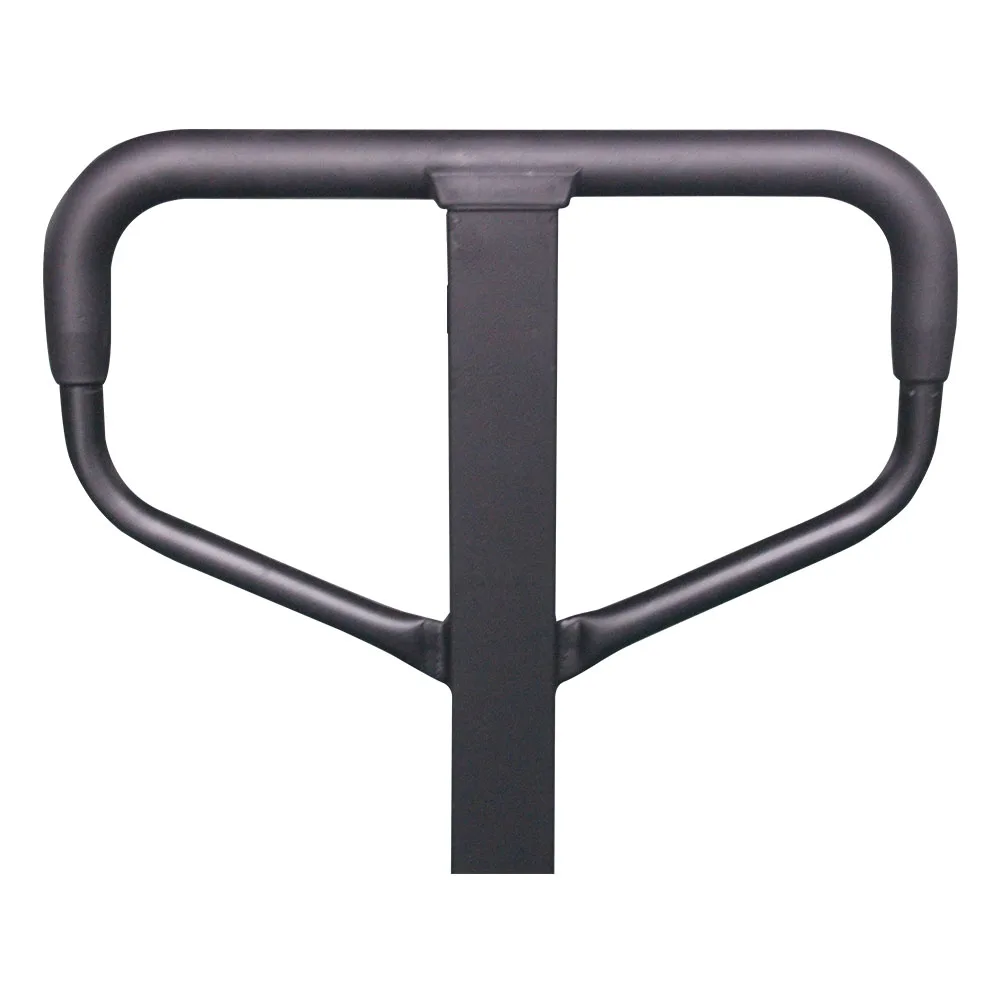

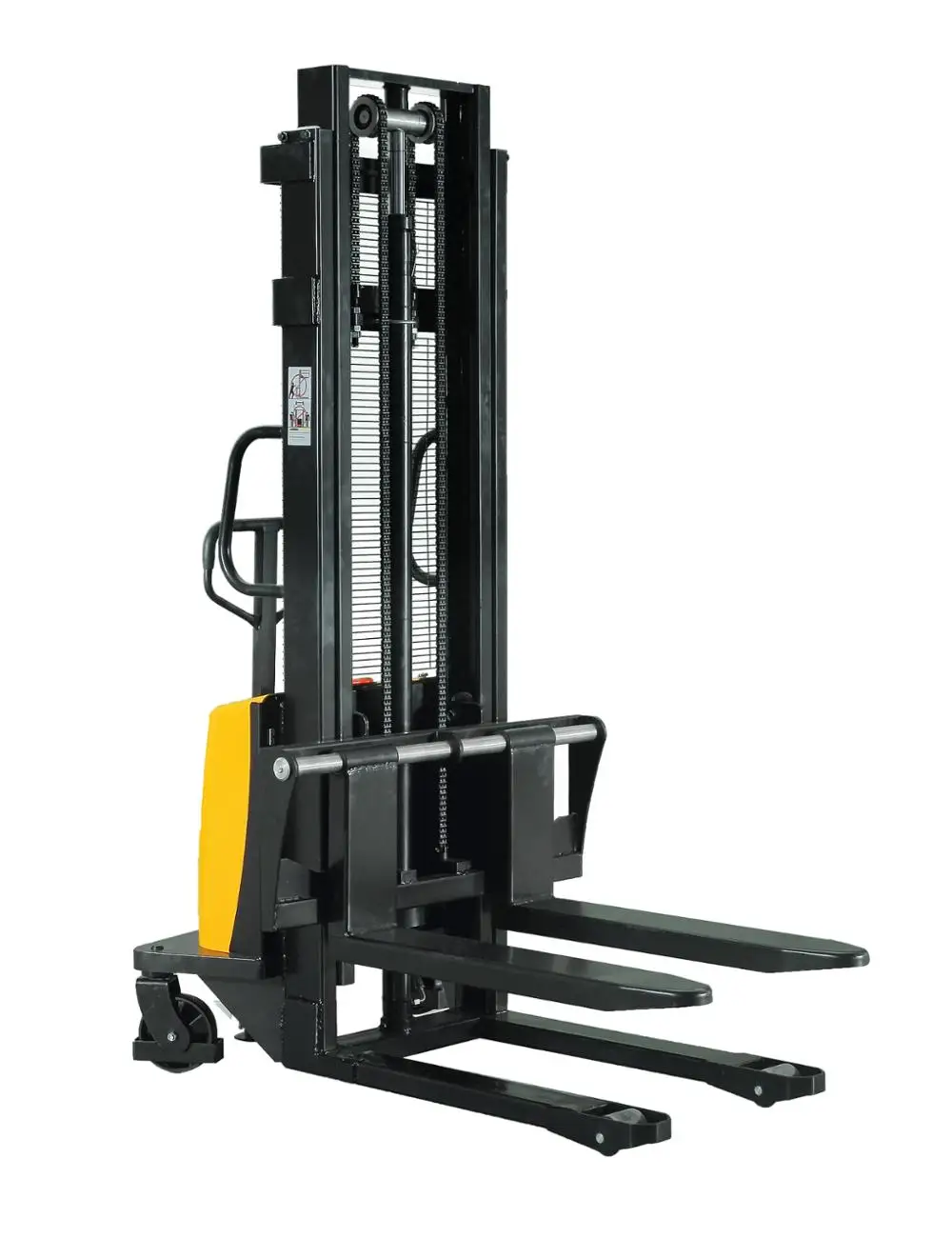

DETAILED PHOTOS
COLOR(CUSTOMIZABLE)
COMPANY PROFILE
Kaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items,including hoisting machinery, financial equipments, electric winch, electric forklift and hydraulic car, etc.
Our company locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments.KAiXUN brand, creat top quality, offer best service and ensure customer satisfactory.
We have passed the certification of ISO9001:2015 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 80% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc.Over120 countries and regions. Our products are highly praiised by our clients.
We have passed the certification of ISO9001:2015 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 80% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc.Over120 countries and regions. Our products are highly praiised by our clients.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 1998,sell to North America(20.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),Domestic Market(20.00%),Africa(10.00%),Western Europe(10.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Forklift,Electric hoist,Winding engine,Currency detector
4. why should you buy from us not from other suppliers?
Kaixun integrate R&D 20 years, have passed the certification of ISO9001:2015 quality system.Many products have got CE,GS,RoHS,CB,UL,CUL,and FCC approvals.We have been exporting 80% of products in bulk to Europe, USA, etc. Over 120 countries and regions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 1998,sell to North America(20.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),Domestic Market(20.00%),Africa(10.00%),Western Europe(10.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Forklift,Electric hoist,Winding engine,Currency detector
4. why should you buy from us not from other suppliers?
Kaixun integrate R&D 20 years, have passed the certification of ISO9001:2015 quality system.Many products have got CE,GS,RoHS,CB,UL,CUL,and FCC approvals.We have been exporting 80% of products in bulk to Europe, USA, etc. Over 120 countries and regions.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
