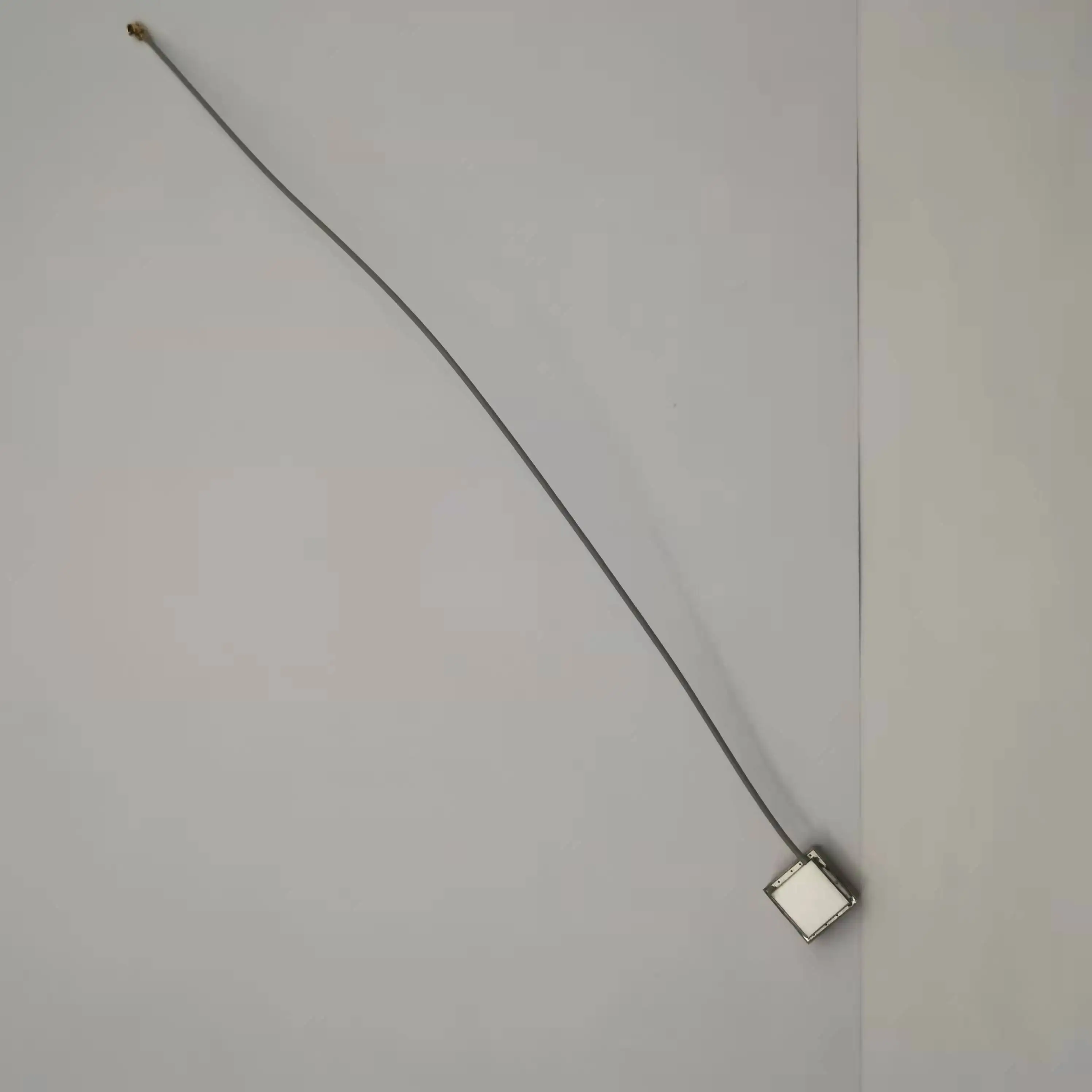

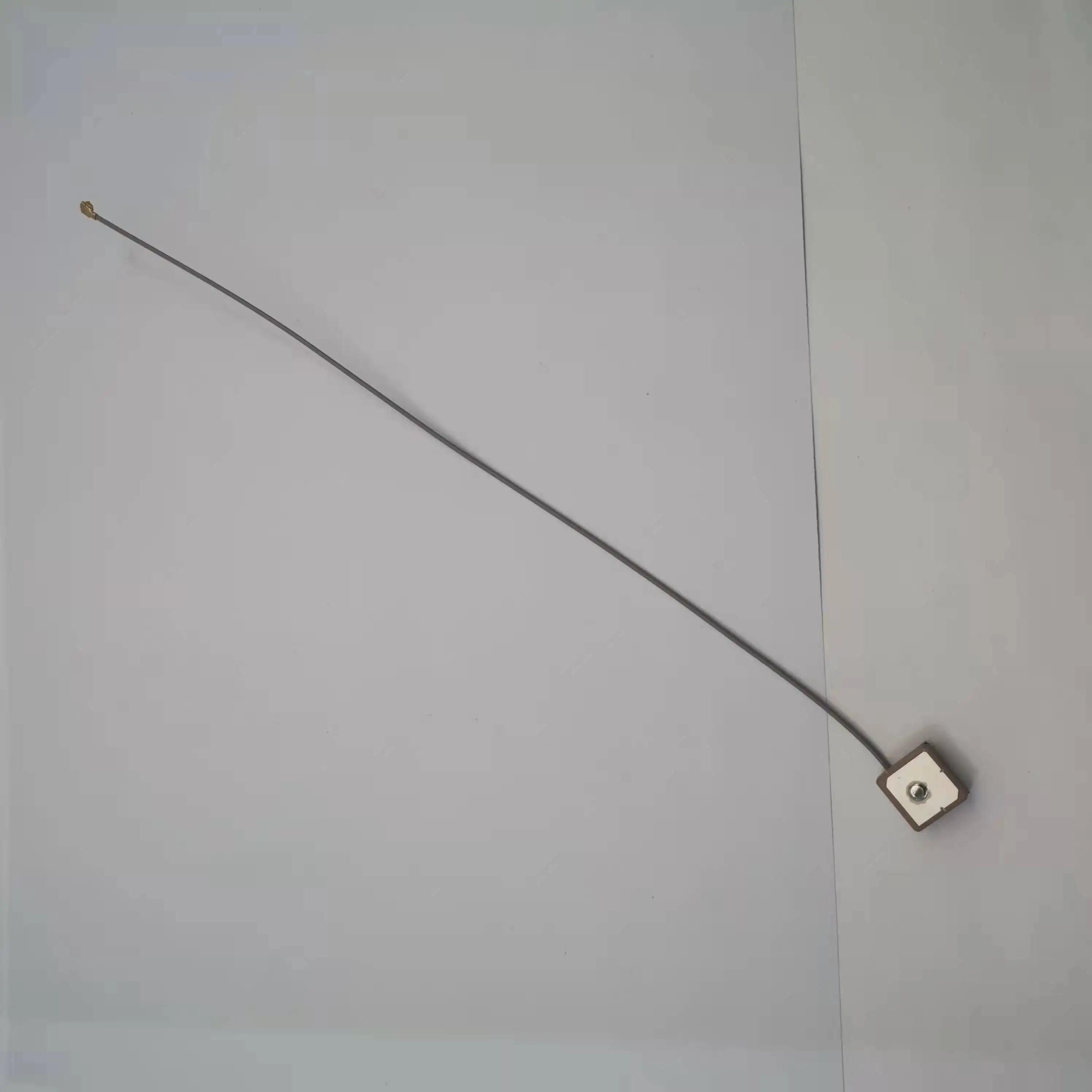

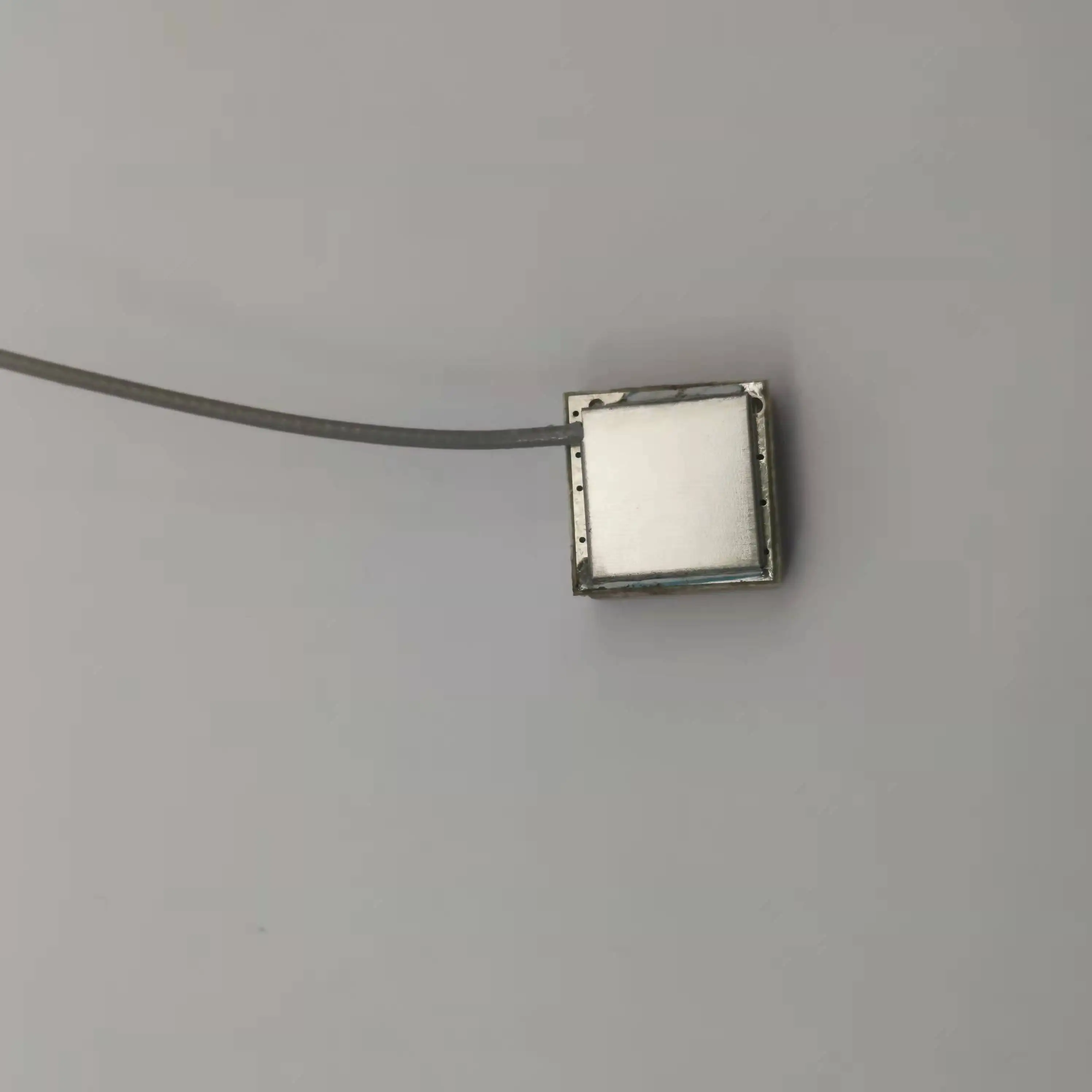

Mimi Active Antenna 12*12mm Internal Ceramic Passive 1575.42Mhz GPS Patch Antenna UFL With RF1.13 Cable
- Category: >>>
- Supplier: Guangzhou Gaoke Ant Communication Co. Ltd.
Share on (1600480366160):
Product Overview
Description
Product Description
Antenna technical parameters | ||
Antenna Type | Active internal Antenna | |
working Frequency | 1575.42/1561.09MHz | |
Gain | 0.74dBi@1561.09MHz，0.81dBi@1575.42MHz | |
Antenna efficiency | 32%@1561.09MHz，30.9%（@1575.42MHz | |
VSWR | ≤2.0 | |
Ploriaztion | RC Pol | |
Axial Ratio | ≤3.0 | |
Radiation pattern | 全向Omni | |
impedance | 50Ω | |
Power handling | 33dbm | |

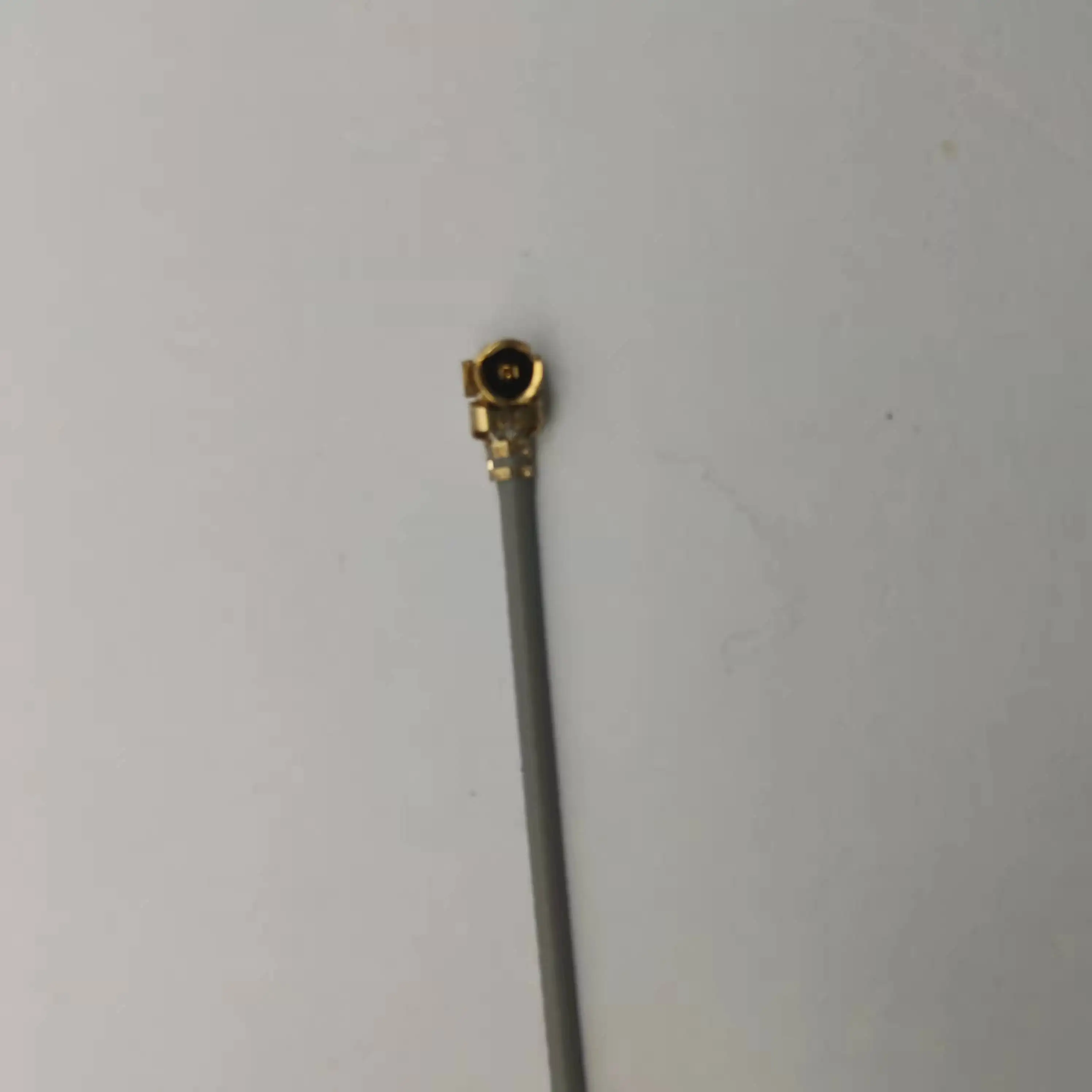

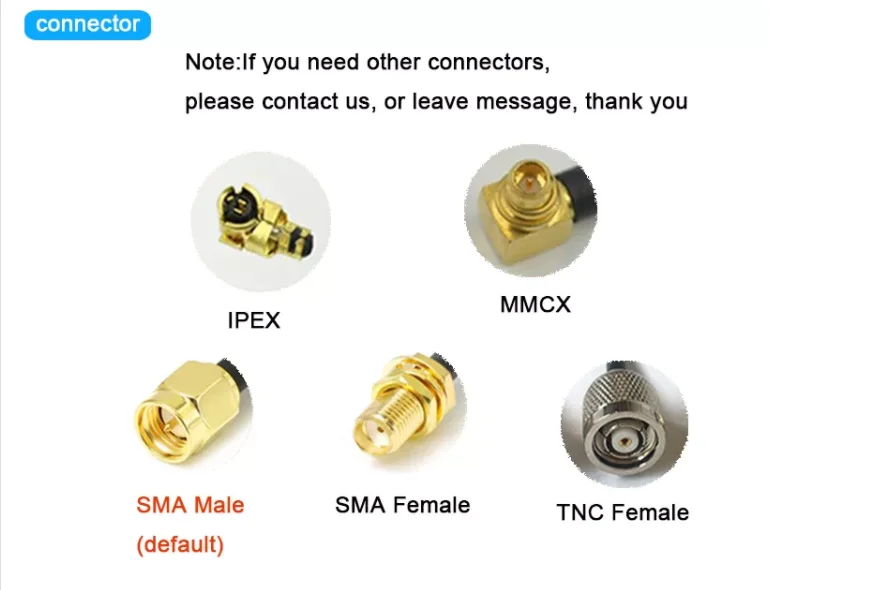

Interface | IPEX connector+RF 1.13（grey PVC）Exposed cable length 50mm | |
Overal dimensions | 18.5x18.5x4.7mm | |
Weight | 5.0g | |
Operatin Temp | -40℃~80℃ | |
Storing Temp | -40℃~80℃ | |
Low noise amplifier | ||
Center frequency | 1575.42/1561.09±3 MHz | |
Gain | 20dB±2dB | |
Noise factor | ≤2.0dB | |
V.S.W.R | ≤2.0 dB | |
Supply voltage | 2.7-3.6V | |
Current Consumption | ≤8mA | |
Impedance | 50Ω | |
Product performance description
25*25mm 1575.42MHz Patch Active Internal Ceramic GPS Glonass Antenna GSM GNSS BEIDOU Antenna
Gaoke Ant Co.,Ltd established in 1993,registered capital 11.28 million,is a high and new technology enterprise,dealing with wireless communication and develop,produce and sale satellite communication products professionally.
The company has a group of enterprising,innovative, and experienced management personnel,the existing staff more than 150 peoples,more than thirty percent has bachelor and master or higher degree.
Gaoke has the professional R&D team to research and develop new products for international market,focus on designing,researching and producing wireless series products,and we are the professional manufacturer enterprise to provide communication solution.
Gaoke has the professional R&D team to research and develop new products for international market,focus on designing,researching and producing wireless series products,and we are the professional manufacturer enterprise to provide communication solution.
Our company specialize in researching and producing antenna,module,application solutions,terminal products and others.These products widely used for mobile phones,base station,automotive equipment,modules,and other wireless terminal field and so on.Unit now,our company has designed products for thousands of companies at domestic and international market.
