China fpc flexible pcb Board fpcb manufacturer
- Category: FPC >>>
- Supplier: Shenzhen,Dreamland,Electronics,Co.,Ltd
Share on:
Product Overview
Description
We custom produce 1-14 layer flexible PCB, 2-12 layer flex-rigid PCB. Welcome your inquiry.
Item | Specification |

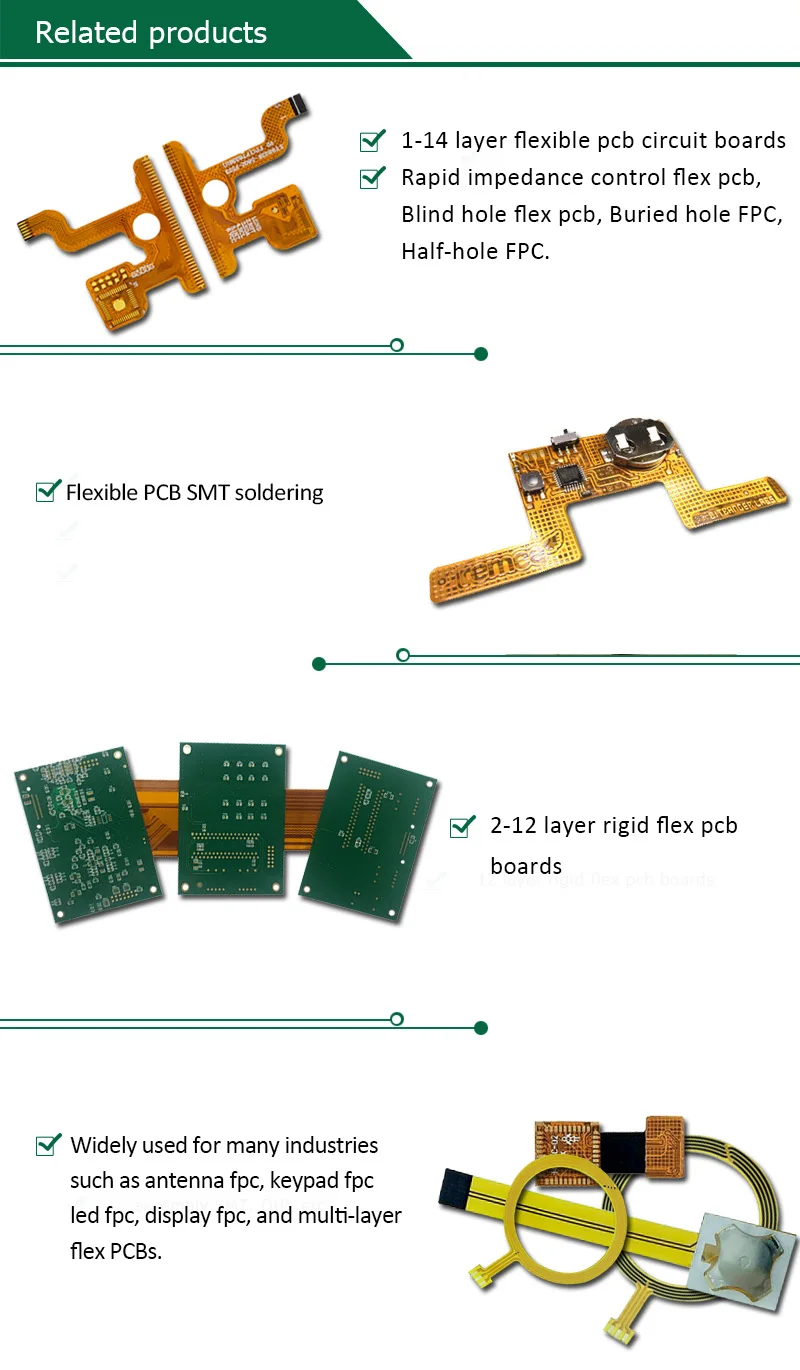

Flexible PCB | 1-14 layer flexible pcb circuit boards; Rapid impedance control flex pcb, Blind hole flex pcb, Buried hole FPC, Half-hole FPC. |
Stiffener material | PI,steel,FR4, aluminum,thermal tape,electromagnetic shielding film, Ferrite shielding film |
LED lighting flex pcb | Custom made flexible pcb strips for lighting |
Flex rigid pcb | 2-12 layer rigid flex pcb boards |
Other service | PCB clone, BOM clone, PCB assembly(SMT, DIP) |
Siffener material: PI, Steel, FR4
Tape: 3Mm, Domestic high temperature tape, Desa
Optional EMI Shielding to prevent signal interference
Surface treatment: ENIG, OSP, Gold plating 60" Max., Tin plating
Special Technique: Impedance, Hollowed-out
Test method: Flying probe test, test tooling
Item | FPC Capability |
Product types | Single layer, double layer,multi-layer, hollow FPC, separated-layer FPC, flex-rigid |
Layer | 1-14 layer flex pcb, 2-14 layer flex-rigid pcb |
Maximum finished board size | 250*5000mm |
Board thickness | FPC,0.06-0.4mm; Flex-rigid PCB, 0.25-6.0mm |
Min. trace width & spacing | 0.045/0.045MM |
Base material | PI, PET, Electrolytic Copper, Rolled Copper |
Tolerance for finished product | ±0.03mm |
Copper thickness | 12UM, 18UM, 36UM, 70UM |
PTH Hole Dia.Tolerance(plated-through-hole) | ±0.05mm |
Stiffener | FR4/PI/PET/SUS/PSA |
Impedance Control of Finished Product | 50Ω - 120Ω |
Acceptance criteria | Factory production standard, GB；IPC-650, IPC-6012, IPC-6013 II, IPC-6013 III, etc |
Dreamland Electronics is the group company, one of the most dynamic manufacturing company in high-tech Printed Circuit Board production in Shenzhen, China. We rapidly expand in terms of capacity and technology in recent years, especially in the areas of 1-12 layer flex PCB , 1-2 layer led pcb etc.
Our manufacturing facilities cover over an area of 1500 square meters, with 80-100 employees including 10% management and engineers who have professional experience in the field of flex PCB fabrication with 10 years at least. We very tightly controls the quality of the products with ISO system, and many raw material have attained UL and Rosh.
Q1, What needs to be provided for quote?
1, PCB file：gerber, .pcbdoc, CAD, or DDB.
2, Quantity.
3, Special technique.
PCB board thickness：0.15mm, 0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, etc
FPC board thickness：0.05mm, 0.1mm, 0.2mm, 0.25mm, etc
IMS board thickness：0.2mm, 0.4mm, 0.6mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm, etc
Copper thickness：18um, 35um, 50um, 72um…
Surface treatment：HASL, HASL-LF, ENIG, OSP, Tin immersion, Gold plating.
Solder mask：White, Black, Green, Blue, Yellow…
4, Special services.
SMT PCBA assembly, BOM, components provide by customer or Dreamland.
PCB copy: please provide the sample.
PCB design: please provide the schematic diagram
Q2, About lead time?
Sample: 3-5 days for production
Mass production: 8-12 days for production
SMT assembly: 2-5 days
Fast PCB: 42/72 hour
Q3, What’s the MOQ?
1PCS, we custom made pcb from your requests.
Q4, How to pack up the goods, and the shipment methord?
Normal/Vacuum package;
Small quantity delivery by DHL, FedEX, TNT, SF-express in 3-5 days
Batch quantity is delivery by air, train, sea.
Q5, May I know your products meet the environmental protection?
We custom made pcb boards, which can be produced according to customers' environmental protection requirements.
Q6, Do you offer guarantee for the products?
Yes, we offer 1-3 years warranty to our products.
Q7, How to deal with the faulty?
1st, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2nd, We requests all PCBs must be fly-probe test, or tested by test tooling.
3rd, During the guarantee period, if it's our fault, we will repair them and resend to you or we can discuss the detail, and find the final solution.
Q8, What’s the main market of Dreamland?
Our team has 12 years domestic production & sales experience, and 7 years export experience, with registered export qualification. Welcome your inquiry.
