M9(E91) 16A thermostat 220v temperature controller radiant floor heating thermostat
- Category: >>>
- Supplier: Shaanxi Enoo Jujia Trading Co. Ltd.
Share on (1600480439738):
Product Overview
Description
Product Description

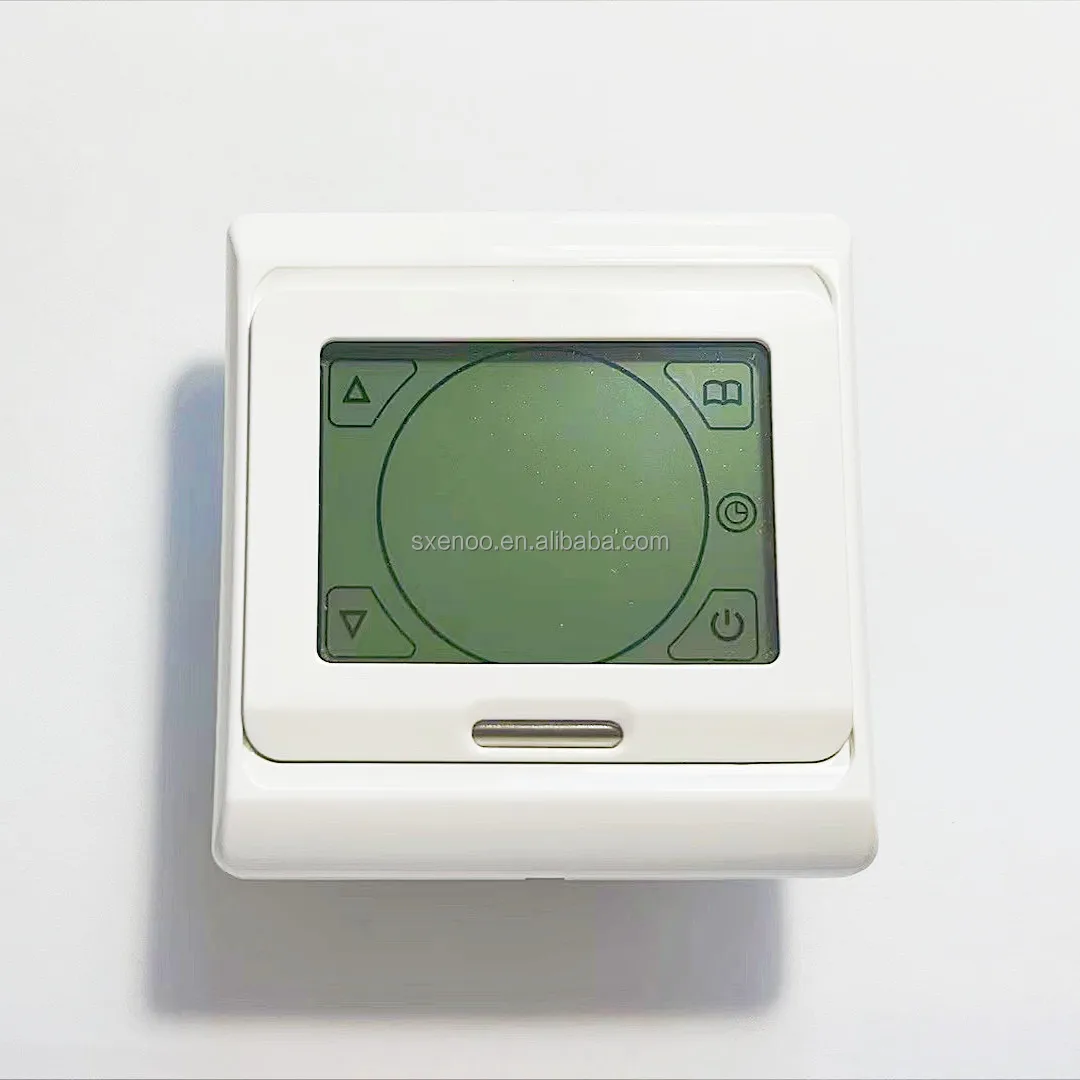

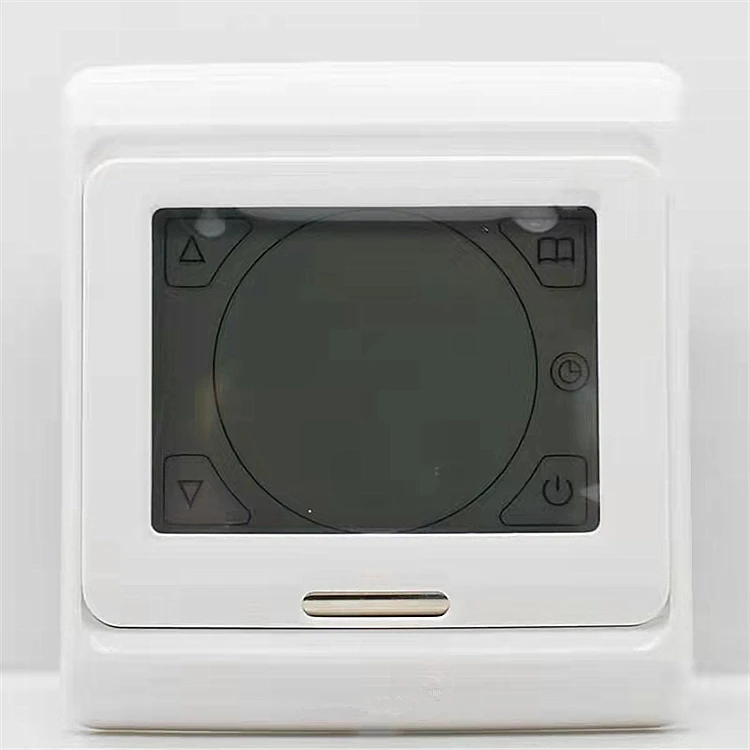

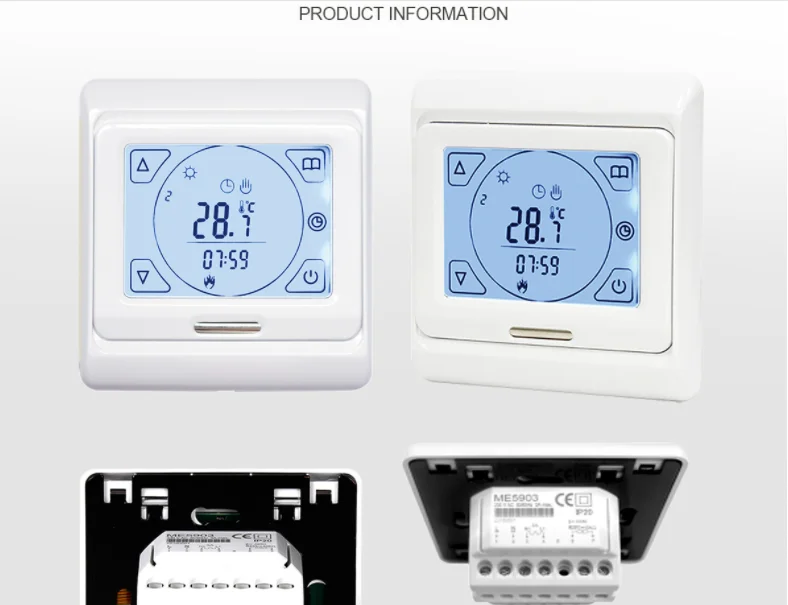

Thermostat E91 Digital touch screen thermostat
This elegant flush-mounted thermostat with weekly programme is designed for installation in a standard flush-mounted box Ø 65mm. The integrated sensor or external floor sensor measures the temperature and switches the consumer on when the temperature falls below the setpoint.
The thermostat can be used for electric floor heating, water-guided floor heating. It is operated via the touch display, which lights up when actuated.
Features:

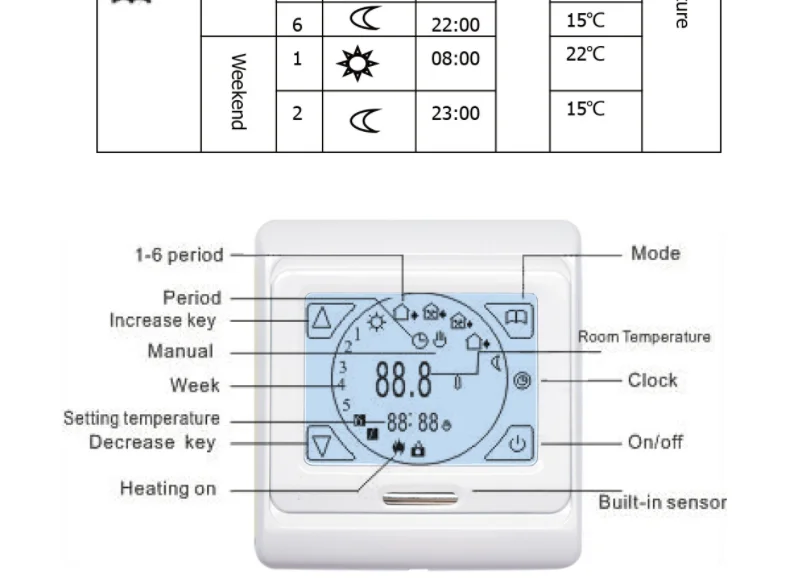

Touch screen
Preheating function

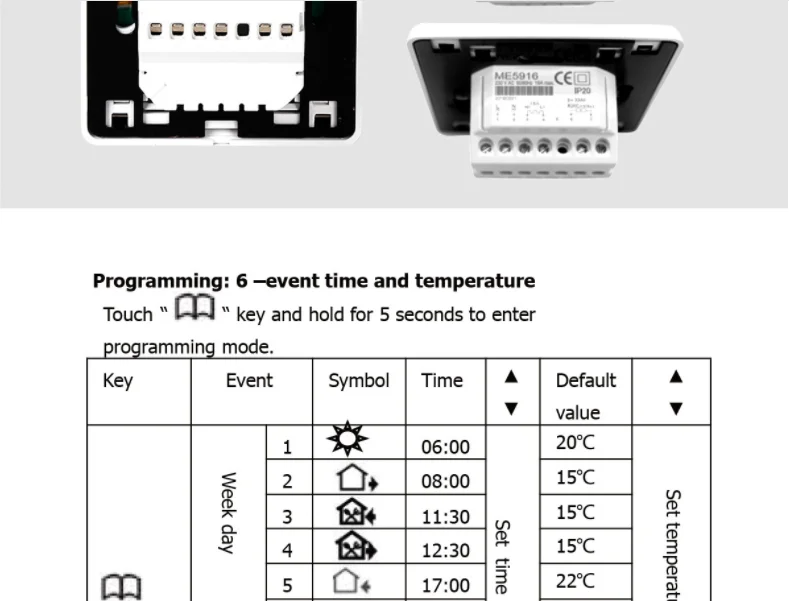

Weekly programme
Rest day mode
Frost protection function
Technical data:
Mounting type: flush-mounted
Design: cable-connected
Operating voltage: 230 Volt (50/60Hz)
Max. switching capacity: 16A / 3500 Watt
Sensor: Internal & External
Frost protection: Yes
Limitation range: 5-99°C（Factory setting 35℃）
This elegant flush-mounted thermostat with weekly programme is designed for installation in a standard flush-mounted box Ø 65mm. The integrated sensor or external floor sensor measures the temperature and switches the consumer on when the temperature falls below the setpoint.
The thermostat can be used for electric floor heating, water-guided floor heating. It is operated via the touch display, which lights up when actuated.
Features:
Touch screen
Preheating function
Weekly programme
Rest day mode
Frost protection function
Technical data:
Mounting type: flush-mounted
Design: cable-connected
Operating voltage: 230 Volt (50/60Hz)
Max. switching capacity: 16A / 3500 Watt
Sensor: Internal & External
Frost protection: Yes
Limitation range: 5-99°C（Factory setting 35℃）
Ambient temperature: -5~50℃
Display/illumination: Yes / Yes
Protection class: IP20
Display/illumination: Yes / Yes
Protection class: IP20
Internal sensor: include
External sensor: include
Specification
Product name | E91 room thermostat |
Setting range | 5-90℃ |
Model Number | E91 |
Max Switch Current | 16A |
Power Consumption | 2W |
Max Load Power | 3500W |
Ambient temperature | -5~50℃ |
Internal sensor | Include |
Function | Weekly programmable |
Display | LCD Screen |

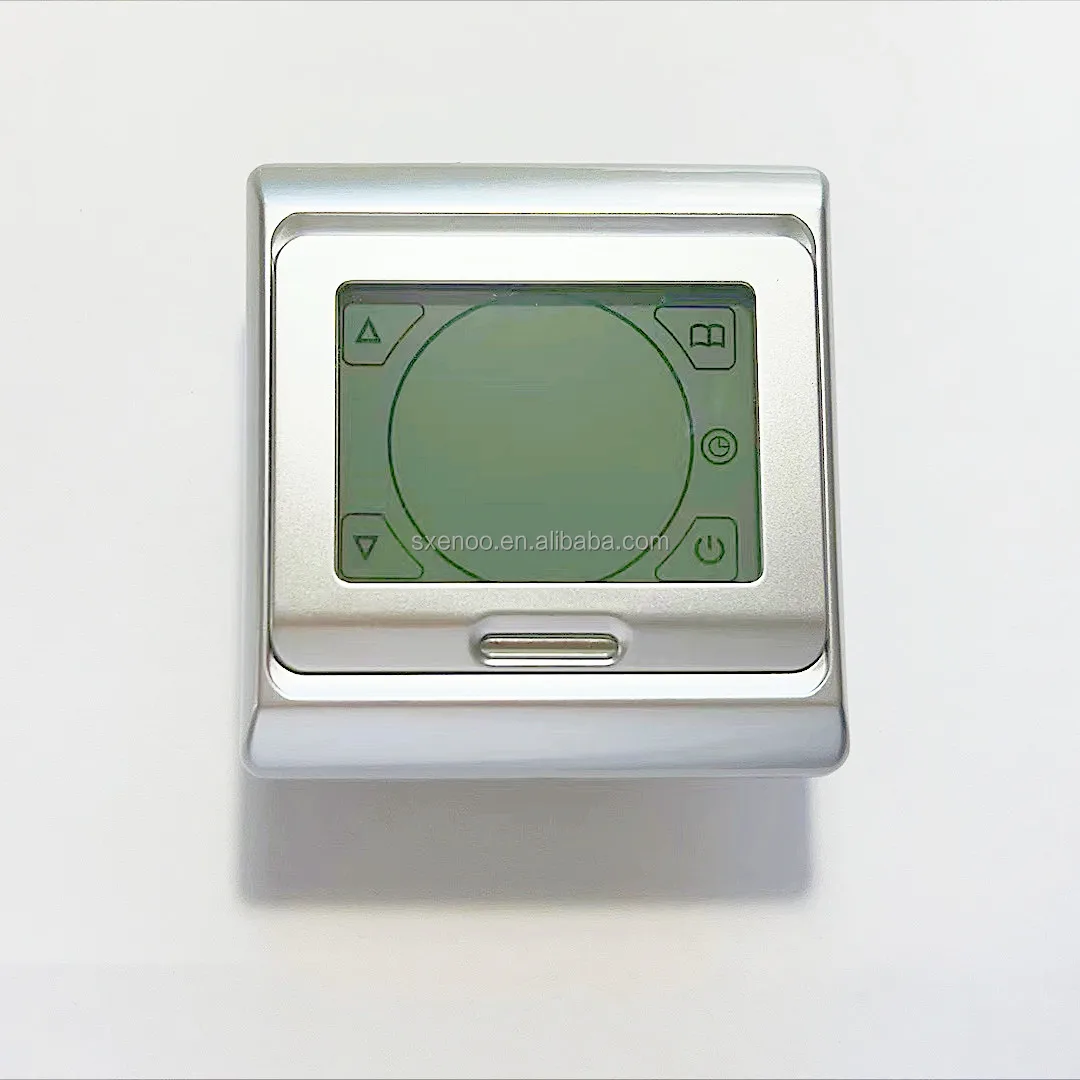

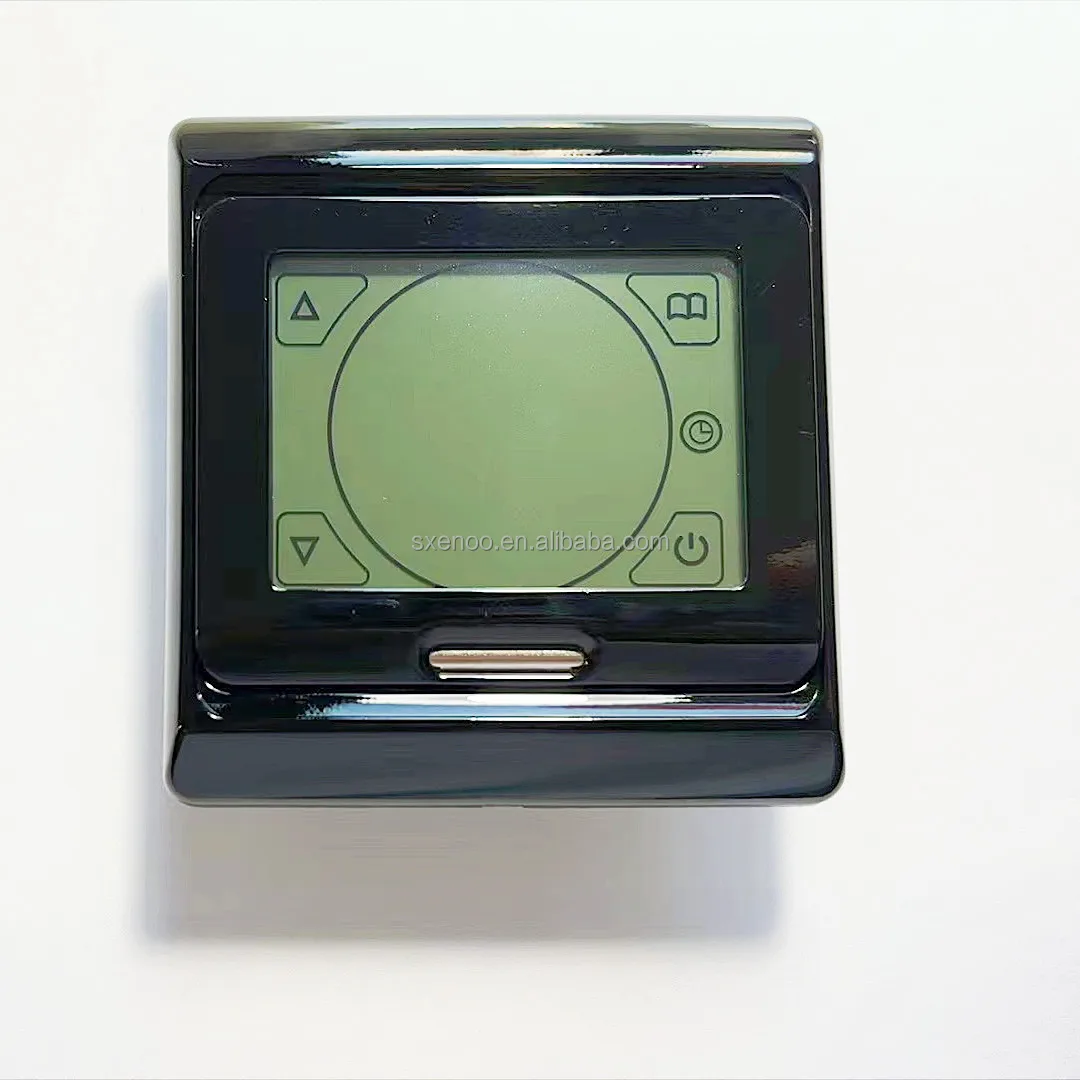

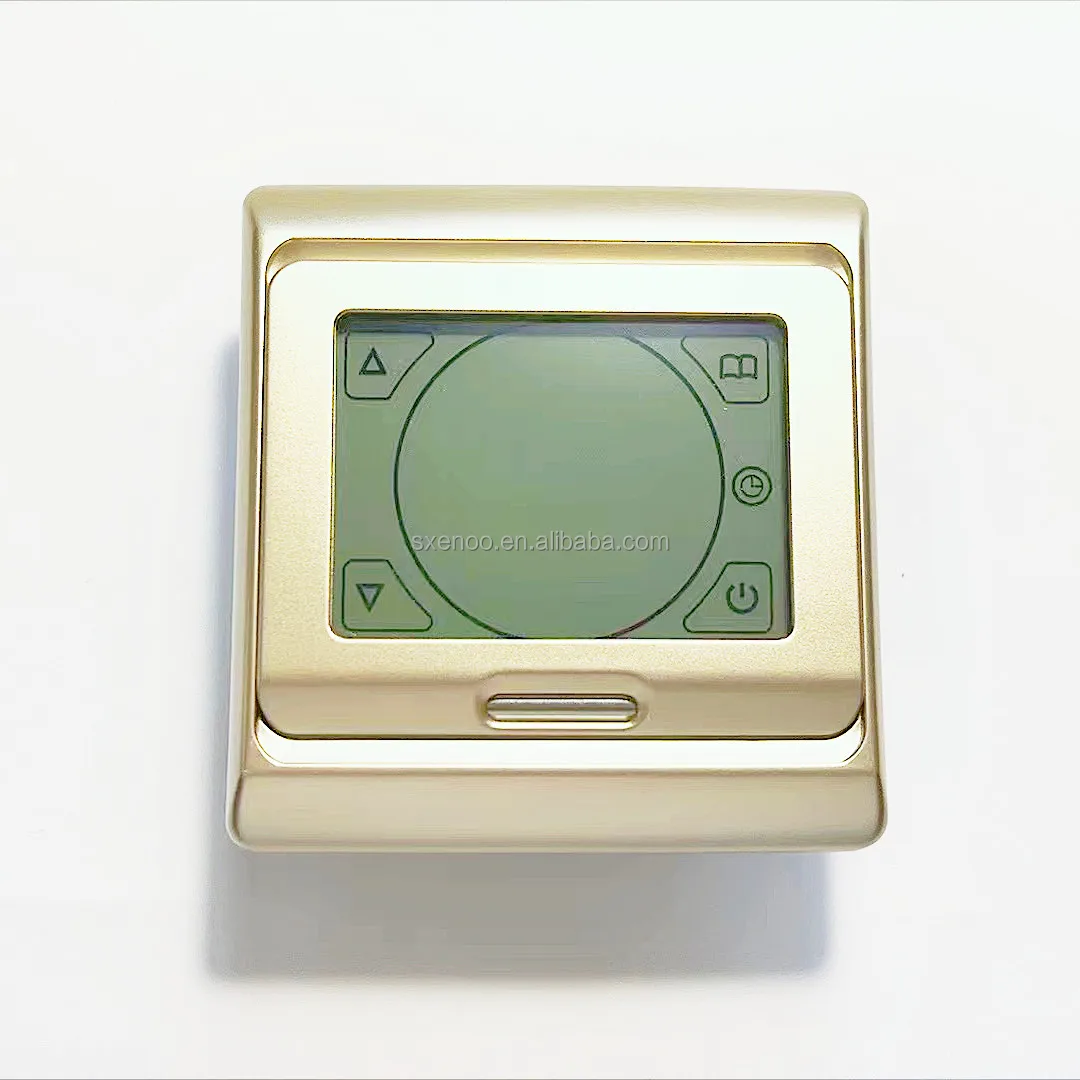

More Color Choices

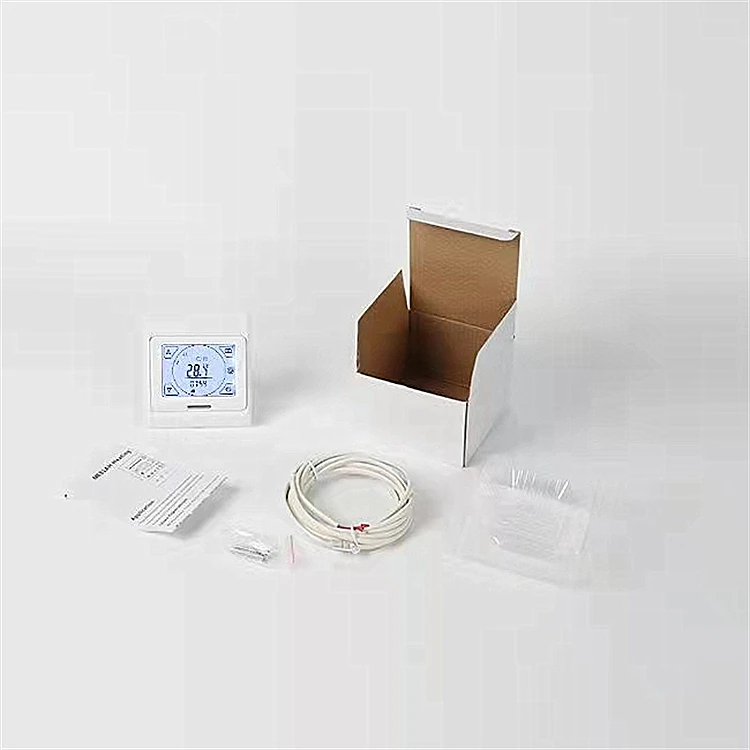

Packing & Delivery
