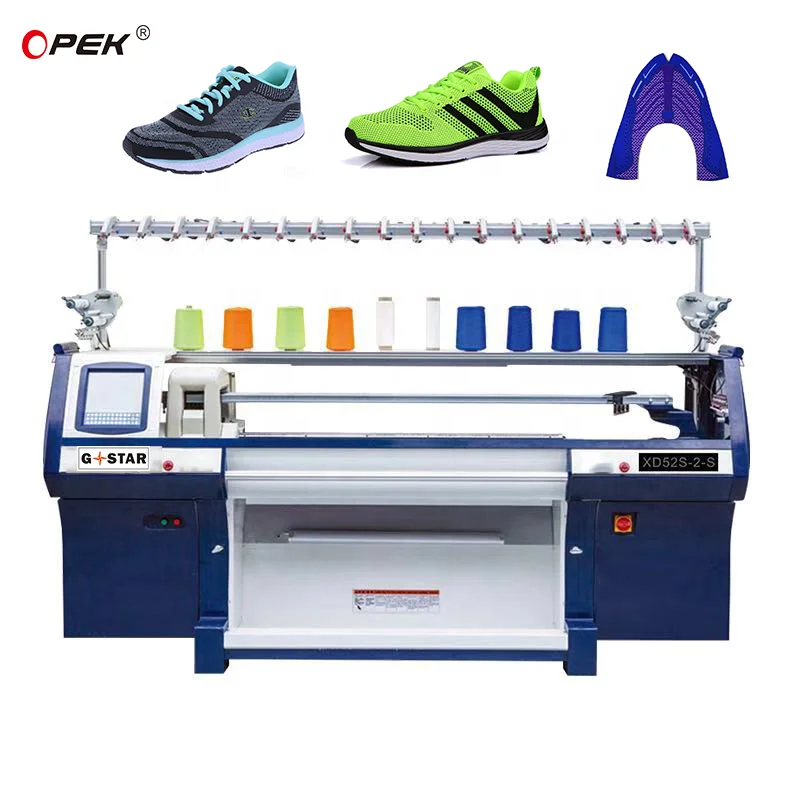

3D flyknit Fully Computerized flat type Shoes Upper Knitting Machine
- Category: Knitting Machines >>>
- Supplier: Hefei,Opek,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product descript

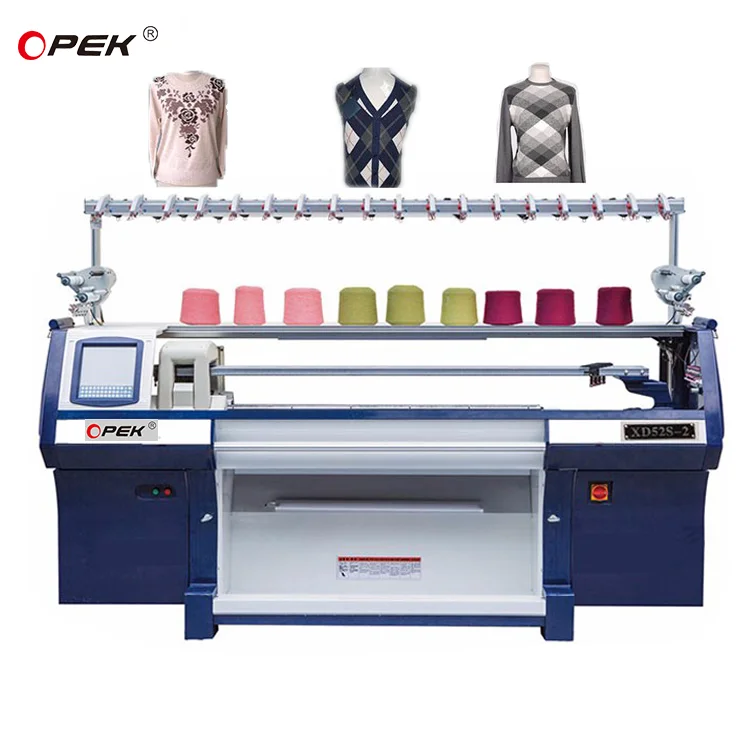

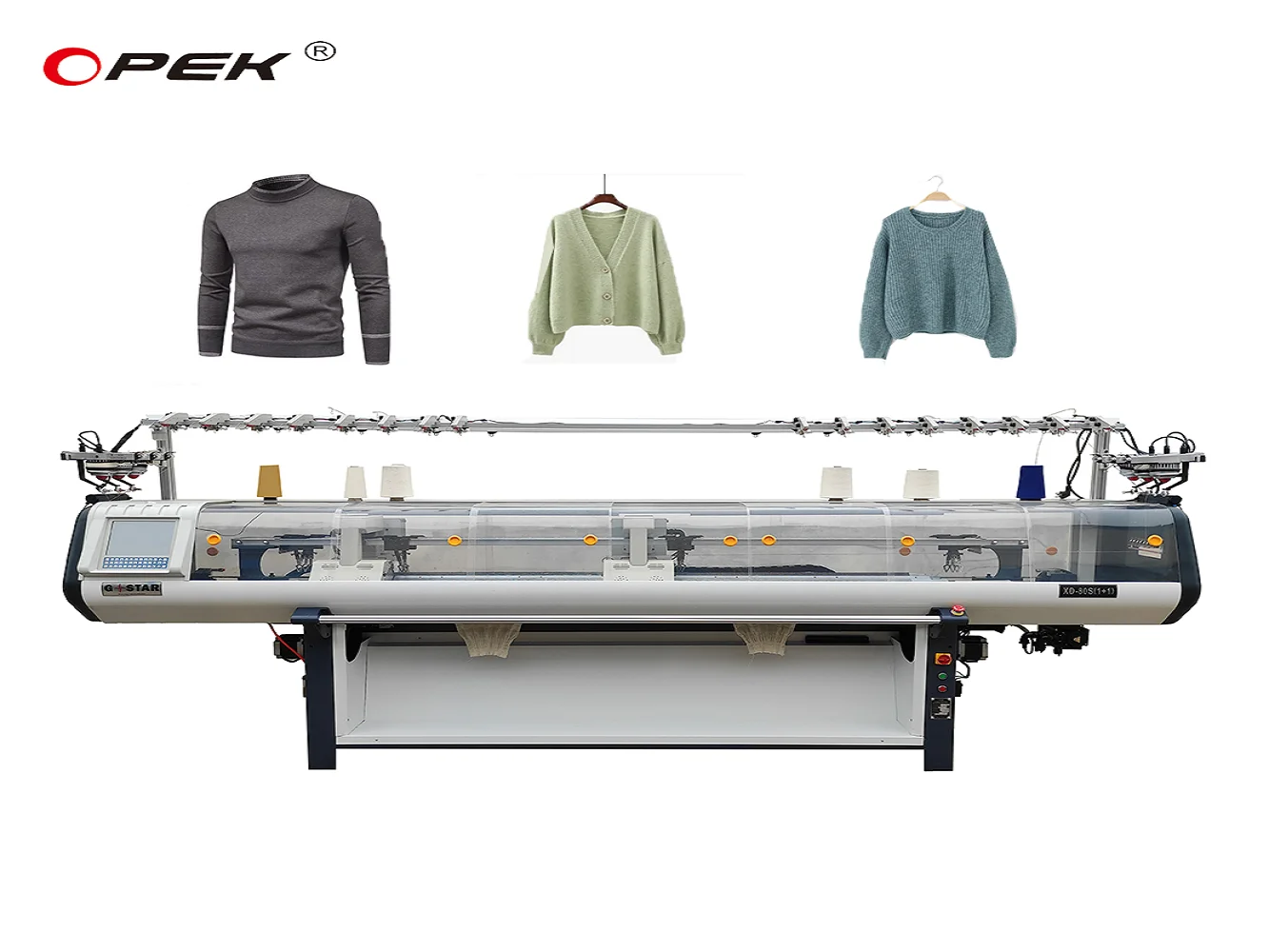

double system computerized flat knitting machine
double and three system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
Main Characteristic
Single Carriage with three system , this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit ,transfer , tuck , pointel , intarsia , jacquard ,apparent shape, hidden shape , and other regular or irregular patterns knitting functions , can knit basic single or double jersey plain fabric , irregular multi-color jacquard , intarsia , cable and pointel structure patterns , which suitable to knit by yarns of pure silk ,mixed silk , synthetic , wool ,acrylic ,mixed fiber material etc. knitted for shaping fabric and accessories of collar , cardigan ,rib, cuff, scarf ,pocket and trousers etc.
Mainly specification
Gauge : | 2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 8-10-12 multi-gauge ,14gg,16gg ,18gg | ||||
Knitting bed width : | 52 /56 /60/72/80 inch | ||||
knitting function: | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. | ||||
Knitting speed: | Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition | ||||
Knitting system: | Single carriage with three system | ||||
Needle bed: | Replaceable segment needle bed ,flat needle bed | ||||
Take down roller: | Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99. | ||||
Transfer: | Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting. | ||||
Racking: | Controlled by servo motor racking within 2 inches and with fine adjusting function. | ||||
Protection: | The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur. | ||||
Stitch system: | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | ||||
Encoder: | Advanced encoder adopted. | ||||
Yam carrier: | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available). | ||||
Sinker system | Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns. | ||||
Power: | Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop. | ||||
Controller: | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. | ||||
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. | |||||
3. Free design is visual and easy to understand and upgrade | |||||
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement . | |||||
Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg | ||||

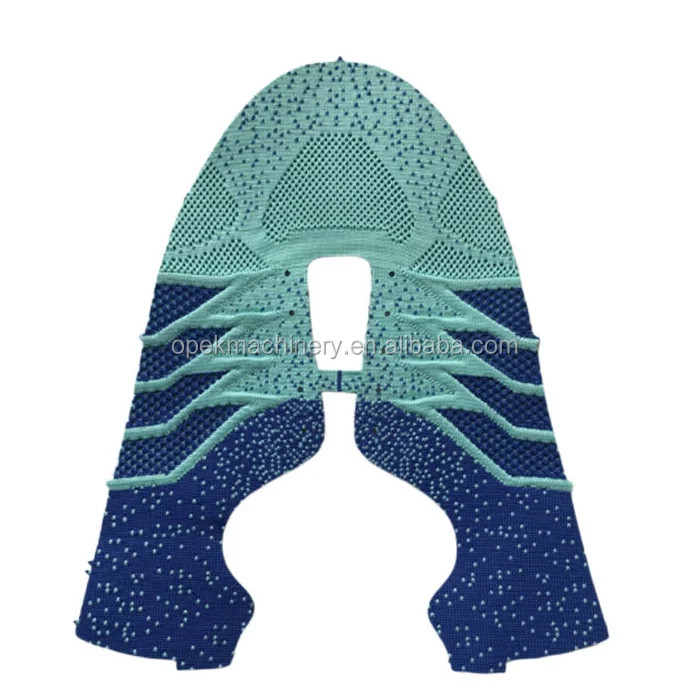

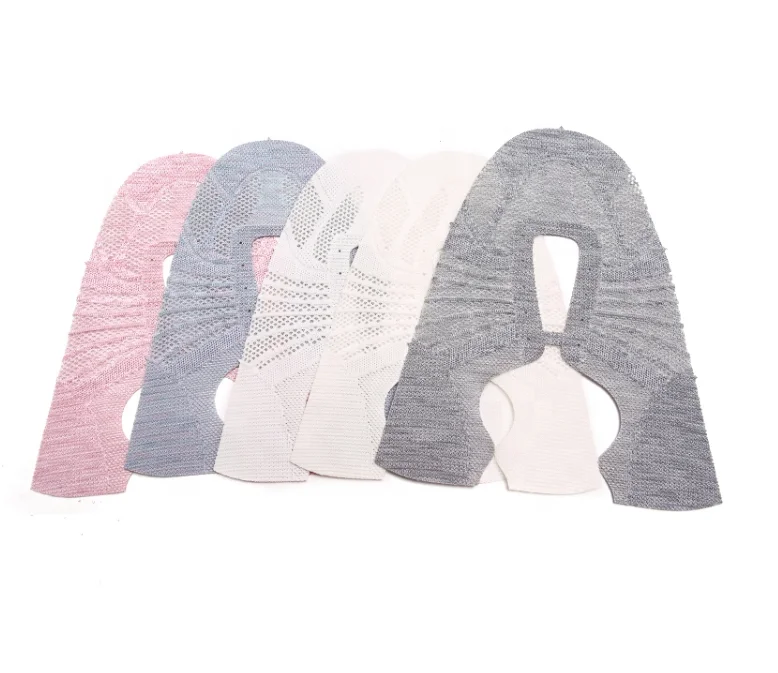

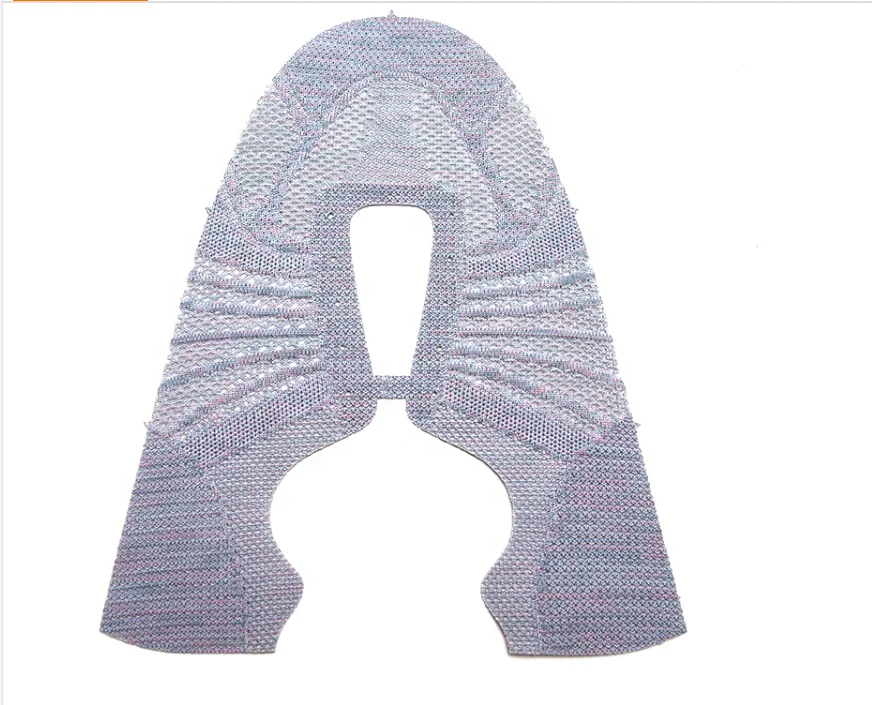

Knitting samples
Shinestar flat knitting machine suit for
sweater knitting , caps knitting , scarf knitting , shoe upper knitting .
