Hot selling 94vo circuit board oem custom gerber multilayer pcb pcba circuit board design smt one stop service pcba
- Category: >>>
- Supplier: Jinhua Technology (shenzhen) Co. Ltd.
Share on (1600480586665):
Product Overview
Description

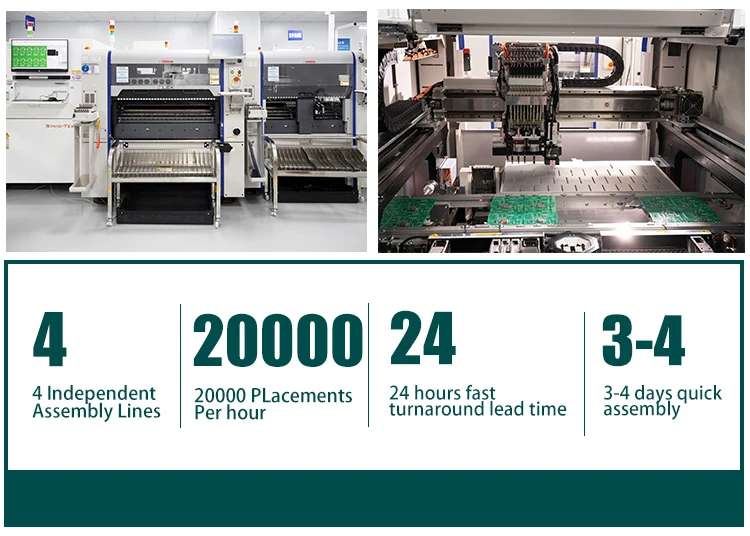

JH PCBA has 4 fully independent surface mount assembly lines with automatic machines like YAMAHA assembly machines, providing a theoretical capability in excess of 20,000 placements per hour. Lead time of PCB assembly prototype will be offered as rapidly as 24 hours.
Kitted: You provide all the parts including the bare printed circuit boards and electronic components, we assemble your boards using our state of the art automated equipment.
Partially Kitted: You provide the hard-to-find parts, the “custom” parts, the parts you have in inventory, whatever parts you have! We help procure the rest of the components, manufacturing PCBs, whatever you don’t provide, then assemble these circuit boards for you.
Full Turn-Key: We manage the entire process from manufacturing the bare printed circuit boards, procuring all parts through assembly and testing as your application requires.
PCBA Capability:
Processing Type: SMT Surface Mount THT/DIP Plug-in/Hand Soldering Mixed processing Finished Product Assembly
Type of Test: Visually X-ray Inspection AOI Automatic Optical Inspection Function Test | Production Equipment: SMT Production Lines: 6 THT Production Lines: 2
YAMAHA High-speed SMT Machine: 6 GKG Solder Paste Printing Machine :4 Jintuo Reflow Soldering Machine: 2 Nitto Wave Soldering Machine: 1
Hand Soldering Lines: 2 Functional Test Lines:2 Conformal Coating Spraying Machine:1 | Inspection and Testing Equipment: AOI: 2 X-RAY BGA Inspection Machine:1 SINIC-TEK SPI: 1 Smart SMT First Article Inspection Machine:1 Electron Microscope (with measurement function): 2
Other Equipment: Automatic PCB Splitting Machine: 6 Washing Machine: 1 Forming Machine: 2 |
Production Capability:
PCB types can be assembled: rigid PCB, flexible PCB, rigid-flex PCB, aluminum PCB; PCB board size can be assembled: maximum 480X510mm; minimum size: 50mm x 50mm; Smallest Component: 01005, 0201,0402 Minimum BGA: 0.3mm pitch for rigid PCB, 0.4mm pitch for PCB; Fine Pitch component: 0.3mm pitch Component Height Limit: 15mm Assembly Accuracy: +/-0.025mm
Lead Time: According to the quantity, from 24h to several weeks SMT Production Capacity: 200-300 million chips/month THT Production Capacity: 13 million chips/month Test Capacity: Depending on customer needs and product conditions | ||
FAQ
Q1. What service do you have?
We can offer you PCB Design, PCB board manufacturing, Components or Parts Source, Surface Mount (SMT), Thru-Hole (THT),hybrid of both, Functional Test, Wire Soldering etc. one stop PCB&PCBA service.
Q2. Is JINHUA a factory or trade company?
JINHUA Technology is a one-stop PCB and PCBA factory with over 13 years’ experiences.
Q3. What is needed for quotation?
Gerber file and Technic requirements (material, surface finish treatment, copper thickness, board thickness, and so on.)
Q4. What file formats do you accept for production?
Gerber Files+BOM File+Centroid File(other names maybe: aka Insertion, Pick-N-Place, or XY Data)
Gerber Files: including files: copper (track), soldermask, silkscreen, solder paste, drill, outline files
Q5. Do you assemble BGA? Any special requirement on this?
Yes, we have the ability to handle BGA of 0.25mm pitch with X-ray testing. For BGAs, there are two designs with via on pad and via near pad connected by shorter trace. We need to tent and fill any vias near pad of the BGAs with solder mask to ensure the soldering quality. But for vias on pad, we need to fill via with resin to make sure good soldering quality.
Q6. How long does it take for PCBA quote?
Normally 24 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
Q7. MOQ?
There is no MOQ in Jinhua Technology. We can offer prototype, expedite prototype, small& medium amount, big amount pcba service.
