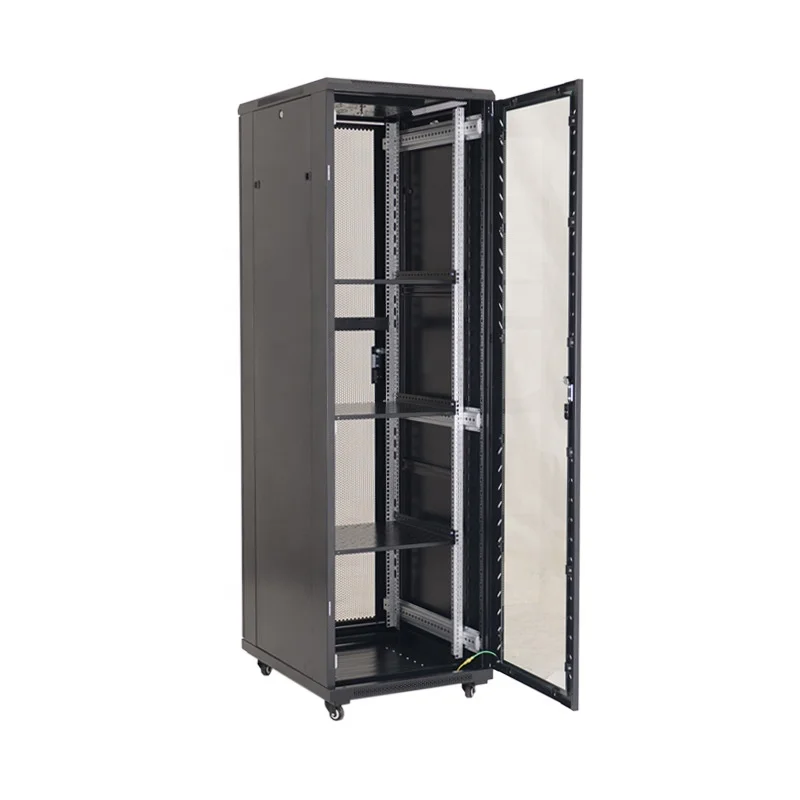

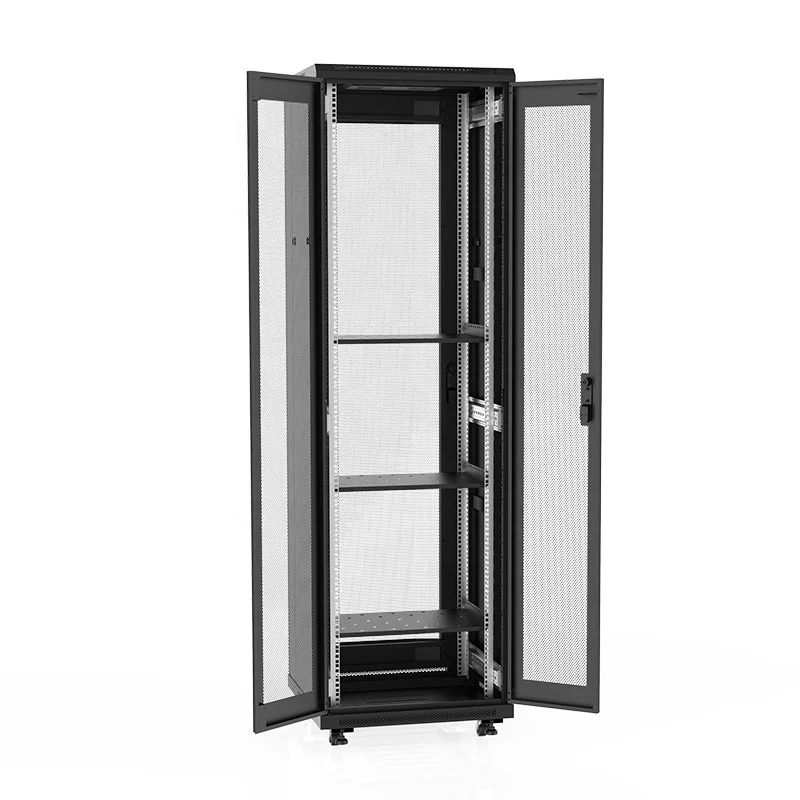

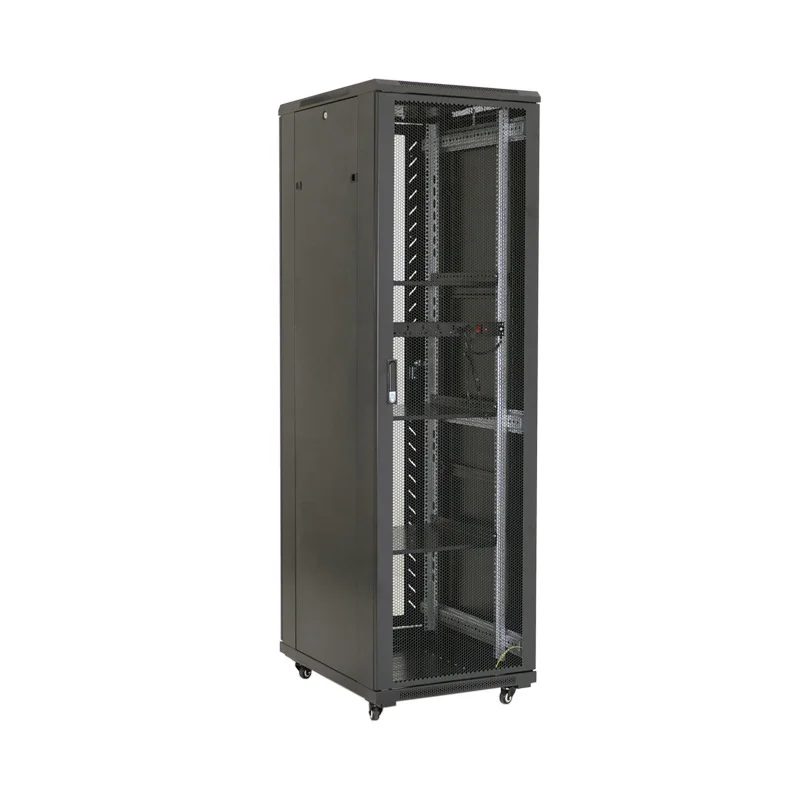

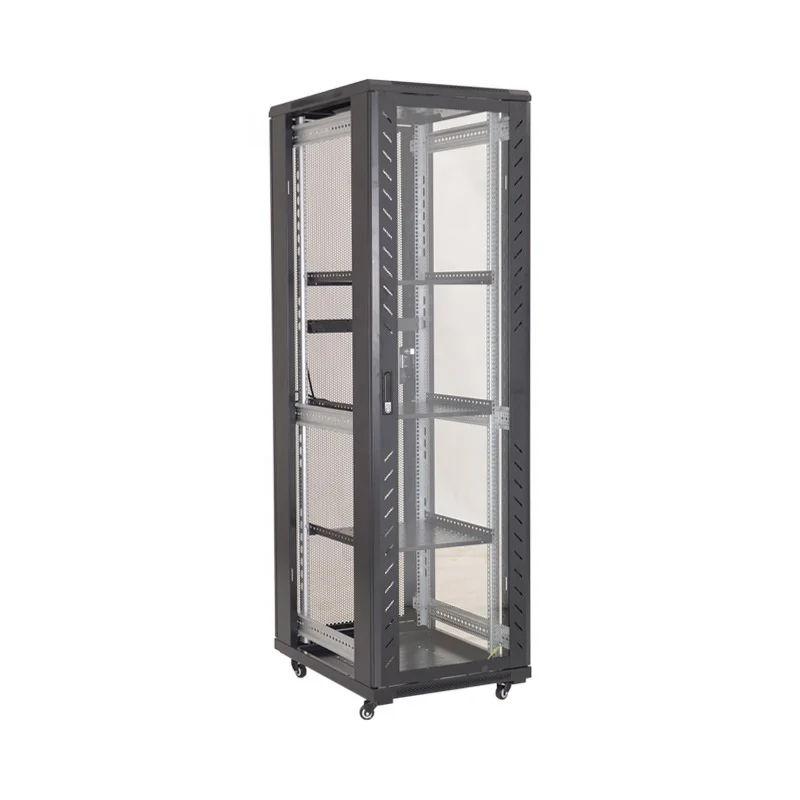

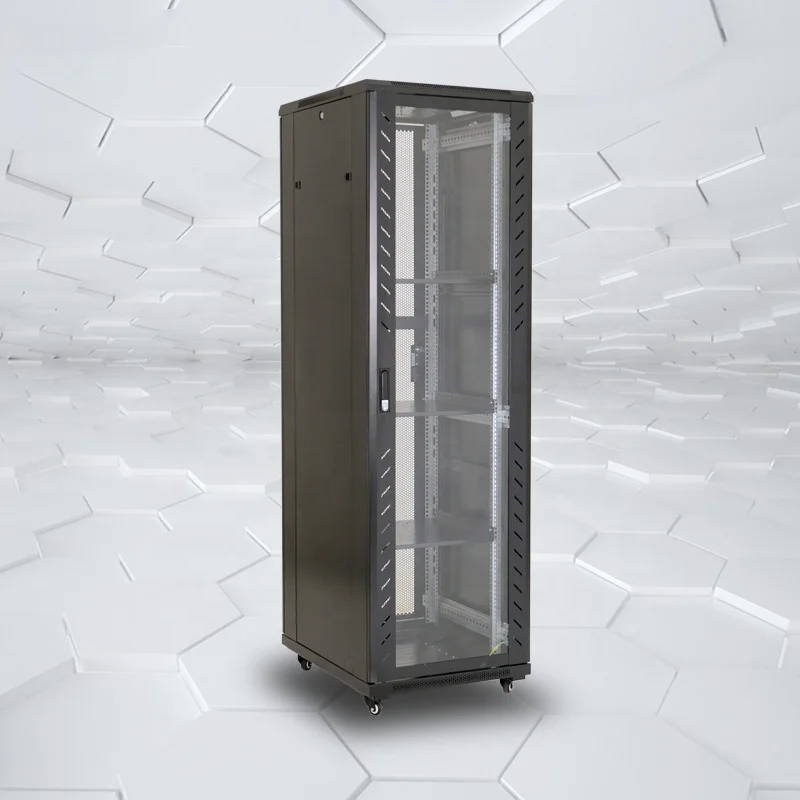

indoor 19 inch lan 6u 15u 22U rack wall mount telecom patch panel server network rack cabinet
- Category: >>>
- Supplier: Henan Huawei Wire & Cable Technology Co. Ltd.
Share on (1600480616069):
Product Overview
Description
Products Description
Network cabinet 19 inch 22U rack wall mount server cabinet
Features:
*High-density ARC vented front single &rear dual doors, two section side panel.
*Standard enclosure for low to medium density server and networking applications.
*Compact width to optimize data center space.
*Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 1000kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...
*High-density ARC vented front single &rear dual doors, two section side panel.
*Standard enclosure for low to medium density server and networking applications.
*Compact width to optimize data center space.
*Feature-rich enclosures optimized for easy installation, managing cables, integrating
Power distribution, and maximizing airflow.Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm
Loading Capacity:
Static Loading: 1000kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...
Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
18U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 988mm |
22U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1166mm |
27U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1388mm |
32U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1610mm |
37U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1833mm |
42U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2055mm |
45U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2188mm |
47U | 600mm/750mm/800mm | 600mm/800mm/1000mm /1200mm | 2277mm |
Details Images
Recommend Products
Company Profile
HuaweiCable technology co., ltd. is a company specializing in various types of wire and cable manufacturers. Company in strict accordance with national standards of production since the establishment and achieved a high reputation and share in the Market. Huawei Cable Technology Company's leading products: Plastic insulated cables, Plastic insulated control cables, Plastic insulated wire XLPE power cable, Low smoke no halogen cable, aluminum alloy cable, mineral cable includes flame retardant series, at the same time provides Custom Service for various special type cable according to customers' demand. The Huawei Cable Technology has a skilled professional team, modern production equipments and sophisticated detection instruments. To ensure the remarkable quality of products, HuaweiCable Technology established a perfect quality management system in accordance with the ISO9001 and manufactured in a omnibearing quality control. The HuaweiCable Technology Company's products have been sold well all over the country since it came to market and have won the National Compulsory CCC certification .Meanwhile our quality management is cetificated by ISO9001-2008 quality management system and successively achieve the honour such as China famous products, Quality trustworthy product, Consumer trust products and so on.HuaweiCable Technology provide qualified substantial products which is the first choice for customers. We promise that customer is the guardian of our products and express sincerely welcome to people from all walks of life coming to visit and guide.
Certifications
FAQ
Q1: Are you a manufacture or a trading company?
A1: HuaweiCable technology co., ltd is a professional cable manufacturer with 15 years production experience.not a trading company.Welcome to visit our factory at any time.
Q2: What kinds of products does HuaweiCable technology co., manufacture?
A2: We specialize in supplying lan cable,alarm cable,fire alarm cable,coaxial cable,speaker cable,telephone cable,HYA/HSVY/HYAT cable,patch cable,face plate,keystone jack,surface box,hdmi cable,usb cable,dvi cable,vga cable,dp cable,av cable,fiber optic cable,cctv cable and other products.
Q3: Can you send a sample for us to test?
A1: If we have inventory and total amount is small,it's free.
A2: If we don't have inventory, sample and freight cost had to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q4: How can I get your price list?
A4: Please leave your contact way such as Email/Skype/Wechat to us. We will contact to you and sent our quotation sheet to you.
Q5: Do you accept OEM and ODM ?
A5: Of course OEM and ODM is accepted. We are a specialized manufacture in Guangdon China. We had accepted many OEM and ODM orders.
Q6: How to pay for the order?
A6: Alibaba Trade Assurance,Alipay /TT/paypal/western union/L/C and so on.
Q7. What's ur MOQ?
A7: The MOQ of cables is 30 KM,lan cable is 100 boxes or we can negociate.
Q8. What's ur delivery time?
A8: Our delivery time is about 20-30days after comfriming the deposite ,it is based on the quantity of the order.
Q9. What's ur payment terms?
A9: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity., as for other payment term,we can negociate.
Q10. What's ur trade term ?
A10: We can accept FOB,CIF,CFR,EXW term.
Q11: Whether these products quality assured ?
A11: Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.For some products,we could give our guarantee time for you.
