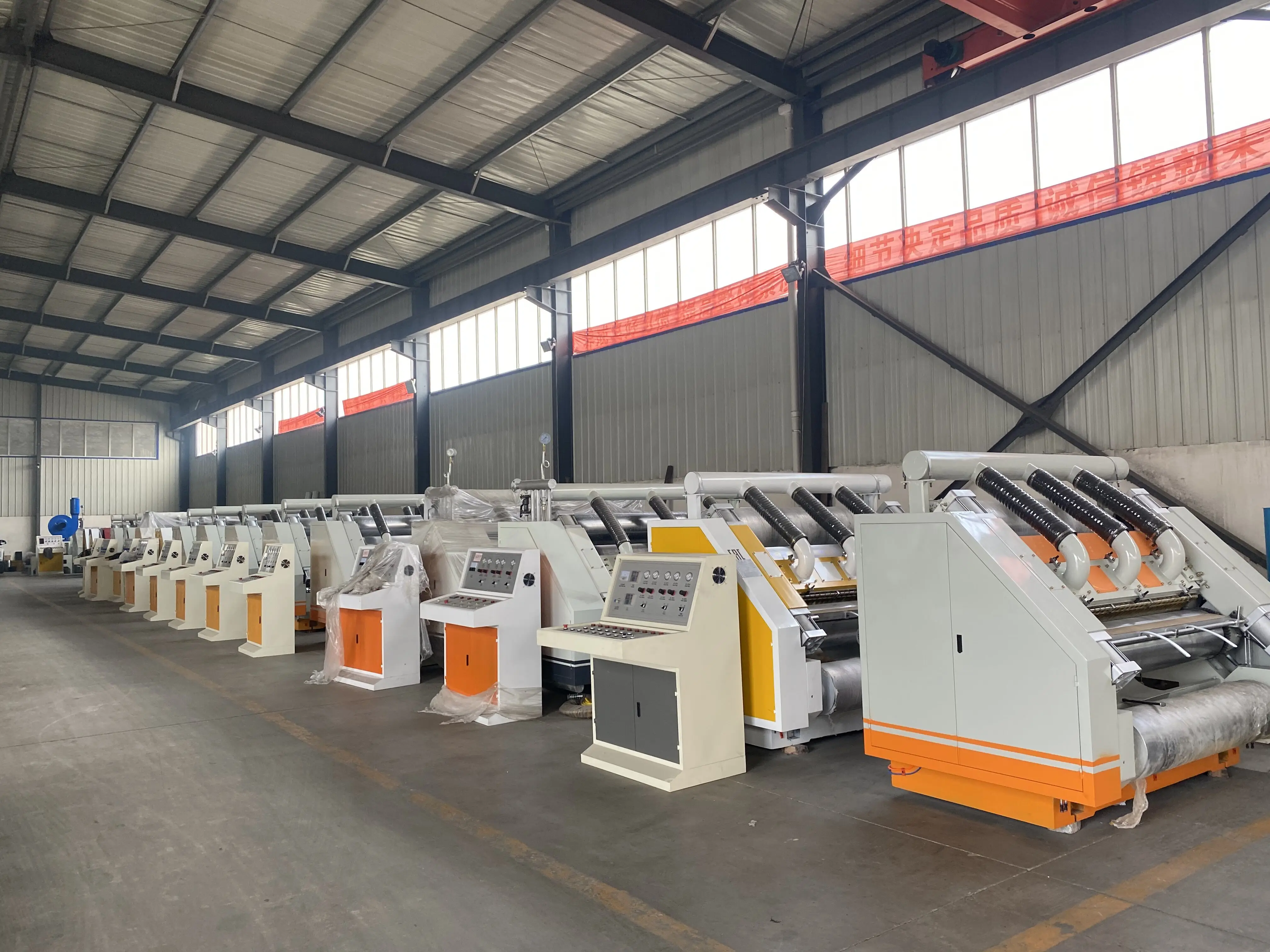

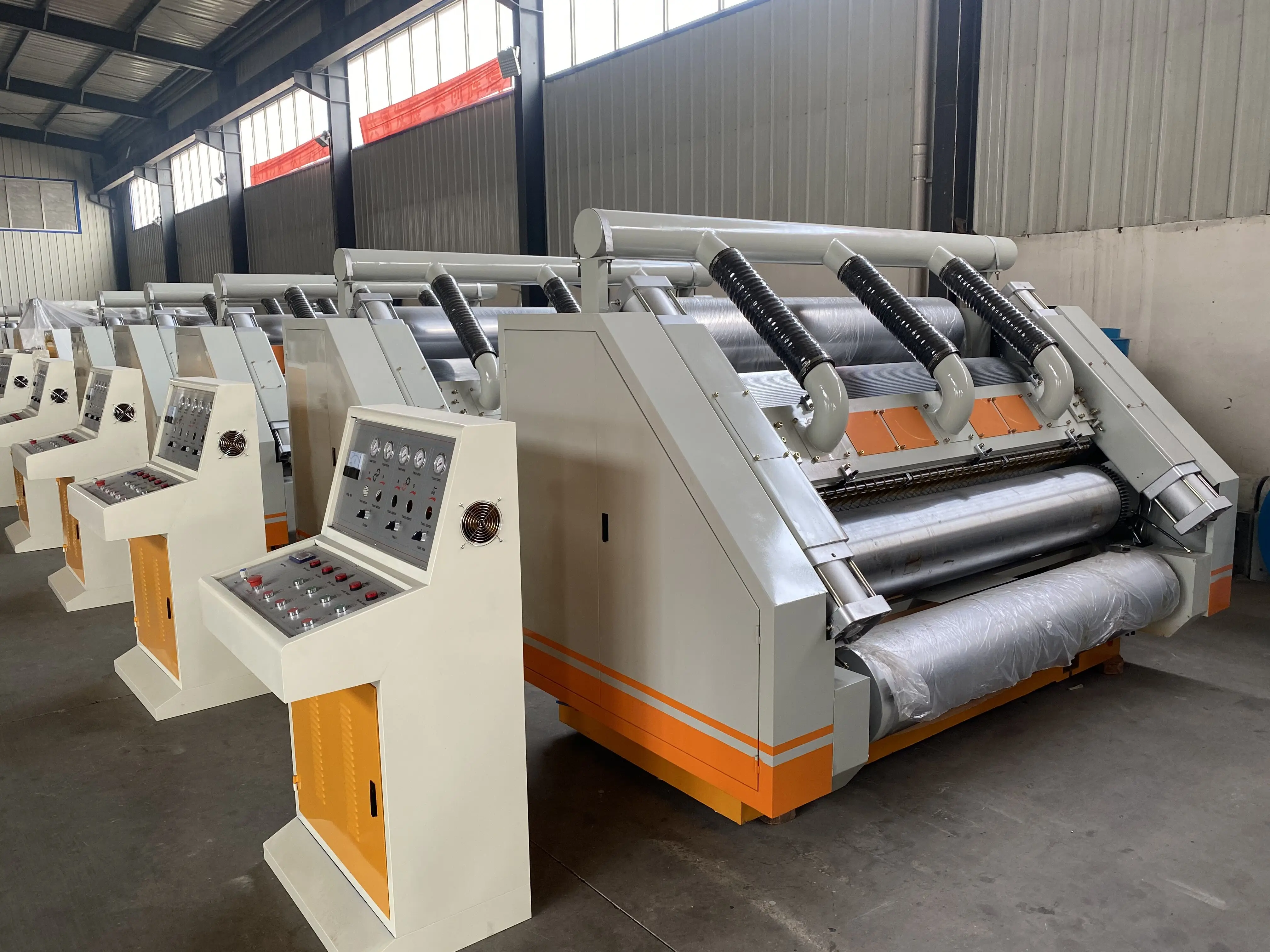

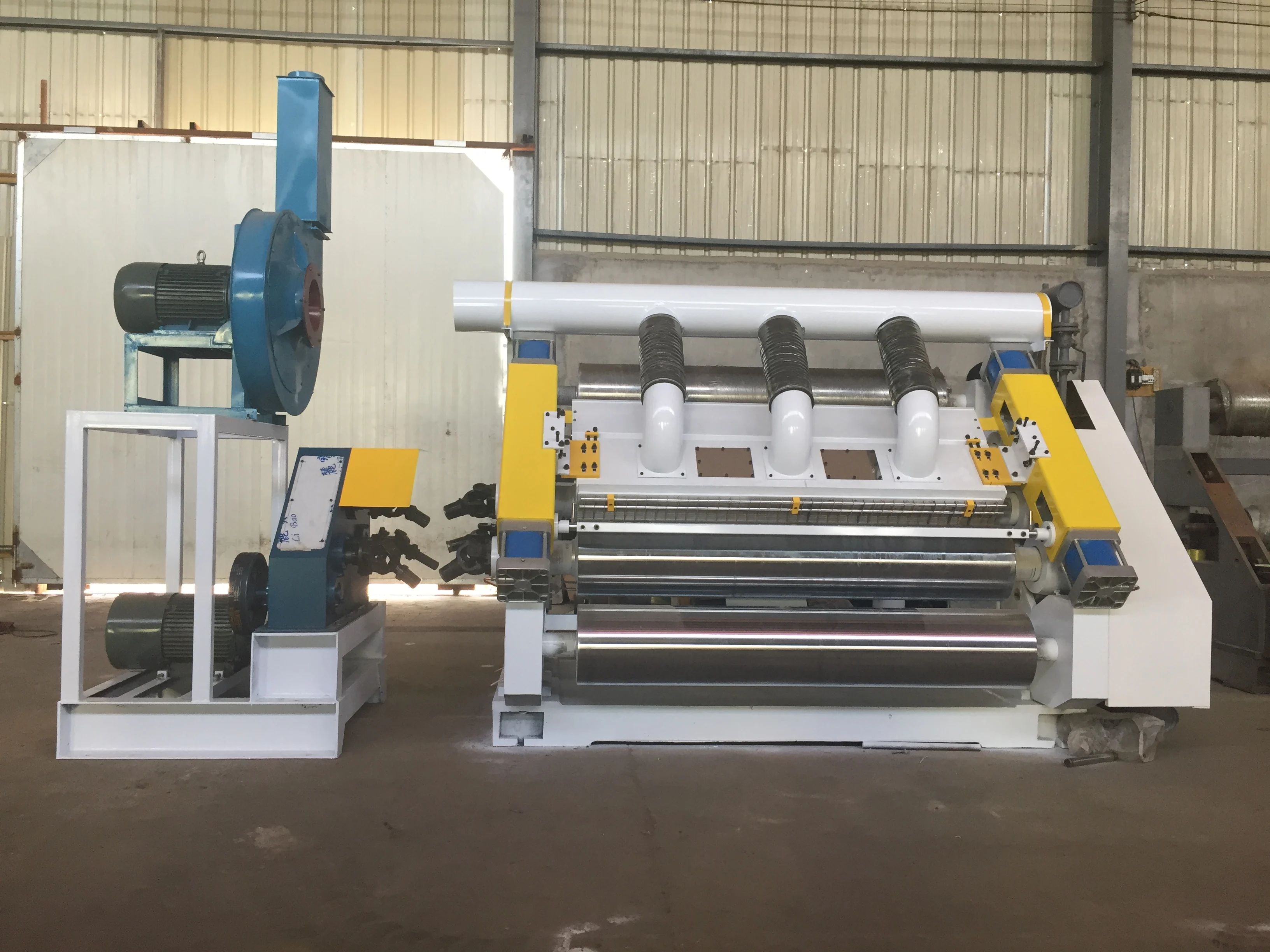

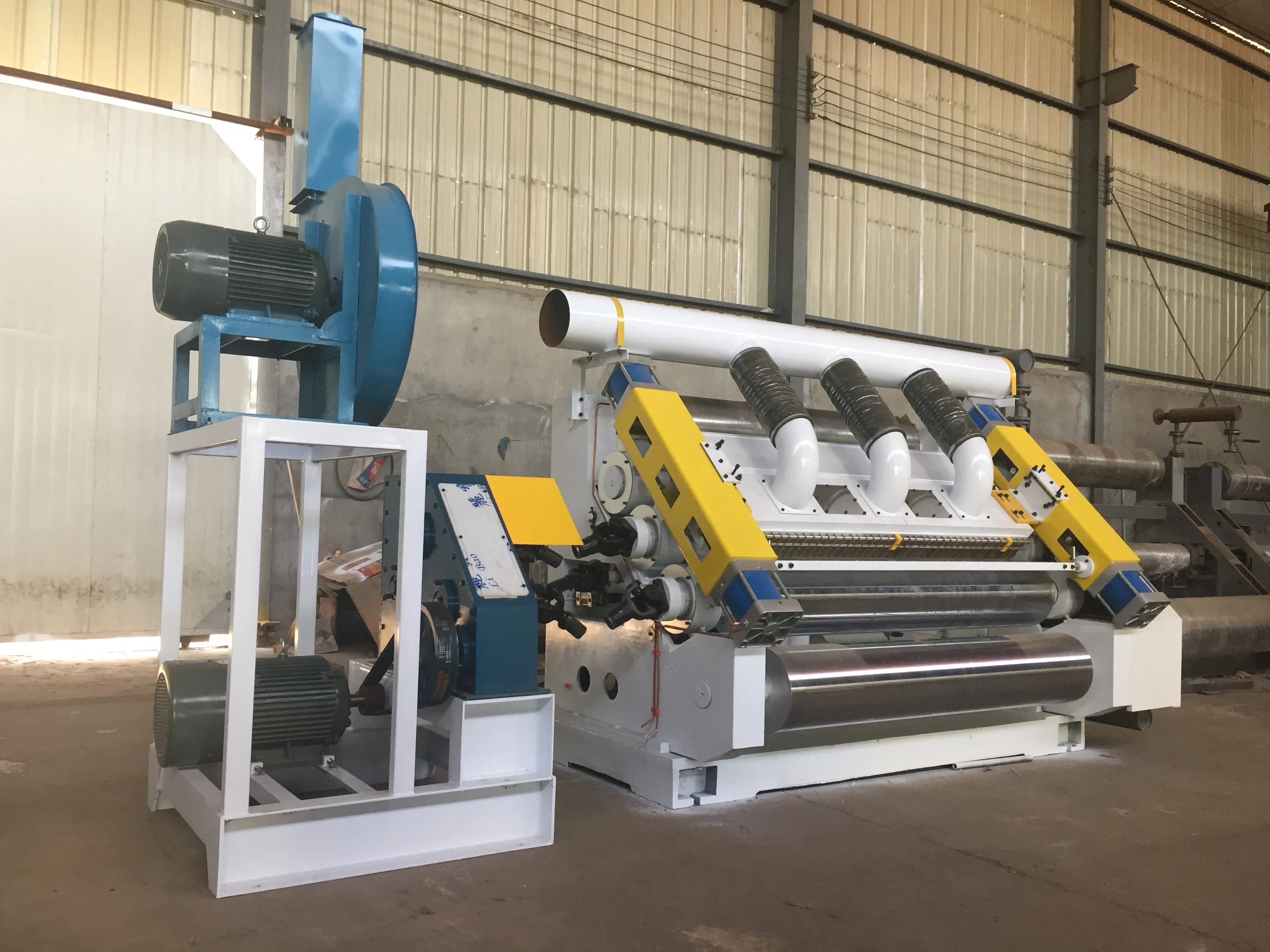

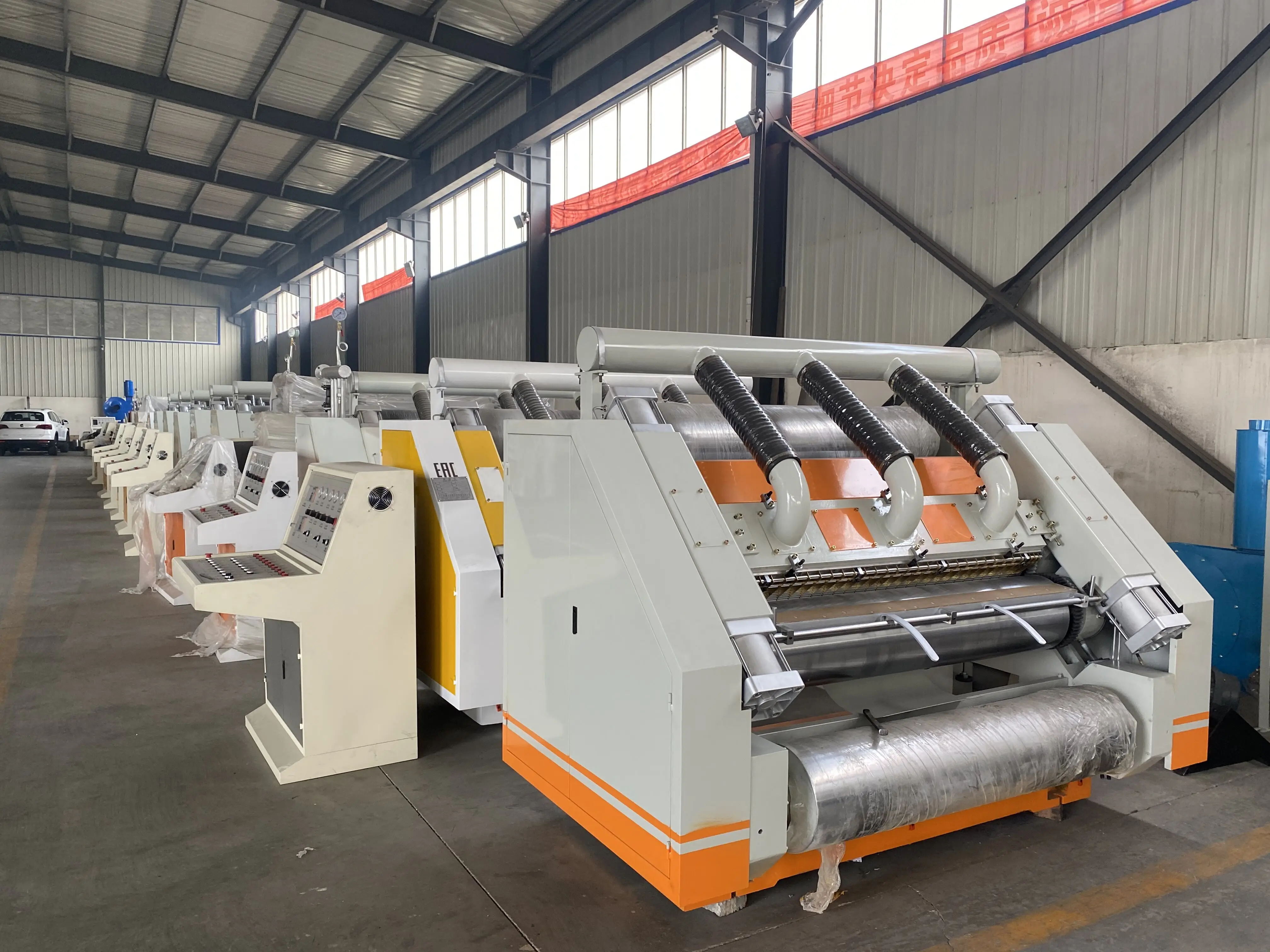

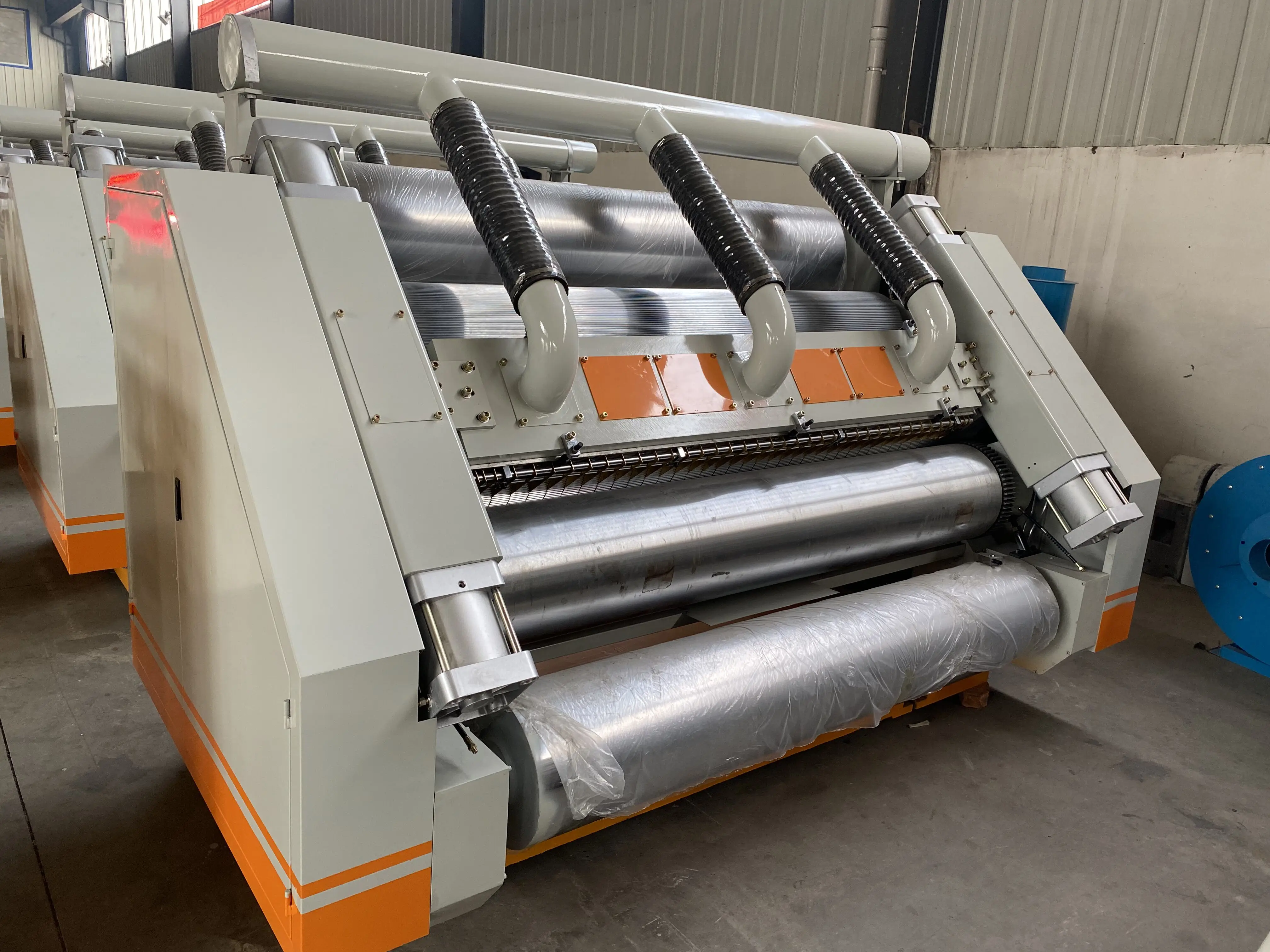

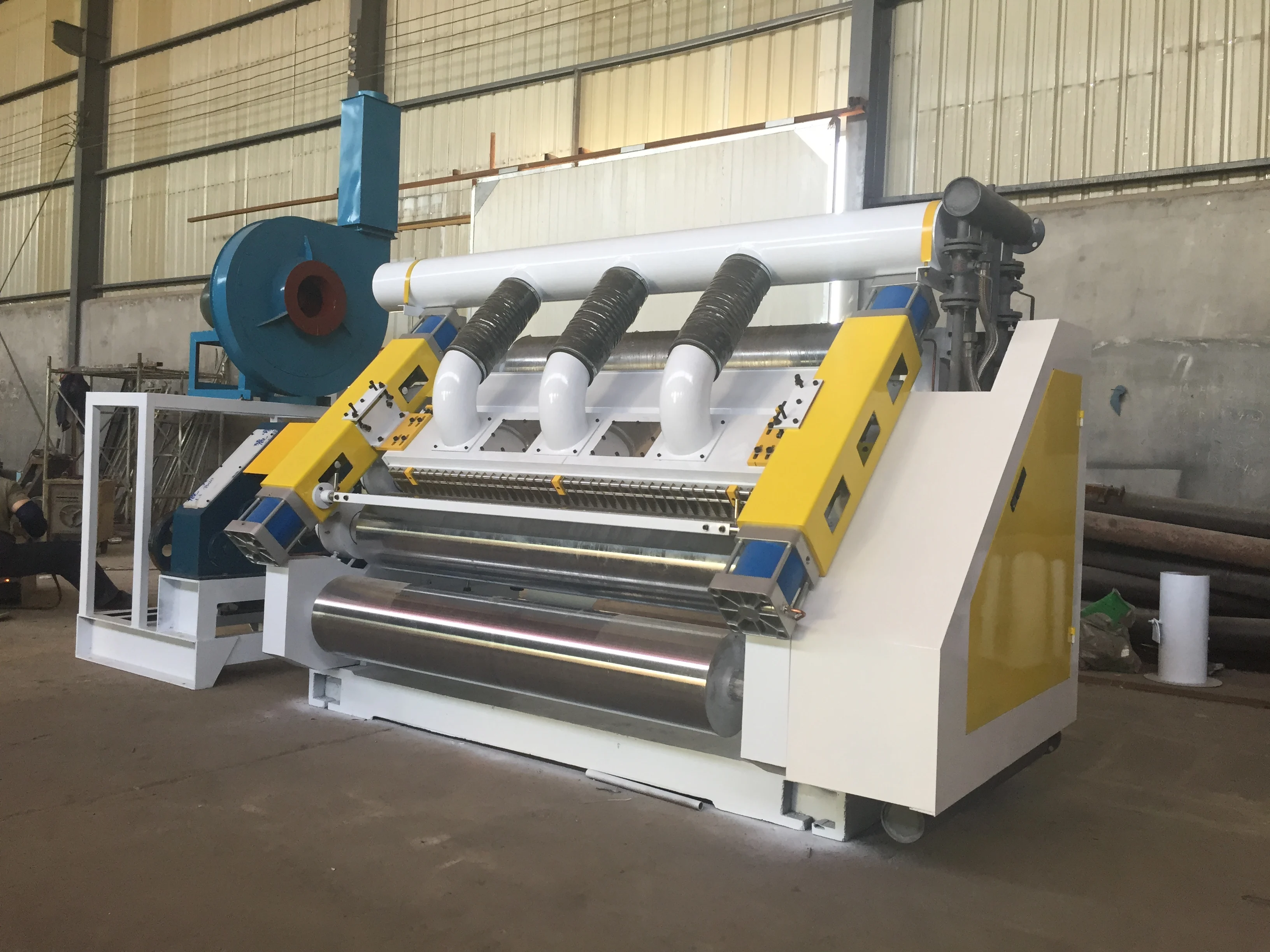

SF 280 Fingerless type corrugated carton making machine /electric heating single facer
- Category: >>>
- Supplier: Dongguang Chenxiang Machinery Co. Ltd.
Share on (1600480620251):
Product Overview
Description
Parameters | Model |
Working width | 1400mm 1600mm 1800mm 2000mmm |
Operation direction | left set or right set (according to customer plant) |
Design speed | 80m/min |
Temperature range | 160-200℃ |
Gas source | 0.4-0.9Mpa |
Heating method | Steam heating |
Diameter of corrugated roller | 280mm |
Pressure roll diameter | 292mm |
Diameter of cots | 216mm |
Preheater diameter | 320mm |
Main drive motor | 7.5KW |
nominal voltage | 380V 50Hz |
Suction motor | 7.5KW |
Regular technical parameters：
1、effective width：1600mm
2、operation direction：left or right（determined in accordance with customer plant）
3、design speed：100m/min, working speed: 60-80m/min.
4、heating type: steam heating.
5、temperature range：200—260℃
6、corrugated flute:A/B/C/E
Roller diameters parameters：
1、diameter of corrugated roller： ￠280mm 2、diameter of pressure roller： ￠284mm
3、diameter of glue roller： ￠216mm 4、diameter of preheat roller： ￠320mm
Powered motor parameters：
1、main drive motor：7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
2、suction motor:7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
Regular technical parameters：
1、effective width：1600mm
2、operation direction：left or right（determined in accordance with customer plant）
3、design speed：100m/min, working speed: 60-80m/min.
4、heating type: steam heating.
5、temperature range：200—260℃
6、corrugated flute:A/B/C/E
Roller diameters parameters：
1、diameter of corrugated roller： ￠280mm 2、diameter of pressure roller： ￠284mm
3、diameter of glue roller： ￠216mm 4、diameter of preheat roller： ￠320mm
Powered motor parameters：
1、main drive motor：7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
2、suction motor:7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
1、effective width：1600mm
2、operation direction：left or right（determined in accordance with customer plant）
3、design speed：100m/min, working speed: 60-80m/min.
4、heating type: steam heating.
5、temperature range：200—260℃
6、corrugated flute:A/B/C/E
Roller diameters parameters：
1、diameter of corrugated roller： ￠280mm 2、diameter of pressure roller： ￠284mm
3、diameter of glue roller： ￠216mm 4、diameter of preheat roller： ￠320mm
Powered motor parameters：
1、main drive motor：7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
2、suction motor:7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
Regular technical parameters：
1、effective width：1600mm
2、operation direction：left or right（determined in accordance with customer plant）
3、design speed：100m/min, working speed: 60-80m/min.
4、heating type: steam heating.
5、temperature range：200—260℃
6、corrugated flute:A/B/C/E
Roller diameters parameters：
1、diameter of corrugated roller： ￠280mm 2、diameter of pressure roller： ￠284mm
3、diameter of glue roller： ￠216mm 4、diameter of preheat roller： ￠320mm
Powered motor parameters：
1、main drive motor：7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
2、suction motor:7.5Kw
rated voltage：380V 50Hz Continuous (S1) working standard
Structural features：
★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet，not less than 1.5 meters away from the host，Fully enclosed full operation side.
★base and wallboard cast iron wall，Wallboard thickness130mm。universal Joints。
★corrugated roller material adopt 48CrMo alloy steel，quenched、Laser hardening，Surface finish，main roll of corrugated diameter¢ 280mm，surface hardnessHRC60degree above。The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices)。
★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated，after scraping the roller surface polished hard chrome plated.
★Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating
unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm，connecting with metal Hose。
★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet，not less than 1.5 meters away from the host，Fully enclosed full operation side.
★base and wallboard cast iron wall，Wallboard thickness130mm。universal Joints。
★corrugated roller material adopt 48CrMo alloy steel，quenched、Laser hardening，Surface finish，main roll of corrugated diameter¢ 280mm，surface hardnessHRC60degree above。The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices)。
★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated，after scraping the roller surface polished hard chrome plated.
★Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating
unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm，connecting with metal Hose。
FAQ
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
