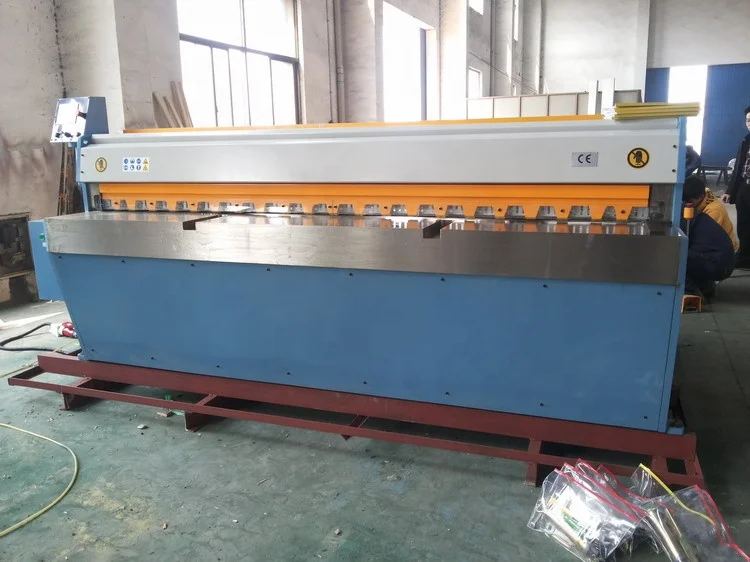

QH11D High Precision Electric Mechanical Rubber/Plastic/Metal Sheet Shear Machine
- Category: >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (1600480696509):
Product Overview
Description
Product Description
QH11D High Precision Electric Mechanical Rubber/Plastic/Metal Sheet Shear Machine
Product Application
1. Estun E21S controller (optional button controller)
2. One of the most advanced miniature mechanical shear
3. Heavy steel weld construction for maximum stability
4. Free of the maintenance of a hydraulic circuit
5. Electro mechanical operation for high stroke rate (option manual back gauge control)
6. Equips with electric brake motor for fast and efficient and almost silent working
7. Small cutting angle and cutting direction for improving the cutting quality
8. Disc spring device to ensure the cutting precision
Model | shear capacity (mm) | shear angle (degree) | strokes (min-1) | backgauge range (mm) | table height (mm) | motor power (kw) | G.W (KG) |
QH11D | 2.5x1300 | 1°30' | 47 | 0~650 | 800 | 5.5 | 1450 |
QH11D | 2.5x1600 | 1°20' | 47 | 0~650 | 800 | 5.5 | 1650 |
QH11D | 2.5x1800 | 1°20' | 47 | 0~650 | 800 | 5.5 | 1750 |
QH11D | 2.5x2000 | 1°30' | 47 | 0~650 | 800 | 7.5 | 1800 |
QH11D | 2.5x2500 | 1°20' | 47 | 0~650 | 800 | 7.5 | 2200 |
QH11D | 2.5x3050 | 1°30' | 47 | 0~650 | 800 | 11 | 2800 |
QH11D | 3.2x1300 | 1°30' | 47 | 0~650 | 800 | 5.5 | 1600 |
QH11D | 3.2x1500 | 1°30' | 47 | 0~650 | 800 | 5.5 | 2000 |
QH11D | 3.2x2000 | 1°45' | 47 | 0~650 | 800 | 7.5 | 2400 |
QH11D | 3.2x2500 | 1°' | 47 | 0~650 | 800 | 7.5 | 2800 |
QH11D | 3.2x3050 | 1°18' | 47 | 0~650 | 800 | 11 | 3200 |
Detailed Images

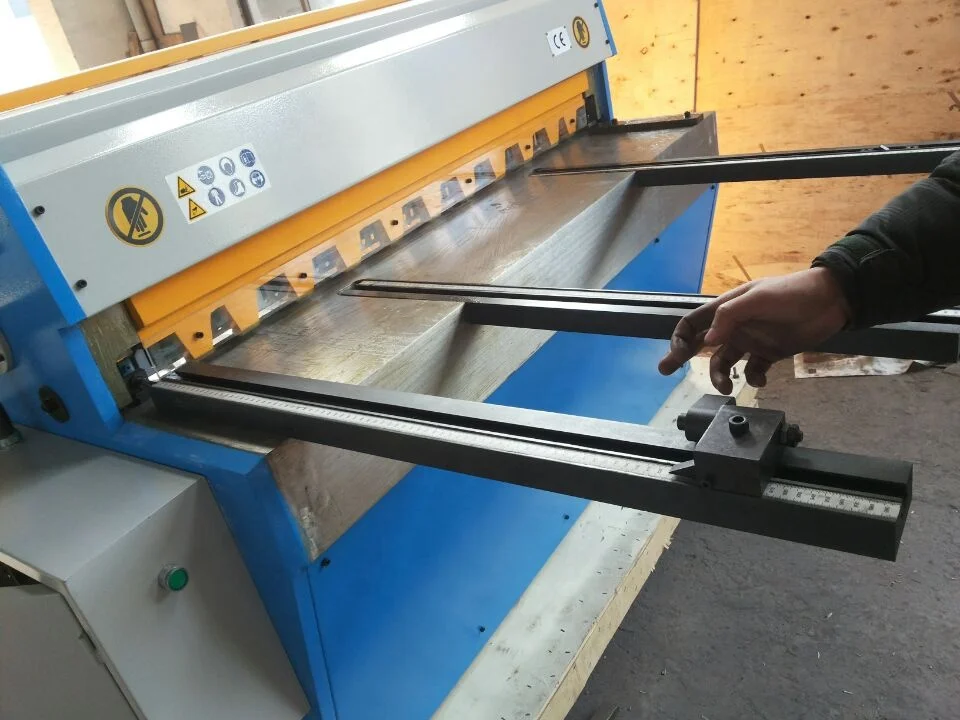

Front support arm

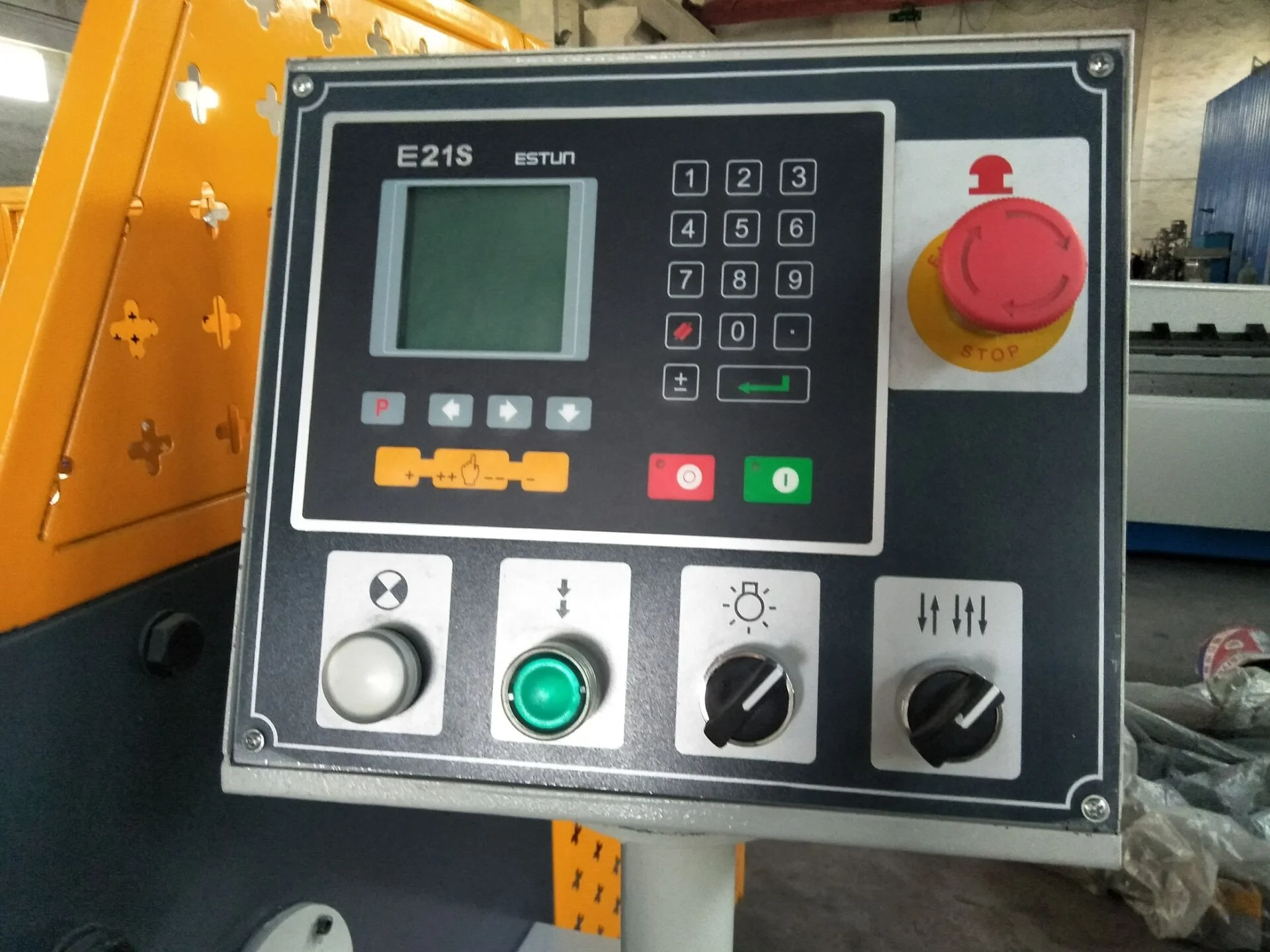

Estun E21S PLC controller

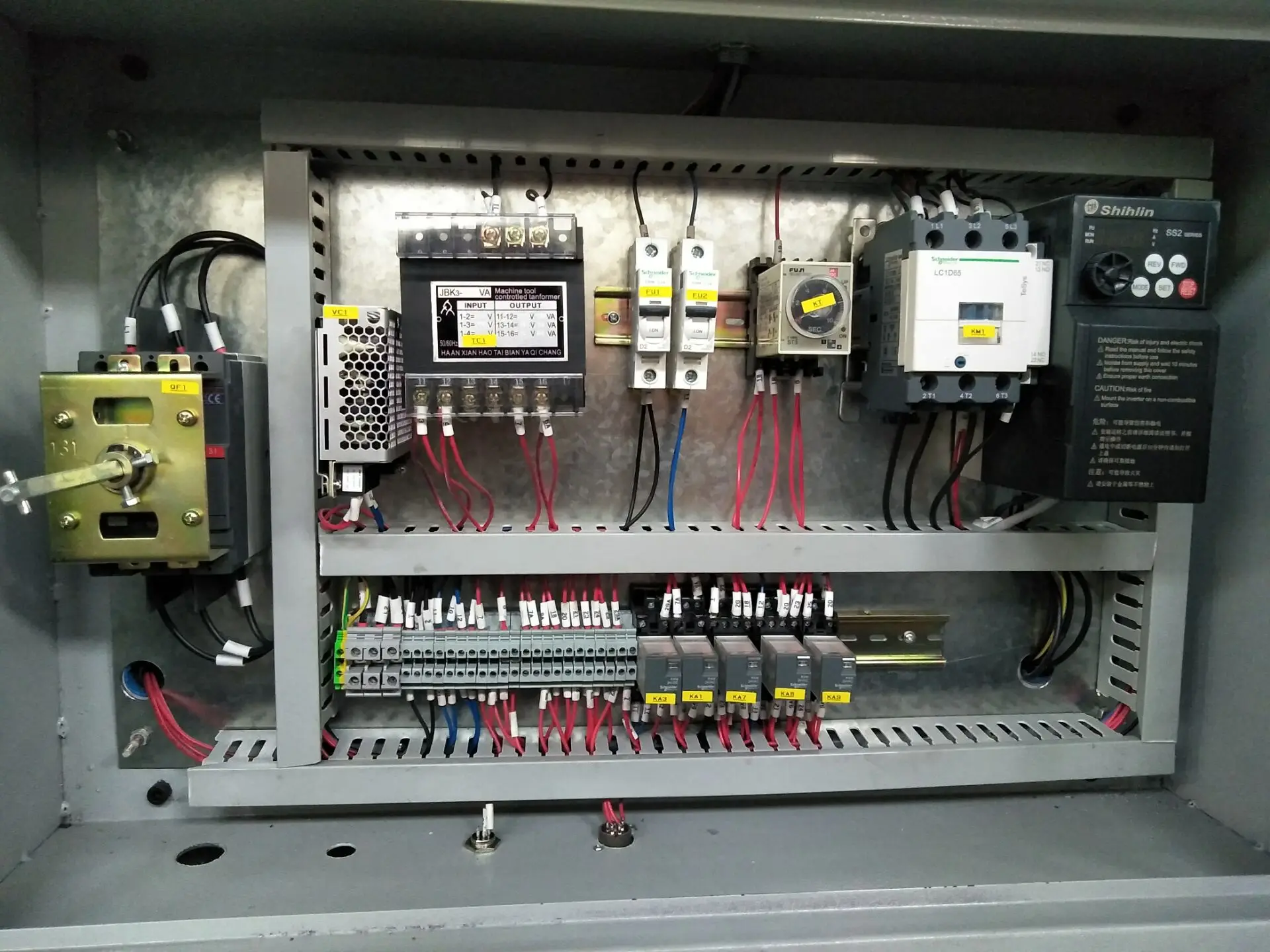

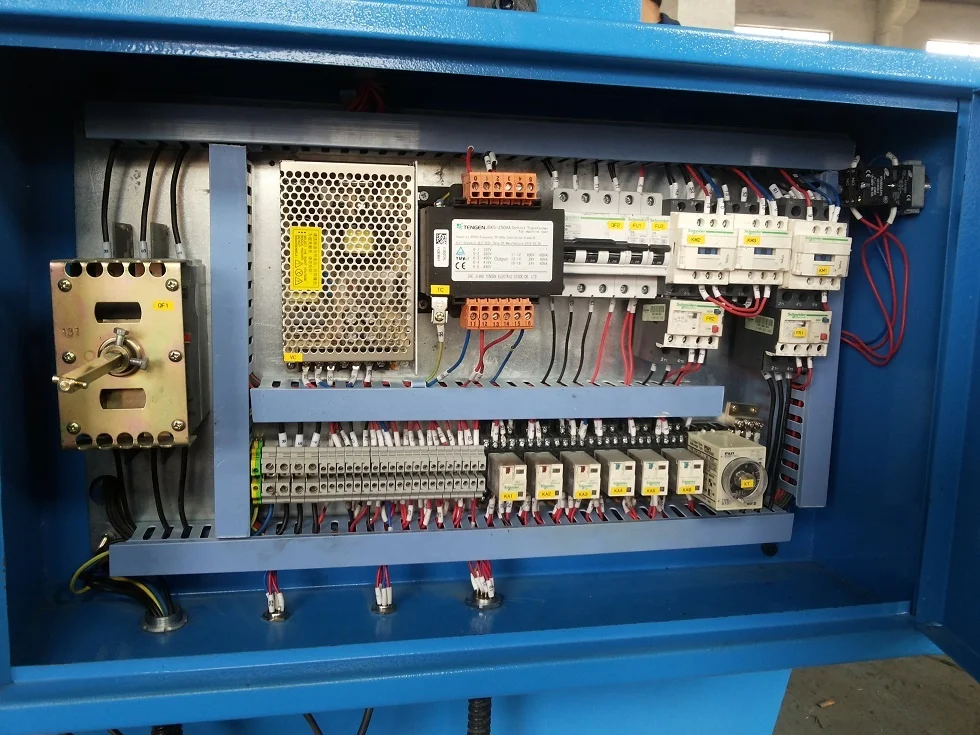

electric box

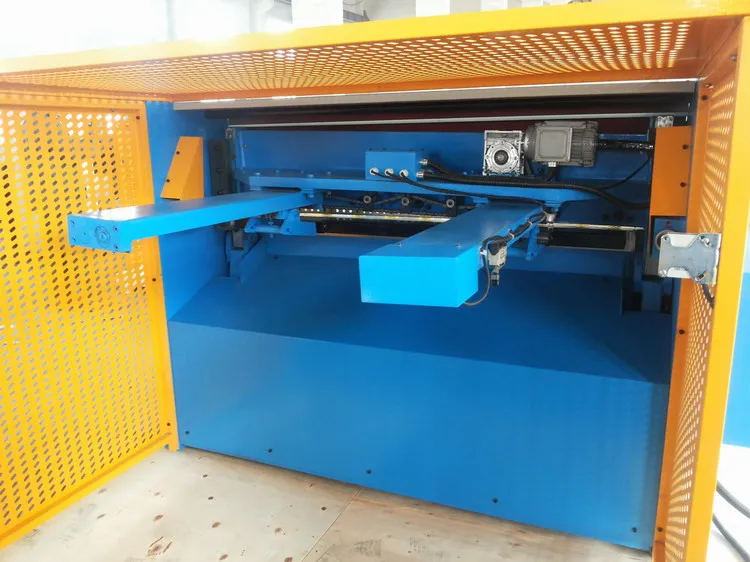

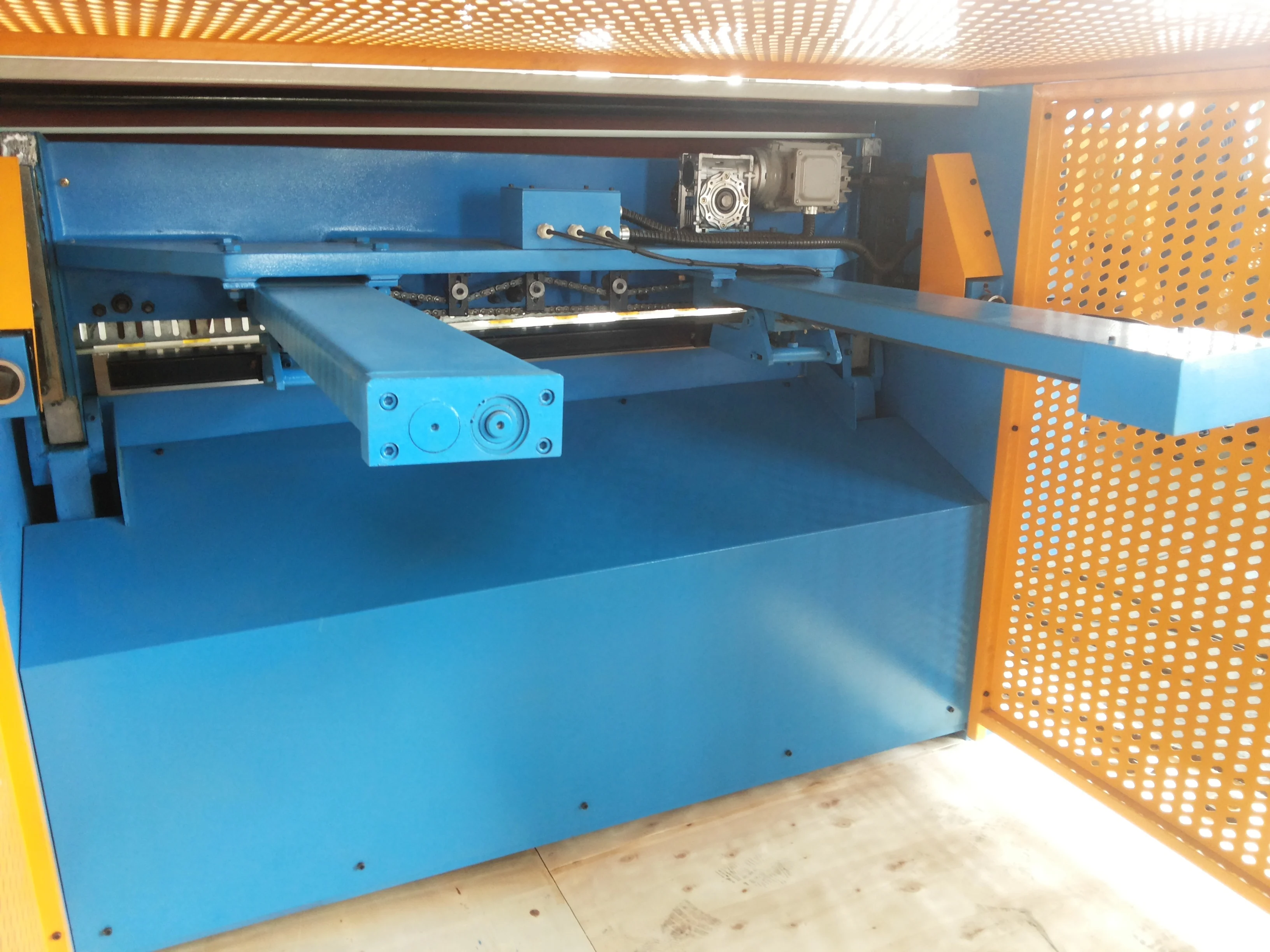

motorized back gauge move
Optional Configuration
manual back gauge with button controller (optional)
