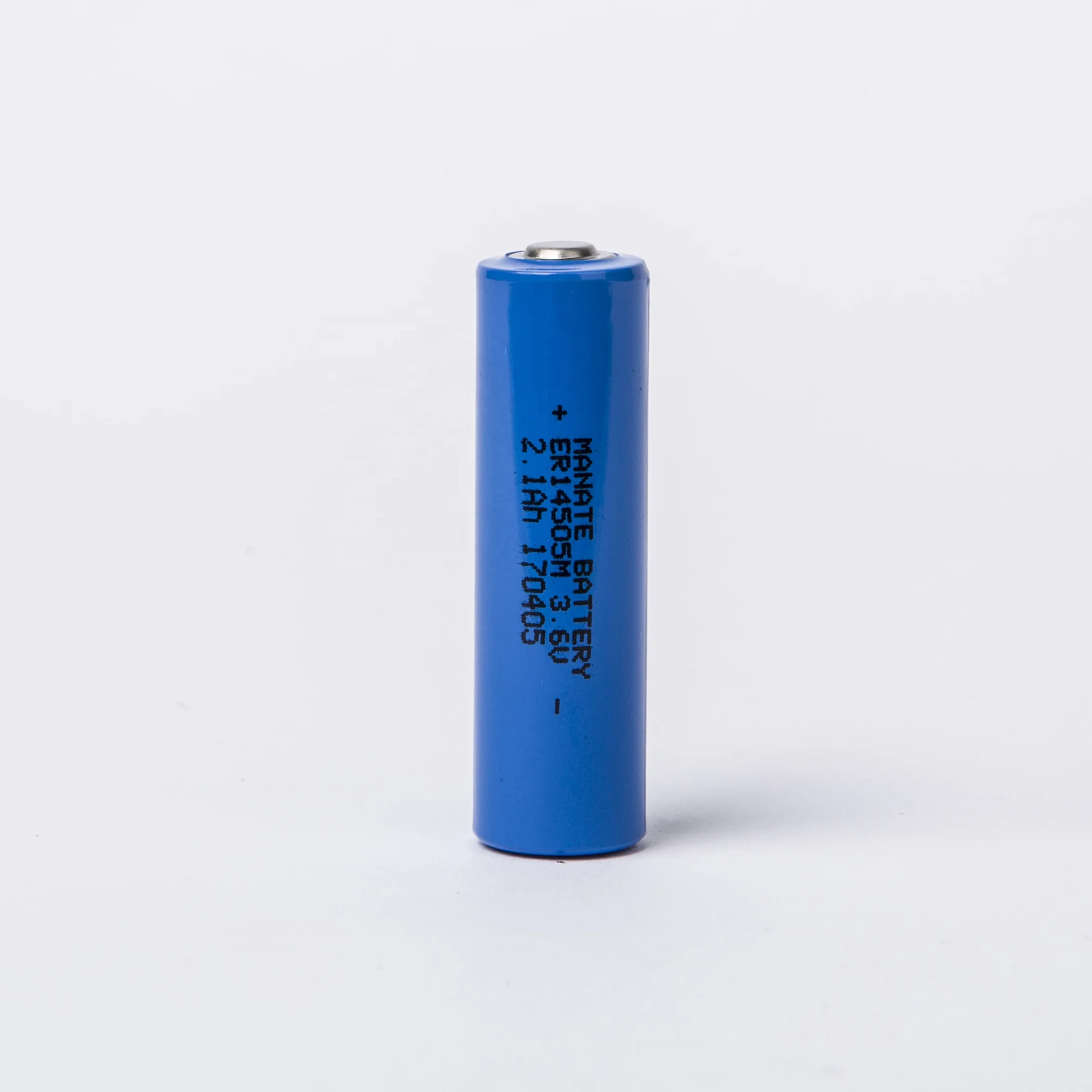

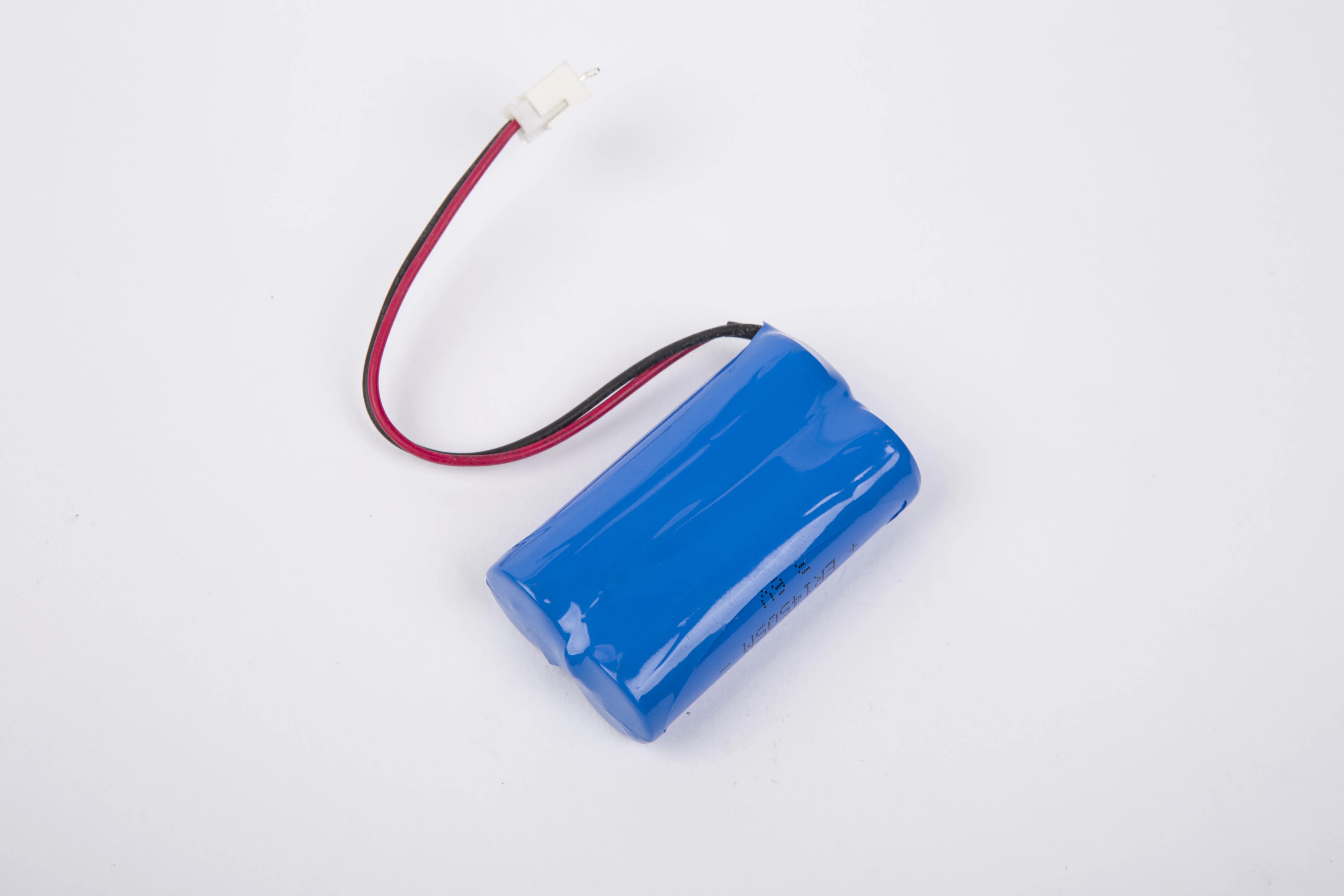

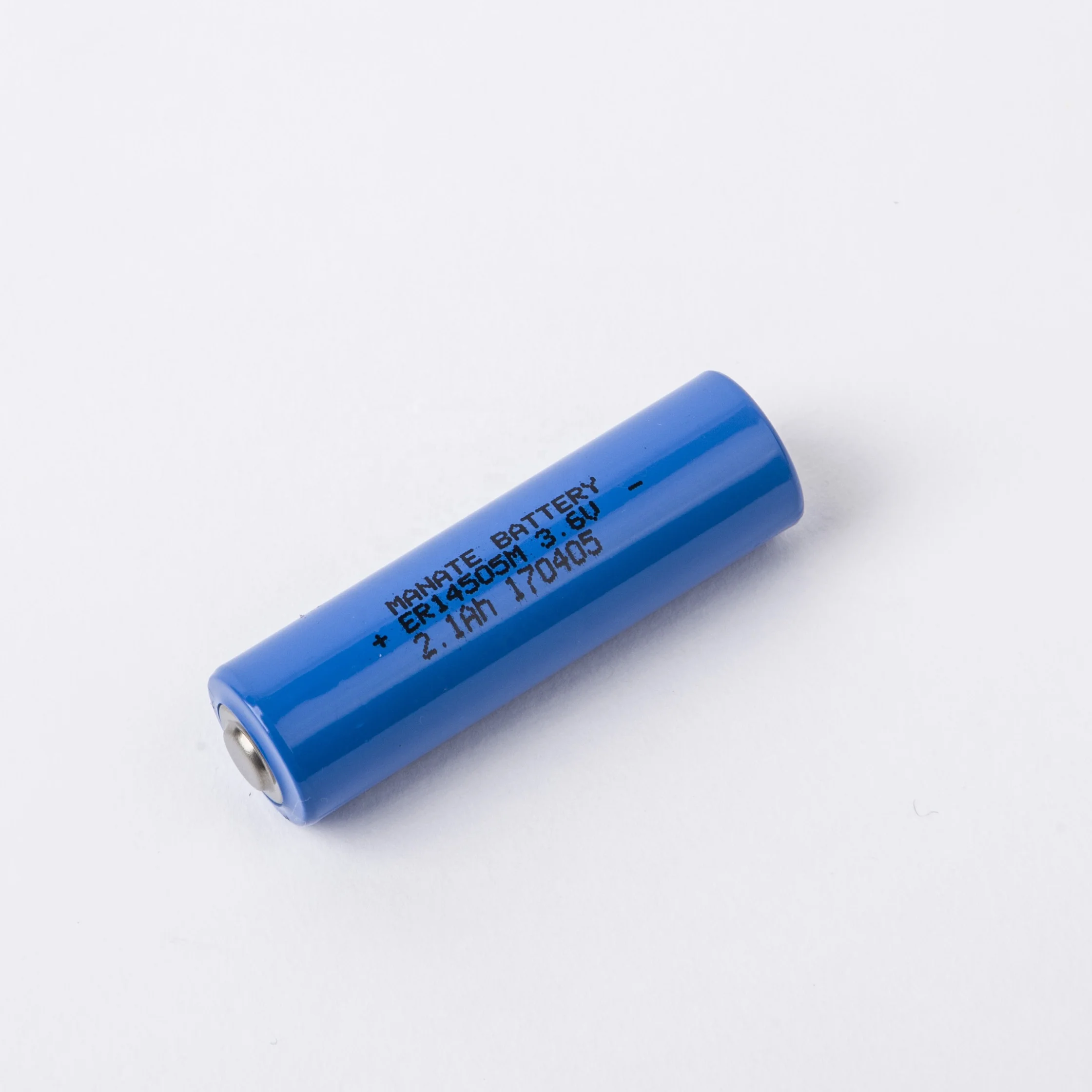

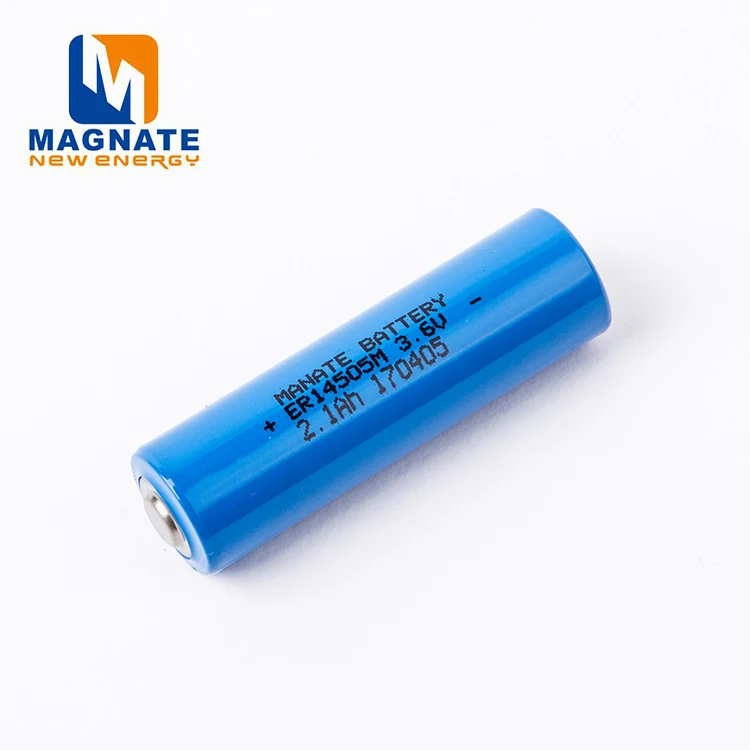

3.6V ER14505M lithium battery with JST connector for electronic products
- Category: >>>
- Supplier: Shenzhen Magnate New Energy Limited
Share on (1600480925993):
Product Overview
Description
Product Show
Product Description
| Product Name | Li-SOCl2 Primary Battery |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 2200mAh |
| Battery Type | High Power Battery |
| Max. Constant Current | 300mA |
| Max.Pulse Current | 600mA |
| Dimension | 14.5 X 50.5 mm |
| Operating Temperature | -55~+85°C |
| IEC Size | AA size |
| Approx. Weight | 20g |
| Shelf Life | More Than 10 Years |
| Type | Li-SOCl2 Cylindrical Battery |
Good quality 2200mAh 3.6V ER14505M lithium battery with JST connector for electronic products
Product Application
-Utility Meter (Water, Electricity, Gas, Heat Meter)
-Automatic Meter Reading
-Alarm Or Security System (Smoke Alarm Detector)
-Gps Tracking Systems(Data Logger, Dog Collar, Pir Sensor)
-Real Time Clock
-Temperature Monitor
-Automotive Electronics
-Professional Electronics
Advantage:
-High And Stable Operating Voltage
-Low Self-Discharge Rate (Less Than 1% Per Year Of Storage At +25°C)
-Wide Range Of Operating Temperature
-Stainless Steel Container And End Caps
-Hermetic Glass-To-Metal Sealing
-Non-Flammable Electrolyte
-Compliant with ROHS, CE, UN.
Model List
High capacity Lisocl2 battery
| Model | IEC Model | Size (D*H) | Voltage | Capacity | stand current | Pulse current | Weight |
| ER14250 | 1/2AA | 14.5*25 | 3.6 | 1200 | 0.5 | 25 | 10 |
| ER14335 | 2/3AA | 14.5*33.5 | 3.6 | 1650 | 0.5 | 150 | 13 |
| ER14505 | AA | 14.5*50.5 | 3.6 | 2700 | 0.5 | 100 | 19 |
| ER17335 | 2/3A | 17.5*33.5 | 3.6 | 2200 | 0.5 | 200 | 19 |
| ER18505 | A | 18.5*50.5 | 3.6 | 4000 | 0.5 | 130 | 32 |
| ER26500 | C | 26.2*50 | 3.6 | 9000 | 0.5 | 200 | 58 |
| ER34615 | D | 34.2*61.5 | 3.6 | 19000 | 3 | 230 | 107 |
| ER261020 | CC | 26.2*100 | 3.6 | 17000 | 2 | 200 | 100 |
| ER341245 | DD | 34.2*125 | 3.6 | 35000 | 2 | 400 | 220 |
| ER9V | 9V | 26*17*48.8 | 3.6 | 1200 | 0.5 | 25 | 40 |
