Product Overview
Description

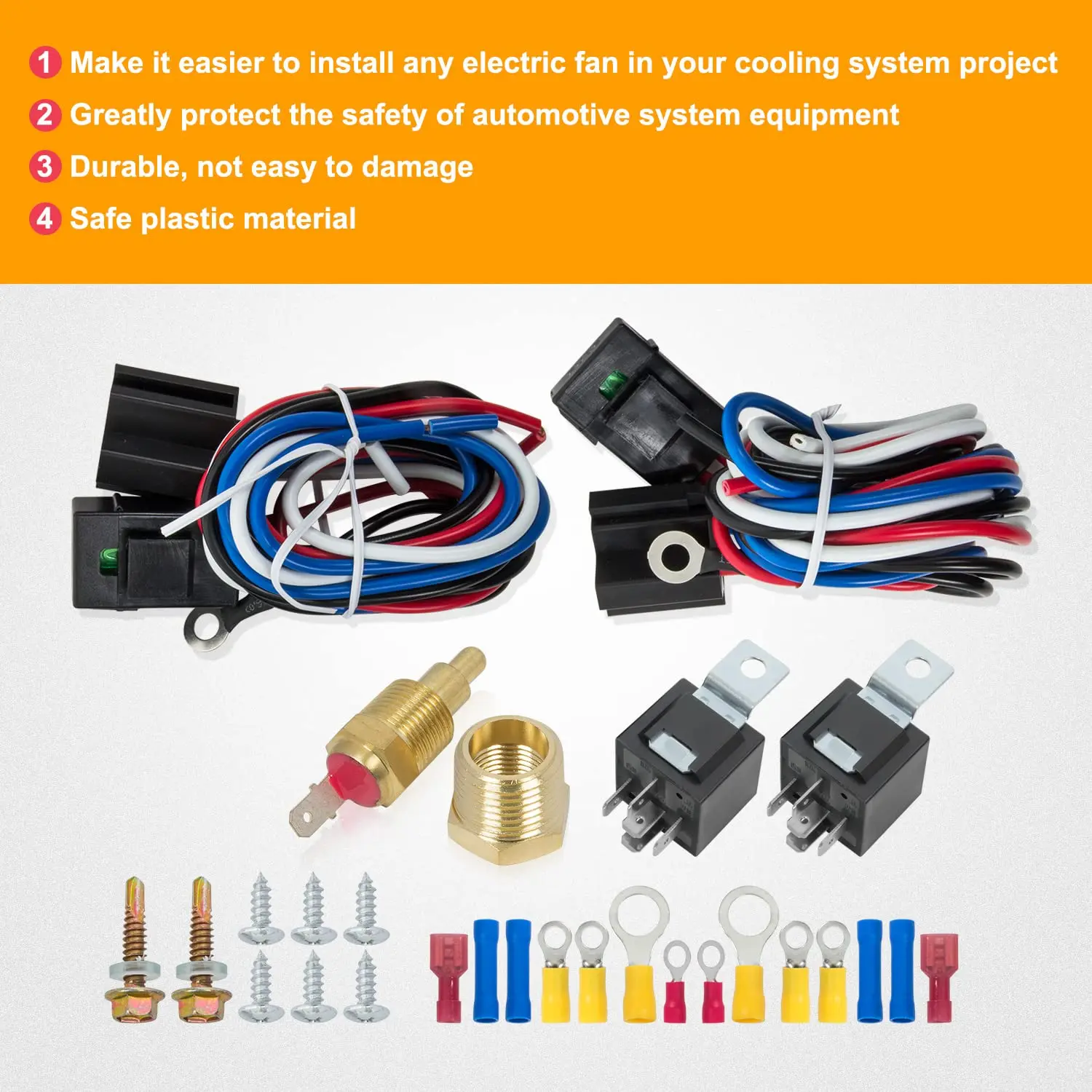

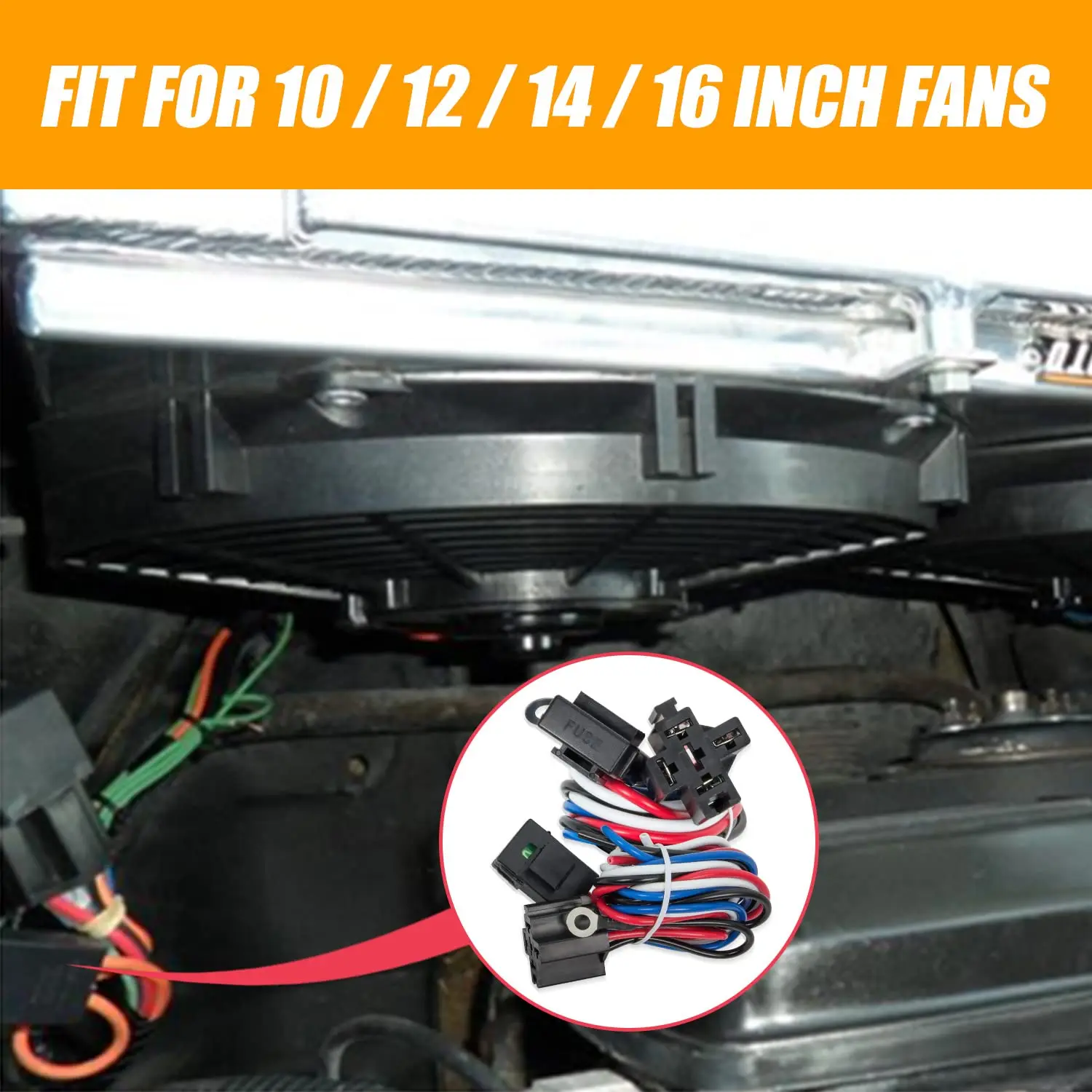

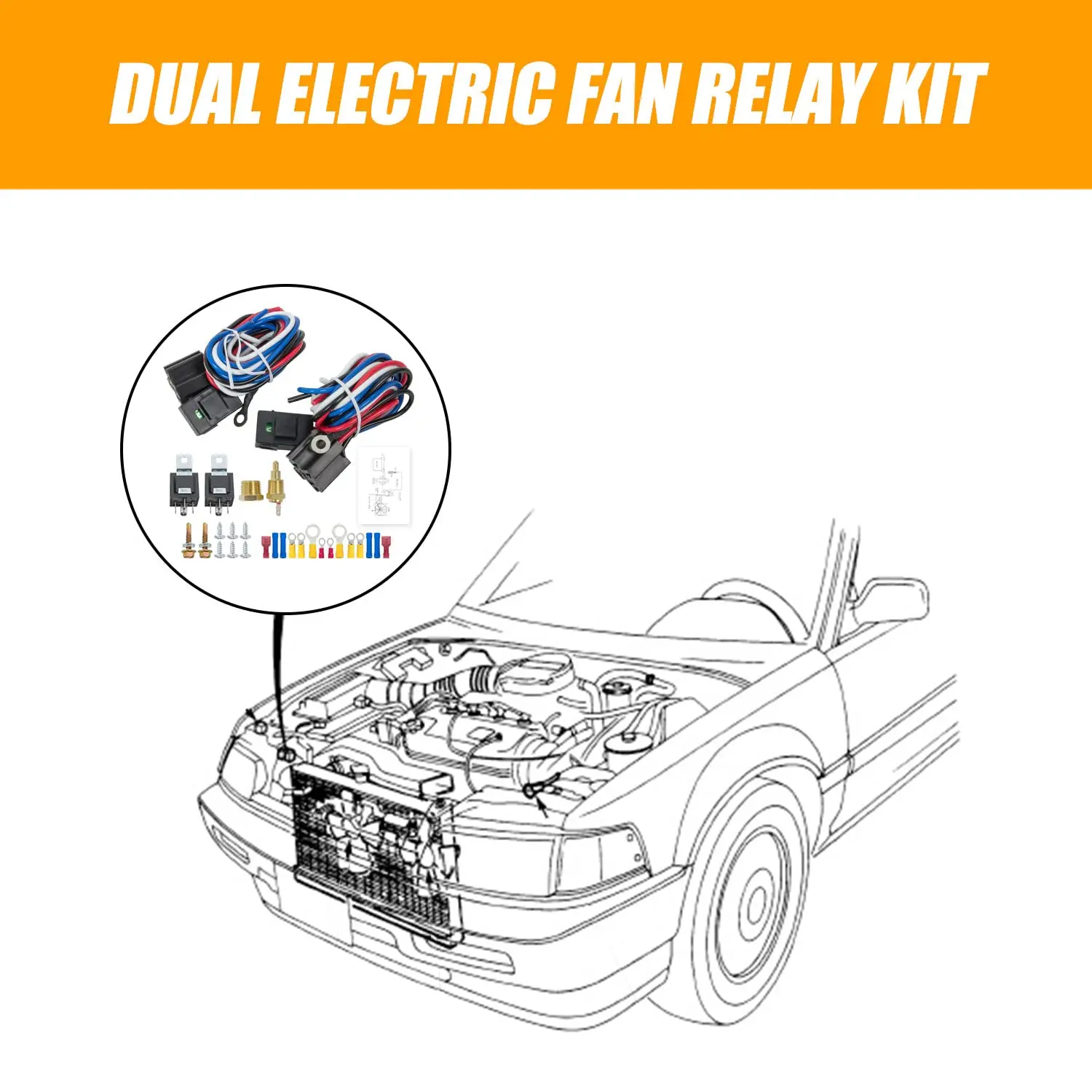

Dual Electric Fan Relay Kit with Thermostat Temperature Switch &Electric Cooling Fan Thermostat Kit 175-185 Degrees Compatible with 10/12/ 14/16 inch Fans
Product Description
1.100% Brand New And High Quality
2.Voltage: 12 V, 40amp, 50amp, 60amp
3.Sending Unit Thread Size: 3/8-18 NPT
4.Fan On Temperature (F): 200 degrees F
5.Fan Off Temperature (F): 185 degrees F
Part #: PC2054S,PC-2054,PC2054S,HC6105C
6. Low Power Consumption and Low Temperature, Eco design, Safe and reliable.
- Replacement for : 265 283 305 307 327 350 383 400 396 402 427 454 472 502 260 289 302 351W 347 352 360 390 406 427 428 429 460 351C 351M 400M 273 318 340 360 361 383 400 413 426W 440 455 330 326 ENGINES
- New 175 - 185 degree electric fan thermostat relay switch kit for your cooling system, It is a NPT3/8" thread.

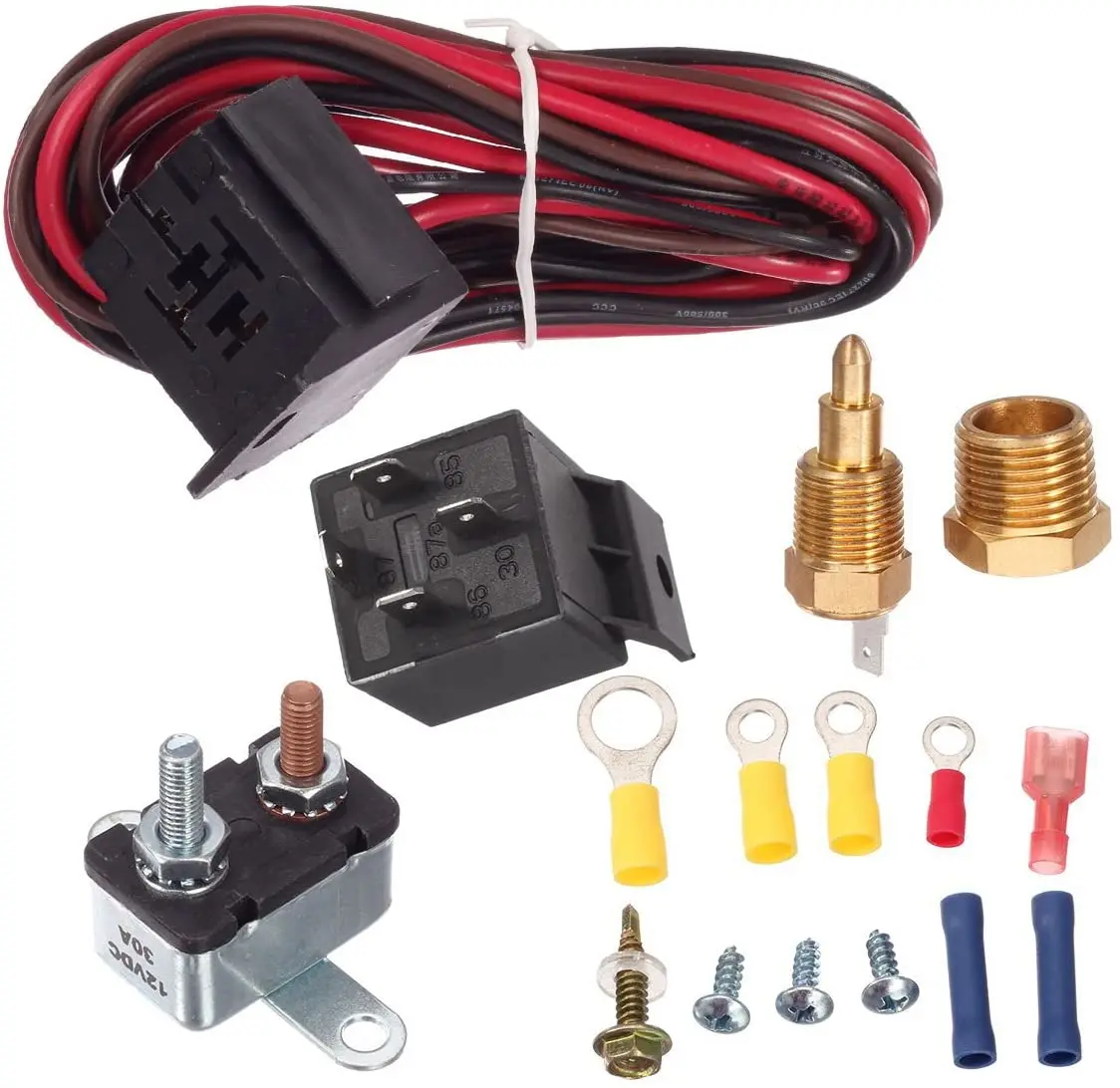

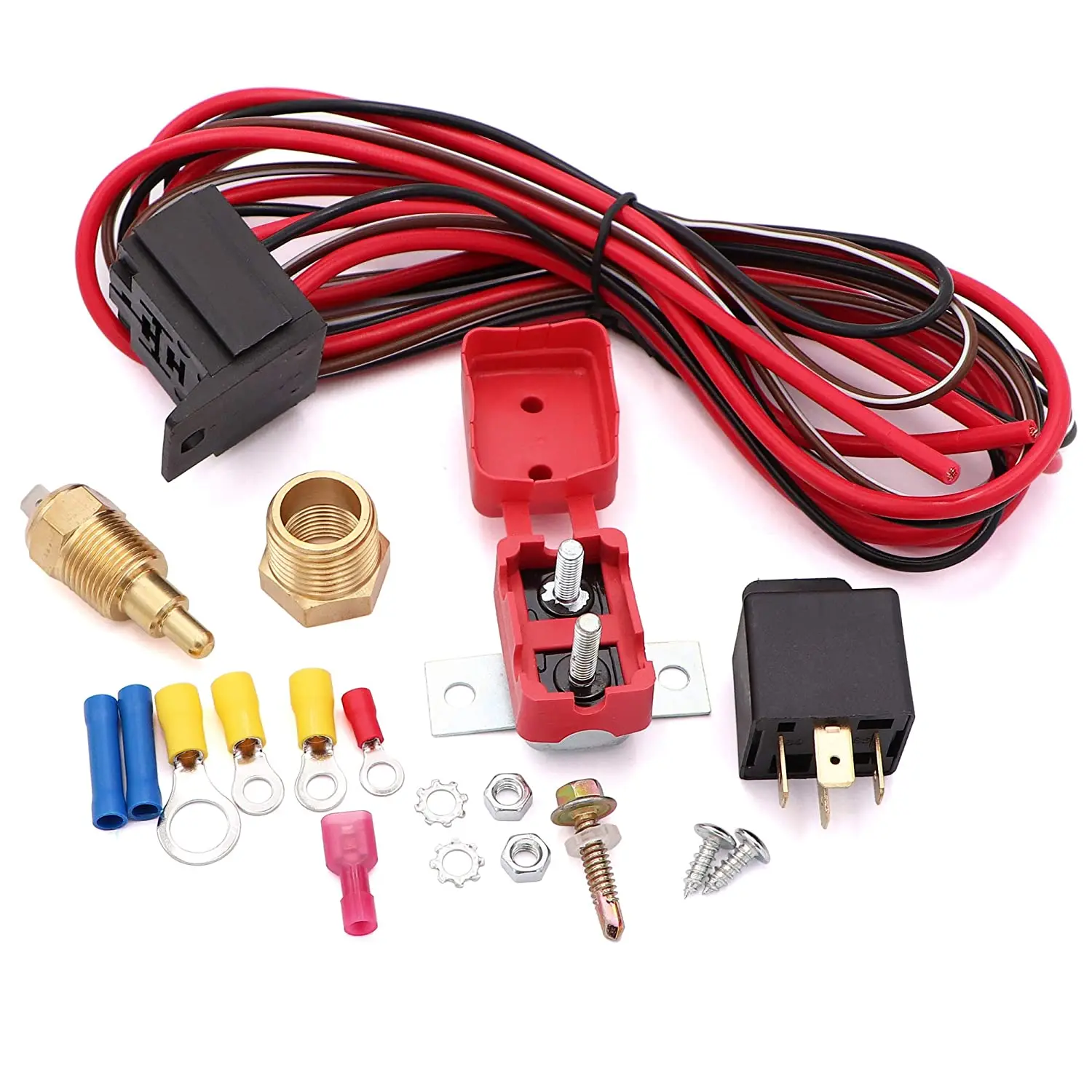

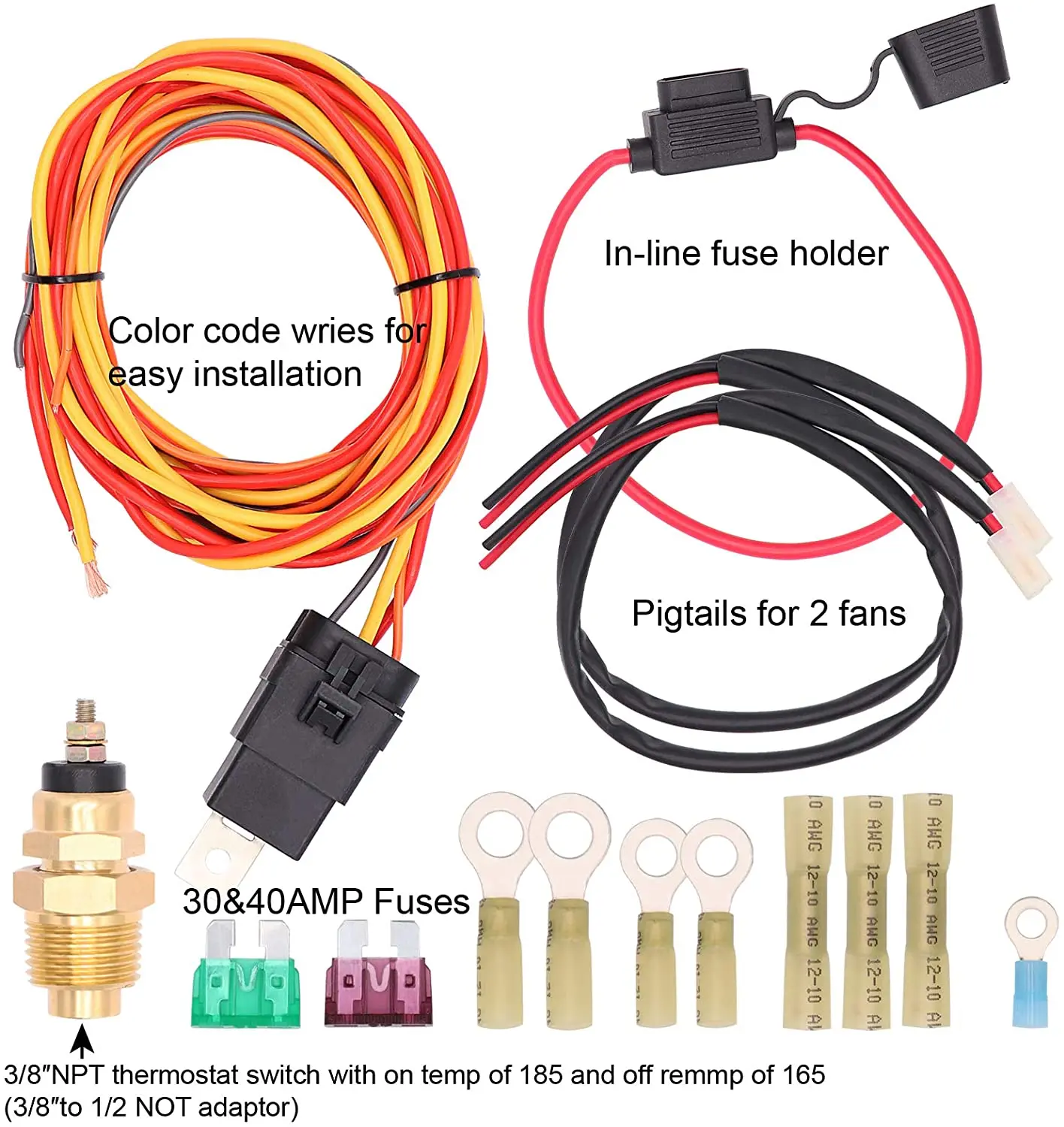

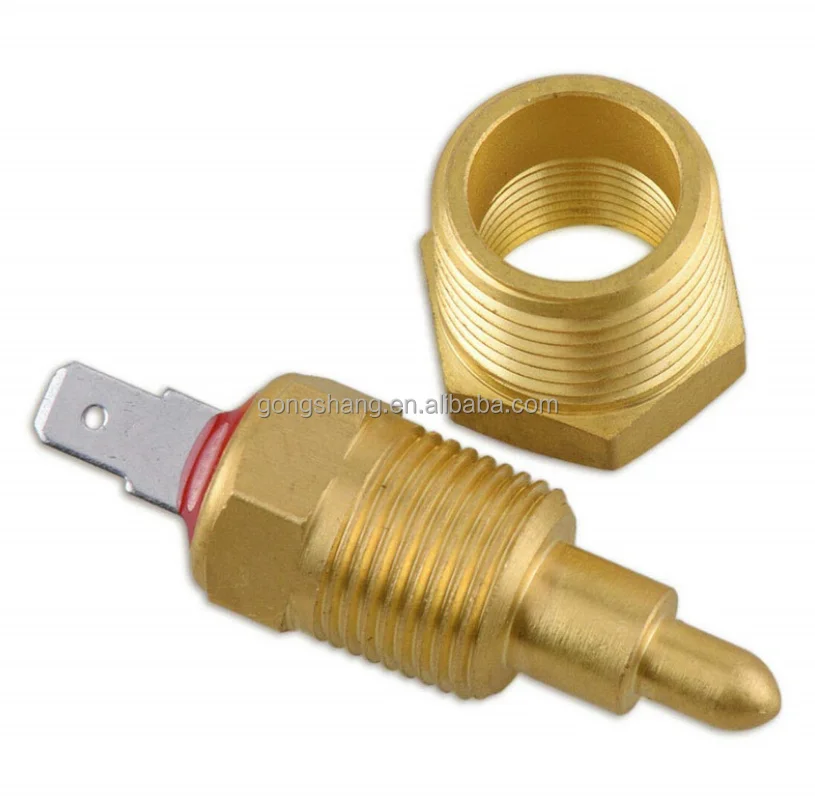

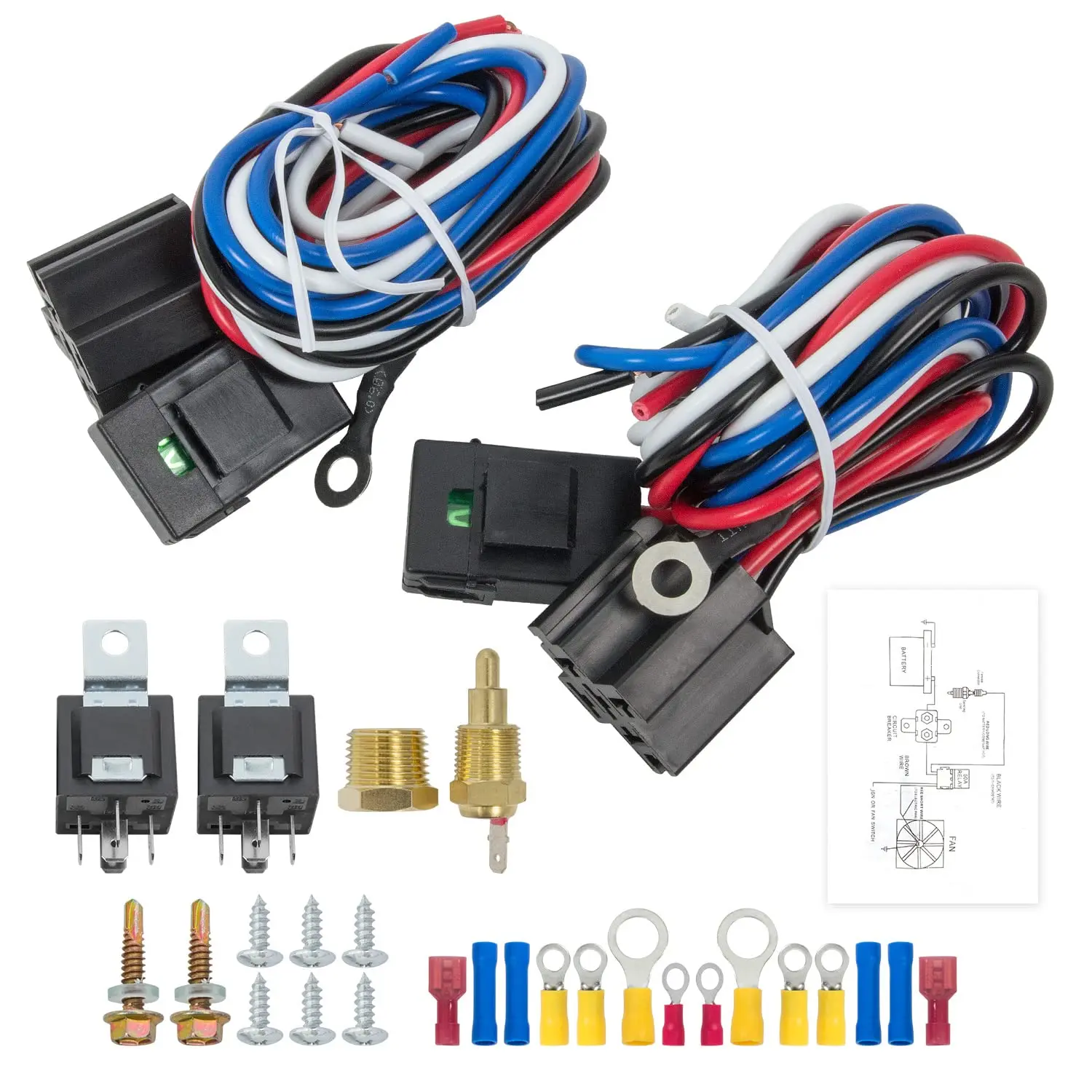

- This kit includes everything you'll need to hook up to your fan, includes a brass adapter to install the sending unit, wires, relay switch, circut breaker, terminals and mounting screws.
- This kit is set up to turn your electric fan on at 185 degrees and shut off at 175 degrees and will work with any 12 volt system.
- High Quality Replacement Part, have no-worry 12 months warranty.
Dual Electric Fan Relay Kit with Thermostat Temperature Switch &Electric Cooling Fan Thermostat Kit 175-185 Degrees Compatible with 10/12/ 14/16 inch Fans
3/8" Thread 185 to 175 Degree 4 Pins Car Cooling Fan 12V Electrical Thermostat Switch Auto Relay Kit
Dual Electric Fan Relay Kit with Thermostat Temperature Switch &Electric Cooling Fan Thermostat Kit 175-185 Degrees Compatible with 10/12/ 14/16 inch Fans
Auto parts 175-185 Degree Electric Cooling Fan Thermostat Kit Temp Sensor Temperature Switch 40 50 60 amp RELAY KIT
3/8" Thread 185 to 175 Degree 4 Pins Car Cooling Fan 12V Electrical Thermostat Switch Auto Relay Kit ;175-185 Degree Electric Fan Thermostat Kit Electric Fan Wiring Install Kit, Electric Cooling Fan Thermostat Kit Temperature Relay Wiring Temp Sensor Switch 40 50 60 AMP Relay Kit
Our Services
- Fit : 265 283 305 307 327 350 383 400 396 402 427 454 472 502 260 289 302 351W 347 352 360 390 406 427 428 429 460 351C 351M 400M 273 318 340 360 361 383 400 413 426W 440 455 330 326 ENGINES

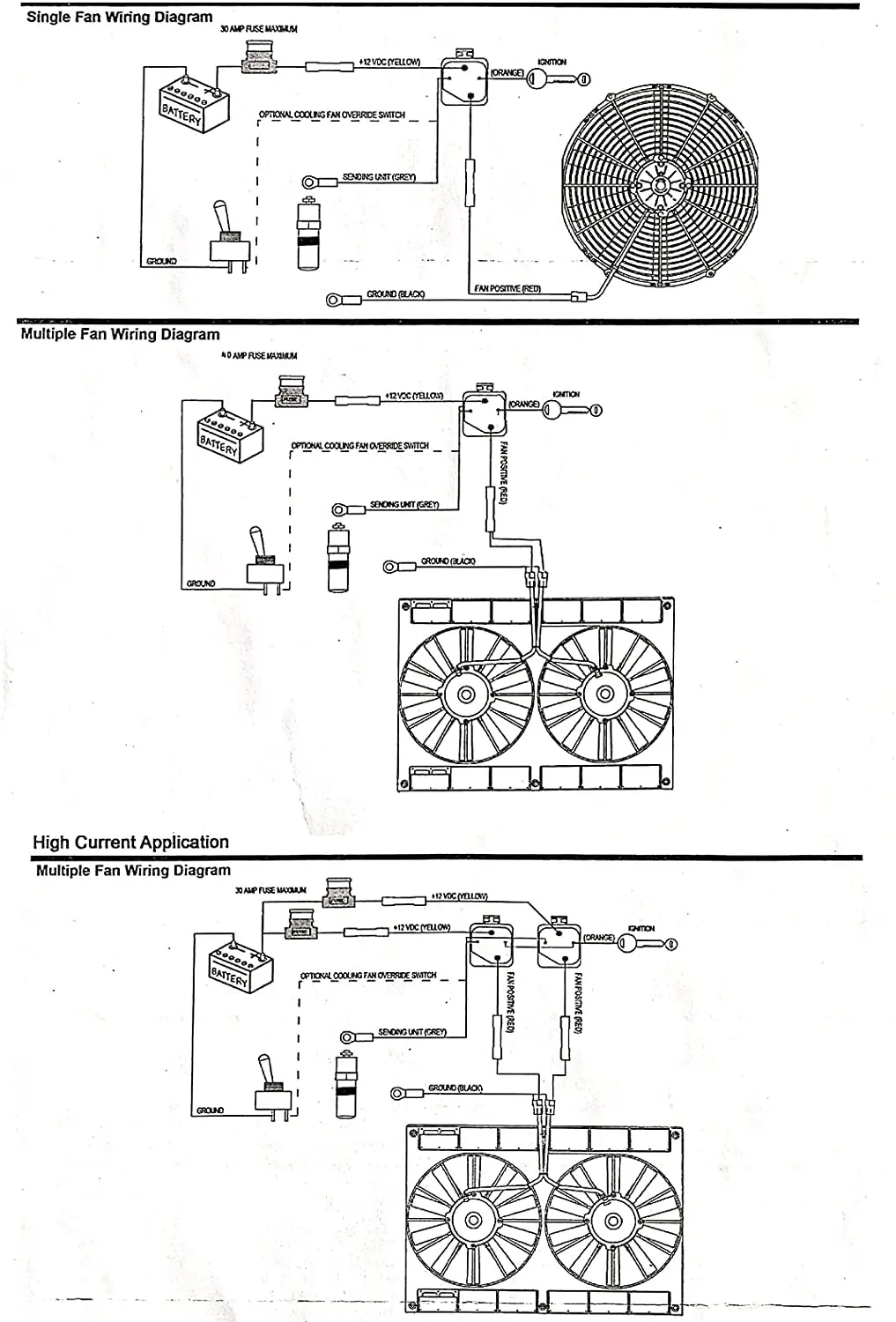

- Note:For the two red wires,please connect the long red wire to the fan and the short red wire to the battery.

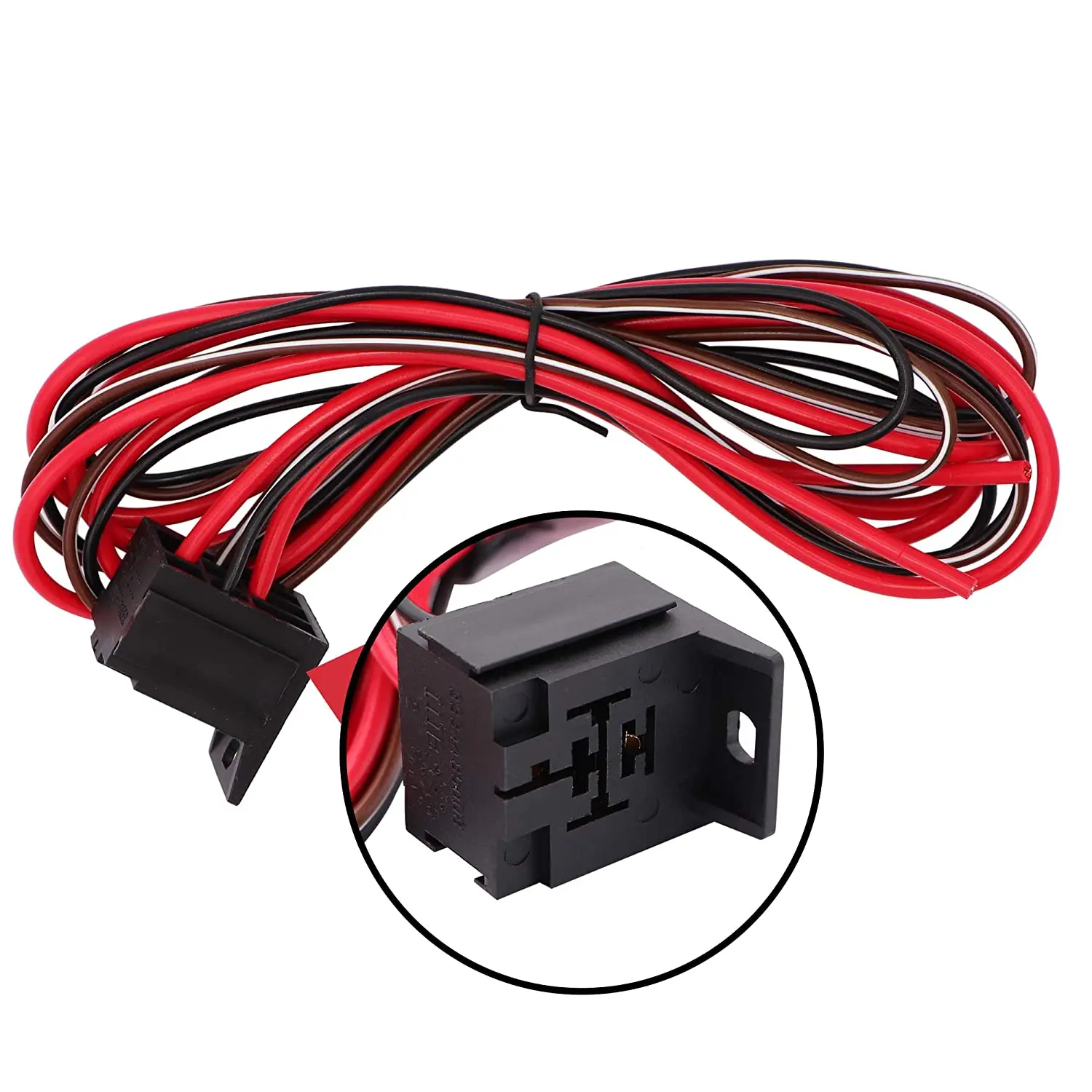

- 1.Mount the relay under the hood in a convenient location as to the fan as possible.
- Notice:Don't use the teflon tape or thread compoud on the thermostat or adaptor.For proper operation,the thermostat must ground threough the threads to the engine and the engine must be ground.
- 2.Install thermostat into the head or intake manifold.Route the black wire to thermostat and cut to length.Crimp the red terminal onto the black wire and attach to thermostat.
- 3.Route and connect the red wire to the fan "+" terminal or power wire coming from the fan motor printed "to electric fan".

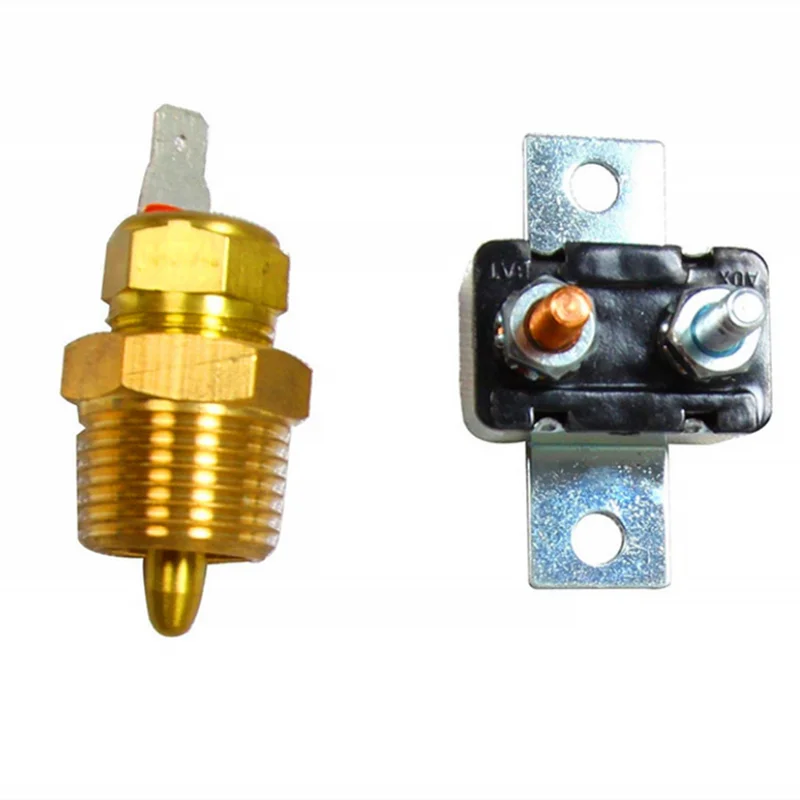

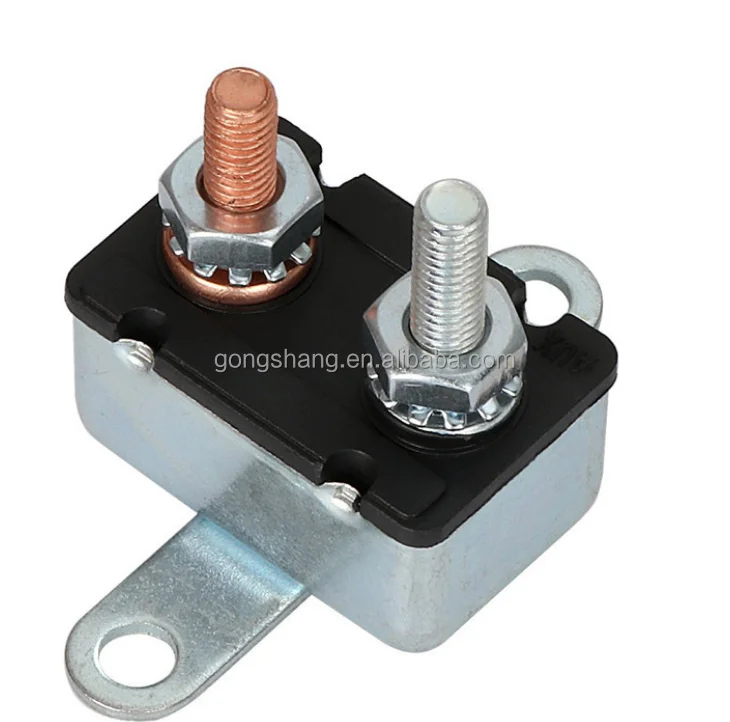

- 4.Mount the circuit breaker provided in a convenient location as close as possible to whichever power source(battery or large terminal on the starter solenoid)you are using for the fan relay.
- 5.Neatly route the red wire from the relay to one side circuit breaker installed in step 5. Cut to length and install using a small yellow ring terminal .With another small yellow ring terminal take the remaining red wire and connect the unused post on the circuit breaker to the battery source.This wire is printed"to battery/constant hot"
- 6.Route the brown wire to the ignition switch or the fan switch whichever is more convenient.
- Installation tips:
- 1.Turning off the engine, replace the new cooling fan temperature switches after the water in engine radiator cooled to the room temperature.
- 2.Avoid the external high heat source after installation.
- 3.Avoid sprinkling water on surrounding auto parts during the installation.

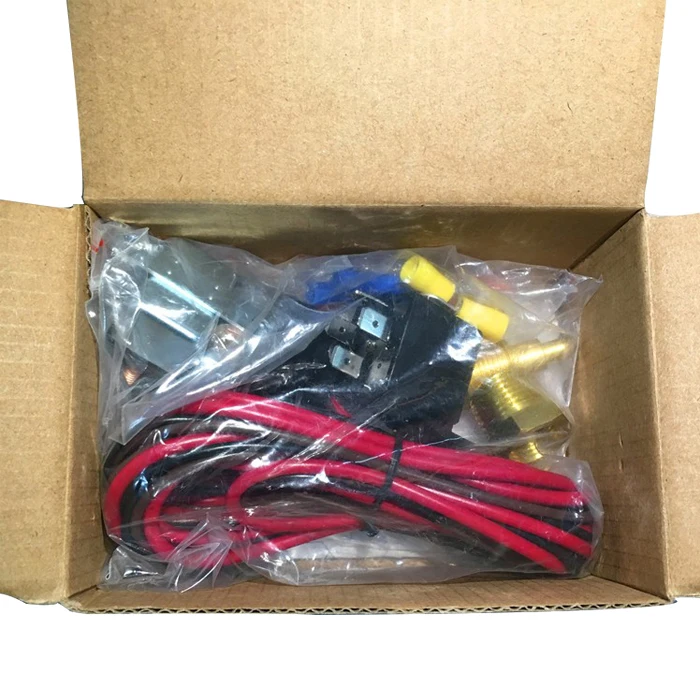

- Package include:
- 175-185 degrees Cooling fan thermostat relay switch kit
How to replace the car auto cooling fan thermostat switch 50amp relay kits ?
SINGLE SWITCH MODELS :
1.Locate the cooling fan switch near the thermostat housing on the left side of engine behind the distributor assembly. The switch wire colors should be green and black.
2.Disconnect the wire terminal from the cooling fan switch.
3.Allow the engine to reach a coolant temperature of 196-203°F (91-95°C).
4.Using a suitable ohmmeter or continuity tester, check for continuity between the two fan switch terminals. The fan switch should have continuity (switch closed) at the above temperatures. The switch should have no continuity (switch open) when the temperature drops between 5-15°F (3-8°C) from the temperature that the switch first had continuity (switch closed).
5.If the switch does not operate within the range of the supplied information, allow the engine to cool below 100°F (37°C) and replace the switch.
WARNING
Submerging the electric cooling fan switch below the threads could damage the component. Coolant must be used for this test as the boiling point of water is below the temperature required for testing some of the sensors. Perform this procedure in a safe and well-ventilated area. Do not breathe any fumes from the heated coolant. Wear eye protection and use care to not come in contact with any of the heated components. Do not use a heating device that produces an open flame.
We will offer an extensive line of High -quality ready to install radiator cooling fan accessories, and continue to research and discover, manufacturing, supply and distribution of our products that ultimately delivers value to customers and society.
3/8" Thread 185 to 175 Degree 4 Pins Car Cooling Fan 12V Electrical Thermostat Switch Auto Relay Kit ; 175-185/185-200 Degree Electric Cooling Fan Thermostat Kit Temp Sensor Temperature Switch 40 50 60 amp RELAY KIT
Packaging & Shipping
- Package Dimensions : 4.25 x 4.13 x 2.76 inches; 10.86 Ounces
Electric Fan Wiring Install Kit Complete Thermostat 50 Amp Auto Relay 185° SBC BBC
Dual Electric Fan Relay Kit with Thermostat Temperature Switch &Electric Cooling Fan Thermostat Kit 175-185 Degrees Compatible with 10/12/ 14/16 inch Fans
FAQ
#1) The themp wire have power is it supposed to?
Answer : the temp sensor sends ground only to the relay .
#2) Does this kit have an ac compressor overide circuit ?
Answer : This kit is for universal use. I allow a system to operate thru a controlled circuit. An override system can be added to the relay connection as an interruptor.
#3) I have a 55 amp alternator. Do I have to upgrade to a 60 amp plus alternator?
Answer: If your installing electric fans and have a 55 amp alternator I probably would upgrade. Electric fans can draw 30 amps. I’m not sure what you are currently running in your car so I’m assuming that your using most of those 55 amps already. One fan is recommended to be connected to a 12V, 40AMP power supply, only two fans can be connected to 60AMP.
#4) How do you chose between 40 50 or 60 amps?
Answer : Depends on your amp draw, the information is show in the instruction book for your reference. If you need more help, please send us messages directly.
#5) If i had dual fans would i need to temp sensors?
Answer : You need one temp sensor. One wire from sensor is split to the two fan relays.
Complete brand new electric fan installation kit
Comes complete as pictured with all parts included.
This is a true complete kit (others do not include everything you will need for installation).
This kit is a must have when using an electric fan in your hot rod or street rod.
Fits most hot rods and classics engines including gm (chevy, gmc, olds, cadillac, pontiac, buick, ford, & mopar (chrysler, dodge, plymouth) please measure to make sure this is the right size.
Thanks!
