API Standard Oil Well Cementing Tools Centralizer

API Standard Oil Well Cementing Tools Centralizer

Category: Centralizer >>>
Supplier: Puyang,Zhongshi,Group,Co.,Ltd.

Price:$15.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Casing centralizer can be applied directly to casing to form stabilizers for drilling with casing or liner in both straight and directional wells

Almost 13 years experience of designing, manufacturing and continual improvement of our non-weld centralizers, we provides non-welded bow spring centralizers, which are designed and manufactured as per API spec.10 D.

The popular styles available are non-welded single bow spring centralizer, and double –bow spring centralizer with high reliable quality.

2. Featrues:

1,Our newest design has features making them ideal for both tubing and casing applications:

2,The non-weld design eliminates any weak spots.

3,Tapered pin hold the bows and hinges in the collars

4,High-quality, super-strengthen spring-steel bows and especialy designed collar hinges provide reliable downhole performance.

5,The whole casing centralizer is made without any rivet and no welding.

6,The whole casing centralizer is composed of 3 parts, the spring, the hinges and tapered pin.

7,Easy for installation and transport

8,Conform to API standard

3,Technical Parameter:

Specification	In-Dia(mm)	Wall Thickness (mm)	Height(mm)	Total height(mm)	Largest Dia(mm)	Spring Number
5-1/2”*8-1/2”	142-148	3-5	55	650	225	5
7”*9-5/8”	181-186	3-5	55	650	255	6
7”*8-1/2”	181-186	3-5	55	650	235	6
8-5/8”*12-1/4”	223-228	3-5	55	650	330	8
9-5/8”*12-1/4”	250-255	3-5	55	650	330	8
10-3/4”*12-1/4”	274-276	3-5	55	650	330	9
13-3/8”*17-1/2”	342-347	3-5	55	650	450	11
18-5/8”*24	476	3-5	55	600	610	12
20”*26	510	3-5	55	600	660	12

workshop 05.jpg

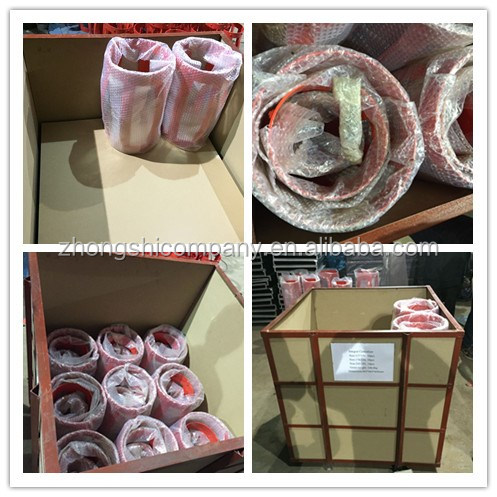

Packaging & Shipping

.jpg

polymer sprial vavne - .jpg

Our Services

1.About Feedback

1) After your inquiry we will give you a quick revert within 12 hours

2) Any questions do free to let me know and my trade manager will stay on line all the time

3) The time you consult us ,the convenience will follows you.

2.Why choose us?

1) Choose us,you will find a cost-efficient way.

2) Choose us,convenience will follows you all the time .

3) After inquiry you will realize we are the one that you are looking for .

Company Information

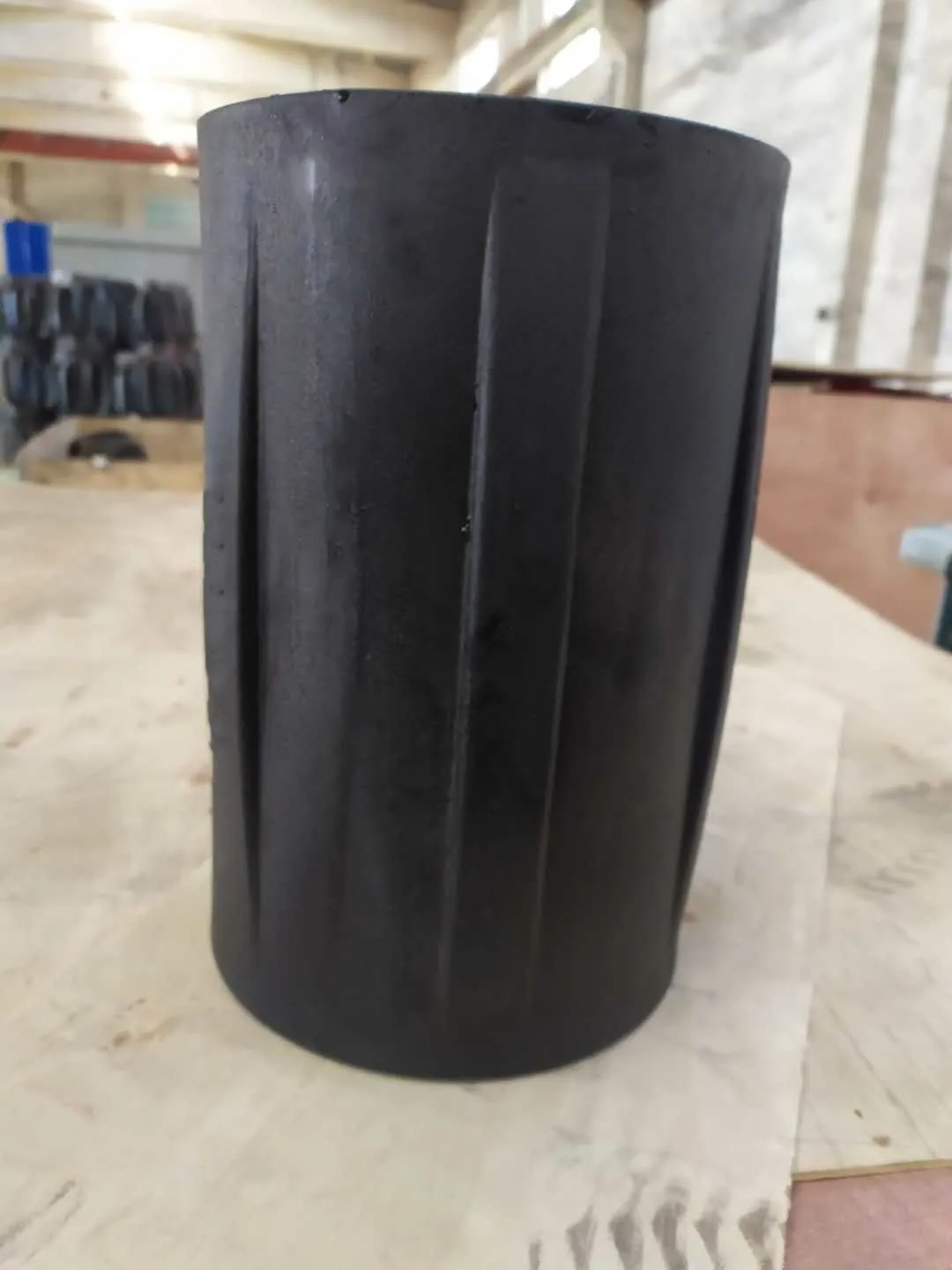

Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of casing accessories likebow spring centralizer, solid rigid centralizer,float equipment, cementing plug etc.

We have 9 factories, more than 500 employees, and many kinds of production equipments.

We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.

With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
