Glazed roof tile sheet making machine press step glazed tile roll former line
- Category: >>>
- Supplier: Henan,Wadjay,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Instruction for roll forming machine

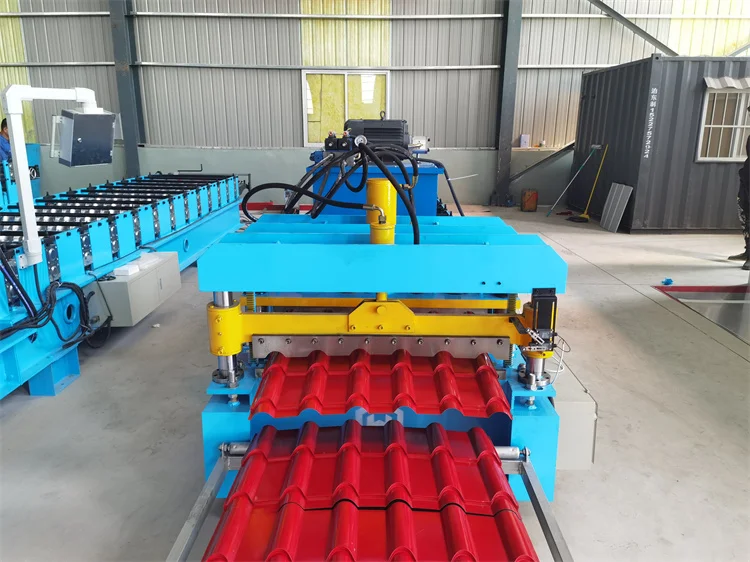

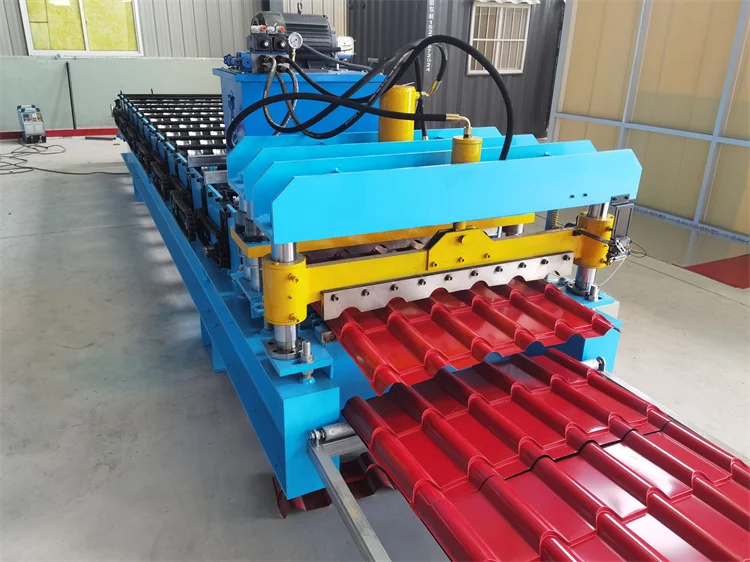

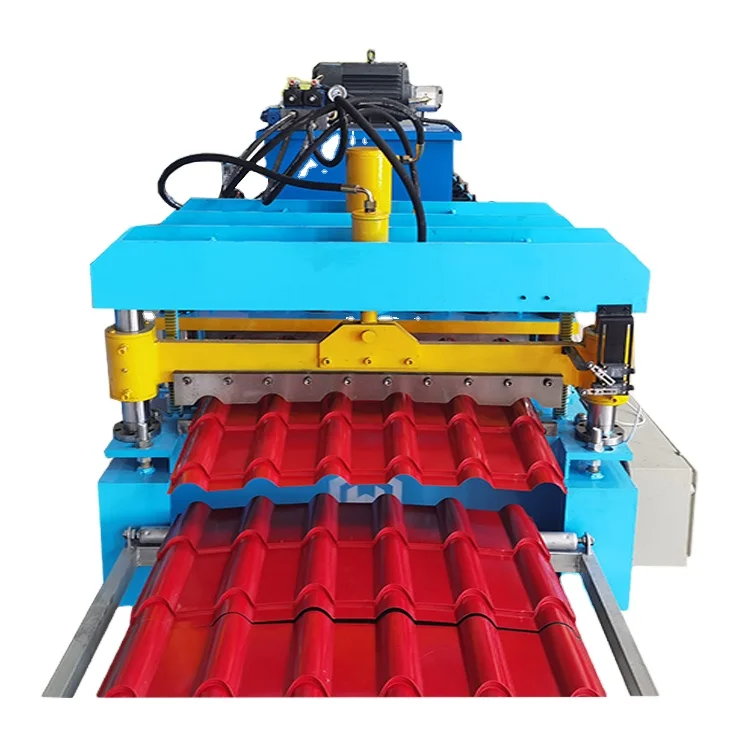

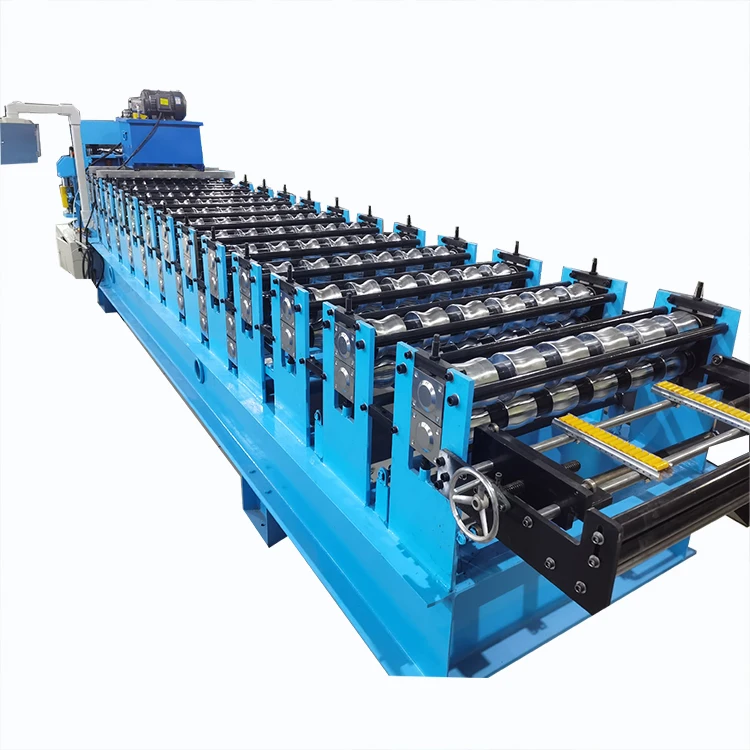

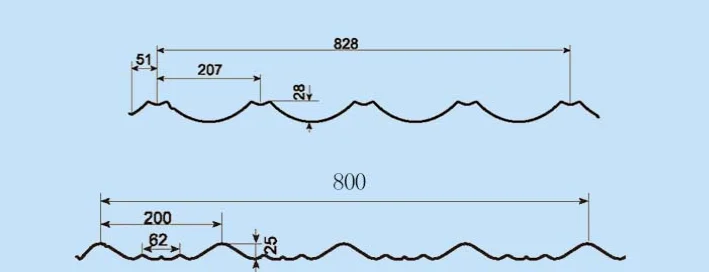

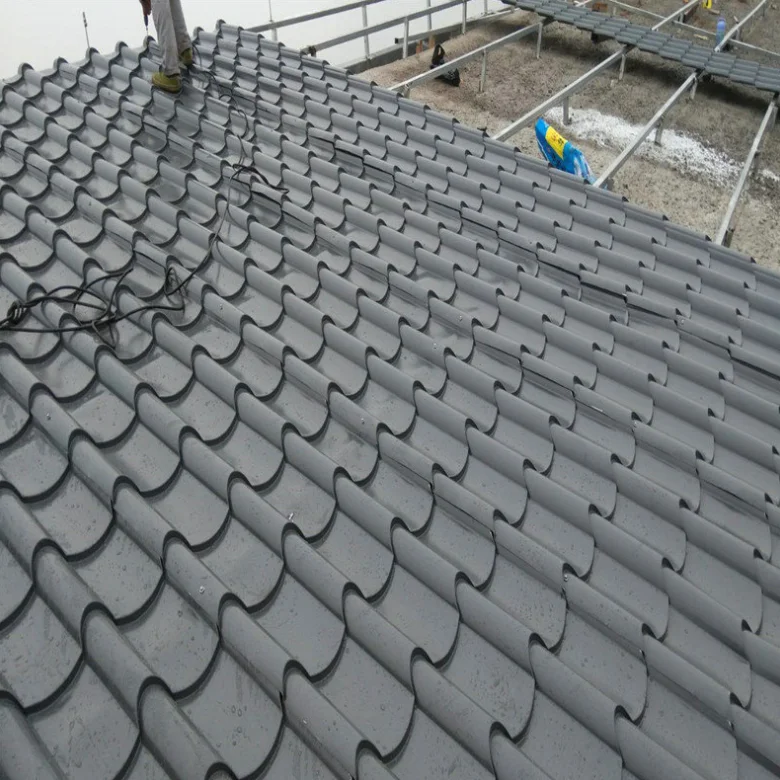

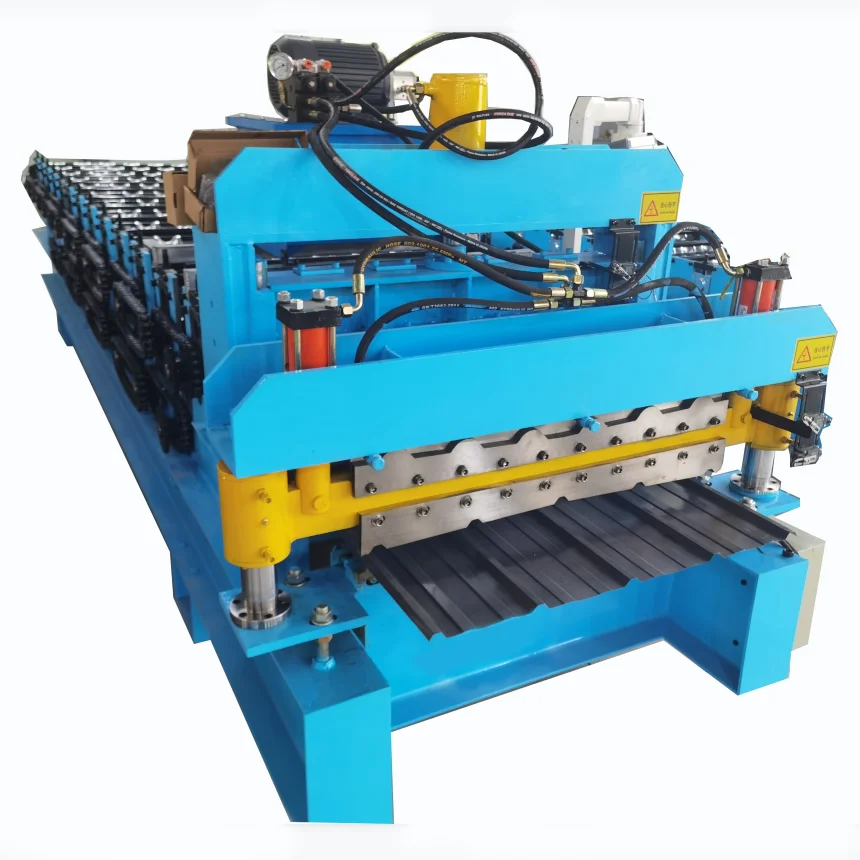

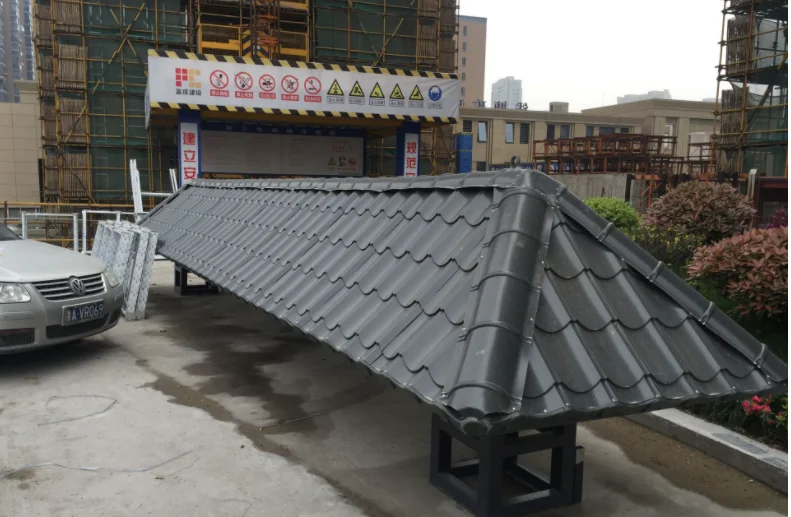

Glazed roofing sheet making machine with 3D effect it can help you control perfect 3D effict of the roofing. Compared with the normal roofing sheet machine, the glazed roofing tile making machine with one more steppnism.

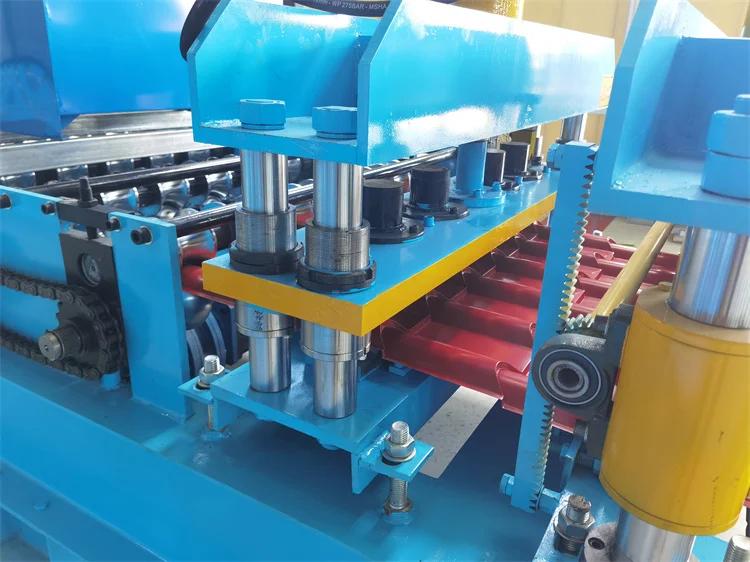

Features for roll forming machine
1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two
hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two
hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.
Working flow
Specification
SN. | Item | Parameter |
1 | Product name | Wall/Roof panel metal roofing corrugated tile roll forming Machine |
2 | Raw material | Color steel/Galvanized steel/PPGI/GI/GL/PPGL |
3 | Feeding width | 1000mm |
4 | Material thickness | 0.3mm-0.8mm |
5 | Forming speed | 4m/min |
7 | Roll station | 13 |
8 | Roller diameter | 70mm |
9 | Roller material | 45# steel |
10 | Cutter material | Cr12 , heating treatment HRC58-60℃ |
11 | Voltage | 380v or can be customized as customers' requirement |
12 | Driving mode | single chain 1 inch |
13 | Hydraulic pressure | 10-12MPa |
14 | Hydraulic motor power | 3kw |
15 | Main motor power | 4kw 3phases |
16 | Control system | PLC Delta Inverter |
17 | Main frame | 350mm H-Beam |
18 | Weight | 5500kgs |
19 | Dimension | 6500mm*1600mm*1700mm |

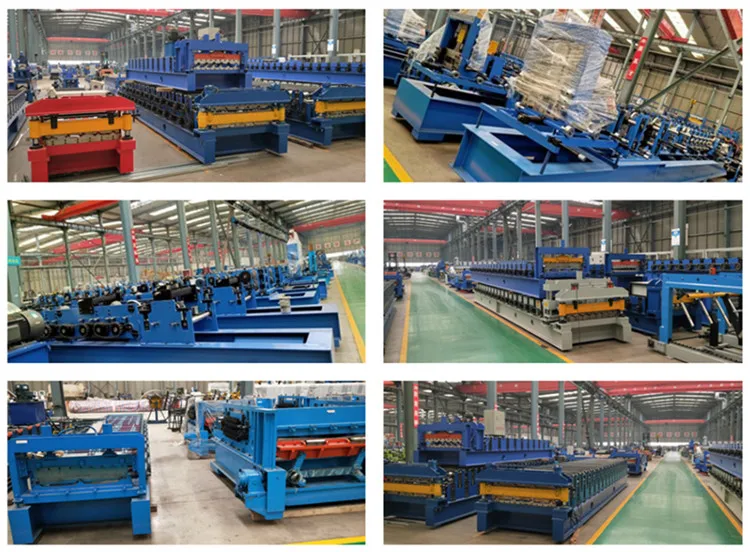

Workshop Overview
