Product Overview
Description
Product Description
Professional One-stop Solar Pump Irrigation System Solution
GOLDBELL is a professional one-stop solution service provider and manufacturer for solar water pump system.
Through rich service experience and professional technical support, it provides customers with suitable, affordable and high-quality solar water pump systems to meet the individual needs of customers. Save time and expense for customers.
GOLDBELL Solar Pump Irrigation System

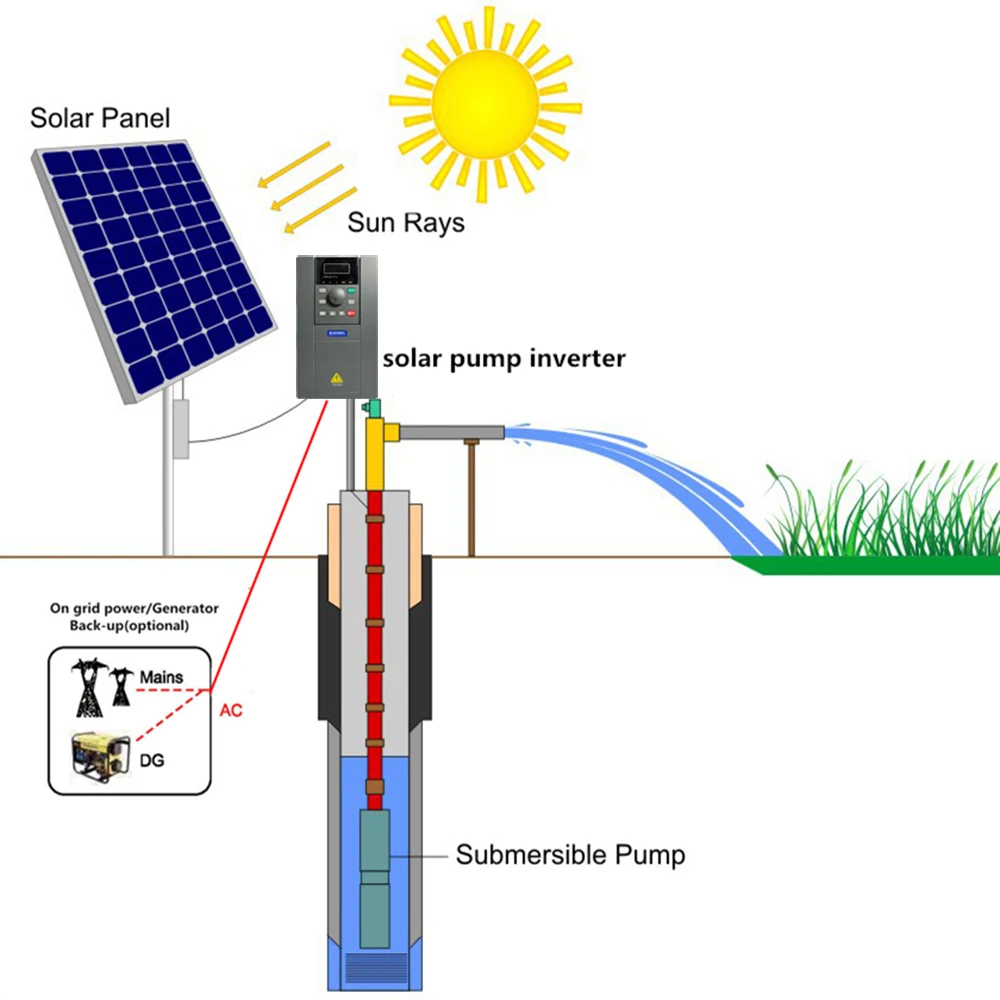

System composition: The GOLDBELL solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Scope of application: Widely used in photovoltaic agricultural irrigation, irrigation station renovation, household water supply and desert greening and other places without electricity or insufficient power supply.

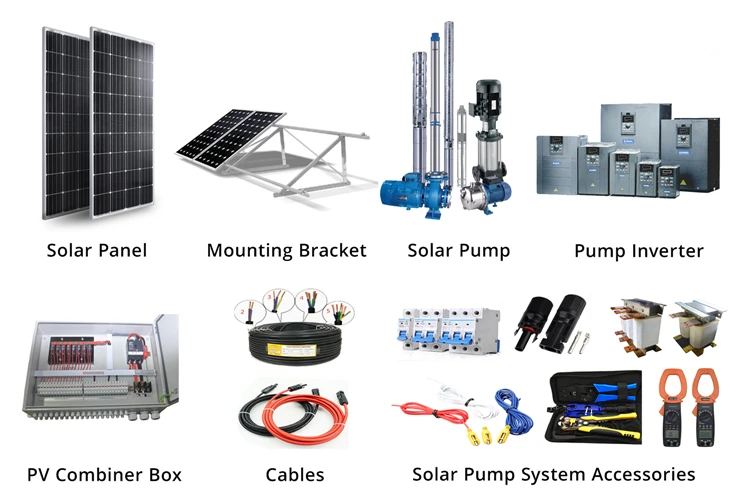

System Components
The GOLDBELL solar water pump system is mainly consisted of solar panel, solar pump inverter, water pump, PV combiner box, mounting bracket, cables, water level sensor and other accessories.
Specification
How to Choose The Suitable Solar Pump Model?
Calculate the lift:
Calculate the vertical pumping distance and horizontal pumping distance separately, provide the data to us.
Calculate the flow:
Estimate how many cubic meters of water per hour are required for irrigation use, Provide the data to us.
We will choose the most suitable solar pump model for you based on the data and provide you with the parameter list.
Model Selection(example)
| 3KW(4HP) Solar AC water pump specification | |||||||||
| Note: 1 HP=0.75 KW 1 m3=1,000 liters 1 m3/h=0.278 ltr/s 1 m=3.28 feet | |||||||||
| Model | Motor power (KW) | Rated flow (m3/h) | Rated head (m) | Inverter (KW) | Pump size (inch) | Solar panel Input voltage (VDC) | Solar panel (KW) | Solar panel (W/pcs) | Connecting in series*parallel |
| 4SP2-55 | 3 | 2 | 240 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 4SP3-39 | 3 | 3 | 172 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 4SP3-44 | 3 | 3 | 194 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 4SP5-33 | 3 | 5 | 138 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 4SP8-18 | 3 | 8 | 80 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 4SP14-10 | 3 | 12 | 49 | 4 | 4 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 5SP10-06 | 3 | 10 | 55 | 4 | 5 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 5SP15-05 | 3 | 15 | 43 | 4 | 5 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 5SP20-04 | 3 | 20 | 30 | 4 | 5 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 5SP25-04 | 3 | 25 | 30 | 4 | 5 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
| 5SP30-03 | 3 | 30 | 21 | 4 | 5 | 540VDC | 4.5 | 300W/36V 15pcs | 15*1=15pcs |
Packaging & Shipping
- Our factory is located in Shenzhen, close to the airport and port, most of the products are in stock, which can respond to your needs for fast delivery.
- We will help you choose the most suitable transportation plan according to your needs and the volume and weight of the goods, and support air, sea and land transportation.
- Packing: high quality strong export wooden box.
Company Information
Why Choose Us?
- We are the source factory located in Shenzhen, Guangdong, have been rooted in solar water pump systems for more than 10 years, serving customers in more than 30 countries, annual export volume reach 15 million US dollars. More customers choose us.
- Our factory has a leading technical team, from design to R&D and production, to respond more quickly to customer needs.
- Rich project and engineering experience allows us to provide you with one-stop consulting services, saving you time and money.
- According to the statistics of our after-sales department, the defective rate of our factory's products is only 3/1,000. Far ahead of the industry level.
- We will continue to launch new products to respond to the different needs of the market and customers.
About Us
GOLDBELL Electric (Shenzhen) Co., Ltd. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!

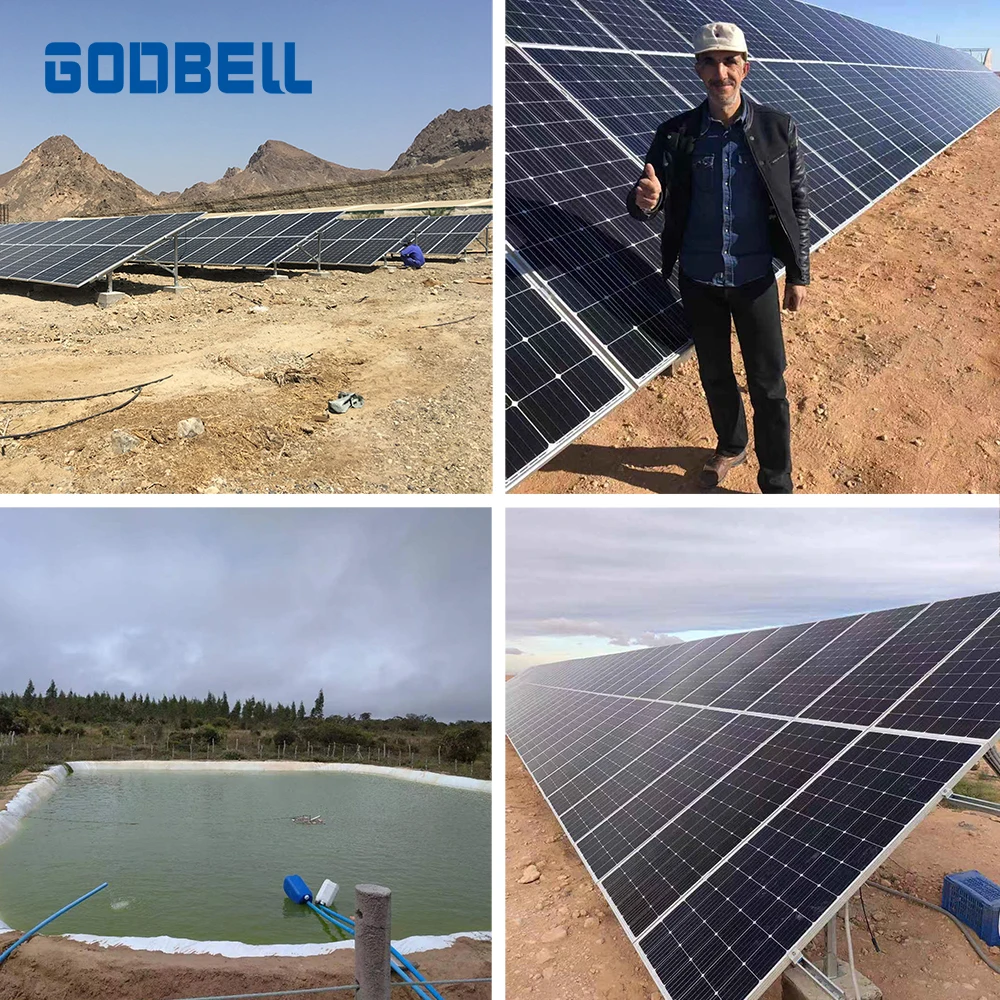

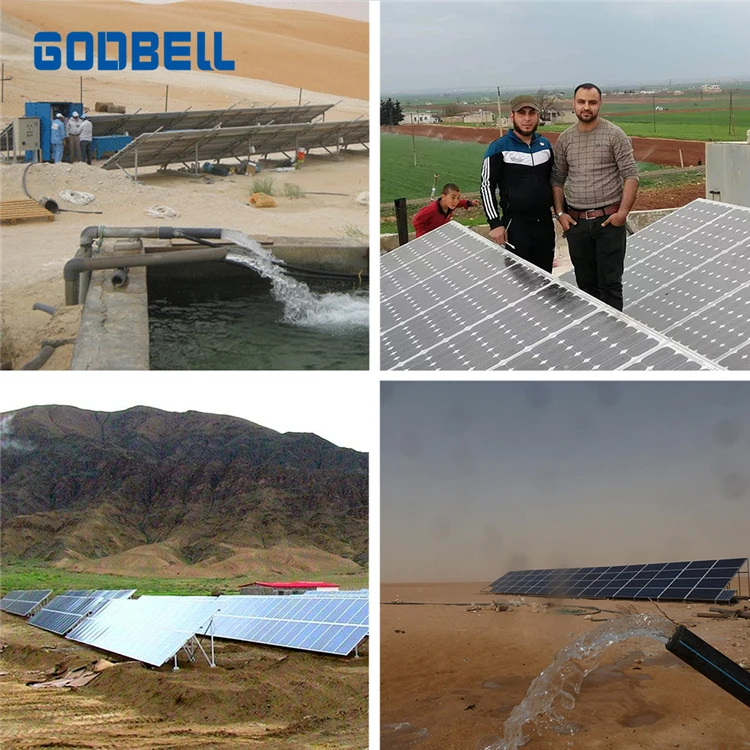

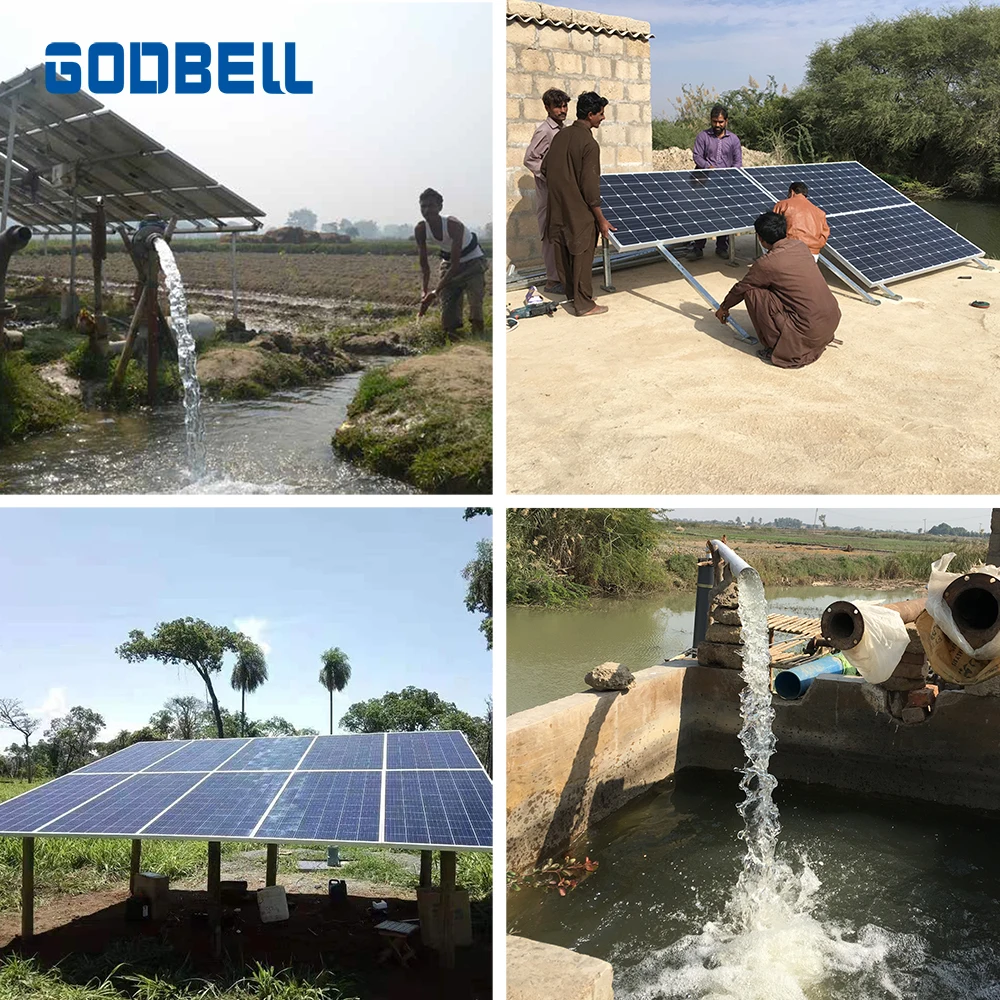

Cooperation Case
