KII LED EMF Meter Magnetic Field Detector Ghost Hunting Paranormal Equipment Tester 5 Scales EMF Magnetic Field Monitor
Electromagnetic fields, or EMFs, are emitted by electrical devices of all types. EMFs are everywhere, originating from appliances, cell phones, electrical wiring, and even the human body. The KII EMF Meter helps measure these fields to identify appliances that produce high-level emissions, allowing users to make informed decisions about limiting exposure. EMF fluctuations have also been associated with locations where unexplained phenomena have been reported, including alleged hauntings. The KII operates on a single 9V battery, and reports EMF measurements in five milliGauss ranges.
The KII EMF Meter is a hand held meter brought out by KII Enterprises. It has a press down button to activate it and it requires this to be held down to monitor readings. This modification adds a switch to the circuit which produces the same effect as if the button was held down.
Other possible modifications would be to add an output jack and digital meter to the KII this is looked at in the Tri-field Natural EM Meter Modification and specifics given in the tech bench board on the GRI Forum.
KII output being logged along with Magnetic Field, Temperature and light intensity.

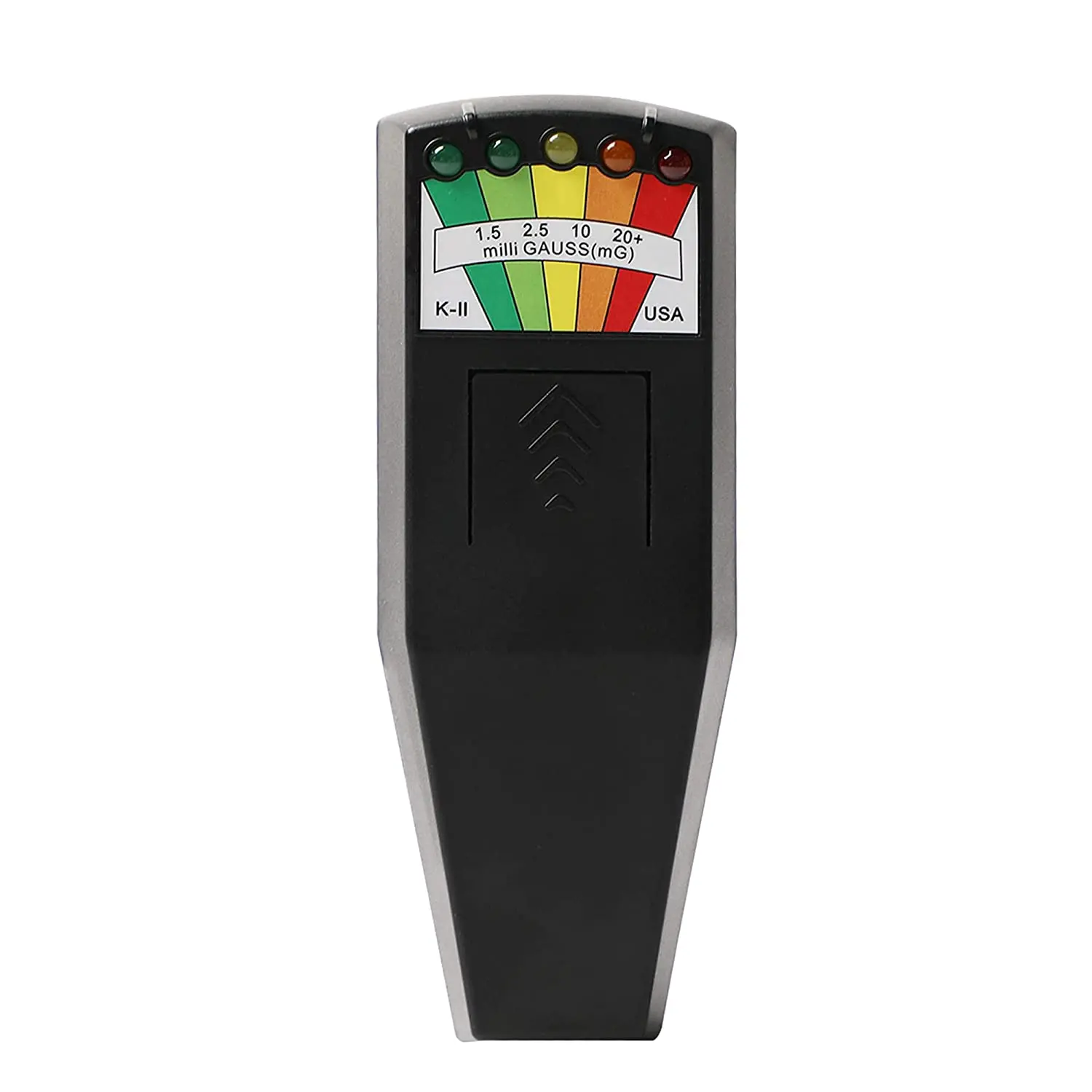

First a little background on the KII meter. It has 5 lights which indicate the level of EMF:
Green - Always on indicating battery OK and a "normal" level of 0 to 1.5 milliGauss
Green - "Low" 1.5 to 2.5 milliGauss
Yellow - "Caution" 2.5 to 10 milliGauss
Orange - "High" 10 to 20 milliGauss
Red - "Warning" 20+ milliGauss
Frequencies detected are 50/60Hz (50-1000Hz - ELF) (1000-20,000Hz - VLF), Accuracy 5%.
The KII differs from many other low cost meters in that it not only measures the Electronic Magnetic Field in the Extremely Low Frequency (ELF) range, but also the Very Low Frequency (VLF) range. The ELF range which is generally termed to be between 3-3,000Hz borders on DC as well as AC.
Higher priced meters such as the The Tri-Field Natural EM meter are designed to be able to operate exclusively in the natural DC range which is from 0-3Hz (Sub Extremely Low Frequency - SELF) and includes the frequencies of humans and the earth itself.
Instantaneous response to EMF fluctuations & spikes. 9 Volt batteries required.
Easy to read LED light scale in dark and sunshine
Portable, easy to use, rugged, reliable, super responsive
UV reactive color label
Used for Paranormal Research and for general EMF detection use
Simple push-on/push-off operation
Accuracy of 5% at 50Hz-60Hz
Detects ELF range (50 to 1,000 Hz) & VLF range (1,000 to 20,000 Hz)
Operation of the KII:
When the meter is initially turned on it gives a full scale reading and then a half scale to indicate it's powered up. It then returns a normal reading with one green LED illuminated - indicating 0-1.5mG. Any disturbance will now be indicated by the meter. If the finger is lifted the single LED will extinguish indicating the unit is off.
The benefit of the modification is obvious and rules out the possibility of human intervention (accidental or otherwise) with the meter's original momentary switch. Such intervention can be noticed by the first light (green) going out before a "spike" occurs - this single light should always be on indicating the unit is powered up.
Please note: this product is intended to measure electric fields, and does not detect nuclear radiation.
