Long Distance Wireless Data Transceiver 50W 35W 25W transmitter and 100mW Receiver for Telemetry
- Category: >>>
- Supplier: Shenzhen Thingsend Communication Tech Co. Ltd.
Share on (1600482007759):
Product Overview
Description
Product Description
Product Introduction

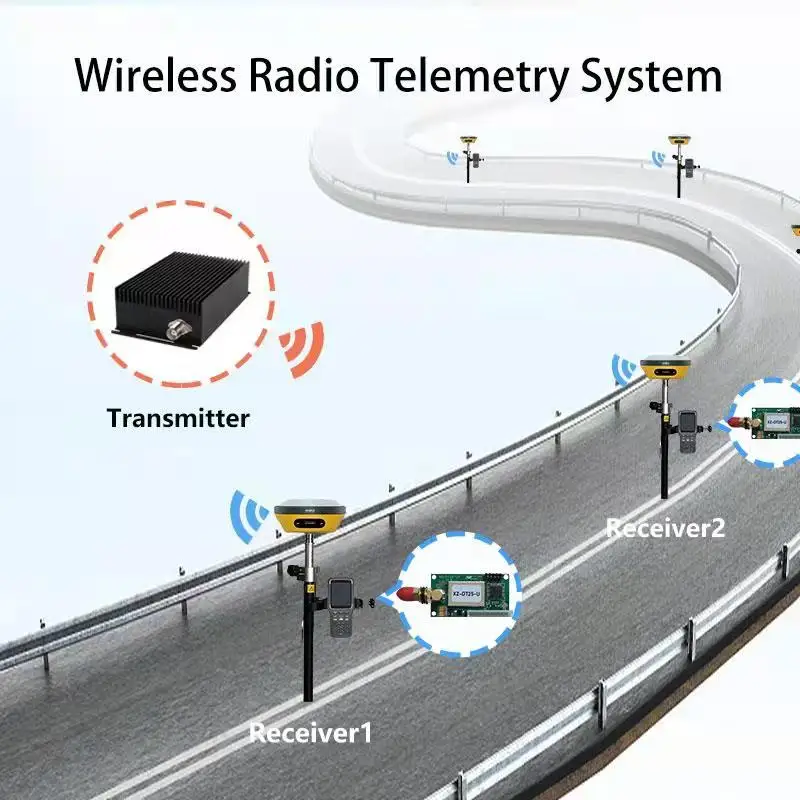

Both XZ-DT25-H and XZ-DT25-U can act as transmitter and receiver. Usually in the wireless telemetry system,XZ-DT25-H acts as a trasmitter,XZ-DT25-U acts as a receiver.XZ-DT25-H can be made to 50W,35W,and 25W.
Technical Parameters

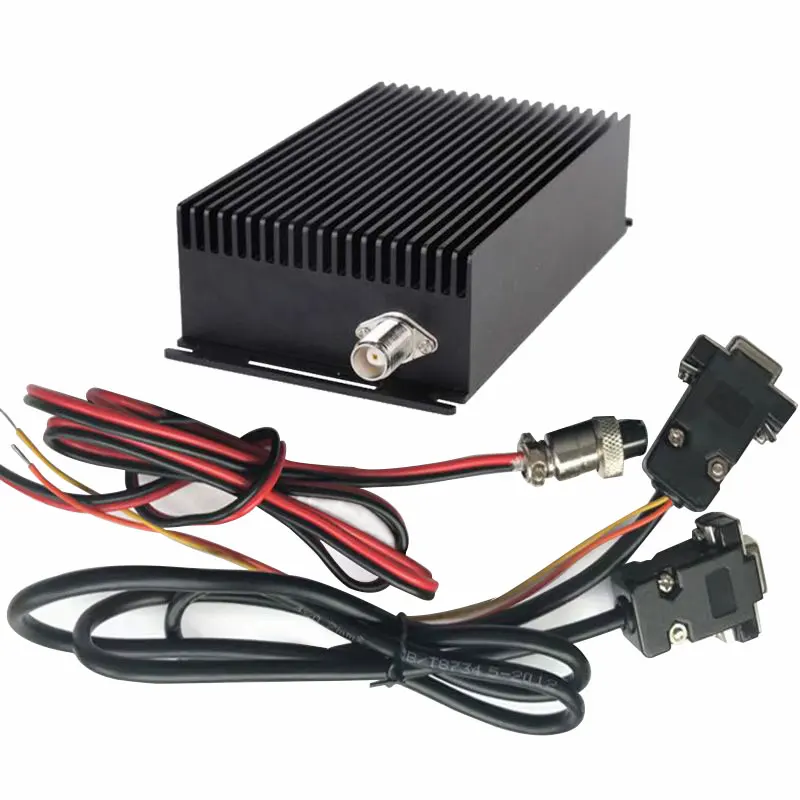

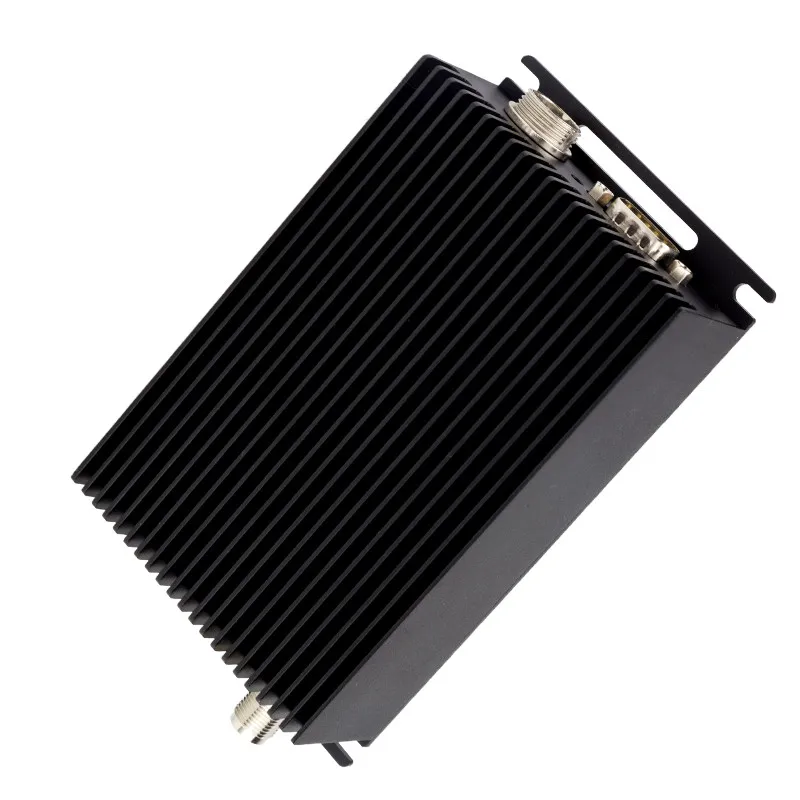

XZ-DT25-H Parameters | ||
Frequency Range | 136～174MHz, 220～240MHz, 410～470MHz | |
Frequency stability | ≤±2.5PPm | |
Transmit Power | 50W,35W,25W | |
Modulation | GFSK/4GFSK | |
Air Data Rate | 1200～115200bps settable by user | |
Baud Rate | 1200～115200bps settable by user | |
Interface | RS232&RS485 default, TTL customized | |
Power Supply | 12V@10A | |
Interface Data Format | 8E1/8N1/801 | |
Receiving Sensitivity | -125dBm@1200bps/-120dBm@9600bps | |
Channel Bandwidth | 10KHZ@1200bps/25KHZ@9600bps | |
Emission Current | ≤150mA | |
Receiving Current | ≤50mA | |
Working Temperature&humidity | -40℃～80℃ (industrial grade),10% to 90% relative humidity, no condensation | |
Dimension(L/W/H) | 145X 86X 40mm | |
Weight(g) | ≤500g | |

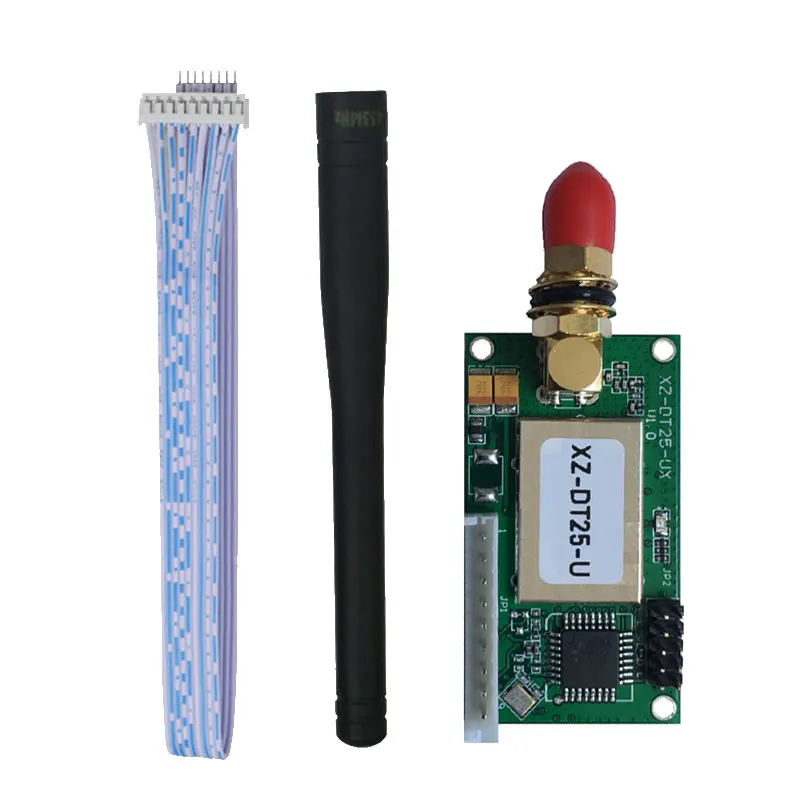

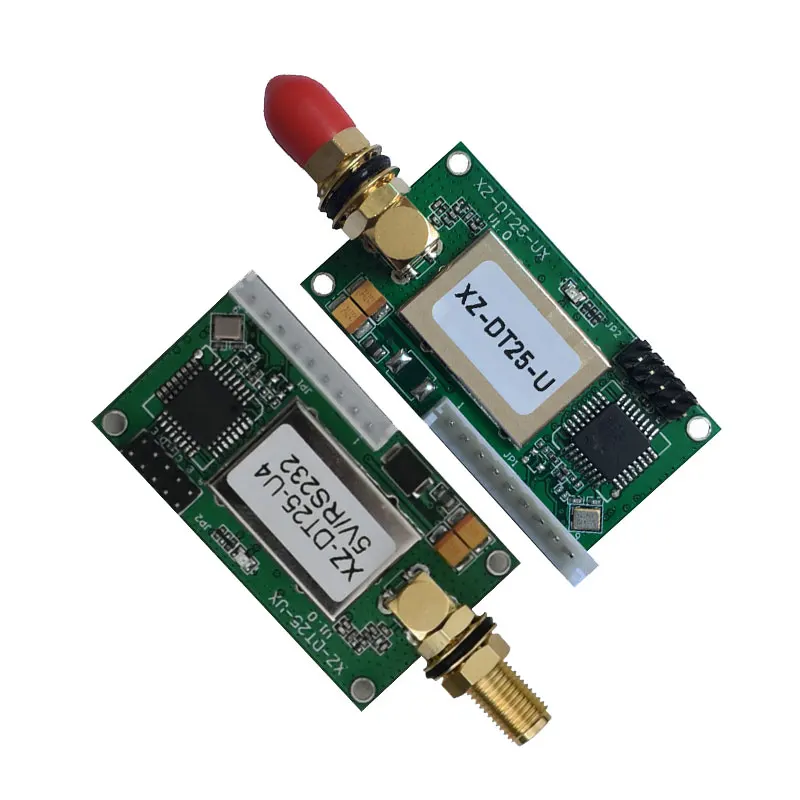

XZ-DT25-U Parameters | ||
Frequency Range | 136～174MHz, 220～240MHz, 410～470MHz | |
Frequency stability | ≤±2.5PPm | |
Transmit Power | 100mW | |
Modulation | GFSK/4GFSK | |
Air Data Rate | 1200～115200bps settable by user | |
Baud Rate | 1200～115200bps settable by user | |
Interface | TTL/RS232/RS485 | |
Power Supply | 3.3-5V | |
Interface Data Format | 8E1/8N1/801 | |
Receiving Sensitivity | -125dBm@1200bps/-120dBm@9600bps | |
Channel Bandwidth | 10KHZ@1200bps/25KHZ@9600bps | |
Emission Current | ≤1.5A (Max Output Current is not less than 2A) | |
Receiving Current | ≤80mA | |
Working Temperature&humidity | -40℃～80℃ (industrial grade),10% to 90% relative humidity, no condensation | |
Dimension(L/W/H) | 32 X 20X 7mm | |
Weight(g) | ≤50g | |

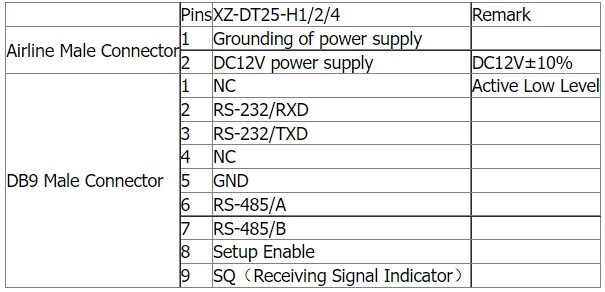

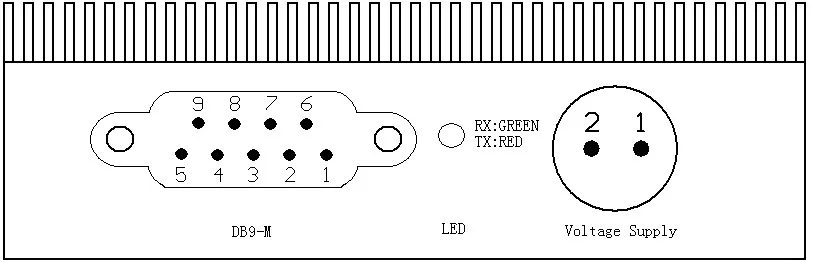

Pin Definitions
Software Program
Applications
* Marine Communication
* water wells, water and waste water treatment monitoring system
* Oil and gas production, pipeline monitoring, gas distribution, heat network monitoring
* Power scheduling, distribution automation, load control
* GPS positioning system, mobile data transmission
* Vessel (UMV) monitoring and control, robot control data link
* Army, police communications
* Earthquake, meteorology, environmental protection and urban lighting control
* Railway, transportation, metallurgy, chemical industry and industrial automation process control
* Industrial remote control, telemetry, automated data acquisition system
* water wells, water and waste water treatment monitoring system
* Oil and gas production, pipeline monitoring, gas distribution, heat network monitoring
* Power scheduling, distribution automation, load control
* GPS positioning system, mobile data transmission
* Vessel (UMV) monitoring and control, robot control data link
* Army, police communications
* Earthquake, meteorology, environmental protection and urban lighting control
* Railway, transportation, metallurgy, chemical industry and industrial automation process control
* Industrial remote control, telemetry, automated data acquisition system
Recommend Products
Company Profile
Packing
FAQ
Q1. Is Thingsend manufacturer or a trading company?
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
A:We are manufacturer of wireless sensors and wireless transceivers. What we offer are excellent products at a reasonable price,professional technical support and fast&good service .
Q2. Can I customize the product?
A:Abosolutely. We can customize products according to your needs and add your logo on the products.OEM &ODM service and wireless customized solutions are supported.
Q3. What's the delivery time?
A:For prototype, it will be sent within 5 working days after you have paid. For bulk orders, it depends on your order quantity.
Q4: What is the payment terms?
A: PayPal, Western Union and T/T are preferred.
