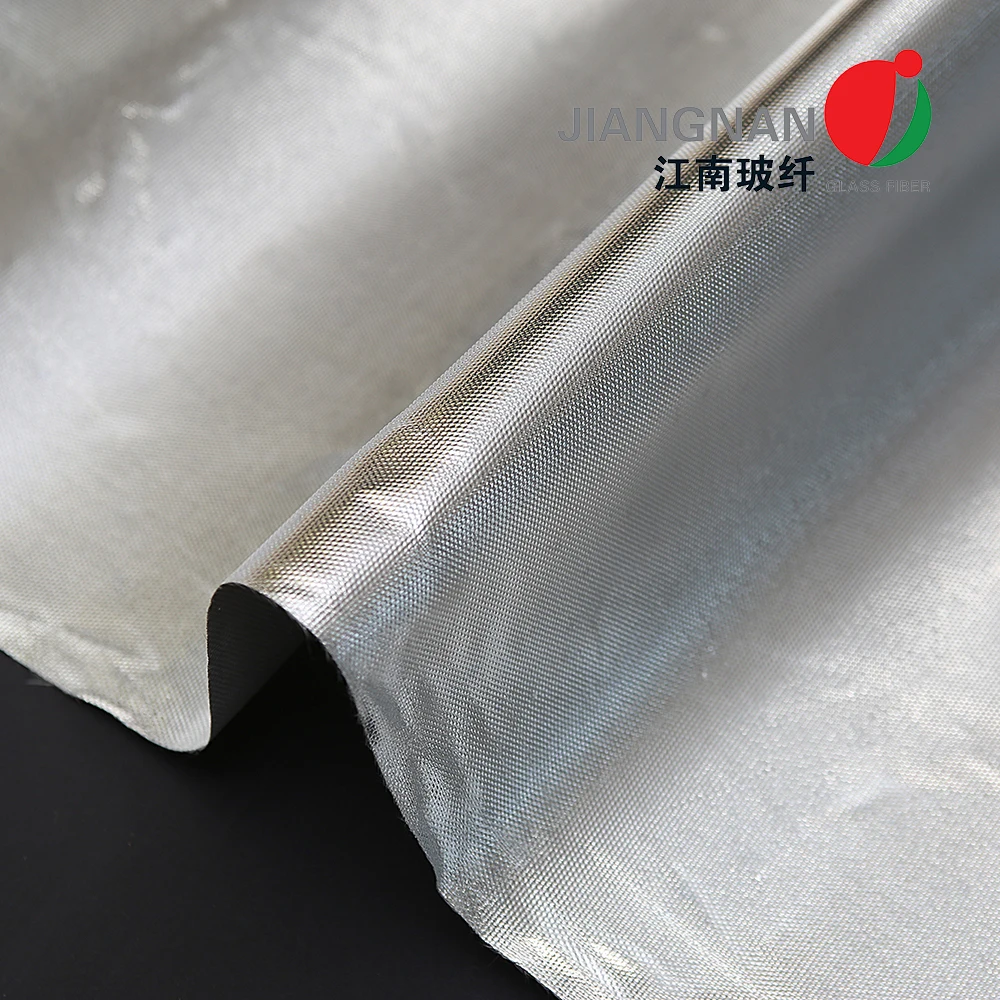

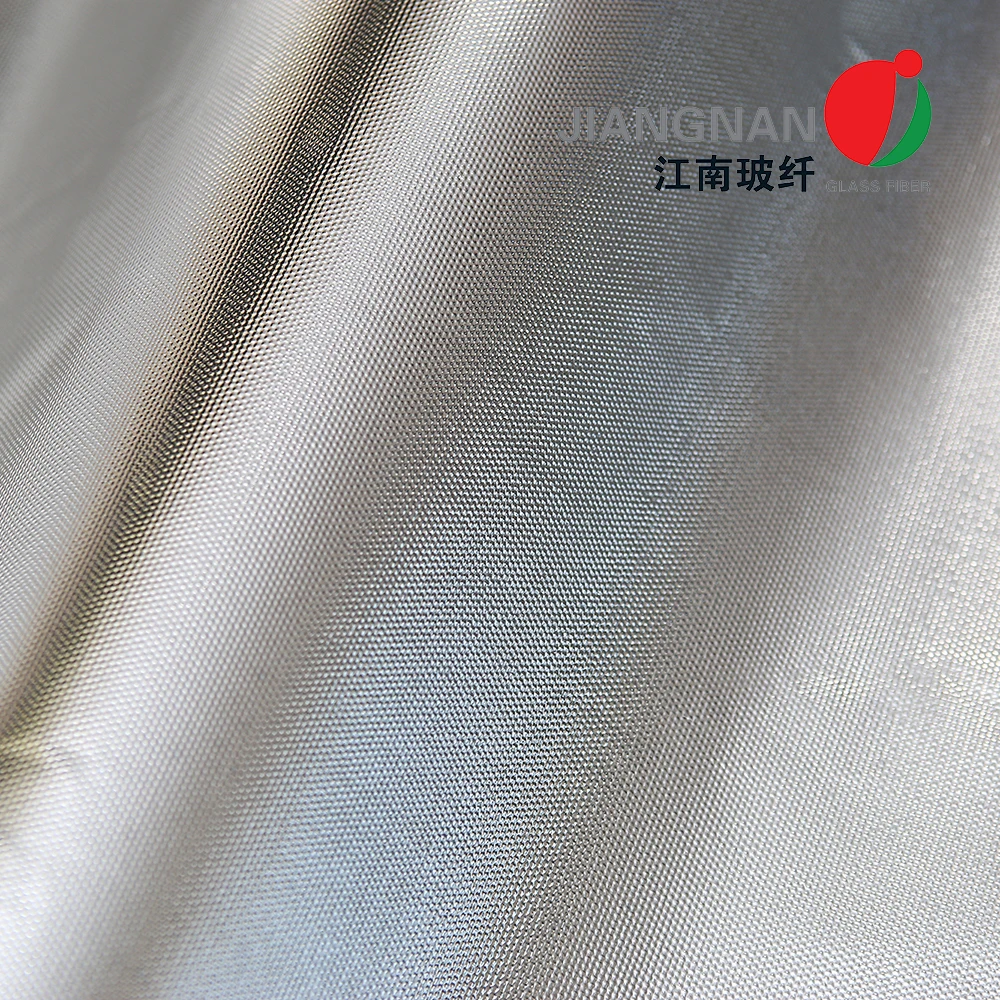

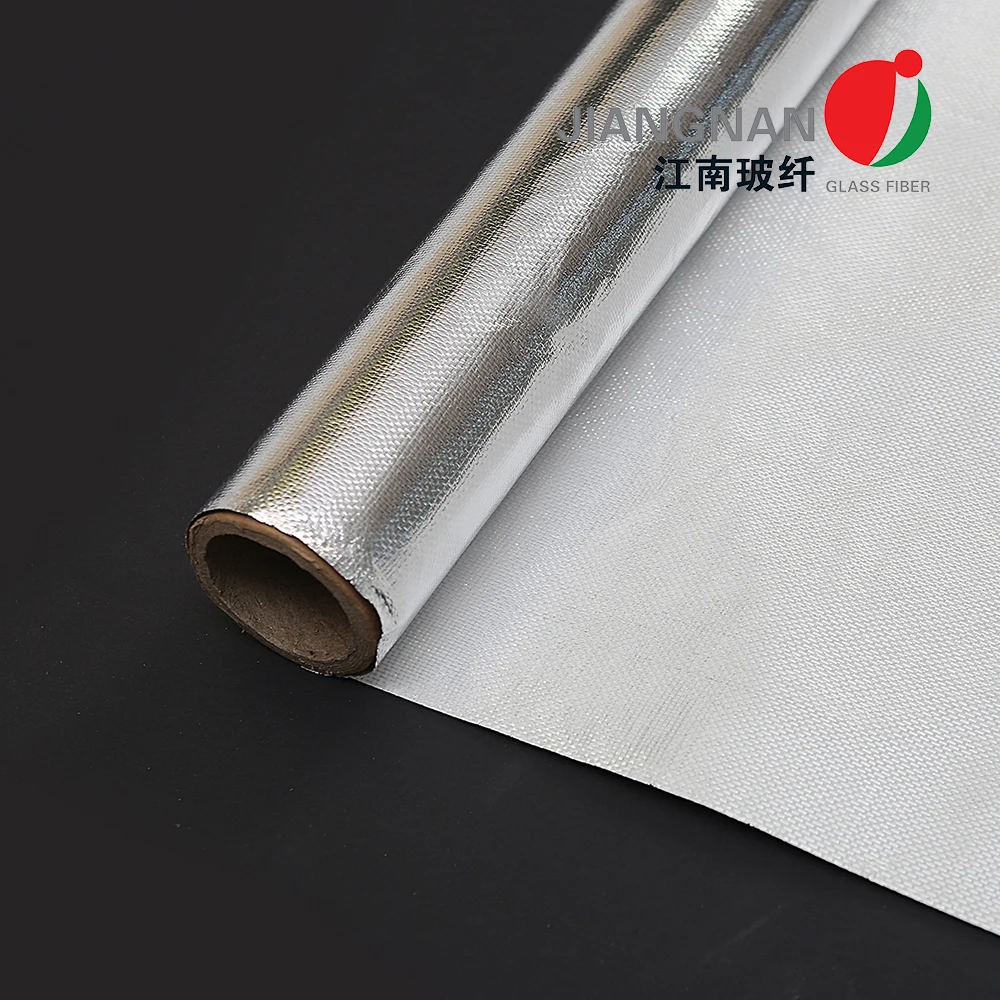

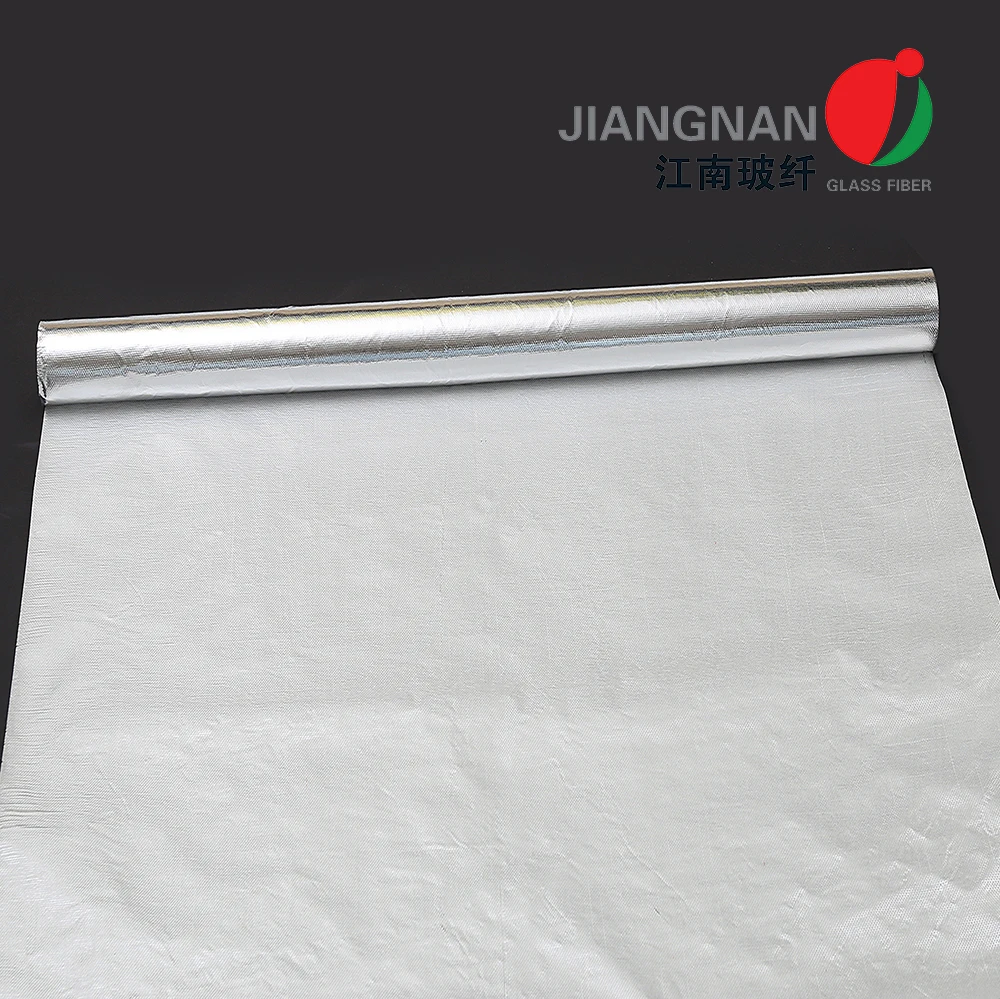

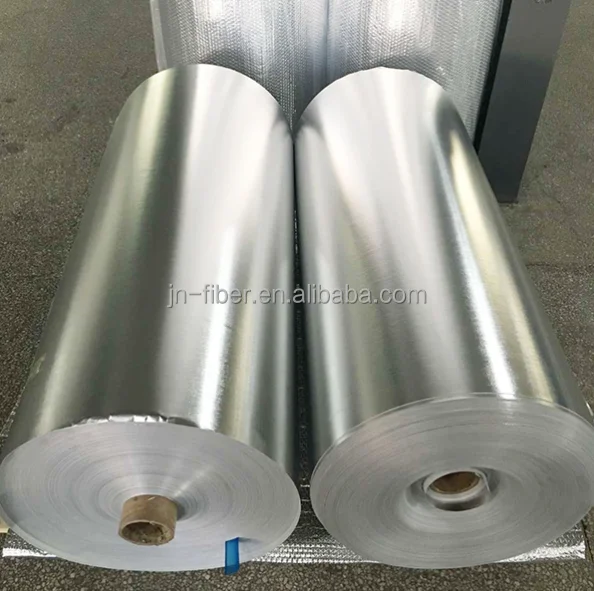

0.12mm Aluminized Fiberglass Insulation Cloth For Marine Covers
- Category: >>>
- Supplier: Changshu Jiangnan Glass Fiber Co. Ltd.
Share on (1600482015166):
Product Overview
Description
Product Introduction
High Temperature Reflective Thermal Aluminium Coated Fabric | ||
Type | Aluminium Foil Coated Fiberglass Cloth | |
Material | 100% Fiberglass Cloth with Aluminium Foil Coating | |
Color | Silver | |
Roll Length | 50 or 100m per roll | |
Temperature Resistance | 280°C | |
Kniting Type | Plain/ Twill/Satin | |
Glass Yarn Type | E-glass or C-glass Fiberglass Yarn E-glass or C-glassTexturized Fiberglass Yarn | |
Advantage | Strong Material Toughness,Anti-Humidity, Anti-Fog And Anti-Corrosion，Flame Retardant,Fire Resistant,Heat Insulation | |
Product Construction | ||||
Material Composition | Material Description | Value Standard | ||
Foil | Aluminium | 9 or 18 Micron | ||
Adhesive | Pressure Sensitive Oily Adhesive and Water Base Glue | Adjust According to Different Thickness of Base Fabic | ||
Fiberglass Cloth | Each Difference Thickness Cloth | 70-2000g | ||
Product Details
What is Aluminium Coated Fiberglass fabric?
Fiberglass cloth is coated with aluminum foil to reduce abrasion in various applications. The reflective properties of the aluminum coating on the fiberglass fabric effectively reduce heat loss due to radiation. Its continuous working temperature is 550 ℃, and the short-term working temperature is 600 ℃. These properties make it ideal for applications such as manufacturing protection, fire protection and wear, but also for boilers and foundries as well as vehicles such as automobiles. Cars and motorcycles.
Advantages
1. High temperature resistance (-70～280℃); good heat insulation.
2. High strength, soft and elastic surface, can be sewn.
3. Good corrosion resistance, oil resistance and waterproof performance
4. Resistant to heat and weather aging, ozone, oxygen, light, etc
5. Adiabatic, dielectric constant 3～3.2, breakdown voltage 20～50kv/mm.
2. High strength, soft and elastic surface, can be sewn.
3. Good corrosion resistance, oil resistance and waterproof performance
4. Resistant to heat and weather aging, ozone, oxygen, light, etc
5. Adiabatic, dielectric constant 3～3.2, breakdown voltage 20～50kv/mm.
The features of a Calendering silicone fabric
The aluminum foil composite glass cloth is made with a unique advanced composite process. The composite aluminum foil has a smooth surface, high reflectivity, high vertical and horizontal tensile strength, good air tightness, and good waterproof and sealing
performance.
performance.
Production Application
Metal Steel Heat Preservation Building
Heat Insulation Pipes
Heat Reflective Wall
Heat Insulation Cover
Waterproof Fireproof package
Fire Suits
Pipe Sealing
Pipeline Seal
lHeat Insulation
Aluminium coated fiberglass fabric has multiple uses.
1. Building insulation materials
2. Pipe insulation sleeve
3. Insulation work clothes and fireproof clothing
4. Insulation surface of hull plate of hull and submarine hull
5. The surface layer of the detachable insulation jacket
6. Fire curtain/blanket, spark protection
7. Car engine insulation
8. Welding fire protection
Related Products
Item No | Weave | Yarn Density per Cm | Weight g/m2 | Thickness | Aluminium Foil Thickness | Tensile Strength N/5cm | ||||||
Warp & Weft | Warp & Weft | |||||||||||
AL75 | Plain | 12*8 | 75 | 0.1mm | 7 Micron | 380*370 | ||||||
AL7628 | Plain | 18*12 | 200 | 0.2mm | 7 Micron | 2025*1620 | ||||||
AL3732 | Twill | 18*12 | 430 | 0.43mm | 7 /18Micron | 6000*4500 | ||||||
ALFW600 | Double Plain | 15*15 | 600 | 0.55mm | 7 /18Micron | 6000*5000 | ||||||
AL2025 | Plain | 8*5.7 | 610 | 0.75mm | 7 /18Micron | 2025*1216 | ||||||
AL-M30 | Plain | 6*3.8 | 1020 | 1.2mm | 7 /18Micron | 3000*2000 | ||||||
AL-3784 | Satin | 18*13 | 880 | 0.9mm | 7 /18Micron | 8000*6000 | ||||||
Other thickness and weight can also be customized according to your Requirement 75g<Weight<2000g <2000g 0.1mm<Thickness<3mm | ||||||||||||
More Related Products
Production Process
From the viewpoint of the composite material, the fiberglass fabric/silicone rubber is a composite material, the purpose of which is to get the physical and chemical characteristics of the composite. At present, there is two main composite technology: impregnating and calendering. The calendering process, with the calendering equipment, such as three-roll calendar, four-roll，calender, pressing the silicone rubber on the surface of fiberglass fabric directly, and vulcanizing under the action of pressure, The process is suitable for single or double-side coating treatment.

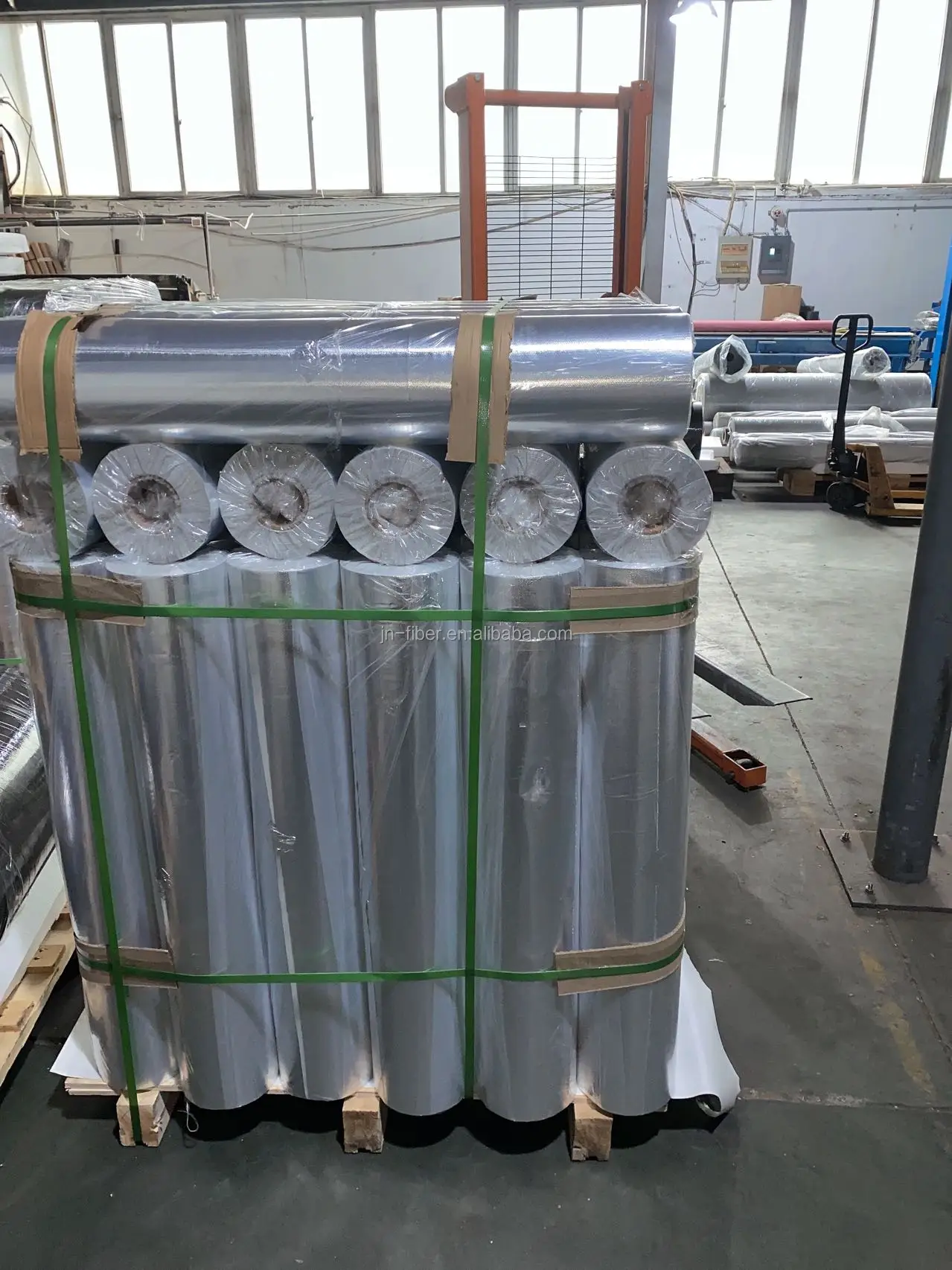

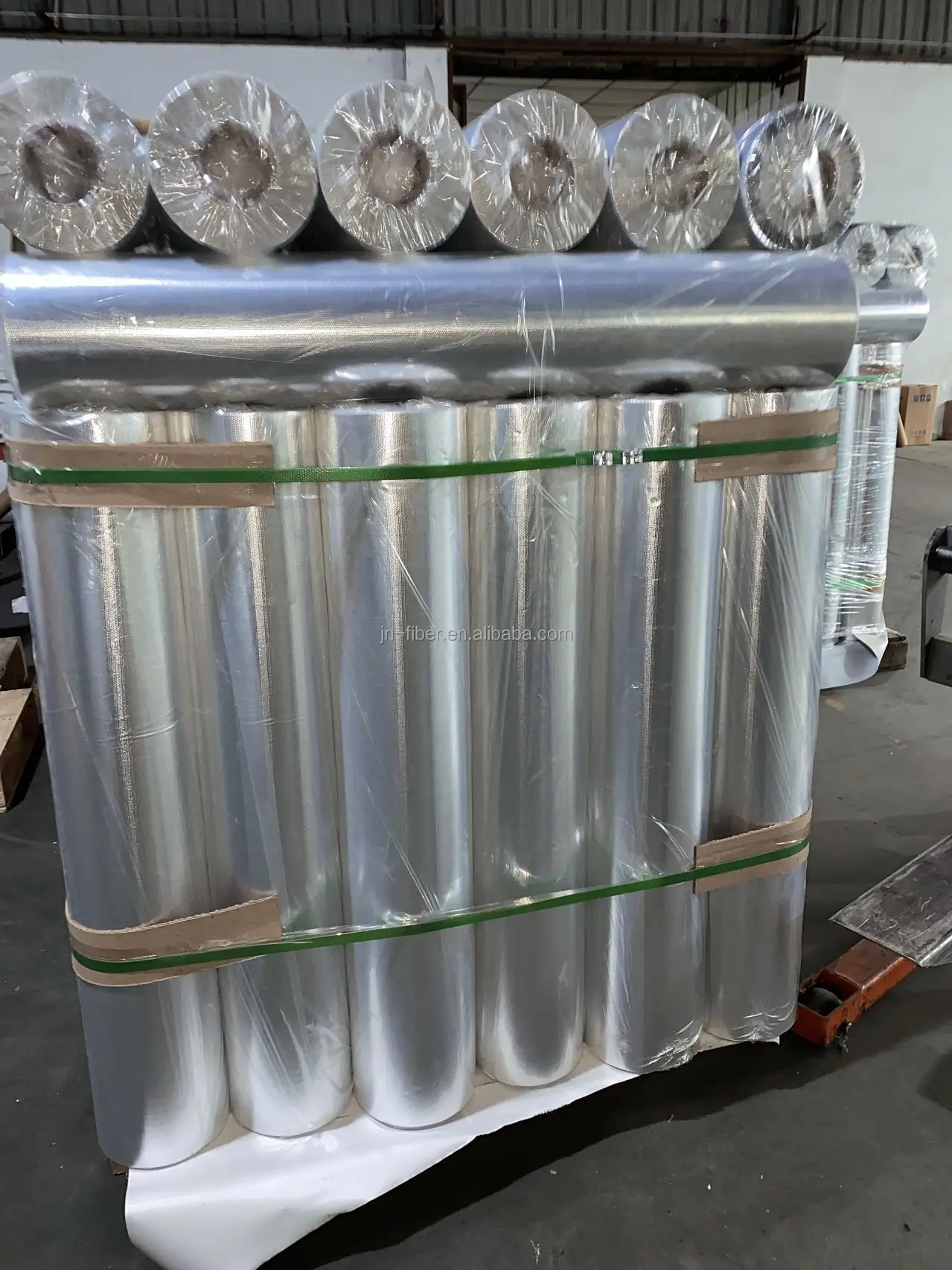

Product packaging
FAQ
1. Before the order, may I have the sample to test the fire resistance quality?
Samples can be arranged to be sent to you for testing before placing an order. But my shipping will be paid by you. Of course, we will adjust additional samples and shipping costs to your bulk order.
2. How can I get your samples?
Of course, we can send you some samples. Most samples are free, but sometimes we charge a small sample fee. Maybe you can also send us your DHL or EMS/UPS/TNT etc account so you can pay directly to your carrier.
3. Can we print our logo or need our color or size?
We can print your logo, we can also make it to your size and print it in your color.
4. How many payment methods can you accept?
Regarding payment terms, if it is less than $1000.00, we want 100% TT, usually for bulk order, hope can pay 30%-50% in advance, the rest should be paid before shipment.
Samples can be arranged to be sent to you for testing before placing an order. But my shipping will be paid by you. Of course, we will adjust additional samples and shipping costs to your bulk order.
2. How can I get your samples?
Of course, we can send you some samples. Most samples are free, but sometimes we charge a small sample fee. Maybe you can also send us your DHL or EMS/UPS/TNT etc account so you can pay directly to your carrier.
3. Can we print our logo or need our color or size?
We can print your logo, we can also make it to your size and print it in your color.
4. How many payment methods can you accept?
Regarding payment terms, if it is less than $1000.00, we want 100% TT, usually for bulk order, hope can pay 30%-50% in advance, the rest should be paid before shipment.
