CCS, BV, ABS Approved 600m3/h Diesel Engine Driven Fire Fighting FiFi Pump
$10,000.00-30,000.00
Electric Remote Control Fire Fighting Fire Water Monitor
- Category: >>>
- Supplier: Quanzhou Winner Fire Fighting Equipment Co. Ltd.
Share on (1600482753742):
Product Overview
Description
Quanzhou Winner Fire Fighting Equipment Co.Ltd is a factory who consistently supply high-quality fire fighting equipment for engineering projects, importers, wholesalers, retailers, online business dealers, and individual users.
We already have more than six series of fire fighting solutions for customer's choice. Our product range covers fire hoses, fire sprinklers, fire hose reel, fire coupling&nozzle, fire hydrant, and other fire fighting equipment.
Welcome to contact with us.
Product Overviews

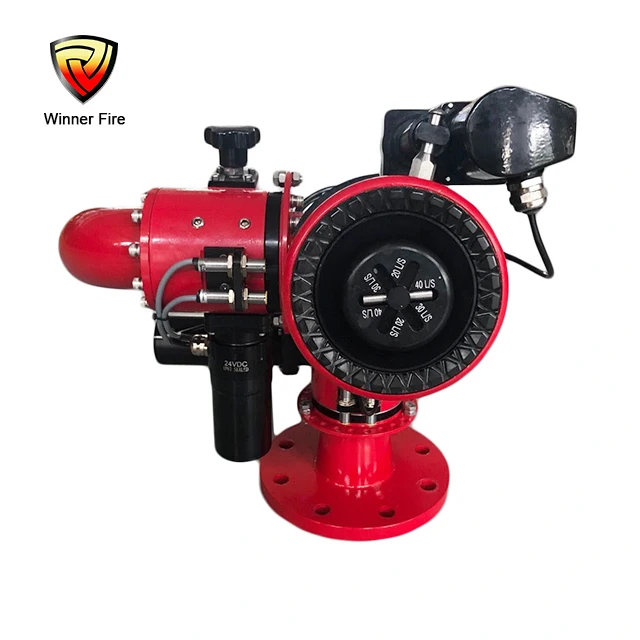

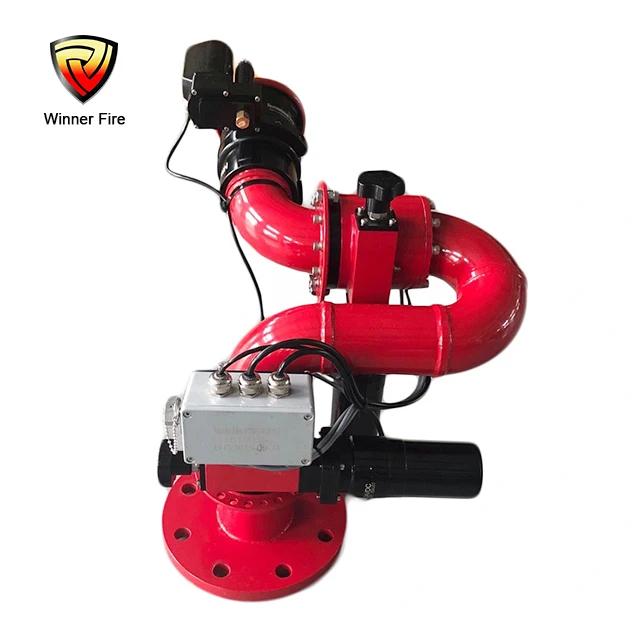

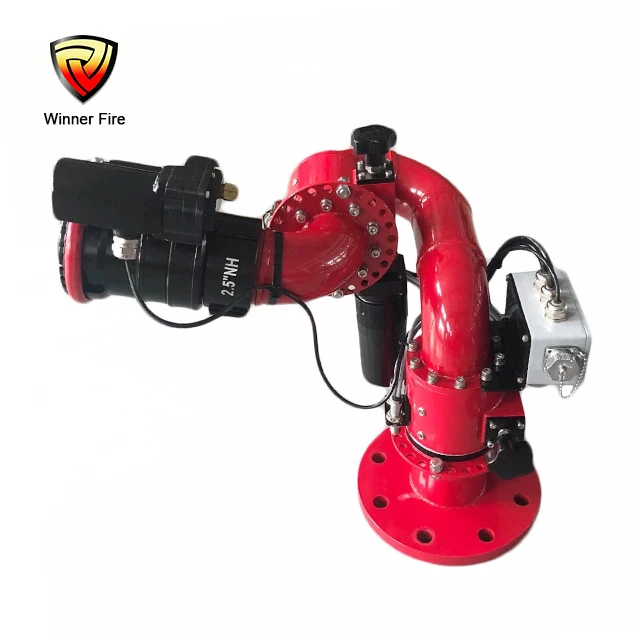

Electric Remote Control Fire Fighting Fire Water Monitor
The remote control water cannon was designed as compact and reliable device. Horizontal and vertical positioning is accomplished by remotely controlled electric motors, equipped with insulated handles to facilitate safe manual override. The Fog/Jet nozzle can be adjusted between full jet and spray modes by a separate electric motor.
Products Features
- SS304 stainless steel construction.
- Automatic Nozzle supply a stable flow at different flow rate.
- Available controlled both byJoystick at site and RC transmitter wireless.
- Waterproof control system with locking connectors.
- Rotation range 360°
- Elevation range +90°, - 55°
- Power supply 12V/24V DC(optional),or 100-230 V AC
2.Product Parameter
Model | PSKD20-40 | ||
Flow Range | 20-30-40LPS / 1200-1800-2400 LPM / 320GPM-630GPM, Selectable | ||
Working Pressure | 6 bar~ 8 bar | ||
Max Reach @ Max Flow | 60 meters | ||
Range of motion | -90°~+90° Vert,360° Rotation | ||
Max fog angle | 120° | ||
Turning speed | 18 degrees/sec | ||
Material (body) | 304L Stainless Steel(Standard) 316L Stainless Steel (optional) | ||
Material (Gear) | Hardcoated anodizing aluminum | ||
Material (nozzle) | Hardcoated anodizing aluminum | ||
Power supply | DC 24V(Standard) DC 12V(Optional) AC100-230V (Optional) | ||
Power Consumption normal/Max | 50W/150W | ||
Weight incl. nozzle | appox 20kg | ||
Cable Length Monitor- CPU | 5m | ||
Cable Length Joystick-CPU | 5m standard/ other length available | ||
Pump requirement for minimum performance | 40L/S@ 6 bar | ||
Pipe dimensions for installation | 2-2.5 Inch | ||
Monitor Inlet | 3” or 4" flange | ||
Monitor Outlet | 2.5 inch NH | ||
Water way size | 2.5 inch | ||

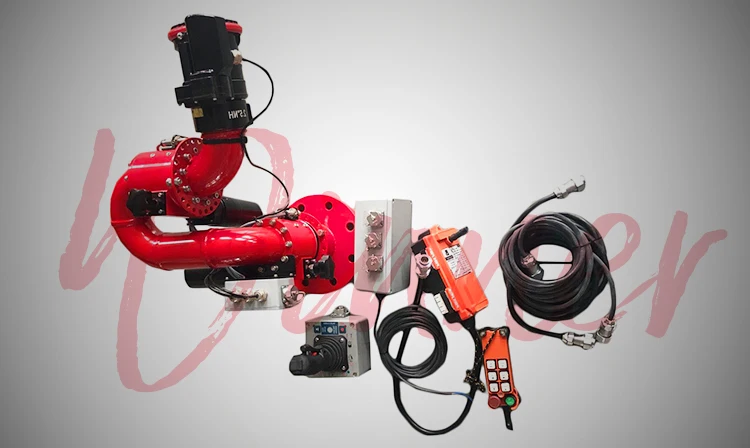

PACKAGE | SS Monitor..............................1 set Monitor Nozzle.......................1 set Control Unit.............................1 pcs Joystick...................................1 pcs Cables......................................2 rolls (5m/roll) RC Transmitter........................1 pcs RC Receiver.............................1 pcs | ||
why choose us
 |
| 1.Experienced and professional in Fire Fighting Equipment, Especially for Fire hose.Established in 1985, Quanzhou Winner Fire Fighting Equipment Co.,Ltd is the first batch in manufacturing fire fighting equipments in Fujian Province. With over 30 years experiences, we are one of the leading manufacturer in the industry. Over 80,000 square meter factory building offer us an excellent working environment. |
 |
| 2.Stable Production Line with mature technique. With 20 production lines,more than 420 set automatic machine including circular weaving machine,numerically-controlled machine,electrophoresis,CNC machine etc.,that’s how we finish the mass production and keep our delivery time. |
 |
3.Certification: With strict quality control, and well management of production flow,our products have passed ISO9001, MA, ILAC-MRA AL and CNAS Test reports. Also,we have passed CCC Authentication's firefighting equipments industries . 4. Timely Shipping. Large production plant and production capacity,enable timely shipping. 5. Various kinds for your choice. 6.Responsible,Patient and timely service before and after sales. You can find and reach us at 24 hours around. 7.Warranty is available. 8.Strict Quality Control: Product install easily and tested before shipping to you. 9.OEM and ODM are welcomed here.You can make your brand and can have your own ideas or demands. 10.Gold supplier with Trade Assurance to assure your order. 11.Flexible Payments with hope to help you. 12. Factory Direct Price,save your cost. |
Our Services
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
| Welcome to visit our company and enjoy the benefits of One-stop sourcing service! | |
