Standard size high flow pleated water filter element 10' , 20' , 30' , 40'
- Category: Environmental Machinery >>>
- Supplier: Xinxiang,Keruida,Filtration,And,Purification,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Details
Video Description

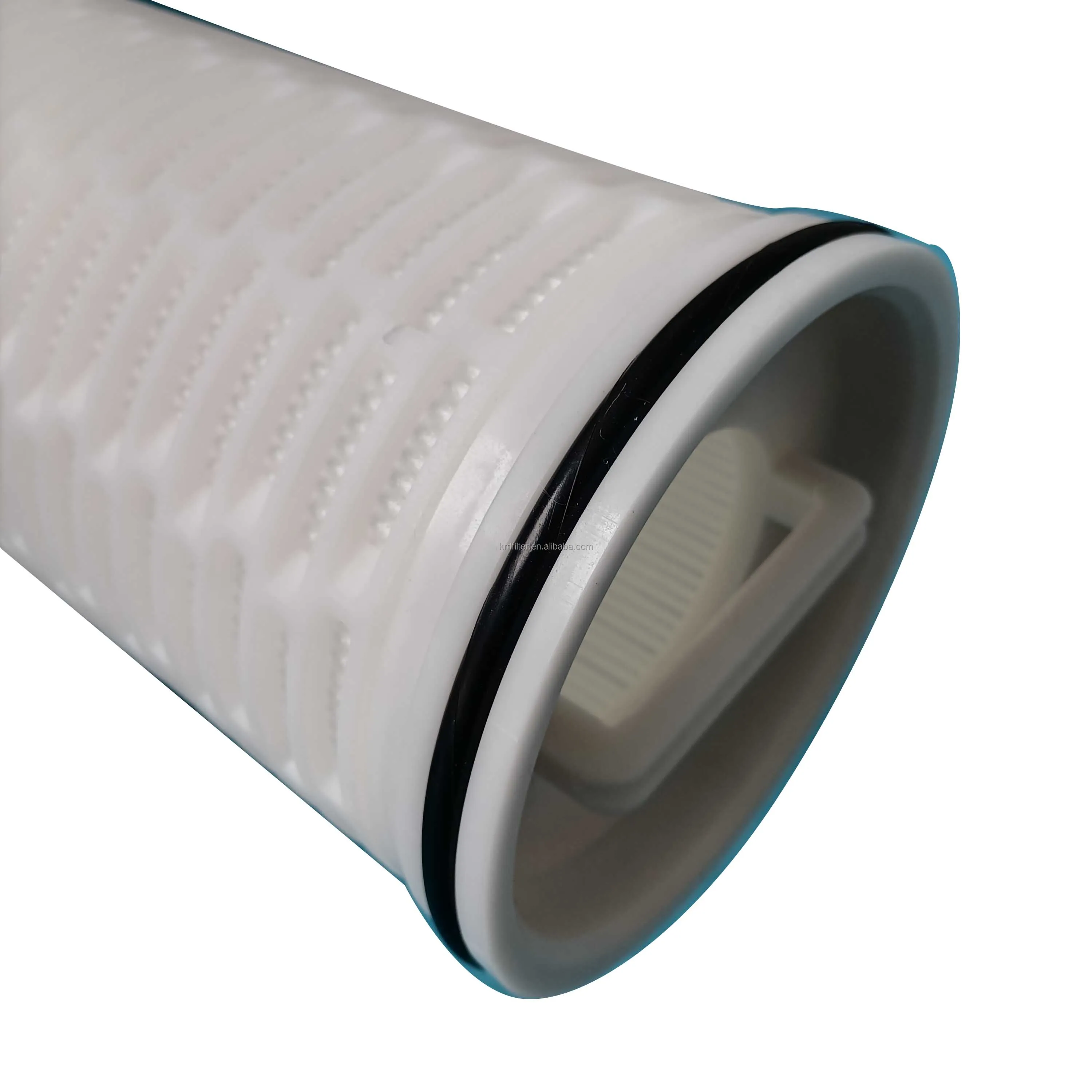

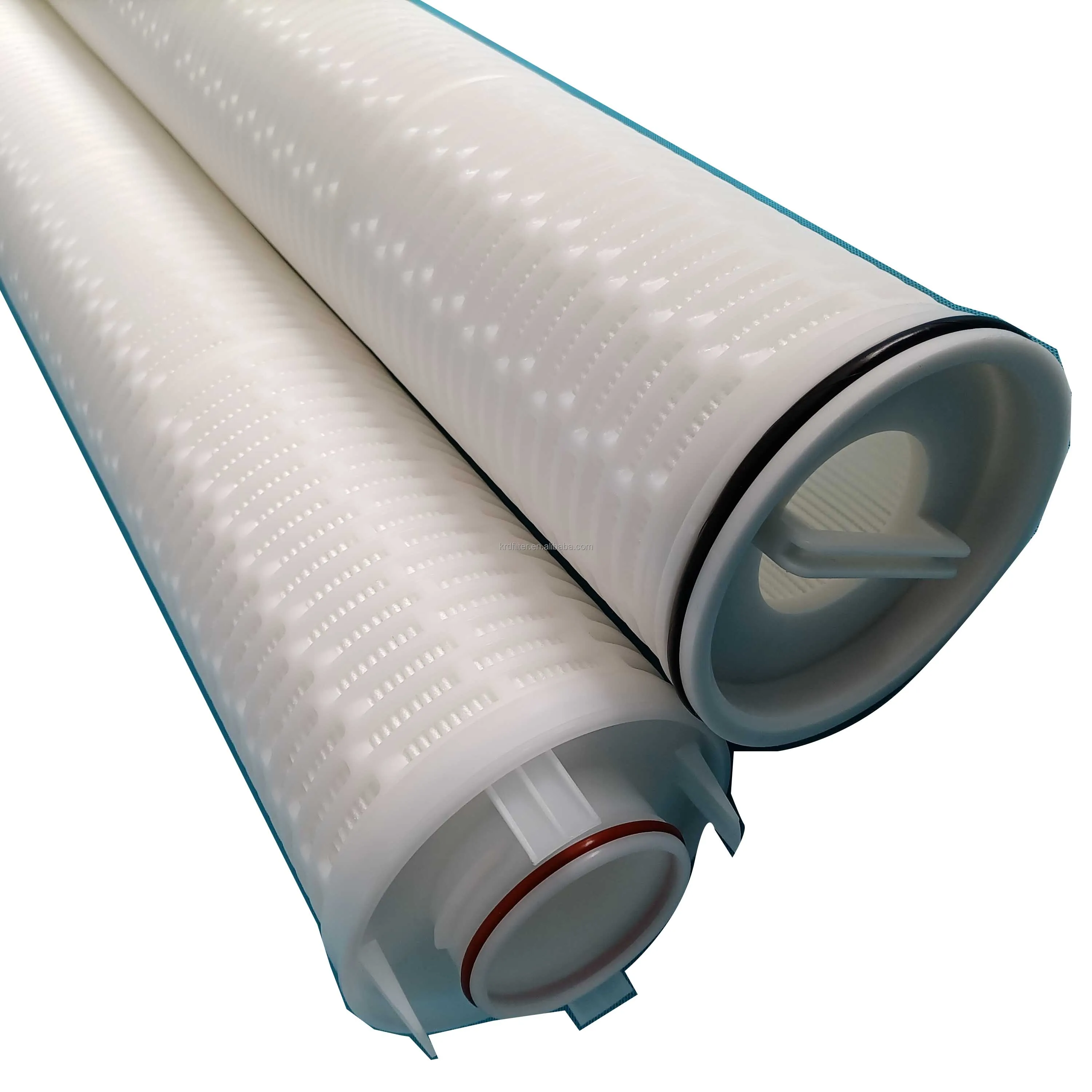

The High Flow filter is a large diameter, coreless, single open ended, pleated cartridge with an inside-to-outside flow pattern.
The filter’s unique crescent-shaped pleat geometry, combined with its large 152.4 mm (6 inch) diameter and proprietary range of
available filter media, allows you to use significantly fewer filters and smaller housings for high flow rate applications.
Systems can handle up to 115,443 lpm (30,500 gpm).
Products Description
-- Condensate water filtering in power plant.
-- RO Security filtering.
-- Pre filtration of sea water desalination.
-- Biological pharmaceutical industry raw materials, solvents, water filtration
-- Bottled water, sugar solution, cooking oil, juice, milk filtration
-- Filtration in oil chemical industry.
-- RO Security filtering.
-- Pre filtration of sea water desalination.
-- Biological pharmaceutical industry raw materials, solvents, water filtration
-- Bottled water, sugar solution, cooking oil, juice, milk filtration
-- Filtration in oil chemical industry.
1.The gradient pore structure.
2.Length of 20 inch, 40 inch and 60 inch are available.
3.When filtering water, the largest flow of per unit filter cartridge can be up to 110 m3/hour.
4.The special flow orientation, from inside to outside, helps to keep the impurities stay in the bottom of the filter cartridge.
2.Length of 20 inch, 40 inch and 60 inch are available.
3.When filtering water, the largest flow of per unit filter cartridge can be up to 110 m3/hour.
4.The special flow orientation, from inside to outside, helps to keep the impurities stay in the bottom of the filter cartridge.
* External diameter: 6inch(152mm)
* Length: 20inch, 40inch, 60inch
* Length: 20inch, 40inch, 60inch
* Filter material :folding glass fiber,folding deep-seated PP, Melt-blown PP
* Sealing ring material:all kinds of sealing ring can be provided, Including ethylene propylene rubber, silicone rubber,
nitrile rubber and fluorocarbon rubber
Filter performance
* Filter precision（过滤精度）:
1μm,4.5μm,6μm.10μm,20μm,40μm,70μm,100μm
1μm,4.5μm,6μm.10μm,20μm,40μm,70μm,100μm
* Maximum allowable operating temperature（最高操作温度）:
Folding glass fiber：121℃
Folding PP：82℃
Melt-blown PP：65℃
Folding glass fiber：121℃
Folding PP：82℃
Melt-blown PP：65℃
* Maximum allowable pressure drop(最大压力降)
Folding glass fiber：3.4bar, 121℃
Folding PP：3.4bar, 82℃
Melt-blown PP：1.03bar, 65℃
Folding glass fiber：3.4bar, 121℃
Folding PP：3.4bar, 82℃
Melt-blown PP：1.03bar, 65℃
* Recommended pressure drop for filter element replacement：4Bar,20℃
* Recommended maximum filtered water flow:
20inch filter element: 660LPM
40inch filter element: 1300LPM
60inch filter element: 1900LPM
20inch filter element: 660LPM
40inch filter element: 1300LPM
60inch filter element: 1900LPM
Company Profile
Xinxiang Keruida Filtration and Purification Technics Co., Ltd, specializes in the customized manufacture of high quality and unique air, water and oil filters and filtration equipment. We also specialize in the design and production of decontamination plants. Oil, gas and water separation units are our specialty.
Our company brings together a large number of outstanding scientific, technical and managerial personnel who are specifically

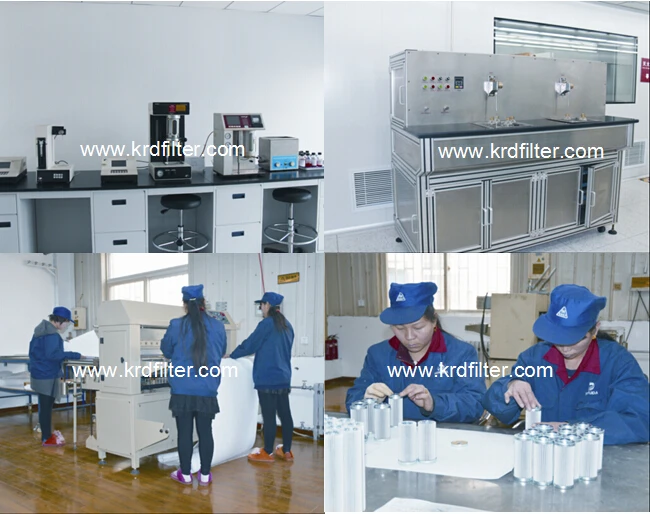

trained in the research and development of unique filtration and purification techniques. Our company is equipped with advanced
production, monitoring and self-contained testing equipment. Our products are widely used in the petroleum and chemical
manufacturing industries, textile manufacturing, energy and electric power generation, heavy construction equipment,
transportation and many other customized commercial needs.
trained in the research and development of unique filtration and purification techniques. Our company is equipped with advanced
production, monitoring and self-contained testing equipment. Our products are widely used in the petroleum and chemical
manufacturing industries, textile manufacturing, energy and electric power generation, heavy construction equipment,
transportation and many other customized commercial needs.
Buyers' praise
FAQ
Q1. What is your product range? A: Our products cover replacement hydraulic oil filters, heavy truck oil/air filters, vacuum pump exhaust filters, water filter cartridge, air compressor filter elements and some spare parts for compressors.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required specifications and drawings.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the new molds.
Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q2. Is customized filter or OEM available?
A: Yes,just offer your required specifications and drawings.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the new molds.
Q4. What's your terms of packing?
A: Generally,we pack our goods in neutral boxes,outside brown carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1)FOB (2)CFR (3)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 5-7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
