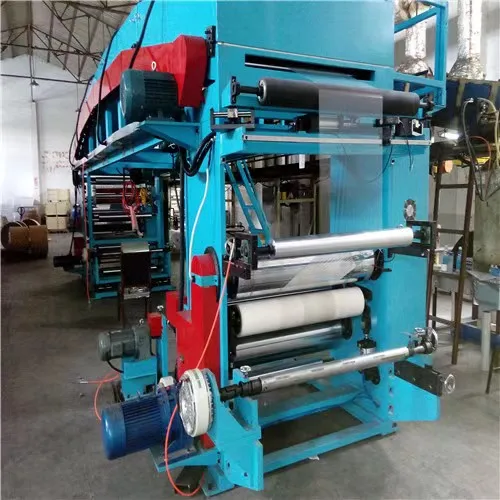

BOPP adhesive PE PP PVC tape coating machinery line
- Category: >>>
- Supplier: Qingdao Jieruixin Machinery And Technology Co. Ltd.
Share on (1600483208201):
Product Overview
Description
Structure description
This machine is special for producing the BOPP adhesive tape.
Main Raw Material
Base Material: BOPP tape film
Gule: water based pressure sensitive adhesive
Main Coating Way:
Comma knife style coating
Comma knife style coating
advantages
Uniaxial unwinder
one set
Coating Head
one set
Drying Chamber
6 sections
Cooling Structure
one set
Uniaxial rewinder
one set
Heating System
one set
Electric Control System
one set
Ventilating System
one set
Machine Shelf
one set
Driving System
one set
Production Introduction
Uniaxial unwinder
Modle
Uniaxial unwinder
Effective Unwinding Width
500mm
Effective Unwinding Diameter
600mm
Unwinding Shaft
Pneumatic Shaft
2 pieces
Unwinding Tension Control
Magnetic Power Brake, Tension Open Loop automatic control
1 set
Alignment
Auto rectification(EPC)
Coating Head
Coating Style
comma knife type Coating
Effective Coating Width
500mm
Comma Scraper
the surface is the fine hard chrom, the super fine working accuracy
0.005mm
Glue feeding Roller
the surface is the fine hard chrome, accuracy 0.005mm
Rubber Roller
material: silicone rubber, accuracy 0.01mm, the bearing in the two ends is imported, cylinder control
Space Adjustment
oblique steel solid to control the glue coating quantity
Pre-scraper Board
the entrance is tetrafluoroethylene
Material Basin
Stainless steel, manual for lifting
Machine Shelf
25mm plate Welding
Driving Structure
Cycloid Speed Reducer Motor

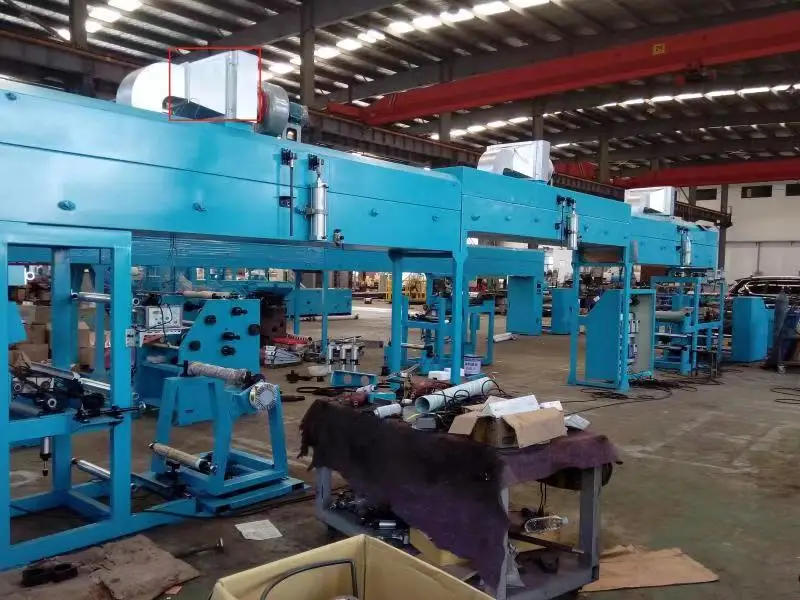

Oven box
Nozzle
nozzle, 1 mm galvanized plate
Length
2000mm/section
6 section
Heat Resource
Hot Air by electric
Temperature
Max 120℃
Heat Preservation
Filled with mineral wool board, thickness 40mm
Circulation Fan
High Efficient Axial Fan, 1.5kw
1 set per box
Machine Shelf
5# angle iron welding, it is paint with the high temperature silver
power in the drying chamber
Guide Roller
aluminium for the surface of the roller, the head of the roller is pained with the silver powder.
Exhaust Opening
one set of adjusting device
Air Outlet
one set of adjusting device
Uniaxial rewinder
Style
Uniaxial rewinder
Effective Rewinding Width
500mm
Effective Rewinding Diameter
650mm
Rewinding Shaft
Pneumatic Shaft
2 Pieces
Rewinding Motor
40N.M Torque Motor
1 set
EPC at the end of oven
auto alignment(EPC)
