3.5 inch touch screen paperless recorder, temperature pressure liquid level flow humidity USB recorder 12 channels
- Category: >>>
- Supplier: Shanghai,Teshi,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

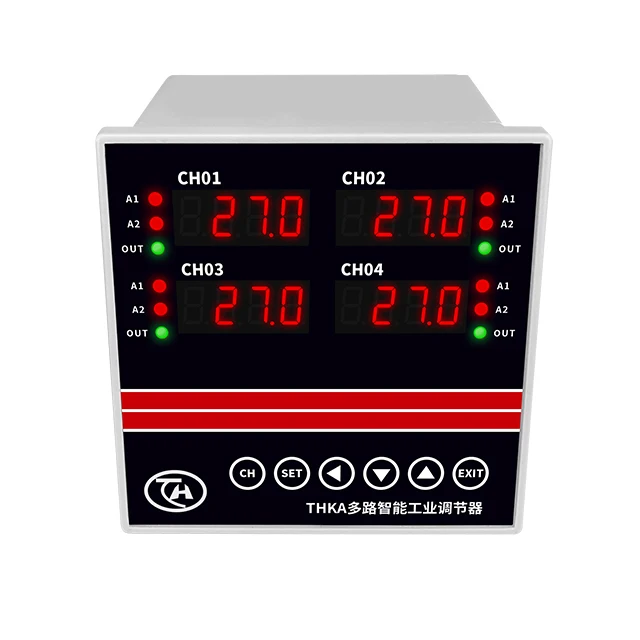

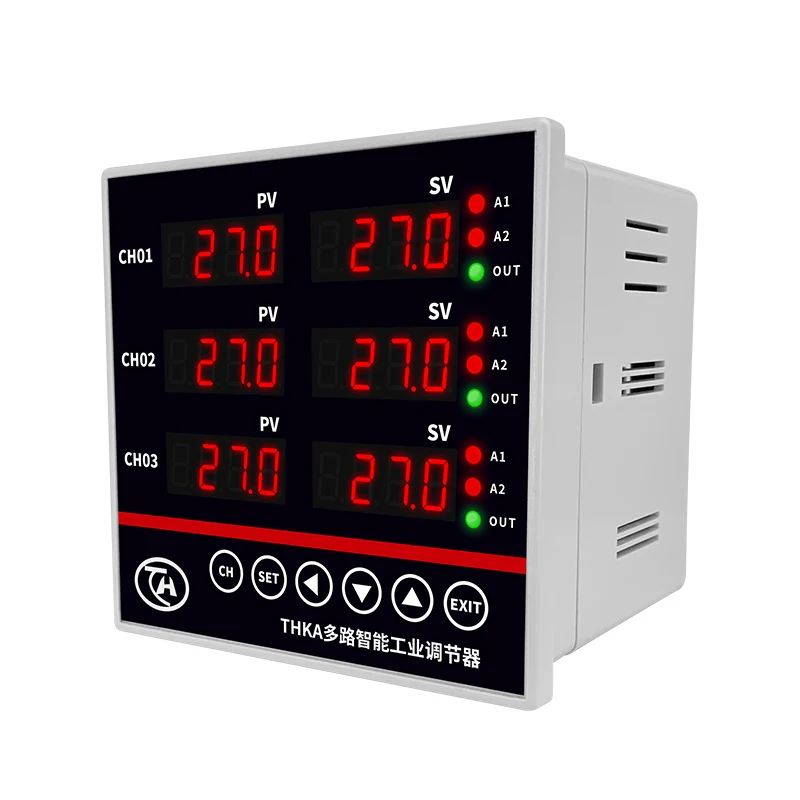

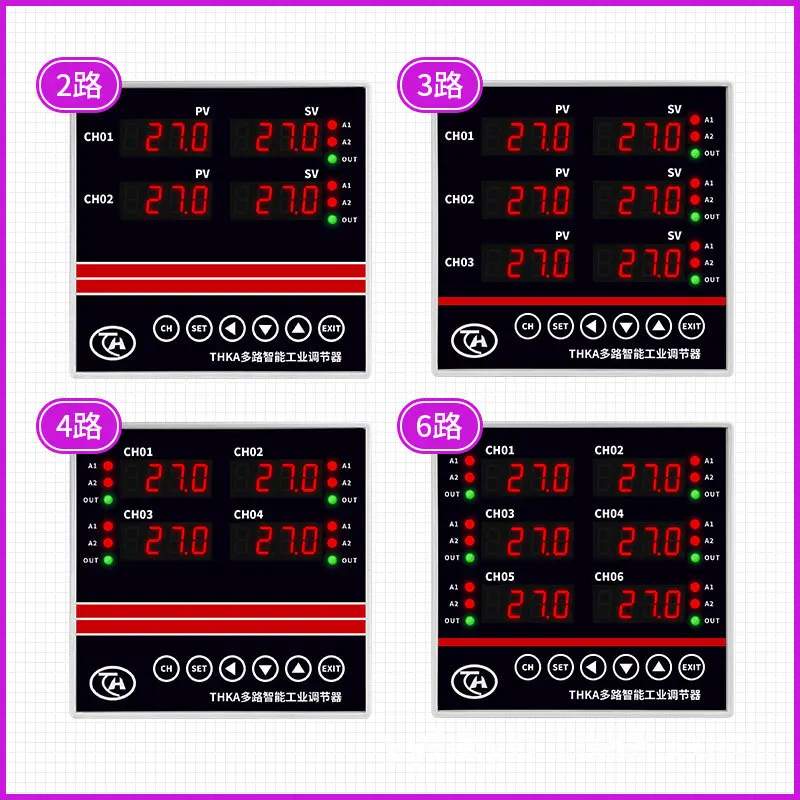

4-channel temperature controller ModbusRtu communication temperature control 3-channel 4-20mA 0-10V
Support multiple signal input, can be used for current,voltage, temperature, liquid level, humidity, pressure, switching volume, flow measurement, recording, alarm and control.can be selected for control or transmission output.
Two sets of public alarm output, up to 6 control output
Two sets of public alarm output, up to 6 control output
FEATURES AT A GLANCE
Sampling accuracy: 0.2FS% (better than 0.2% of the whole range)
Temperature range: - 200.0-2400.0 Temperature
Humidity range: 0-100% RH
Standard signal: - 20000 to + 20000 (4-20mA, 0-10V)
Sampling speed: Sample all channels in 1 second (maximum 12 channels)
Control output: 6-way PID adjustment or alarm output
Electromagnetic Compatibility: IEC61000-4-4 (Electrical Fast Transient Pulse Group)
Alarm output: upper limit alarm and lower limit alarm
Temperature range: - 200.0-2400.0 Temperature
Humidity range: 0-100% RH
Standard signal: - 20000 to + 20000 (4-20mA, 0-10V)
Sampling speed: Sample all channels in 1 second (maximum 12 channels)
Control output: 6-way PID adjustment or alarm output
Electromagnetic Compatibility: IEC61000-4-4 (Electrical Fast Transient Pulse Group)
Alarm output: upper limit alarm and lower limit alarm
PRODUCT SPECIFICATIONS

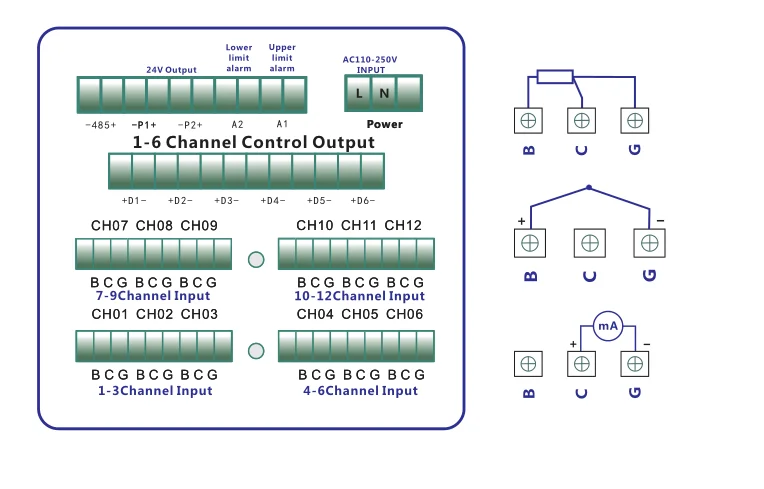

Input signal
Thermocouples: K, S, E, J, T, B, N, WRe3-25, WRe5-26, F2 (radiation sensor)
Thermal resistance: PT100, CU50, CU100
Current: 0-20 mA, 4-20 mA
Voltage: 0-5V, 1-5V, 0-10V 0-40V
Millivolt: 0-100 mV, 0-75 mV, 0-50 mV, 0-60 mV
Switch: Passive Switch Active Switch (DC0-10V)
Resistance: 0-400 Ohm (for remote pressure gauge)
Communication interface
A : One RS485 interfaca for Modbus Rtu communication
B: One USB Host For History Export
Material description
Instrument Shell: Industrial Flame Retardant ShellAmbient
temperature: - 10-50 C (instrument environment)
Environmental humidity: 0-85% RH relative humidity
Instrument size: 96MM (wide) X96mm (high) X95MM (deep).
Cut panel Size: 92MM (wide) X92mm (high)

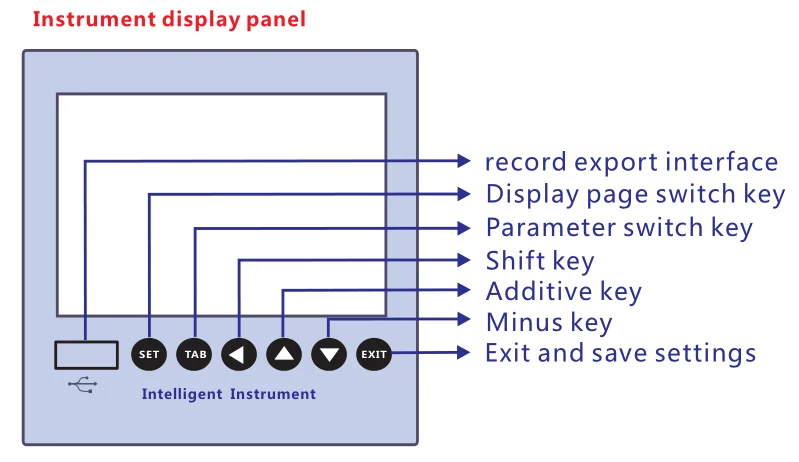

LCD size: 3.5 inch LCD screen
Thermocouples: K, S, E, J, T, B, N, WRe3-25, WRe5-26, F2 (radiation sensor)
Thermal resistance: PT100, CU50, CU100
Current: 0-20 mA, 4-20 mA
Voltage: 0-5V, 1-5V, 0-10V 0-40V
Millivolt: 0-100 mV, 0-75 mV, 0-50 mV, 0-60 mV
Switch: Passive Switch Active Switch (DC0-10V)
Resistance: 0-400 Ohm (for remote pressure gauge)
Communication interface
A : One RS485 interfaca for Modbus Rtu communication
B: One USB Host For History Export
Technical index
Sampling accuracy: 0.2FS% (better than 0.2% of the whole range)
Temperature range: - 200.0-2400.0 Temperature
Humidity range: 0-100% RH
Standard signal: - 20000 to + 20000 (4-20mA, 0-10V)
Sampling speed: Sample all channels in 1 second (maximum 12 channels)
Control output: 6-way PID adjustment or alarm output
Electromagnetic Compatibility: IEC61000-4-4 (Electrical Fast Transient Pulse Group)
Alarm output: upper limit alarm and lower limit alarm

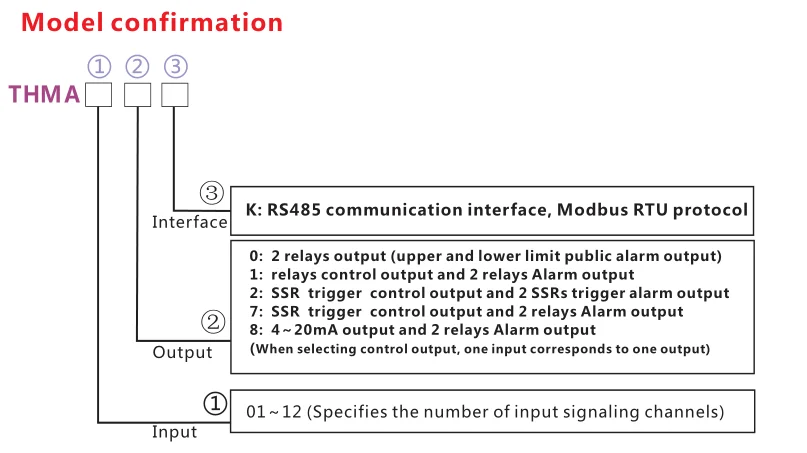

Output description
Each channel can define upper and lower limit alarm, PID adjustment or transducer
output. The instrument is equipped with two alarm relay outputs, and the other six
groups of outputs are selected according to the requirements.
Sampling accuracy: 0.2FS% (better than 0.2% of the whole range)
Temperature range: - 200.0-2400.0 Temperature
Humidity range: 0-100% RH
Standard signal: - 20000 to + 20000 (4-20mA, 0-10V)
Sampling speed: Sample all channels in 1 second (maximum 12 channels)
Control output: 6-way PID adjustment or alarm output
Electromagnetic Compatibility: IEC61000-4-4 (Electrical Fast Transient Pulse Group)
Alarm output: upper limit alarm and lower limit alarm
Output description
Each channel can define upper and lower limit alarm, PID adjustment or transducer
output. The instrument is equipped with two alarm relay outputs, and the other six
groups of outputs are selected according to the requirements.
Material description
Instrument Shell: Industrial Flame Retardant ShellAmbient
temperature: - 10-50 C (instrument environment)
Environmental humidity: 0-85% RH relative humidity
Instrument size: 96MM (wide) X96mm (high) X95MM (deep).
Cut panel Size: 92MM (wide) X92mm (high)
LCD size: 3.5 inch LCD screen
