2023 Foorir, автоматический счетчик пассажиров, Счетная машина для людей

2023 Foorir, автоматический счетчик пассажиров, Счетная машина для людей

Category: Counters >>>
Supplier: Chengdu,Huaxinzhiyun,Technology,Co.,Ltd.

Price:275,00 $ - 298,00 $

Price in USD:Details

Quantity:

Product Overview

Description

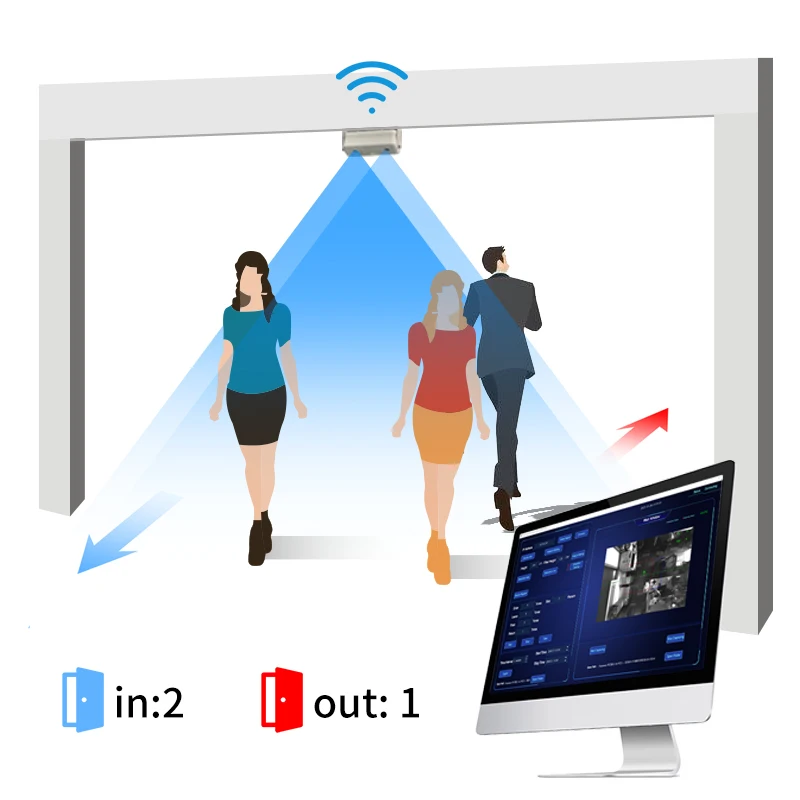

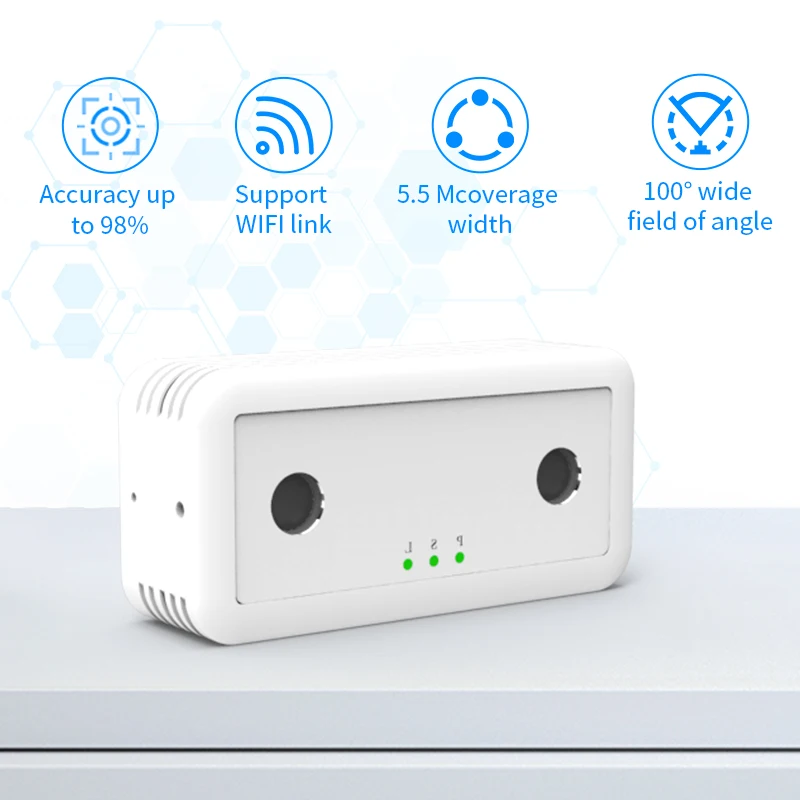

WiFi 3D Binocular Passenger People Footfall Counter
Viewing Angle	Horizontal 100°，Vertical 70°
Depth map resolution	640400@0～3.5m；1280[email protected]～6m
The output frame rate	640*400@25fps
accuracy	≥98%
Height range	2.2~6.0m
coverage	1.2~5.5m
Filter out highly	0.5~1.2m
power	3.2W~3.6W
The power supply mode	POE（802.3af/at）/DC12V
Ethernet cable	5 classes
Networking way	Wired network/Wi-Fi
Addressing	Static IP/DHCP
Offline caching	90 days
Data uploading method	HTTP POST
Working temperature	0°C~45 °C
Working humidity	20~80 %
Storage temperature	-20°C~50 °C
Store humidity	20~80 %

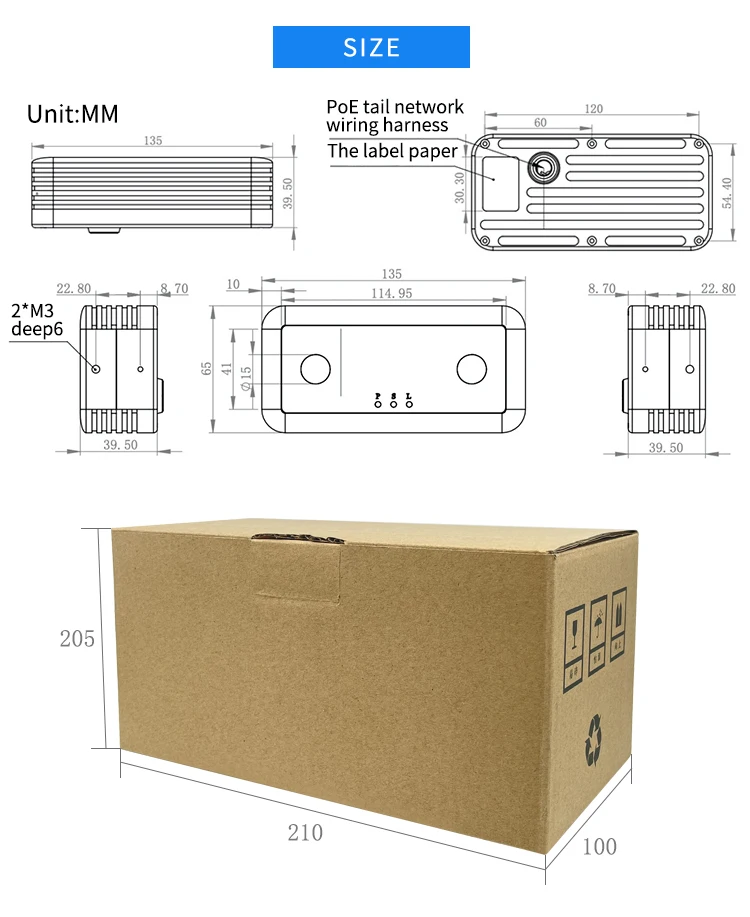

Size	2120.510cm
Weight	800g
Installation	Top mounting/hoisting
material	Aluminum alloy

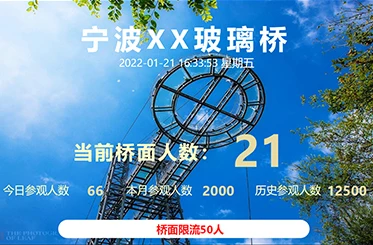

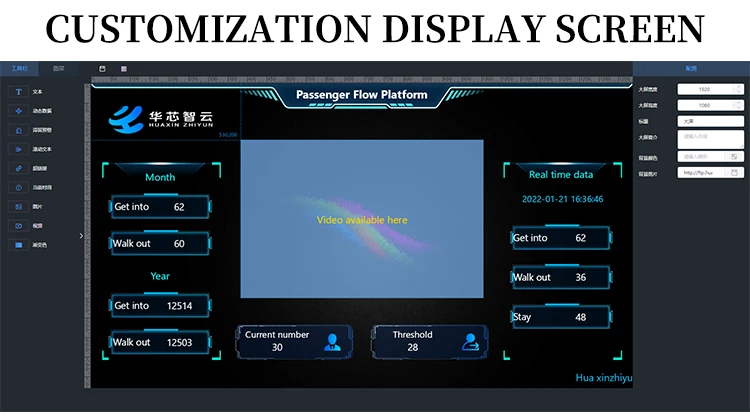

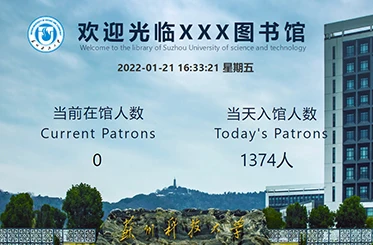

Passenger flow control，screen display

Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control，Provide customized large screen display service, if you need to customize, please contact us.

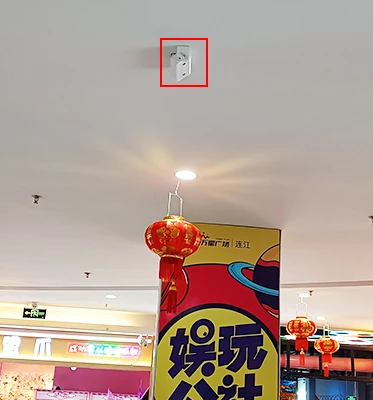

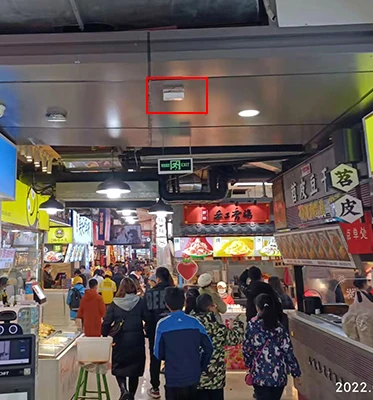

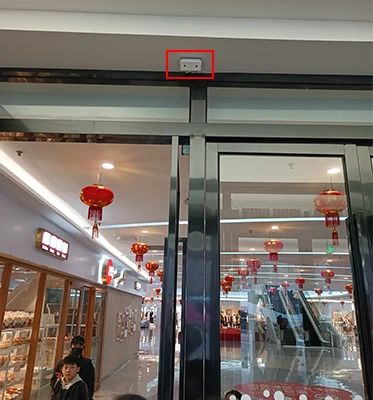

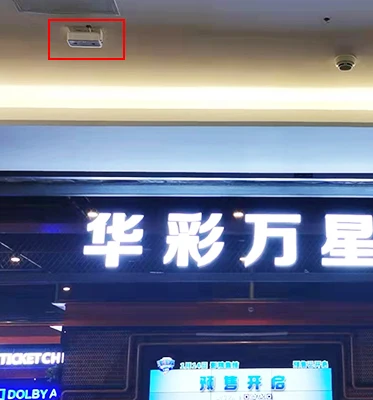

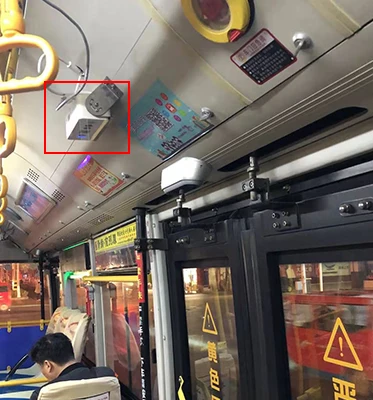

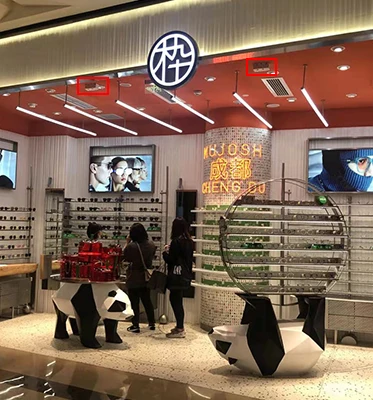

Case

Sales countries

We have sold to Italy, Australia, France, Russia, Japan, Greece, Spain and other countries, users praise

Device configuration debugging

On the same network segment, enter the debugging interface through the website we provided. It can link corresponding device to view passenger flow data in real-time, can view device information, modify device settings, installation height, filter height,rotation angle, detection direction, network parameters,etc., and also display the number of people enter/leave/pass through/stay on in real-time. It can also export a set time of the passenger flow data.

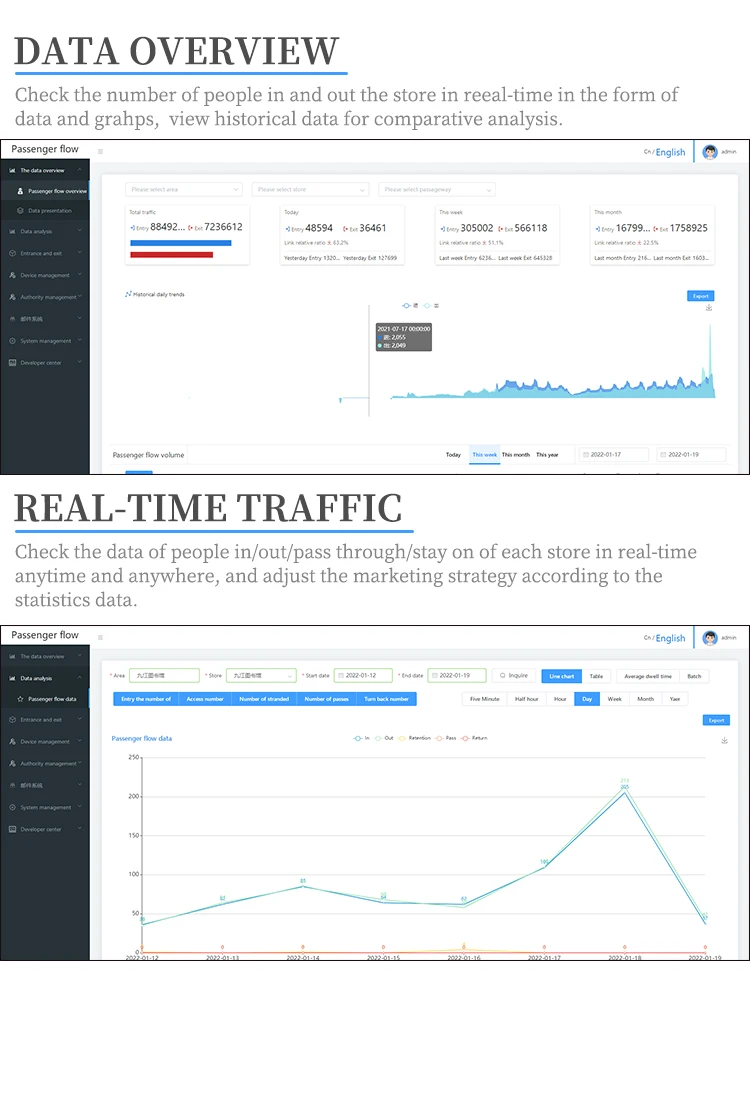

Platform

We can provide you with a free website platform to monitor and analyze data. The platform supports both Chinese and English modes. If you need to customize other languages, please contact us for more details

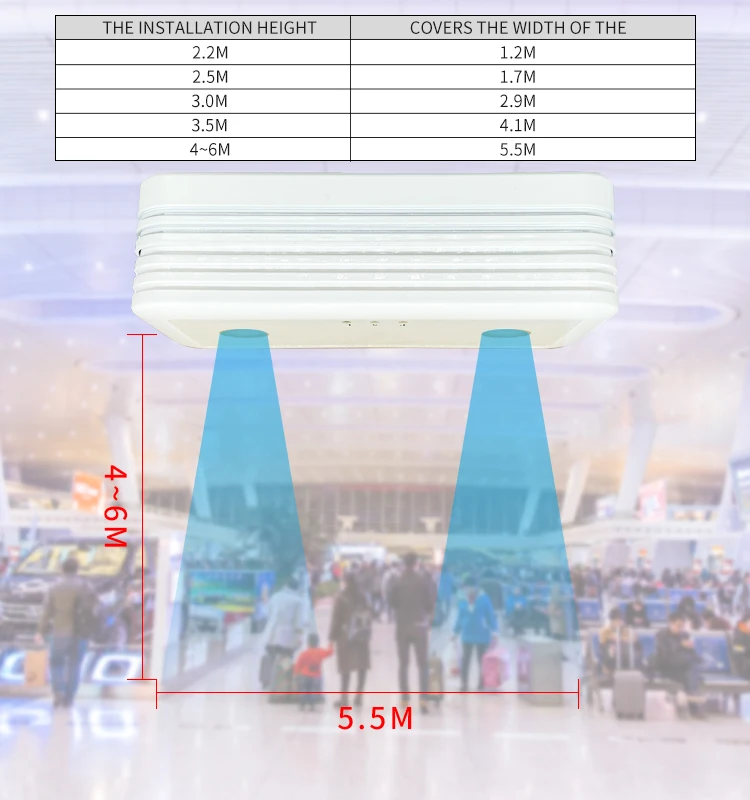

Installation

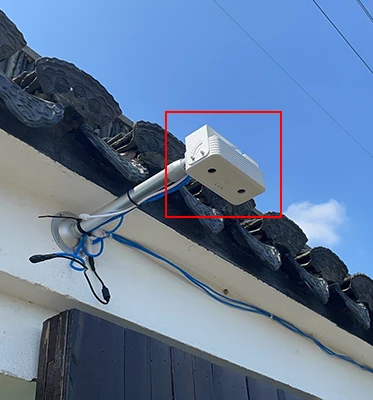

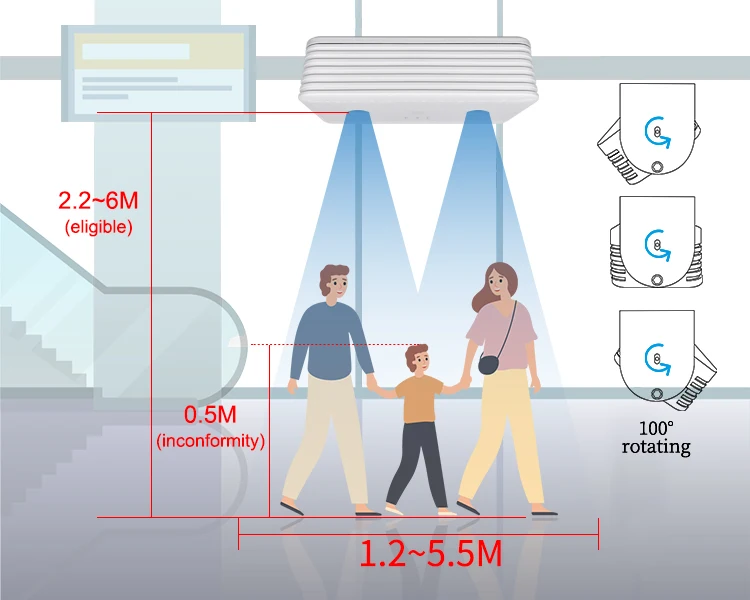

Tilt installed

The filter height of each device is 0.5m, and the installation height is 2.2~6M. It can be installed at 45° tilt and has a large field Angle of 100°

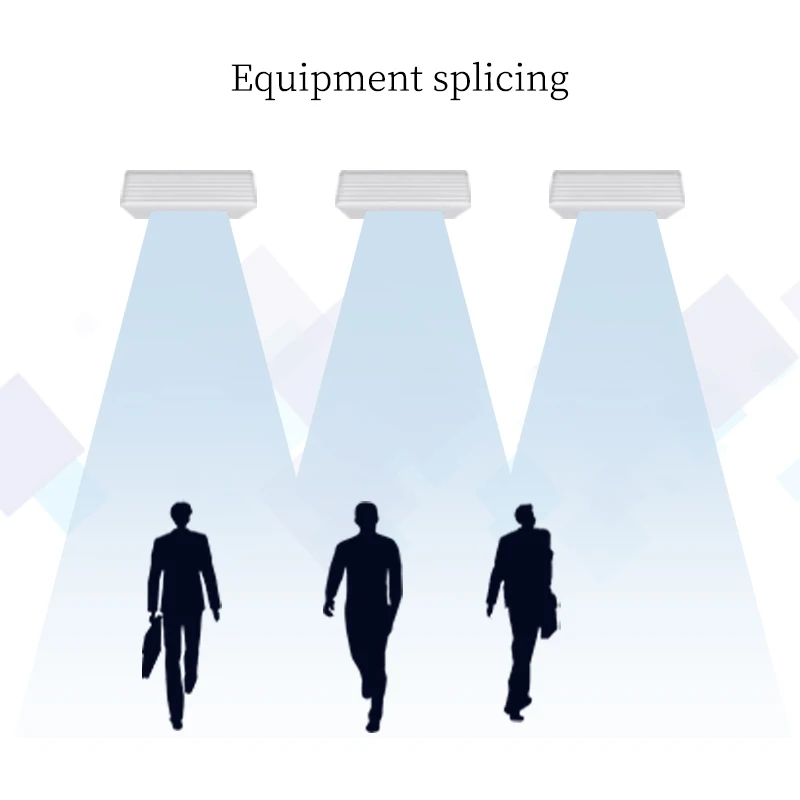

Multiple device can be spliced

Support 6 devices spliced, the Max covering range is 30M(3-4 devices are recommended), a complete video picture can be formed after multiple device spliced.

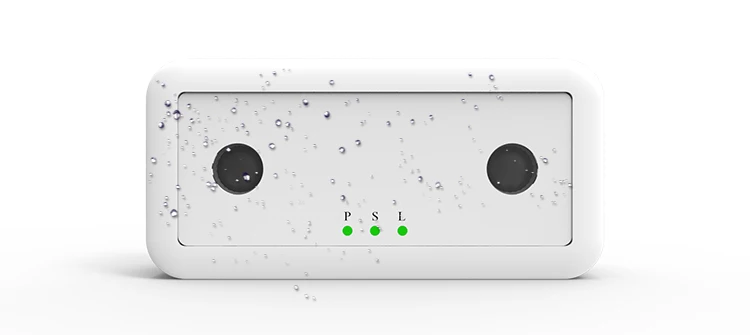

IP65 waterproof

It has passed IP65 waterproof certification

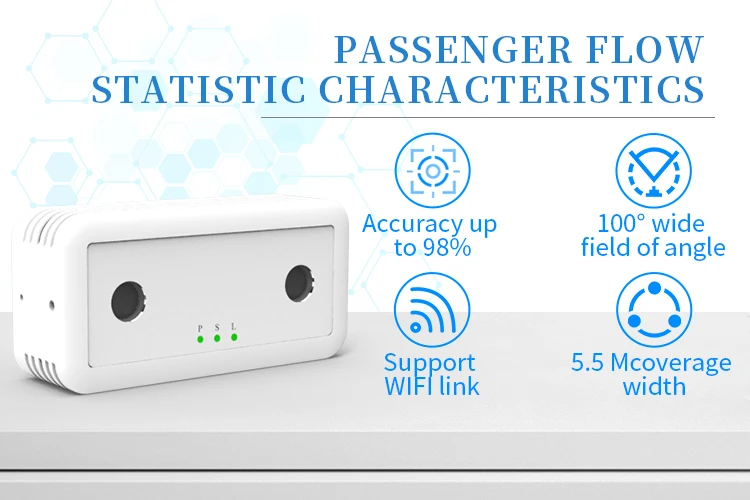

Characteristics

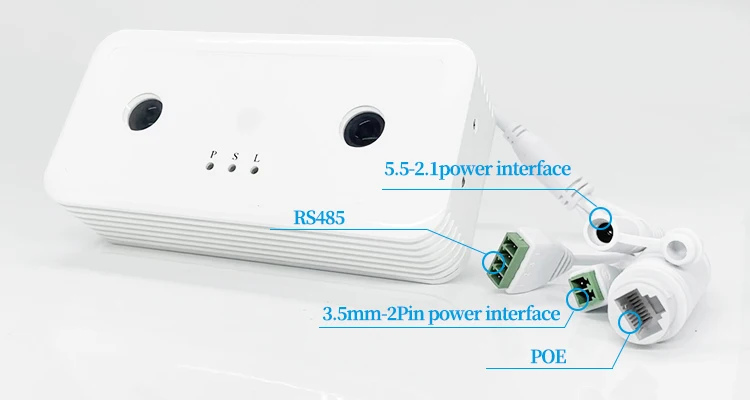

Three kinds of network and two kinds of power supply

1. Three types of networking: WIFI; RS485; RJ45.
2. Two power supply modes: DC or POE

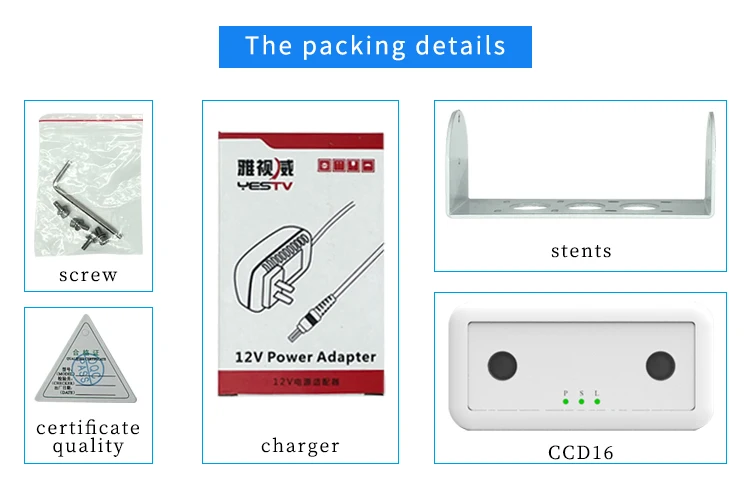

Package

Company Profile

About us

We have 10 years experience on people counter business. Thanks for our R&D department, We can always grasp the latest market trends. Our staffs are all well trained, our efficiency and technology will help you saving money and time. You can trust our strong technical support and fast mass production service.

Packing&Shipping

FAQ

1:Do you have certifications for your product?
A: yes, we have certifications of CE, FCC, ROHS, and so on.

2:Can accept OEM?
A: Yes, we can accept customize products according to your requirement.

3: How long will it take to prepare the products and how long will the warranty be?
A: Ordinary express takes 3-6 days, air express takes 2-3 days, sea takes 20-30 days, the warranty period of each product is different, you can contact us to negotiate.

4: Whether remote access devices are support?
A: sorry, the device does not support remote access.

5: Can I use my own server?
A: Yes, we can provide data upload protocol for you to connect the device with your server.

6: What are the computer operation and system requirements?
A: Operate our debugging software client need win7, win8, win10, win11.
