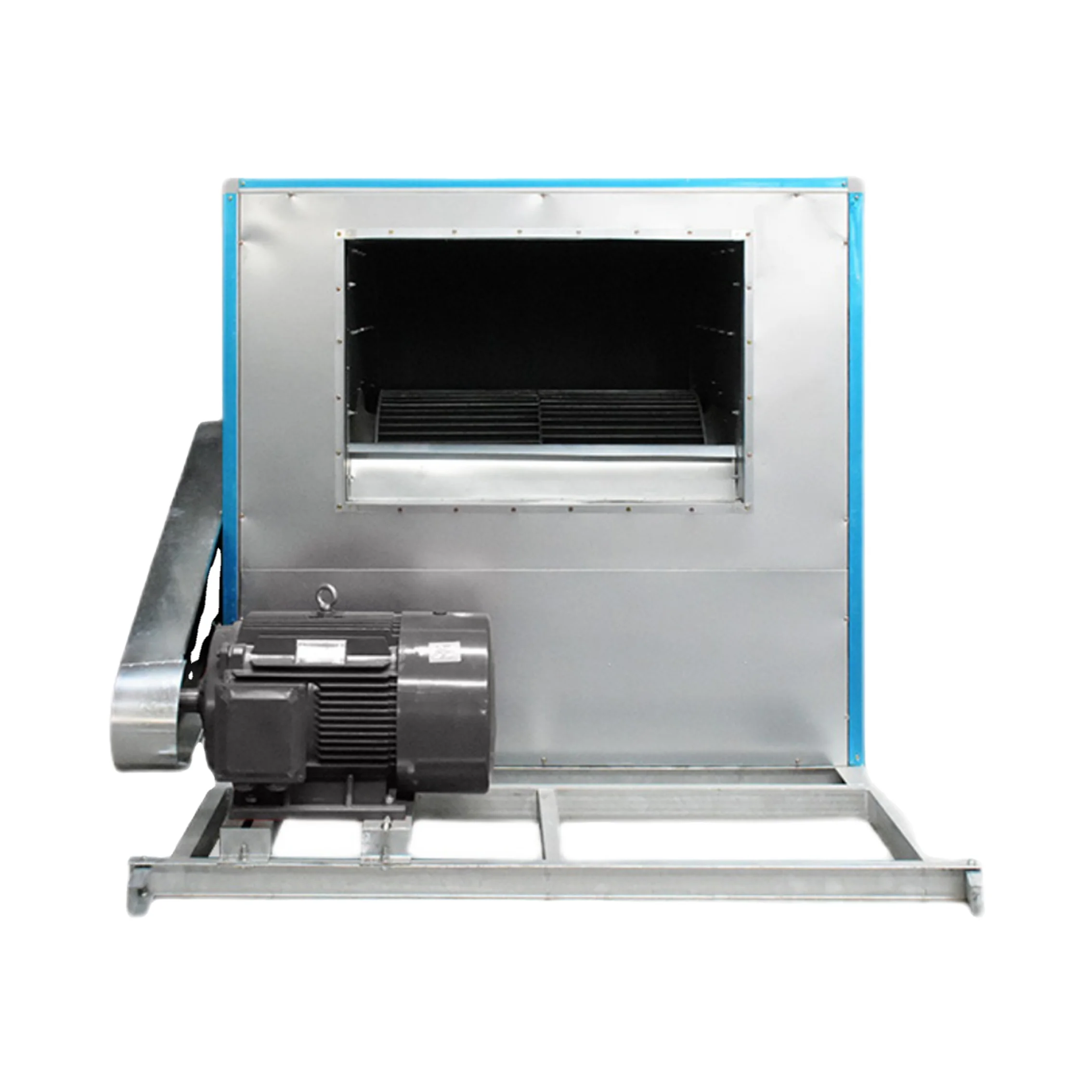

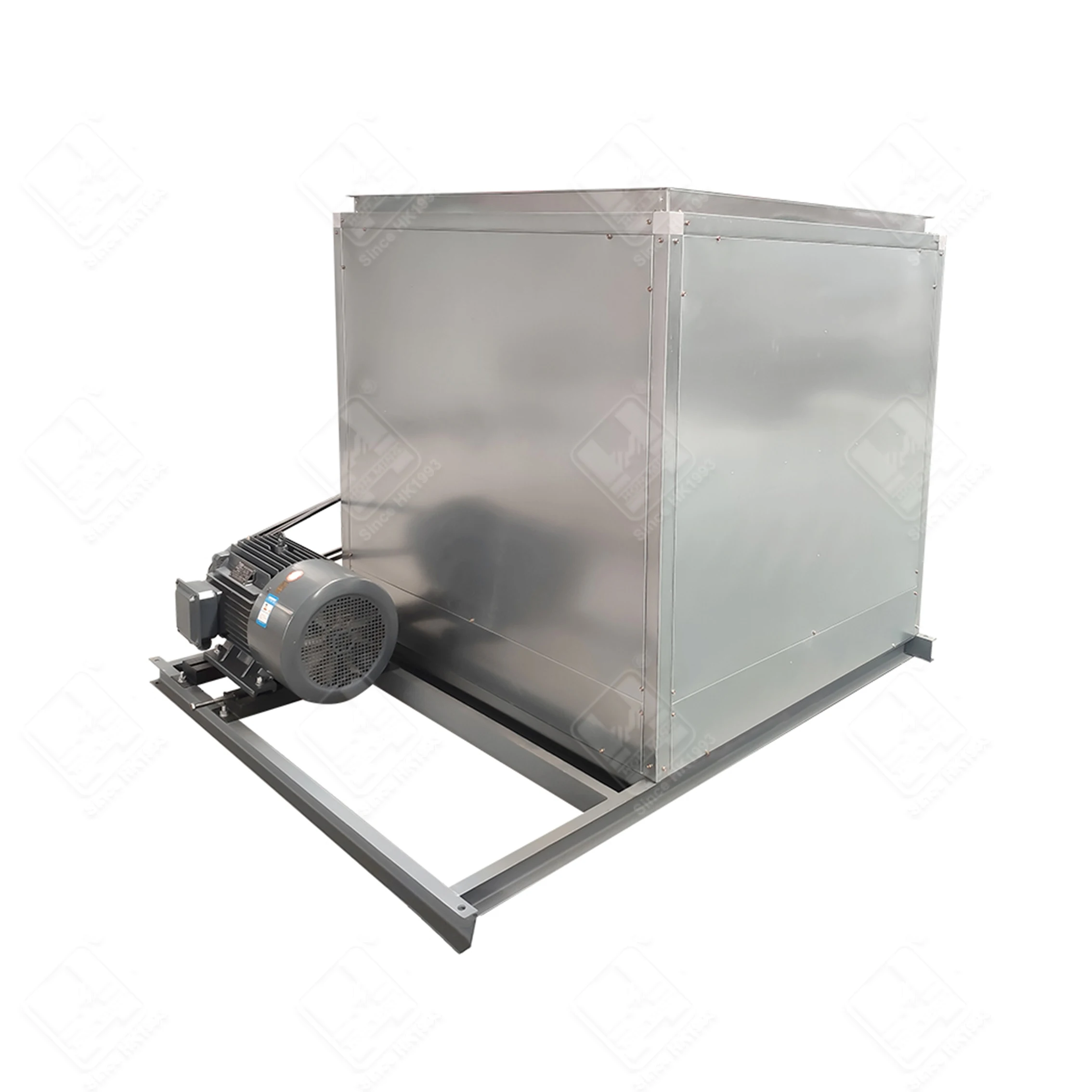

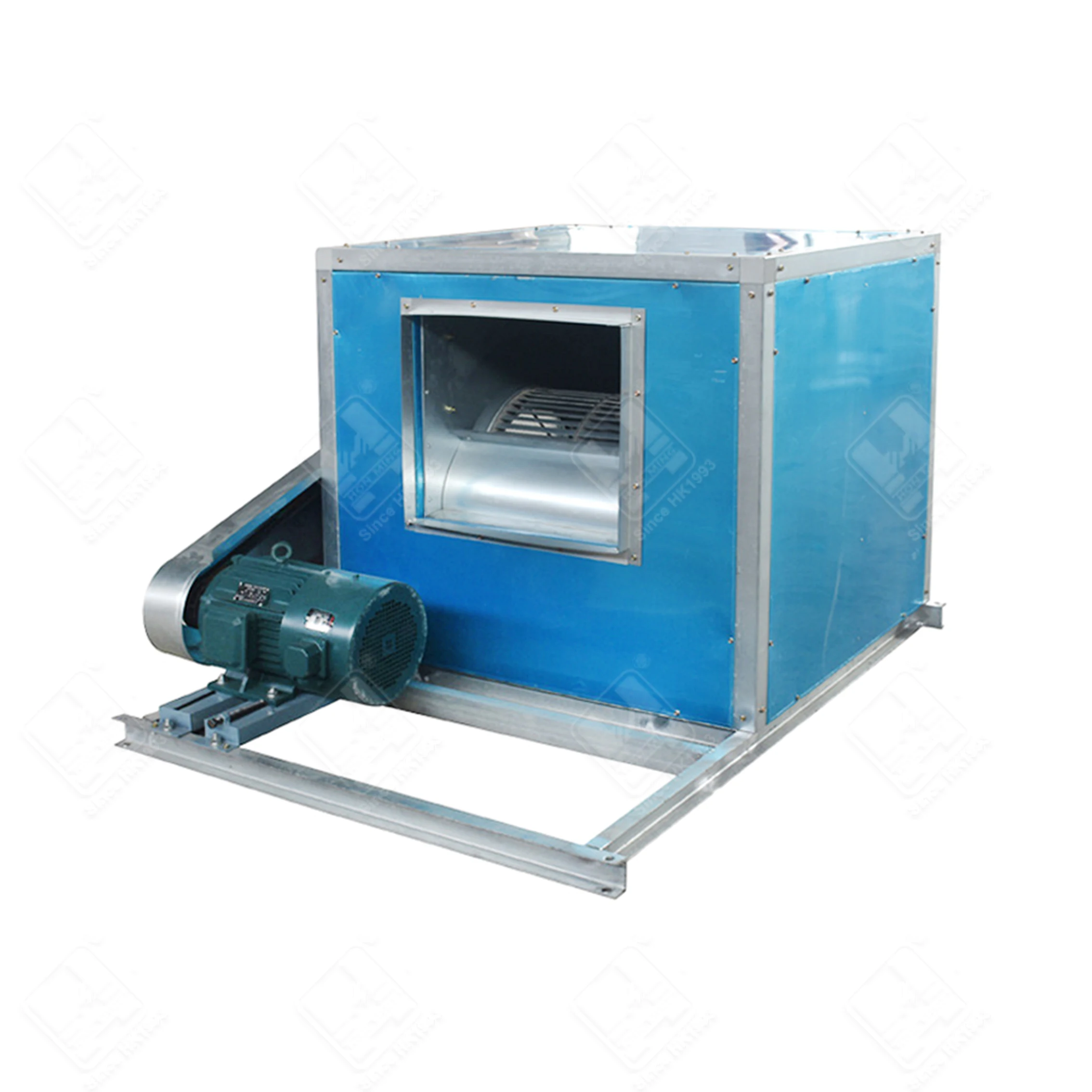

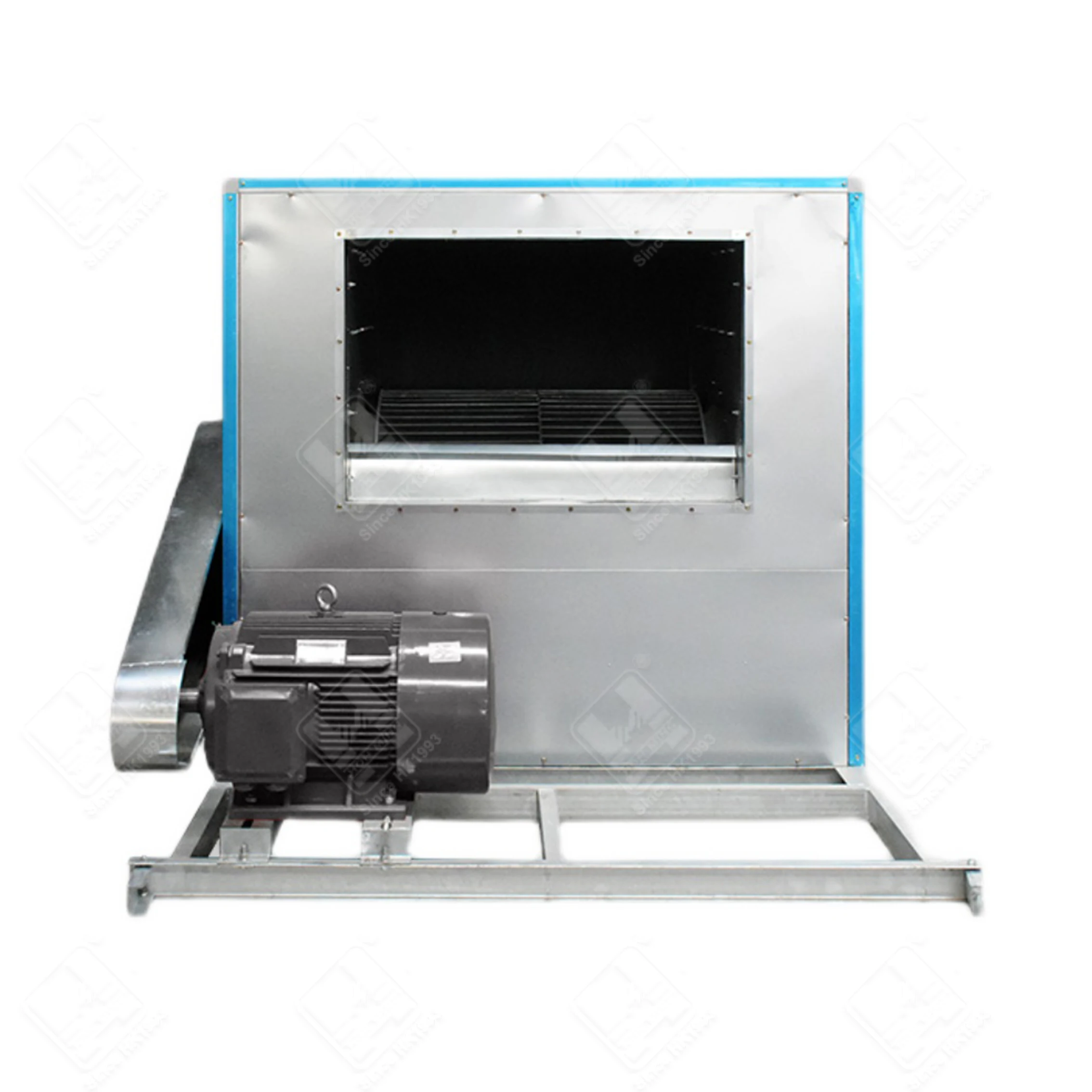

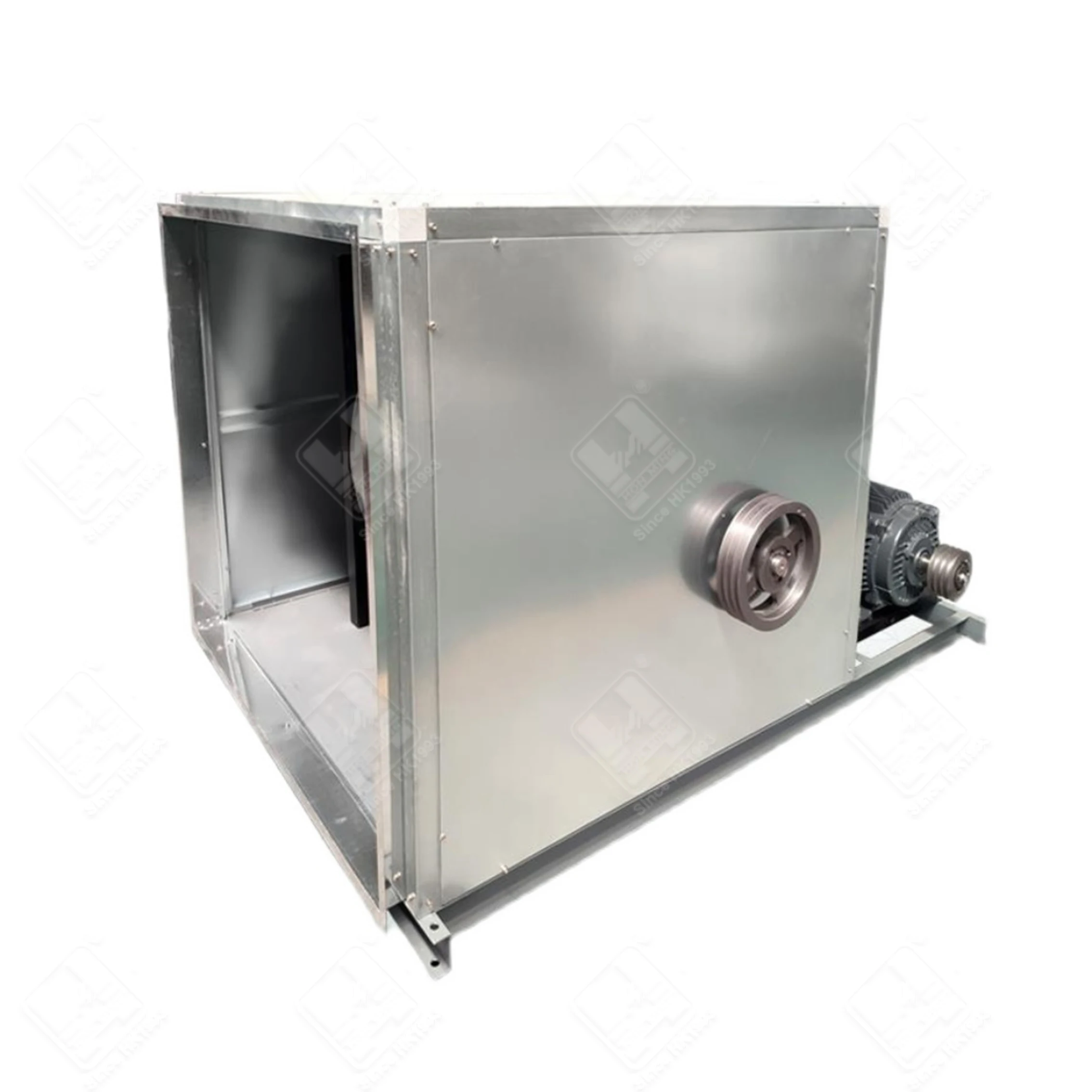

CCCF Medium Pressure Silent Bf I Cabinet Type Centrifugal Fan

Product Overview

Description

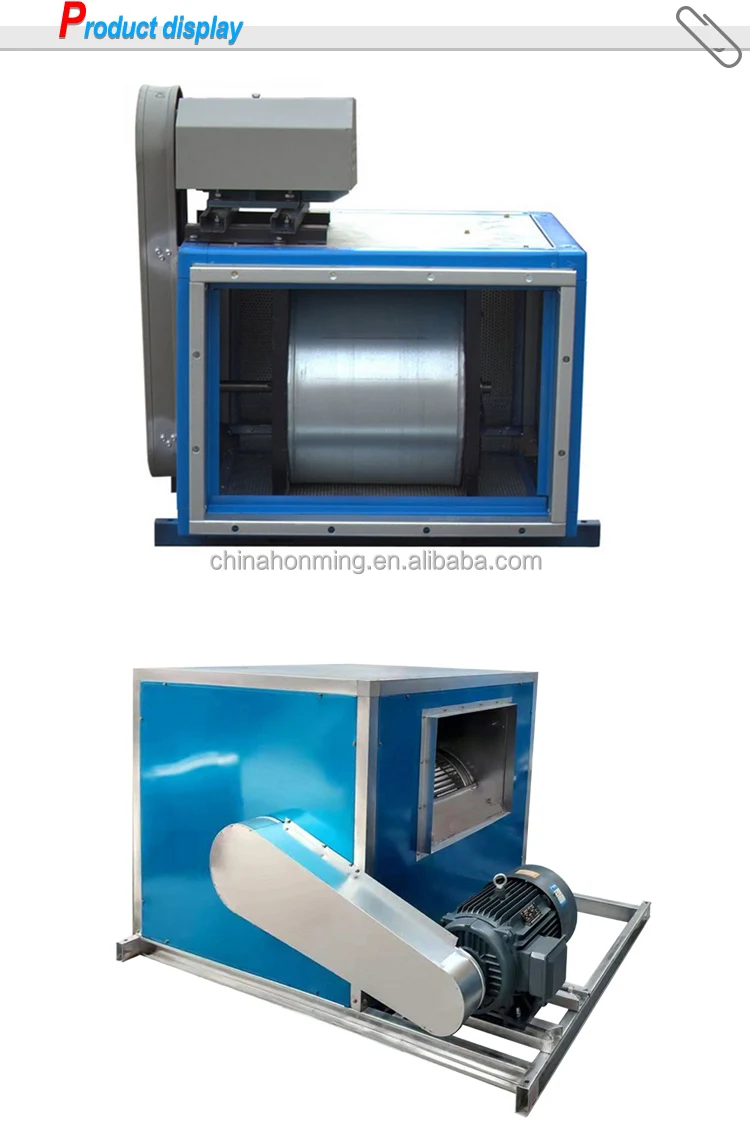

 Cabinet Type Centrifugal Fan

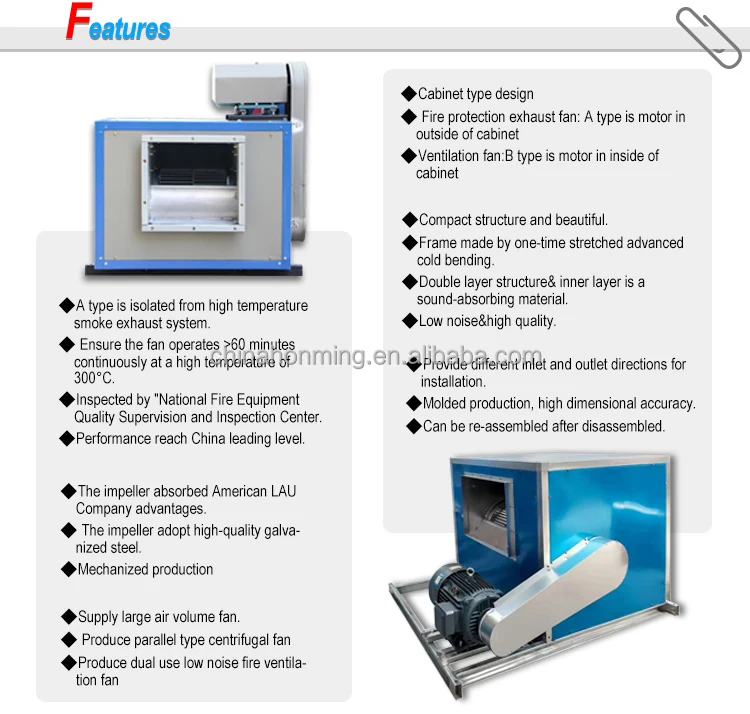

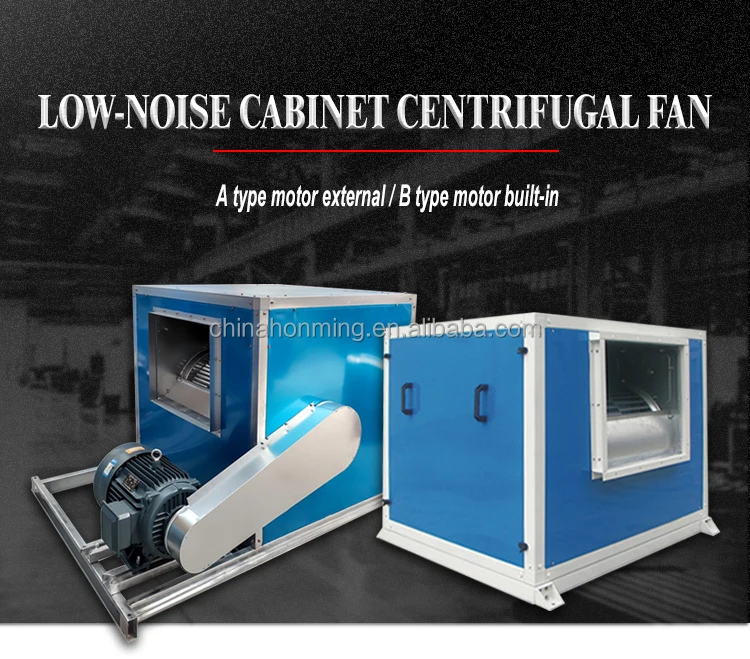

HTFC series fire protection ventilation (dual-purpose) low-noise cabinet centrifugal fan is a kind of high-efficiency low-noise centrifugal fan, which has the advantages of high temperature resistance, excellent performance, novel and compact structure, low vibration, light weight, convenient installation and use, etc.



Ensure the fan runs continuously for more than 60 minutes at a high temperature of 300 °C.



It is an ideal product for ventilation and smoke exhaust because of single speed and double speed in restaurants, auditoriums, theaters, basements, factories and mines, office buildings and other places.





 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan



 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan







 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan



 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan







 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan

 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan





Model	Speed	Air Volume	Full Pressure	ESP	Power	Noise	Weight
	RPM	M3/h	Pa	Pa	KW	dB(A)	Kg
9″	900-1400	1650-4950	186-465	165-278	0.55-1.5	<62	84-92
10″	800-1300	1850-5415	192-487	165-278	0.75-2.2	<63	105-121
12″	700-1180	2600-8048	205-591	188-428	1.1-3	<64	129-143
15″	700-1050	4500-12653	303-722	275-499	2.2-5.5	<66	186-222
18″	600-940	6030-17278	301-755	275-543	3-7.5	<66	219-264
20″	550-840	7900-21567	340-736	313-538	4-11	<70	295-380
22″	550-840	9850-26775	359-790	330-577	5.5-15	<72	372-445
25″	500-740	14980-37999	371-723	330-536	7.5-18.5	<74	444-540
28″	450-680	19500-45867	377-849	330-591	7.5-22	<75	560-670
30″	400-640	21000-57575	350-913	310-612	7.5-30	<76	610-772
33″	400-630	27840-72141	424-1061	373-719	11-37	<79	690-938
36″	350-580	31491-85855	385-1068	339-723	11-45	<80	740-1170



Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan



 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan





 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan

 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan





 Medium Pressure Silent Bf-I Cabinet Type Centrifugal Fan

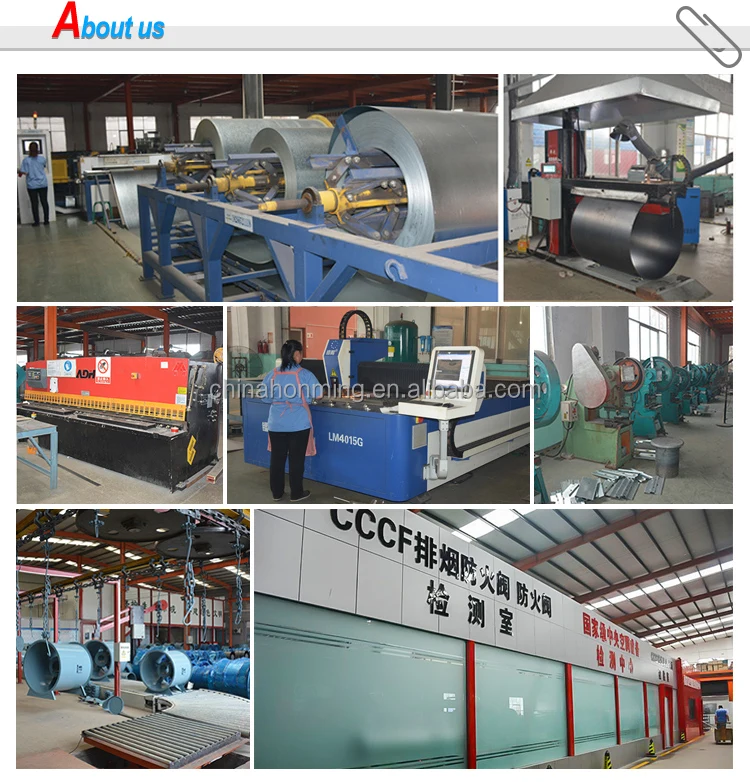

1.Are you factory or trade company?
We are manufacturer,with OEM service.



2.Are there any order requirements?
We will appreciate if you can supply us your product performance requirements and operation environment, so we can customize to meet your requirement.
(1) Air volume
(2) Cooling/heating capacity
(3) Cooling/heating area
(4) Power/hertz/voltage



3.What are your Before-sale services?
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.



4.What are your In-Sale services?
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.



5.What are your After-sale services?
(1) If the project needs our installation guidance, we will support video installation or send our engineers. We can also send customers installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation for non-human factor damages,within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's two-way communication.



6.How long is the delivery time?
Generally it is 1-7 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
