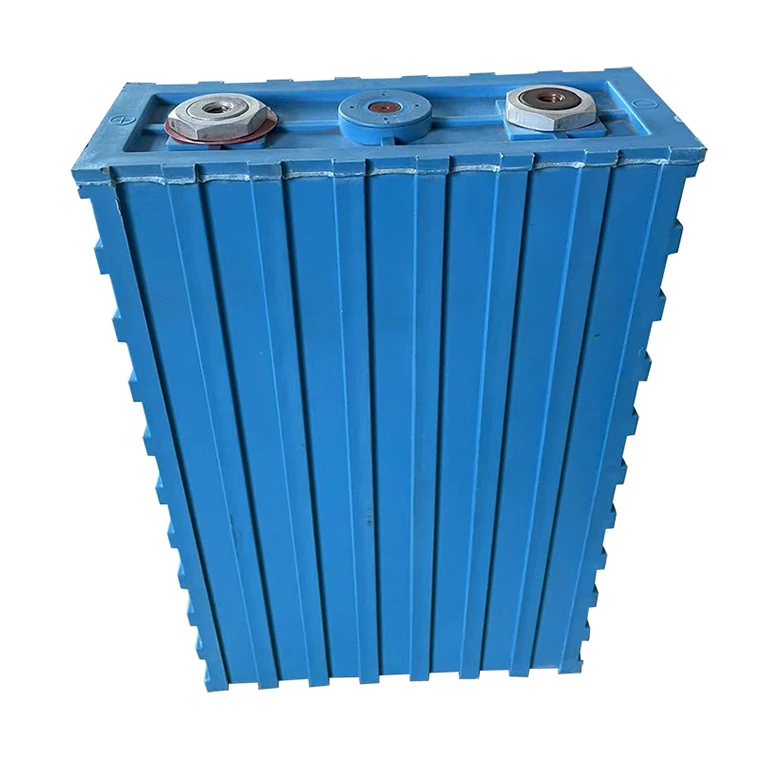

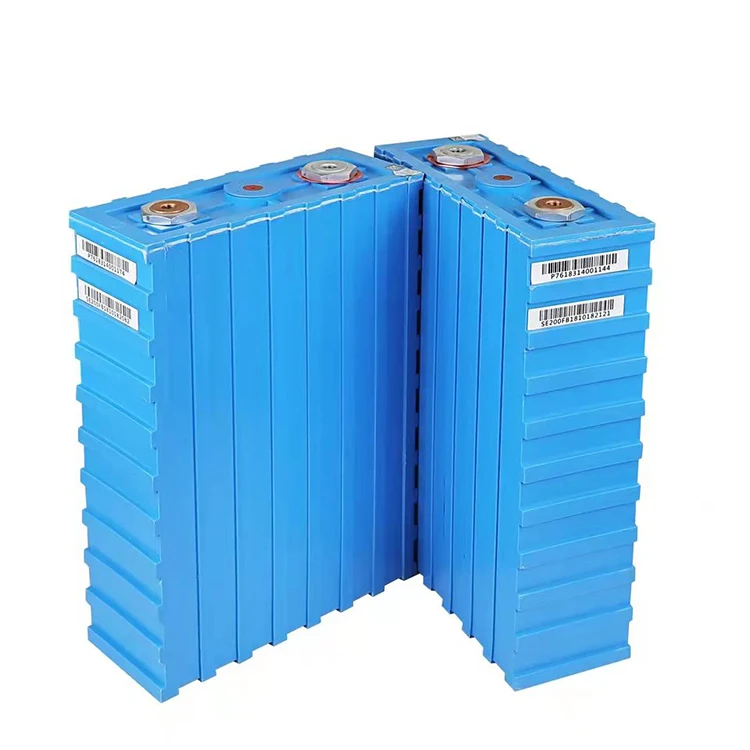

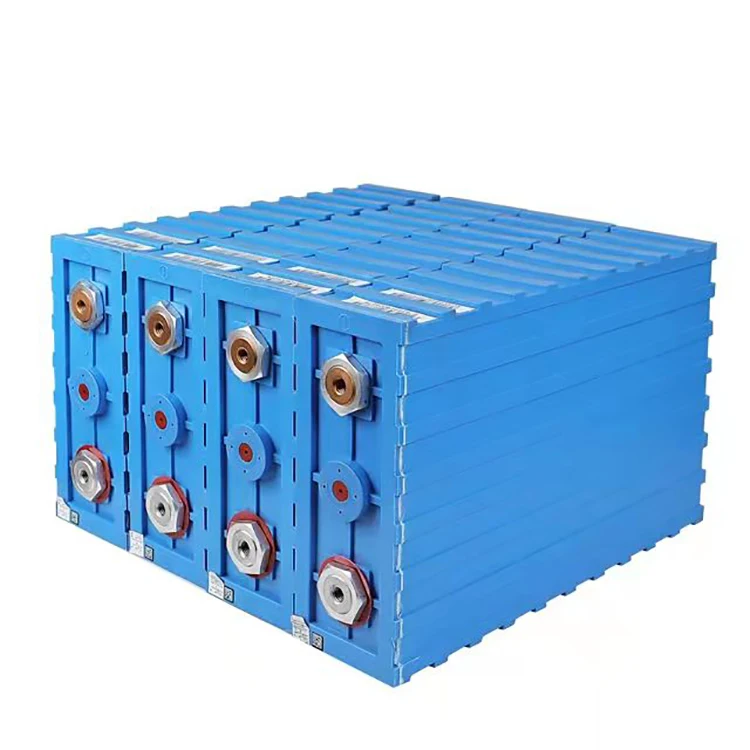

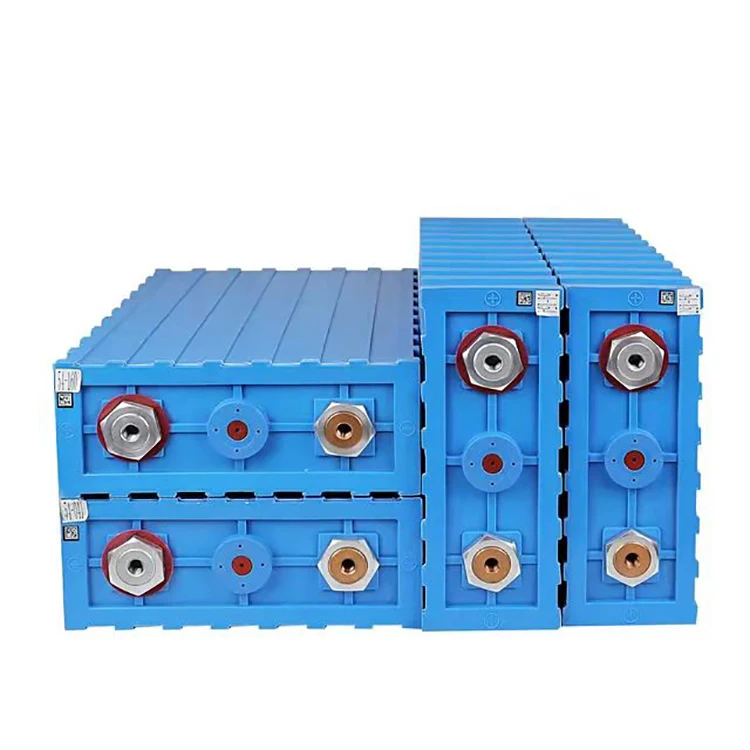

Hot calb lifepo4 200ah batteries 3.2 v 200 ah cell for multi function solar storage systems
- Category: >>>
- Supplier: Shenzhen Baisiyu Technology Co. Ltd.
Share on (1600483324596):
Product Overview
Description
Detail Images
Full Capacity
High Safety Performance
Environmental
Stable Discharge
Explosion-proof Design
Recycle
Model: 200Ah

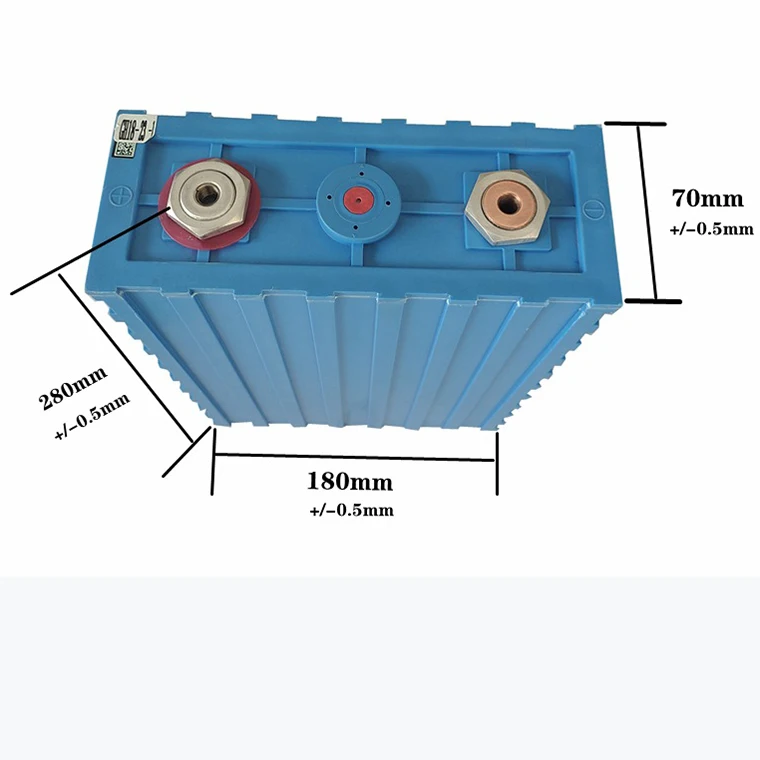

Size:71*182*280mm
Voltage:3.2V
Cell weight:5.7kg
Cell level: Grade A
Life cycles: 3500times
Discharge current: 200A
Charge current: 200A (Max 2C 400A)
Charge current: 200A (Max 2C 400A)
Continuous Discharge current: 1C
Max. Discharge Current: 3C
The cycle life of lithium iron phosphate batteries generally
reaches 2000 times at 1C, even more 3500 times. The storage
products requires 4000-5000 times above, and with 8-10 year life span.
Features
2,above 3500 life cycles
3,light weight
4, with BMS super safety design
5,wide temperature range

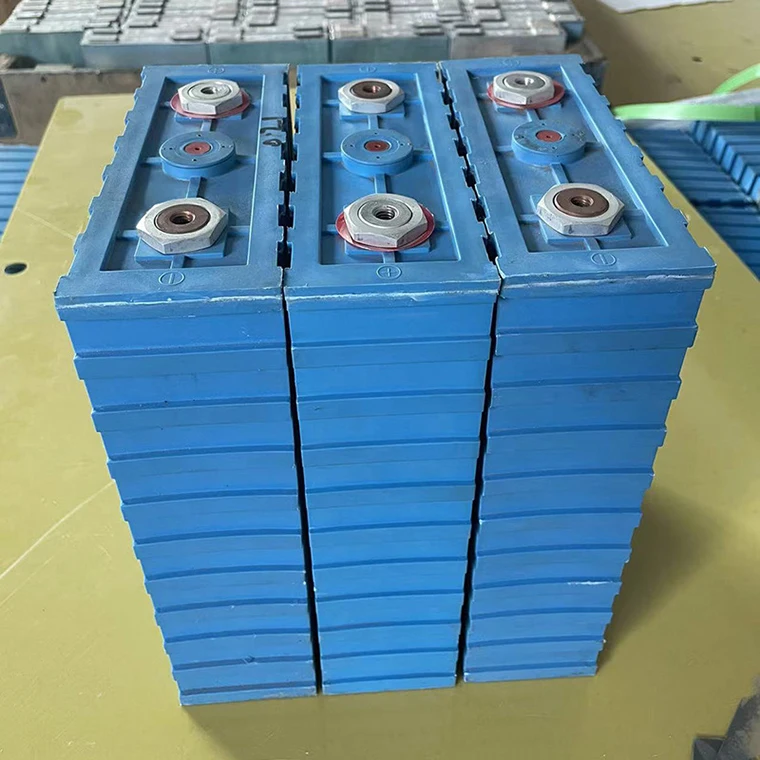

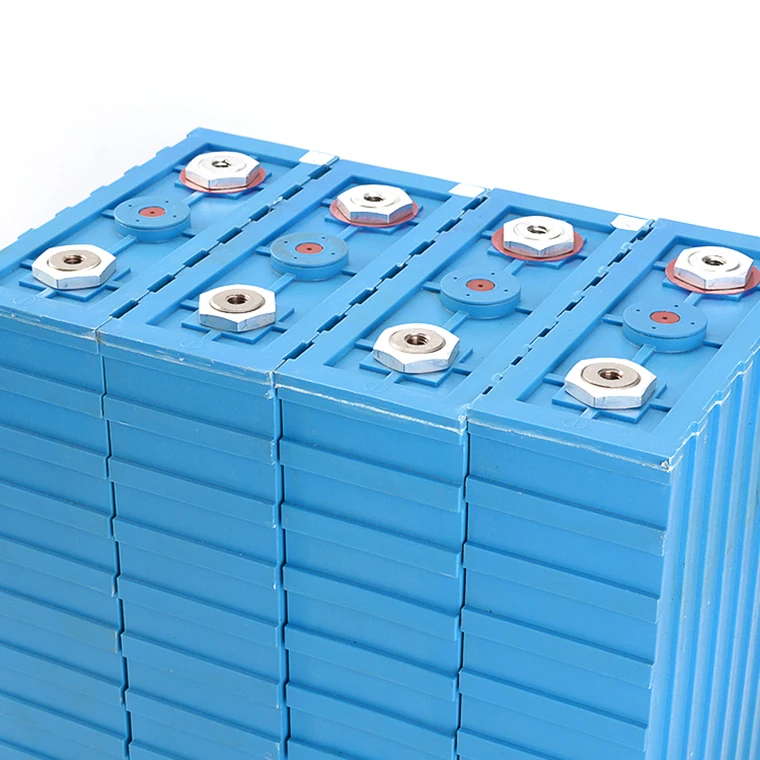

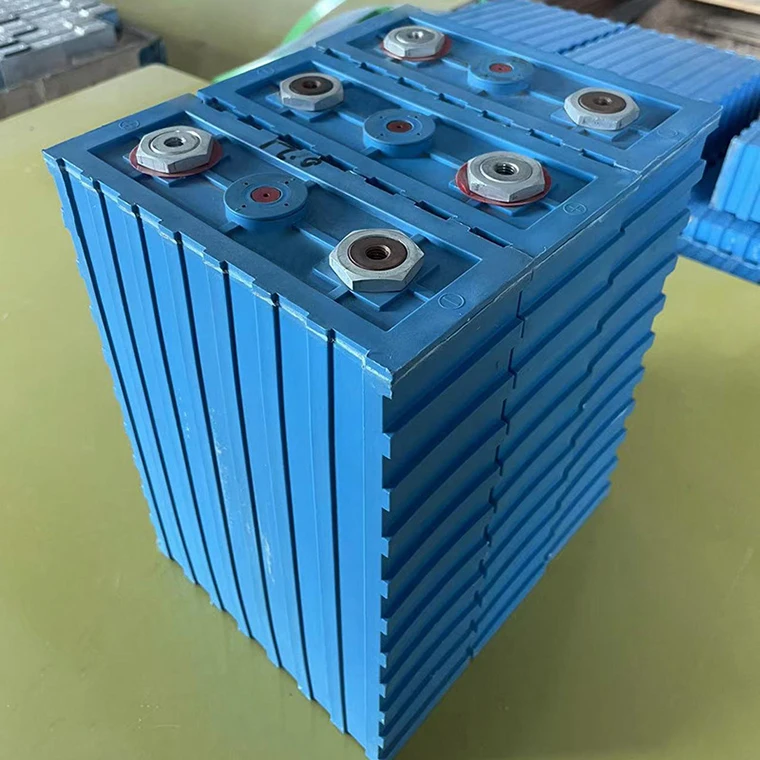

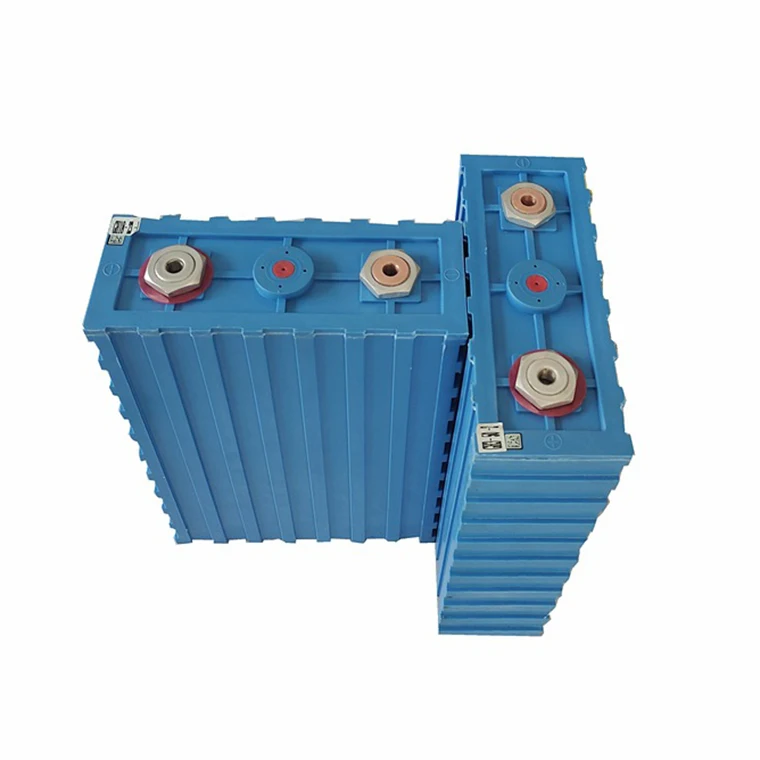

Positive Side View
The welded screw hole type
No power failure, Stable output

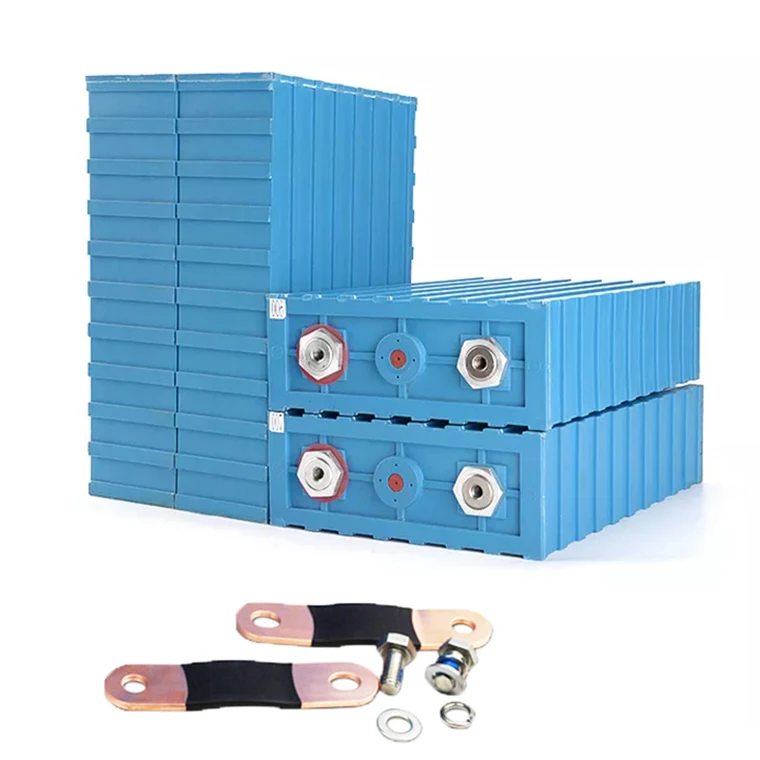

The price come with Bus bars and Bolts，one battery will come with one set bus bar and bolt
e.g.,If buy
4pcs battery,we will send
4pcs cells with 4 pcs bus bars and 8pcs bolts
If need more please contact us online.Thank you!
Specification
item | value |
Place of Origin | China |
Brand Name | BSY-calb |
Model Number | LFP200AH |
Battery Type | LiFePO4 |
Color | Blue |
Size | 71*182*280mm |
Cell weight | 5.7kg |
Cycle life | 3500 Times |
Charge Limited Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V |
Continuous Discharge current | 1C |
Max. Discharge Current | 3C |
Material | LifePo4 Lithium Iron Battery |
Internal Resistance | 0.3mΩ |
Discharge current | 200A |
Charge current | 200A (Max 2C 400A) |

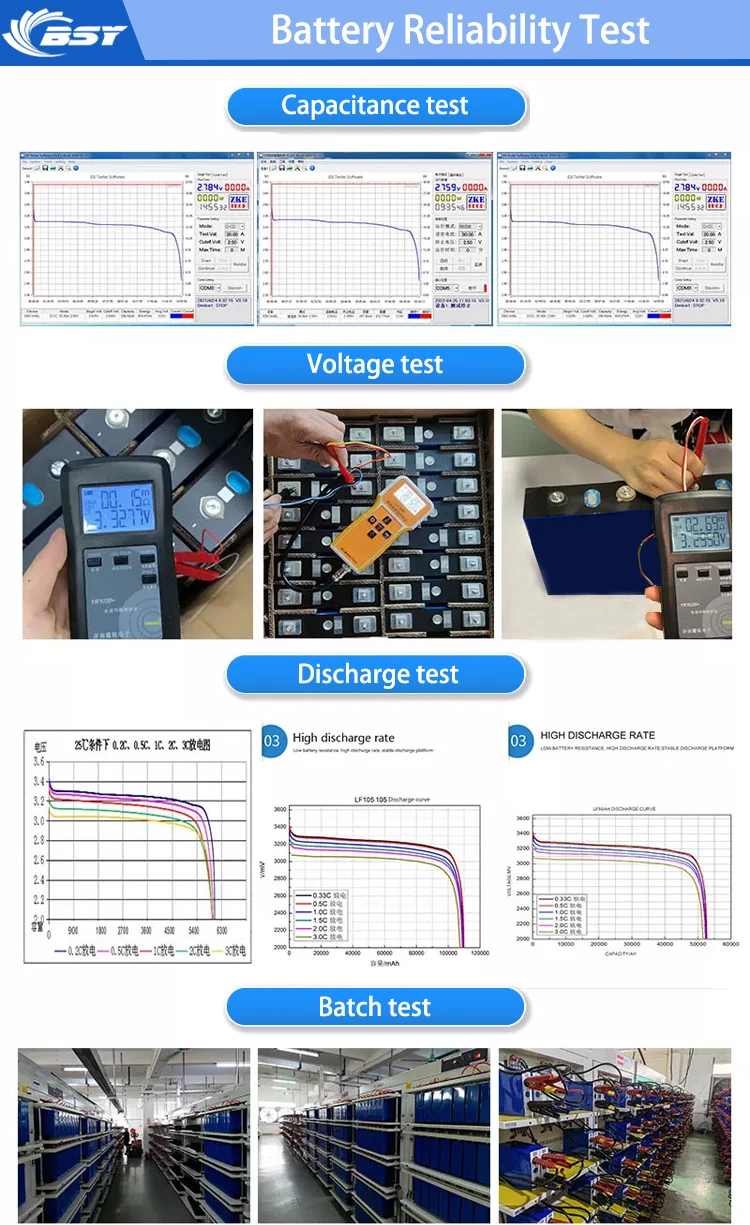

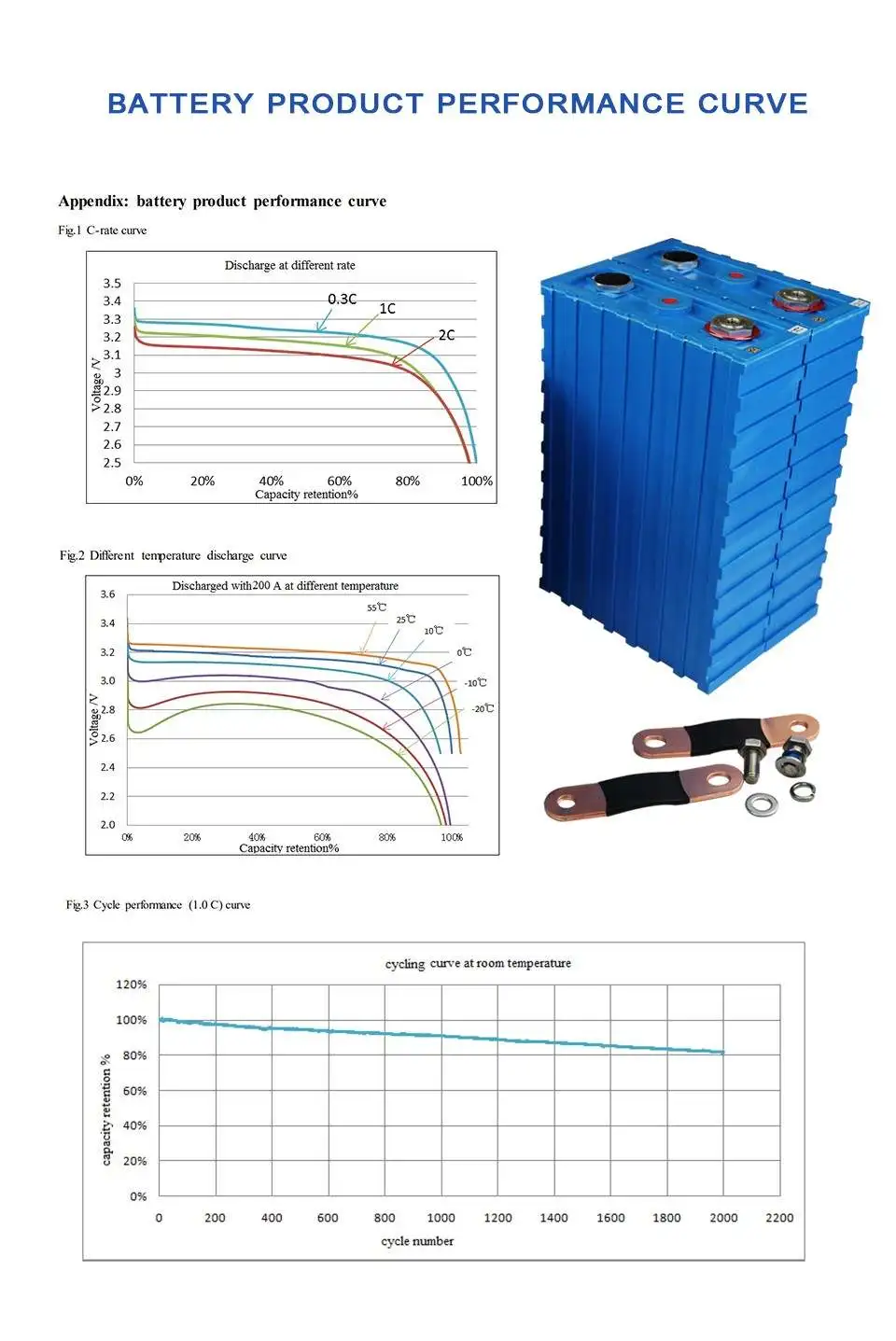

Electrical Performance Diagram
A typical curve of single cell discharged at room temperature.
A typical curve of single cell discharged with 200A at different temperature.
2000 times cycling curve of single battery
Application

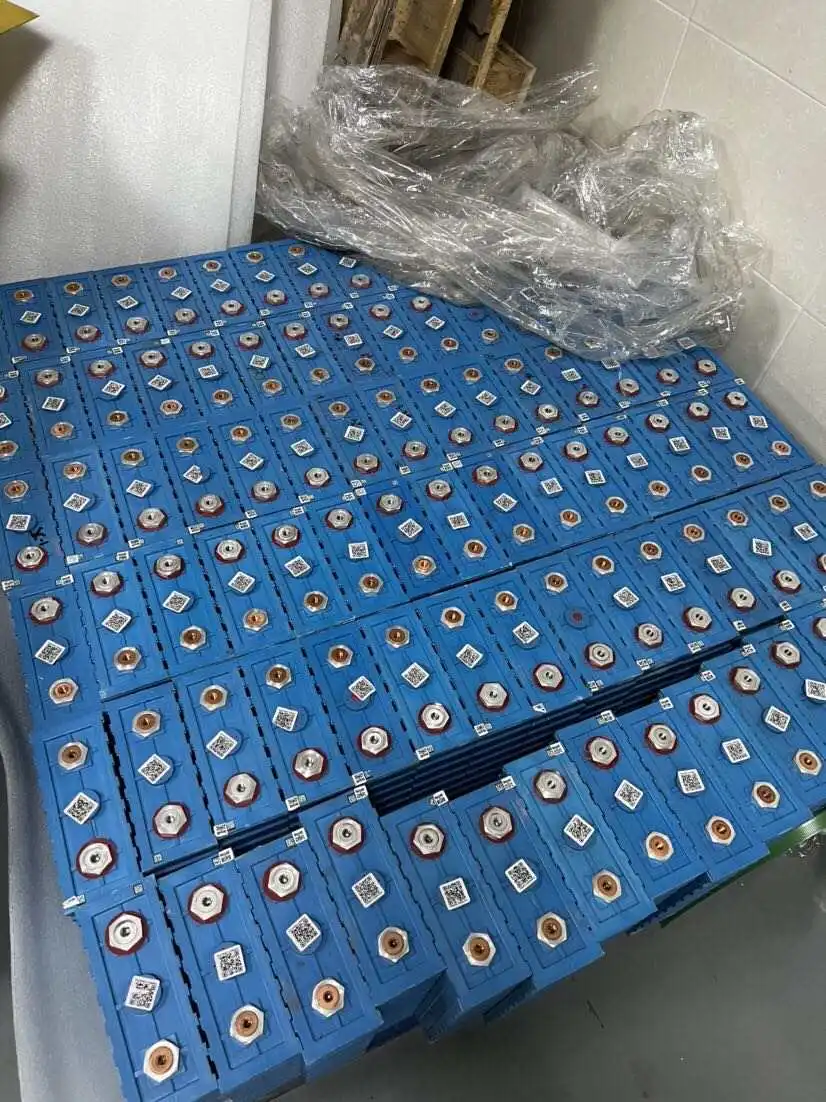

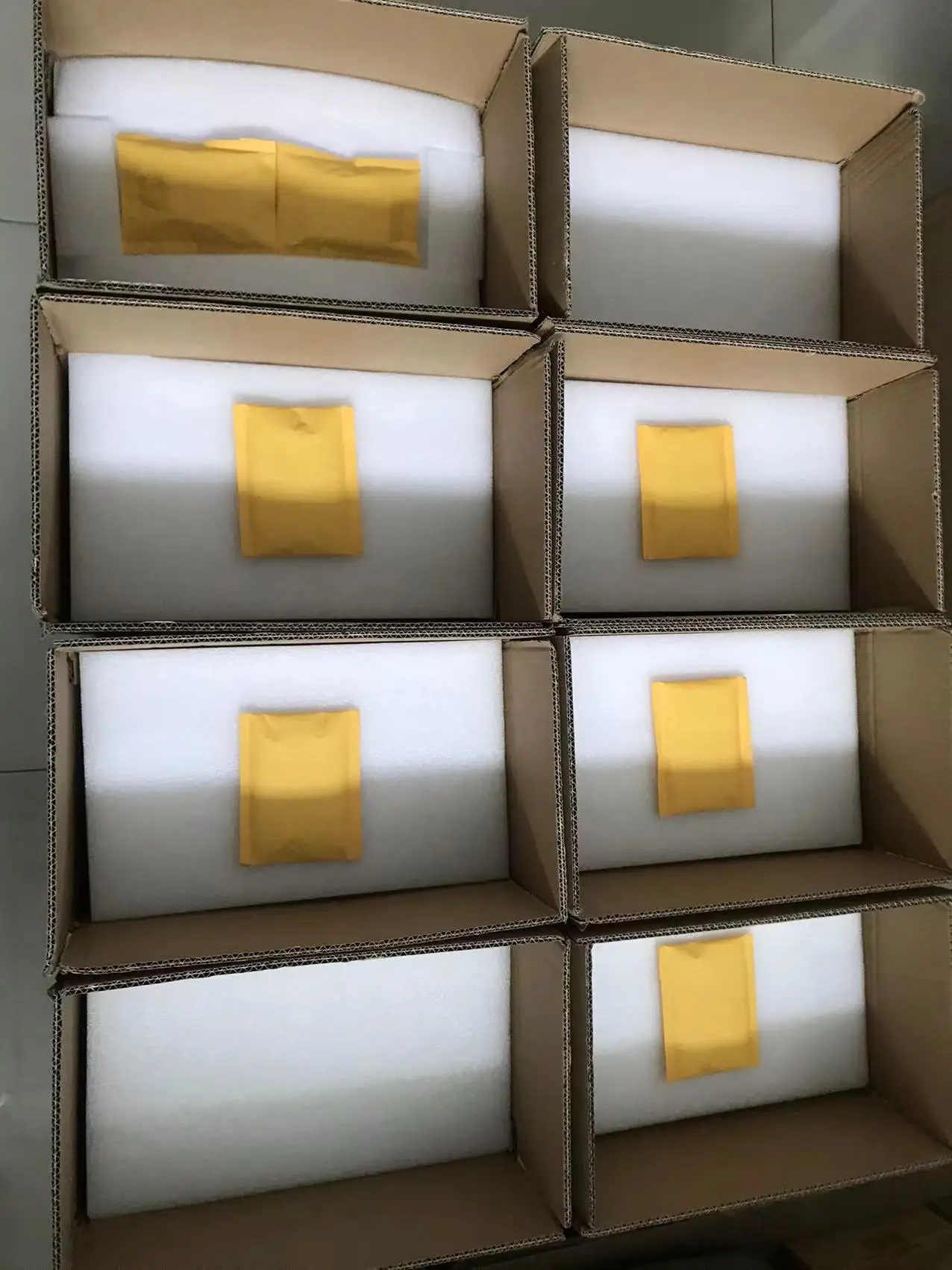

Product packaging
Pallet directly
+ Stronger 5 layers carton
+ Export box carton
Shipment & Payment
USA | Europe | Australia | Asia | Russia | Others | |
ETD | 3-7 days | 3-7 days | 3-7 days | 3-7 days | 3-7 days | 3-7 days |
ETA | 30-45 working days | 30-45 working days | 35-45 working days | 8-25 working days | 25-35 working days | |
Transportation | By sea+FEDEX (DDP,Tax free) | By sea /railway+UPS (DDP,Tax free) | By sea+Delivery (DAP) | By land/sea (DDP,Tax free) | By land (DDP,Tax free) |
TT +West Union +Paypal +Bank Transfer by CNY+ Alibaba Trade Assurance
Advantages
FAQ
Q: Are the batteries come with busbars+bolts?
R: The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt.If need more please contact us online.
Q: What kind of the package of the cells?
R: They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
Q. How can I place the order?
R: Usually we accept Alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping information to our sales they will create online order for you.
Q. How can I do if I need more help for the order?
R: You can chat our sales online or send inquiry email,we will respond you ASAP.
Q: Do you have MOQ ?
R: No limited. More quantity has better price, we will check the best price for you
Q: How do I know whether you've shipped my order or not?
R: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
If you have any questions,please click here contact me now~
R: The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt.If need more please contact us online.
Q: What kind of the package of the cells?
R: They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
Q. How can I place the order?
R: Usually we accept Alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping information to our sales they will create online order for you.
Q. How can I do if I need more help for the order?
R: You can chat our sales online or send inquiry email,we will respond you ASAP.
Q: Do you have MOQ ?
R: No limited. More quantity has better price, we will check the best price for you
Q: How do I know whether you've shipped my order or not?
R: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
If you have any questions,please click here contact me now~
