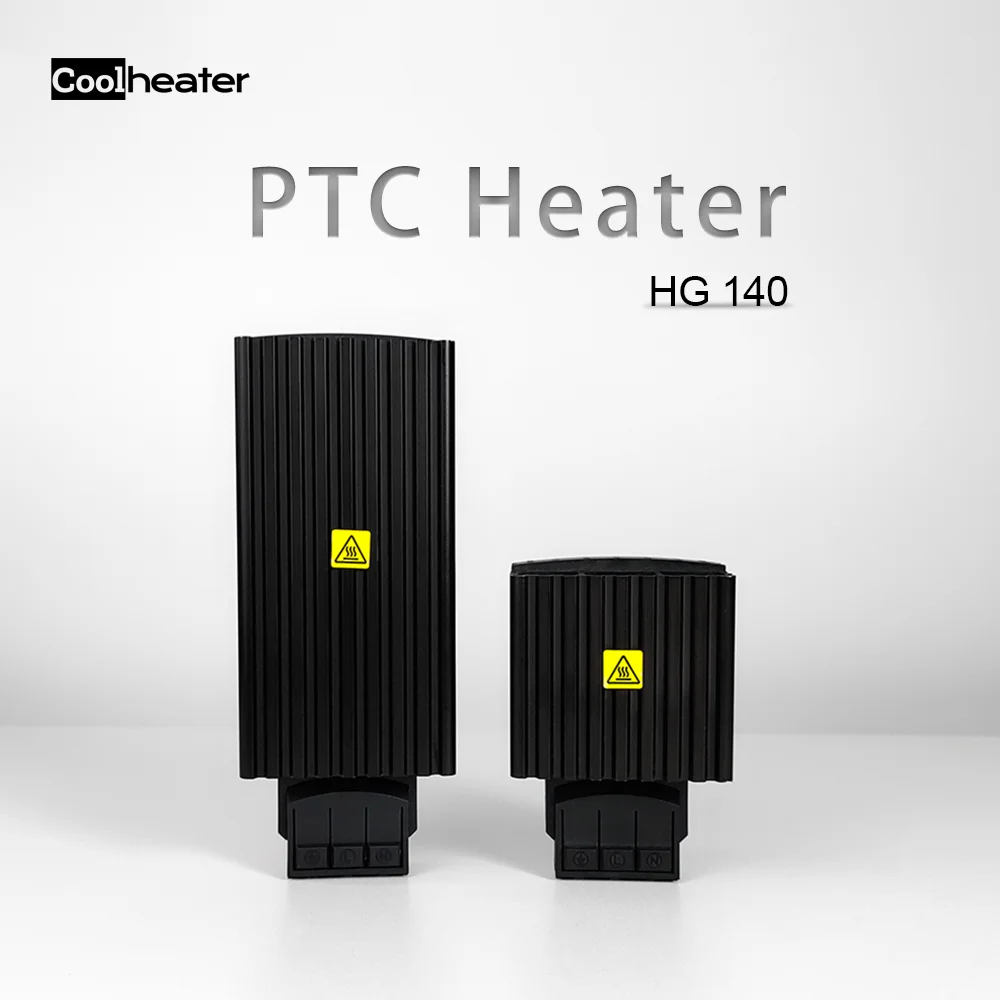

Hg140 AC DC Low Consumption Industrial High Voltage Cabinet Heater
- Category: >>>
- Supplier: Wenzhou Chuangzuo Elecrtic Co. Ltd.
Share on (1600483670132):
Product Overview
Description
Product Description
Operating voltage | AC/DC 120-240 V (min. 110 V, max. 265 V) |

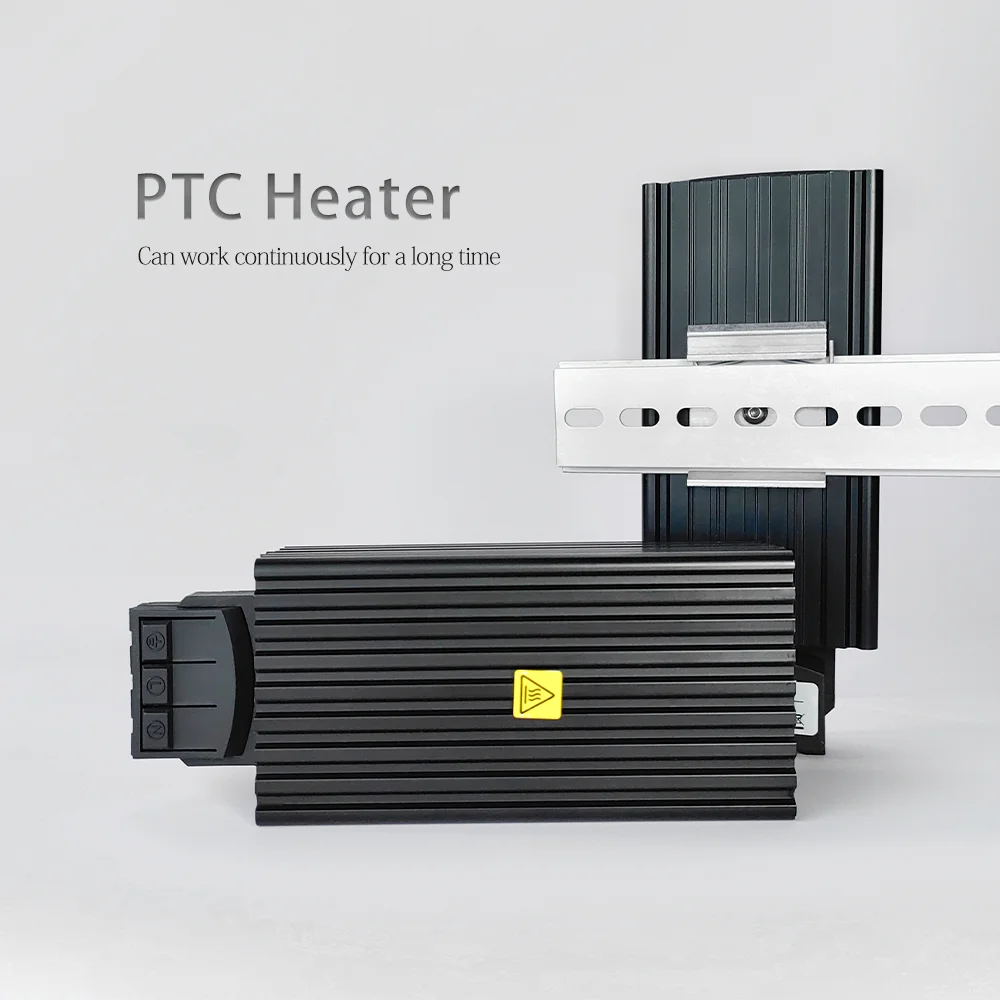

Heating element | PTC resistor, temperature limiting |

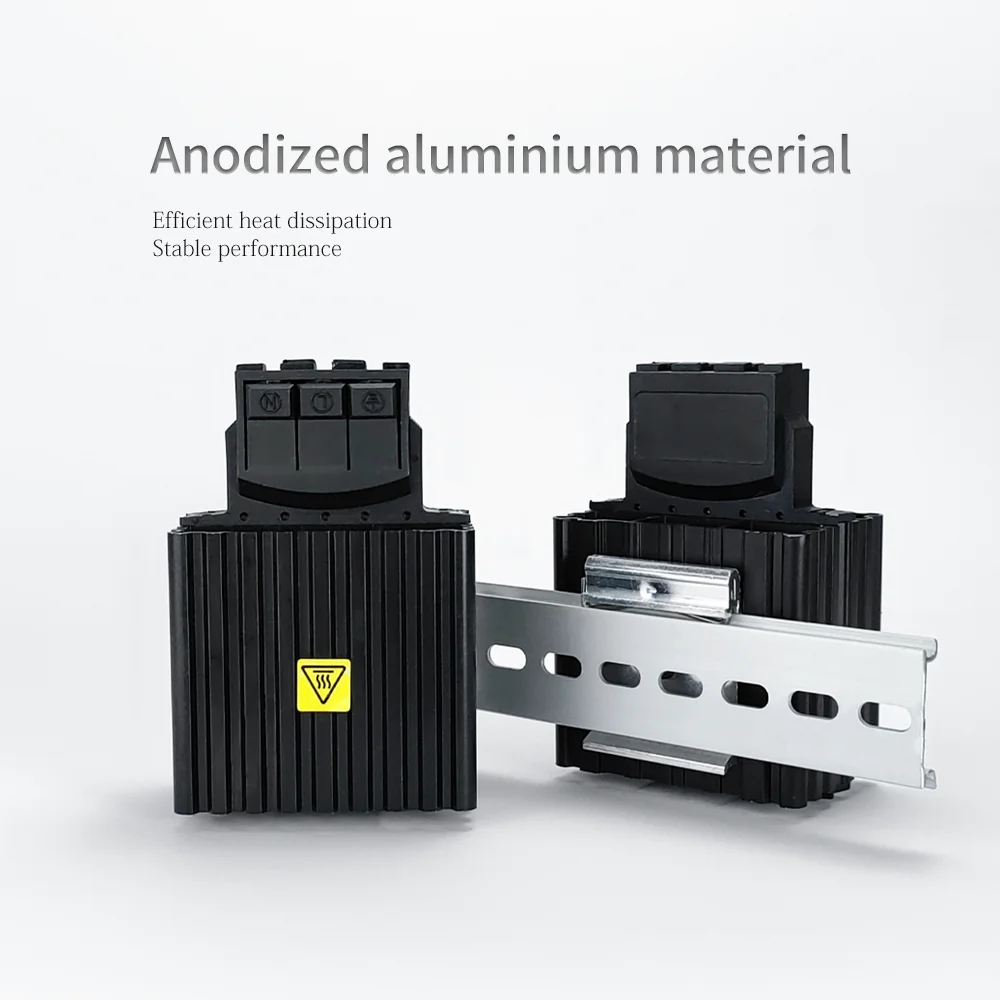

Heater body | extruded aluminum profile, anodized |

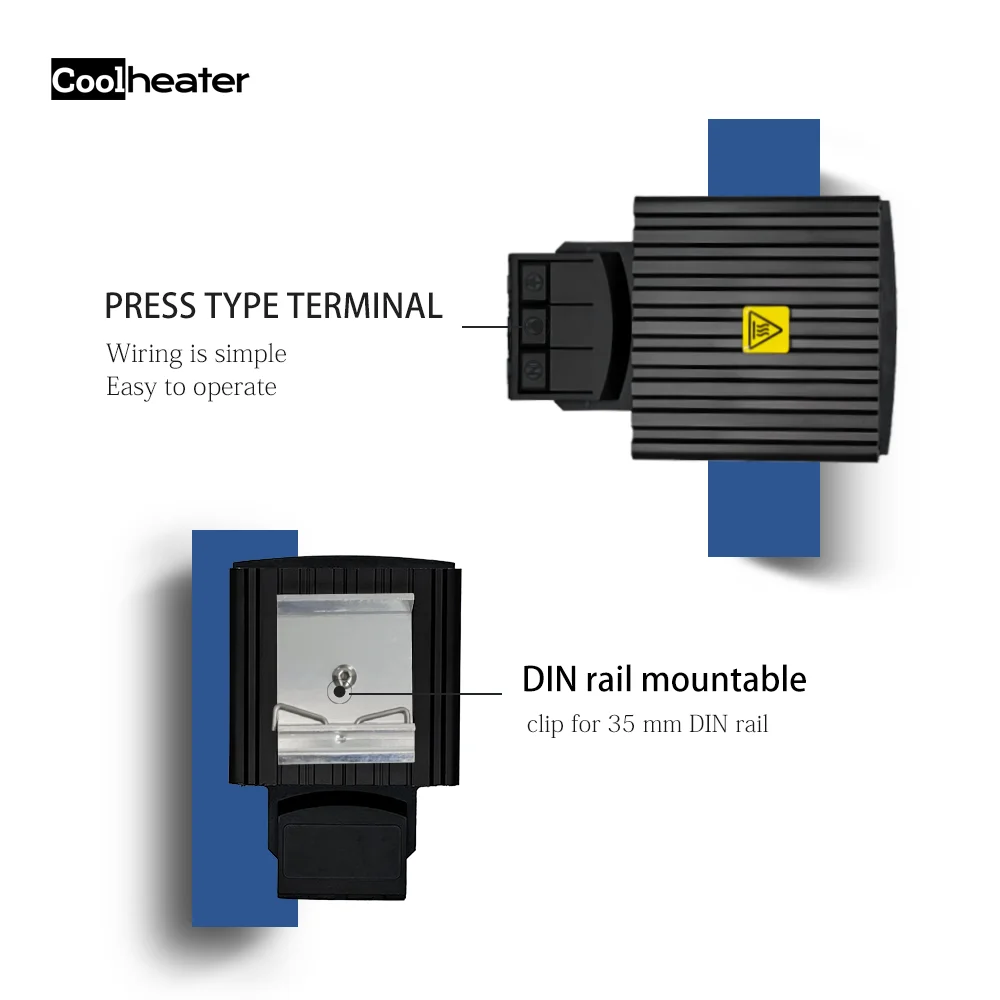

Connection | 3 cage clamps for solid wire AWG 20-14 (0.5-2.5 mm²), and |
stranded wire (with wire end ferrule) - AWG 20-16 (0.5-1.5 mm²) | |
Connection casing | plastic, UL 94V-0, black |
Mounting | clip for 35 mm DIN rail, EN 60715 |
Mounting position | vertical airflow (air outlet up, connection on bottom) |
Operating / Storage temperature | -40 to +185 °F (-20℃ to +85°C) |
Operating / Storage humidity | max. 90 %RH (non-condensing) |
Protection class / Protection type | I (grounded) / IP20 |
Note | other voltages available upon request |
FAQ
1.Are you a factory or a trading company？
We are factory with over 20 years production experience. producing temperature control switches, cabinet temperature and humidity，controllers, thermostats, heaters.Our slogan:Every electronic can be guarded!
2.Do you have anything in stock.？
Yes, cabinet thermostats、humidity controllers and heaters we have on stock, meke orders can be shipped for you immediately.
3.What certification do you have？
Our products have VDE, CE, ROHS, CQC and others.
4.What are your advantages compare with others？
We master the core technology of thermostat production, and the temperature control can be professionally customized according to the use environment.We produce and sell by ourselves to guarantee the price advantage. The oem odm, solution design, technical support, after-sales service 24 hours online.
5.Is your product 100% tested？
6.The warranty of your product?
3- year warranty.
7.Can I use my own logo on the merchandise？
Yes.Customized LOGO Over 100 pieces .
8.Can I get the samples？
9.Can I visit our factory？
Of course, any time is welcome.
10.What are the payment terms?
T/T,L/C at sight,Western Union,Money Gram,etc.
We are factory with over 20 years production experience. producing temperature control switches, cabinet temperature and humidity，controllers, thermostats, heaters.Our slogan:Every electronic can be guarded!
2.Do you have anything in stock.？
Yes, cabinet thermostats、humidity controllers and heaters we have on stock, meke orders can be shipped for you immediately.
3.What certification do you have？
Our products have VDE, CE, ROHS, CQC and others.
4.What are your advantages compare with others？
We master the core technology of thermostat production, and the temperature control can be professionally customized according to the use environment.We produce and sell by ourselves to guarantee the price advantage. The oem odm, solution design, technical support, after-sales service 24 hours online.
5.Is your product 100% tested？
Yes, all of our products are all 100% tested.
6.The warranty of your product?
3- year warranty.
7.Can I use my own logo on the merchandise？
Yes.Customized LOGO Over 100 pieces .
8.Can I get the samples？
Yes,sample orders welcomed.
9.Can I visit our factory？
Of course, any time is welcome.
10.What are the payment terms?
T/T,L/C at sight,Western Union,Money Gram,etc.
