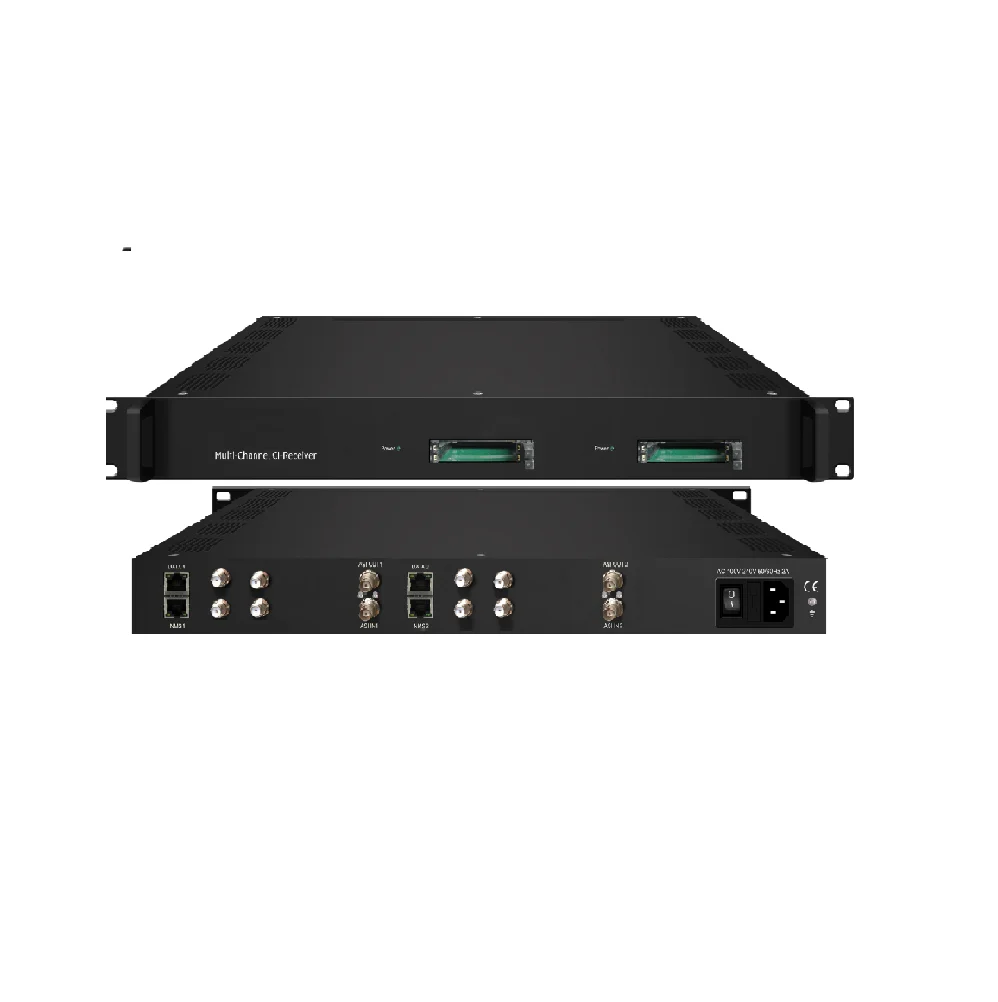

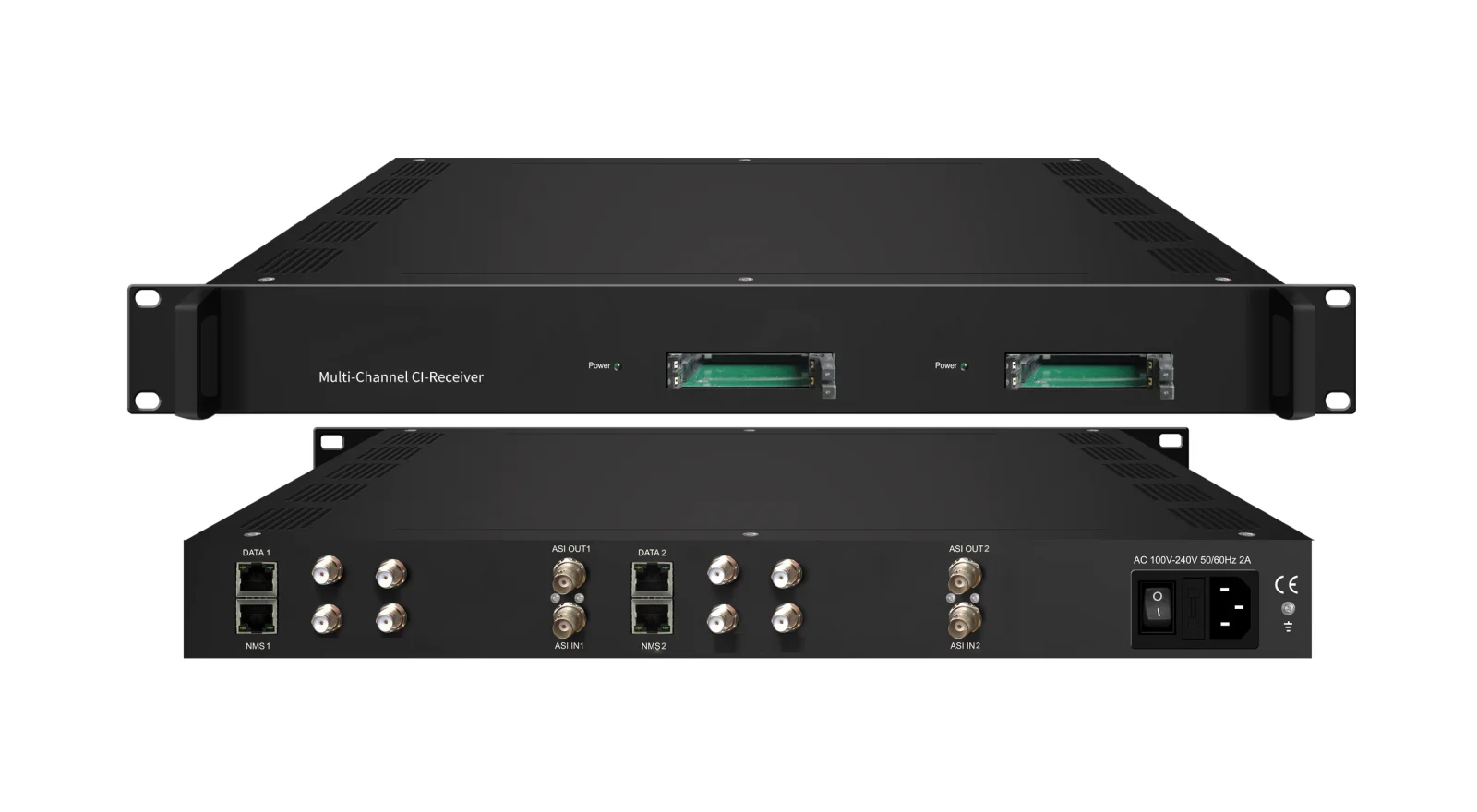

Jiexiang 8 in 1 HD 1080P CI Slot BISS Satellite IPTV Receiver

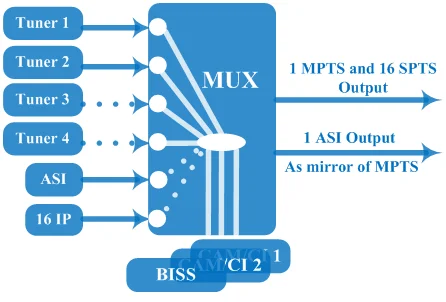

Input(per demodulation module)

2 or 4* tuner inputs (DVB-C/T/ISDB-T switchable or DVB-S/S/S or ATSC optional), F type

1*ASI input for re-mux, BNC interface

16*IP input for re-mux (UDP/RTP)

 Tuner Section

Multi-mode tuners switchable

(New)

DVB-C

Input Frequency

60 ~890 MHz

Standard

J.83A, J.83C

J.83B

Constellation

16/32/64/128/256 QAM

64/256 QAM

DVB-T

Input Frequency

60 ~890 MHz

Bandwidth

6/7/8 M

ISDB-T

Input Frequency

60 ~890 MHz

Satellite

DVB-S

Input Frequency

950~2150MHz

Symbol rate

0.5~45Msps

Signal Strength

- 65- -25dBm

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

Max input bitrate

≤170 Mbps

DVB-S

Input Frequency

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

32APSK: 0.5~40Msps;

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Max input bitrate

≤170 Mbps

DVB-S

Input Frequency

950~2150MHz

Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

8APSK: 0.5~40Msps

32APSK: 0.5~40Msps

FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9

Constellation

QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input bitrate

≤170 Mbps

ATSC

ATSC

Input Frequency

54-858MHz

Bandwidth

6 M

Constellation

8 VSB

Descrambling

CAM/CI Quantity

2 (per demodulation module)

BISS Mode

Mode 1, Mode E

Output (per demodulation module)

1*MPTS & 16*SPTS over UDP, RTP.

1000 Base-T Ethernet interface (unicast / multicast)

1×ASI mirrored out of MPTS, BNC interface

System

Remote management

Web-server Management

Language

English

Upgrade

web management

Miscellaneous

Dimension

482*300*44mm (W×L×H)

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

100~240VAC, 50/60Hz

Power consumption

15W
