JIECANG 29V 6000N DC Motor Bed Lift Mechanism Linear Actuator for Hospital Bed Nursing Bed
- Category: >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (1600484013482):
Product Overview
Description

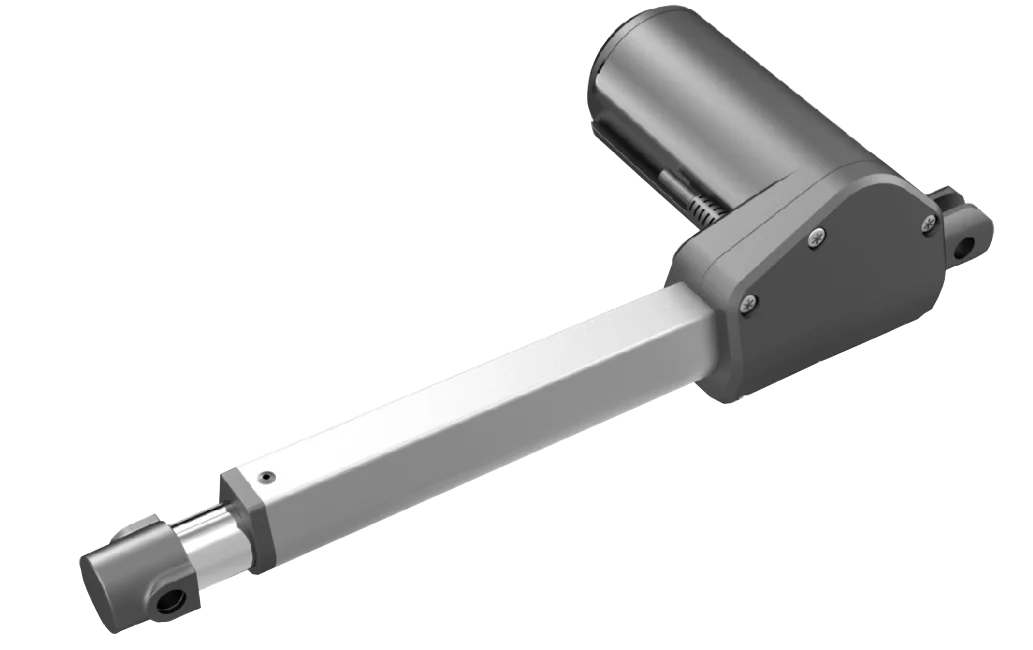

JIECANG 29V 6000N DC Motor Bed Lift Mechanism Linear Actuator for Hospital Bed Nursing Bed
Products Description

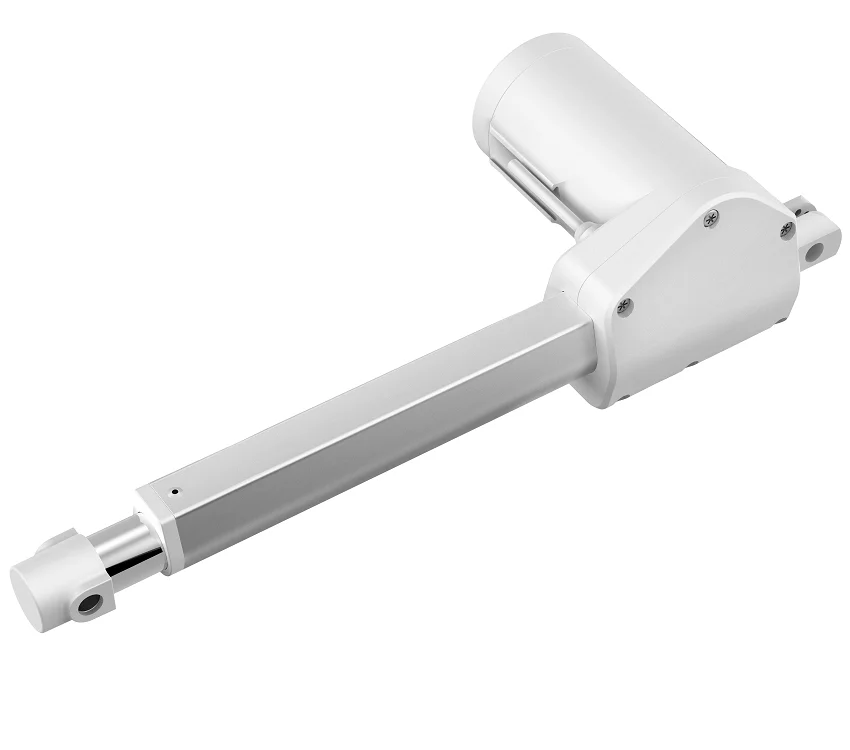

JC35L22 is a compact, powerful and cost-effective actuator. Its low
barriers to entry can enhance the competitiveness of your equipment.
barriers to entry can enhance the competitiveness of your equipment.
General Features | ||
Load in push (N) | 6000 | |
Motor rated voltage Input (VDC) | 29 | |
Stroke length: | 6000N: 50-200mm (in steps of 4mm) | |
Colour: | Grey (RAL 7035) / Black (RAL 9005) | |
Limit Switch: | Built-in (electrical) | |
Noise level: | ≤45dB (environmental noise≤35dB) | |
Static bending moment: | Lateral load is not allowed | |
Duty cycle: | 10%, max. 2min. continuous use | |
Max IP grade: | IPX4 | |
Options: | Signal switch, Hall sensor, Only push | |

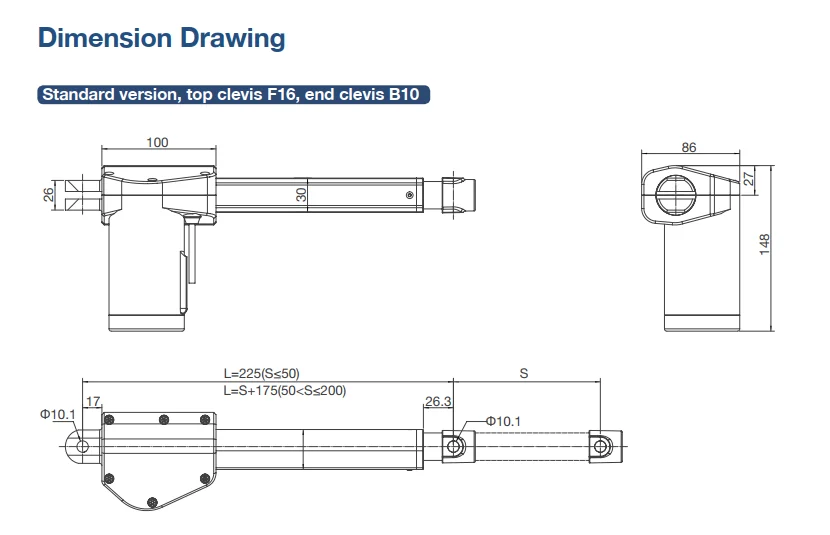

Dimensions
Company Profile
FAQ
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
