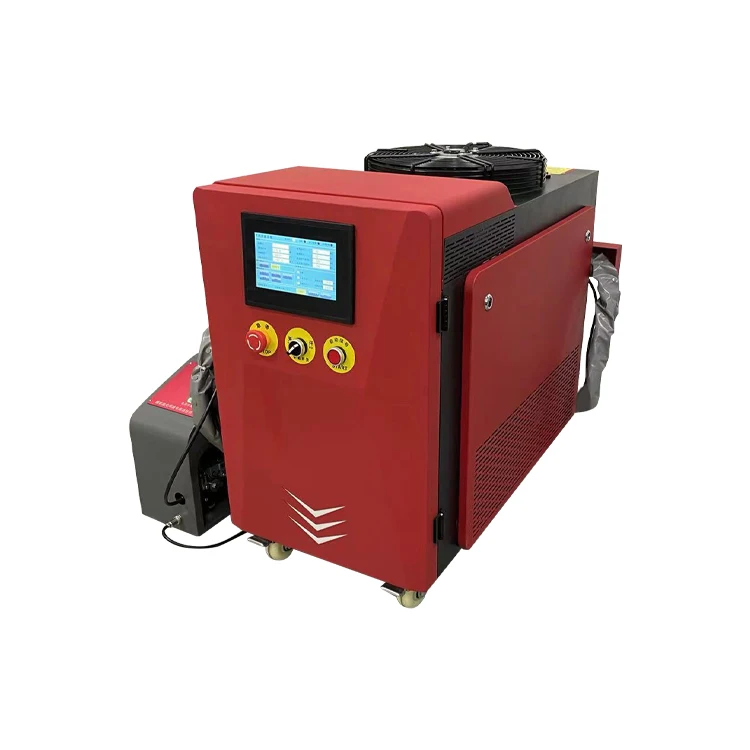

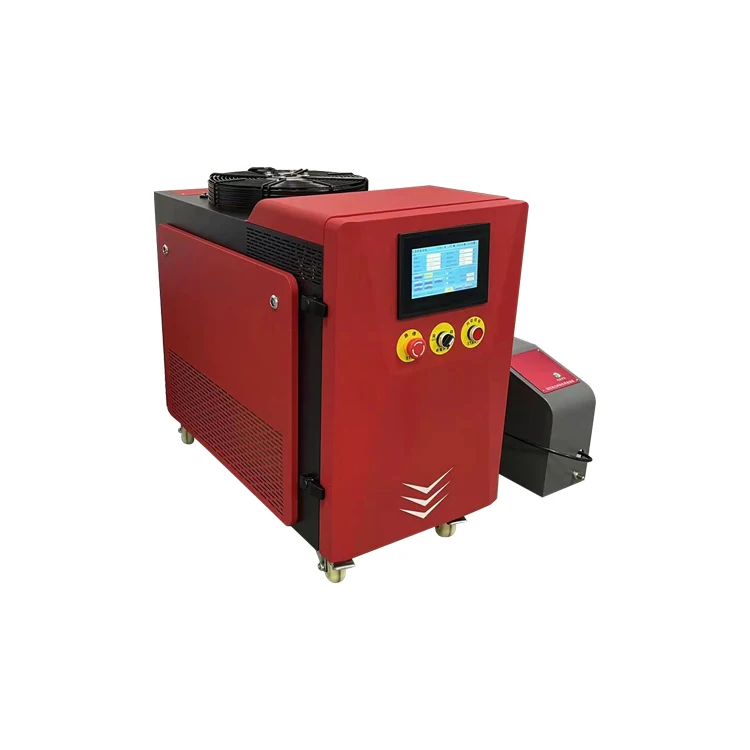

1500w 2000w pipe weld aluminium welding prices stainless steel fiber laser welding machine laser welders
- Category: Laser Welders >>>
- Supplier: Huizhou Yunchuang Laser Technology Co. Ltd.
Share on (1600484053959):
Product Overview
Description
Product Description
The machine uses a super three-in-one pair of swing, which can be used for welding, cut, cleaning, suitable for a variety ofuse
scenarios to meet the needs.The system is stable and reliable, it has simple operation, beautiful welding,fast welding speed,and avoids the advantages of maintaining no consumables, adapting to various complex environments.
Welding on metal materialssuchasstainless steel plates, iron plates, galvanized plates, aluminum plates, can perfectly replace theconventional argonarcwelding and electrical welding.
Handheld laser welding machines can be widely used in cabinets, kitchen, stairs, elevators,shelves,oven,stainless steel doors and windows, distribution boxes, stainless steel home and other industries, and comple irregular welding processes.
scenarios to meet the needs.The system is stable and reliable, it has simple operation, beautiful welding,fast welding speed,and avoids the advantages of maintaining no consumables, adapting to various complex environments.
Welding on metal materialssuchasstainless steel plates, iron plates, galvanized plates, aluminum plates, can perfectly replace theconventional argonarcwelding and electrical welding.
Handheld laser welding machines can be widely used in cabinets, kitchen, stairs, elevators,shelves,oven,stainless steel doors and windows, distribution boxes, stainless steel home and other industries, and comple irregular welding processes.
Features:
1, Energy, pulse width, frequency can be widely adjusted, achieving different welding effects.
2, Laser energy density is high, low thermal input, low thermal deformation, deep insertion.
3. Laser welding saves the electrodes to reduce daily maintenance costs and improve work efficiency.
4, The weld is flat, beautiful, no need for welding treatment.
5, High power stability, high reliability, long life.
6, The laser is transmitted by fiber, and can be used with the pipeline or robot.
Advantages:
High output power, superior light beam quality, fast welding speed, low heat affected zone, low power
consumption,lowmaintenance,can be used for welding, cutting, cleaning three-in-one function.
2, Laser energy density is high, low thermal input, low thermal deformation, deep insertion.
3. Laser welding saves the electrodes to reduce daily maintenance costs and improve work efficiency.
4, The weld is flat, beautiful, no need for welding treatment.
5, High power stability, high reliability, long life.
6, The laser is transmitted by fiber, and can be used with the pipeline or robot.
Advantages:
High output power, superior light beam quality, fast welding speed, low heat affected zone, low power
consumption,lowmaintenance,can be used for welding, cutting, cleaning three-in-one function.
Technical parameter
model | YC-SH1500 |
Rated output | 1500W |
Working mode | Continuous/modulation |
Output power adjustment range | 10-100 |
Maximum modulation frequency | 20kHz |
Working voltage | 220 v + 10%, 50/60 hz |
laser welding gun | Three-in-one pair (welding, cutting, string) |
The laser wavelength, | 1060-1080nm |
Welding spot swing range | 0. 2 mm-5mm |
Cleaning spot swing range | X axis width 135mm Y height 50mm |
Collimating lens | D20 F=50mm |
Welding focusing mirror | D30 F=150mm |
Cleaning focusing lens | D30 F=500/F400mm |
To protect the lens | D30X5mm |
Cooling way | Water cooling or air cooling |
Guard gas (nitrogen or argon) flow | 10L/Min |
Machine power | <6000W |

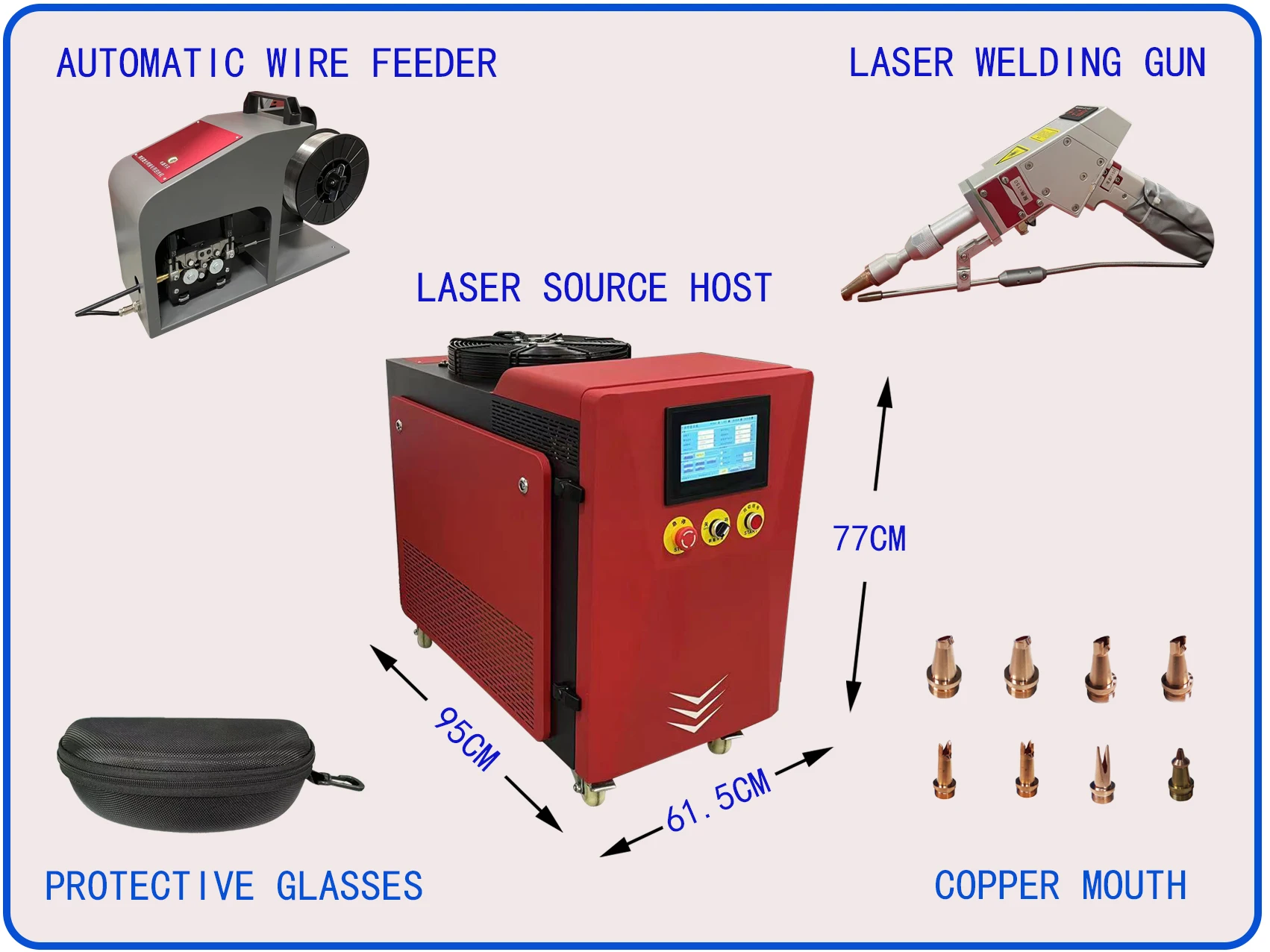

The machine specifications | Length 95cm* width 61.5cm* height 77cm |
The weight | 130KG |
Detail Introduction

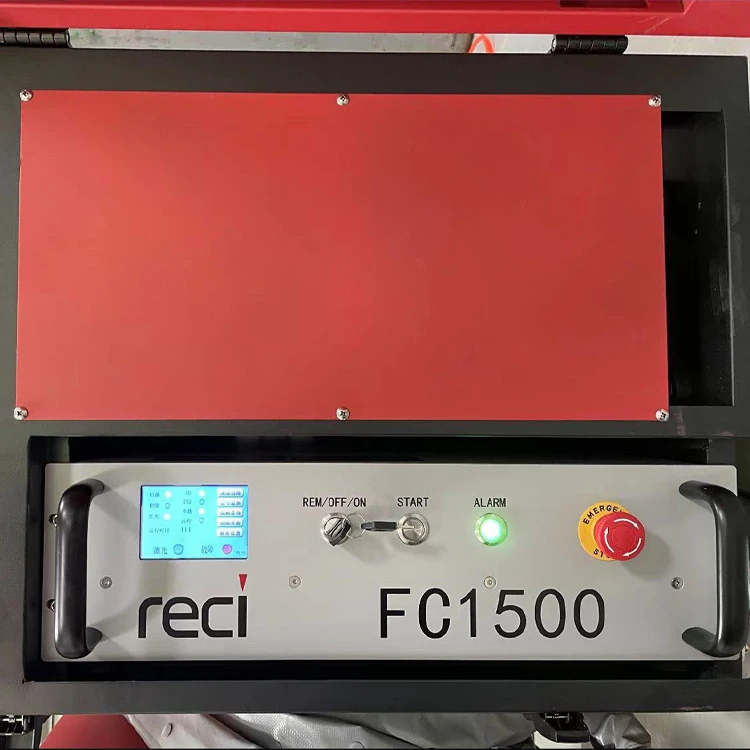

Laser sourc

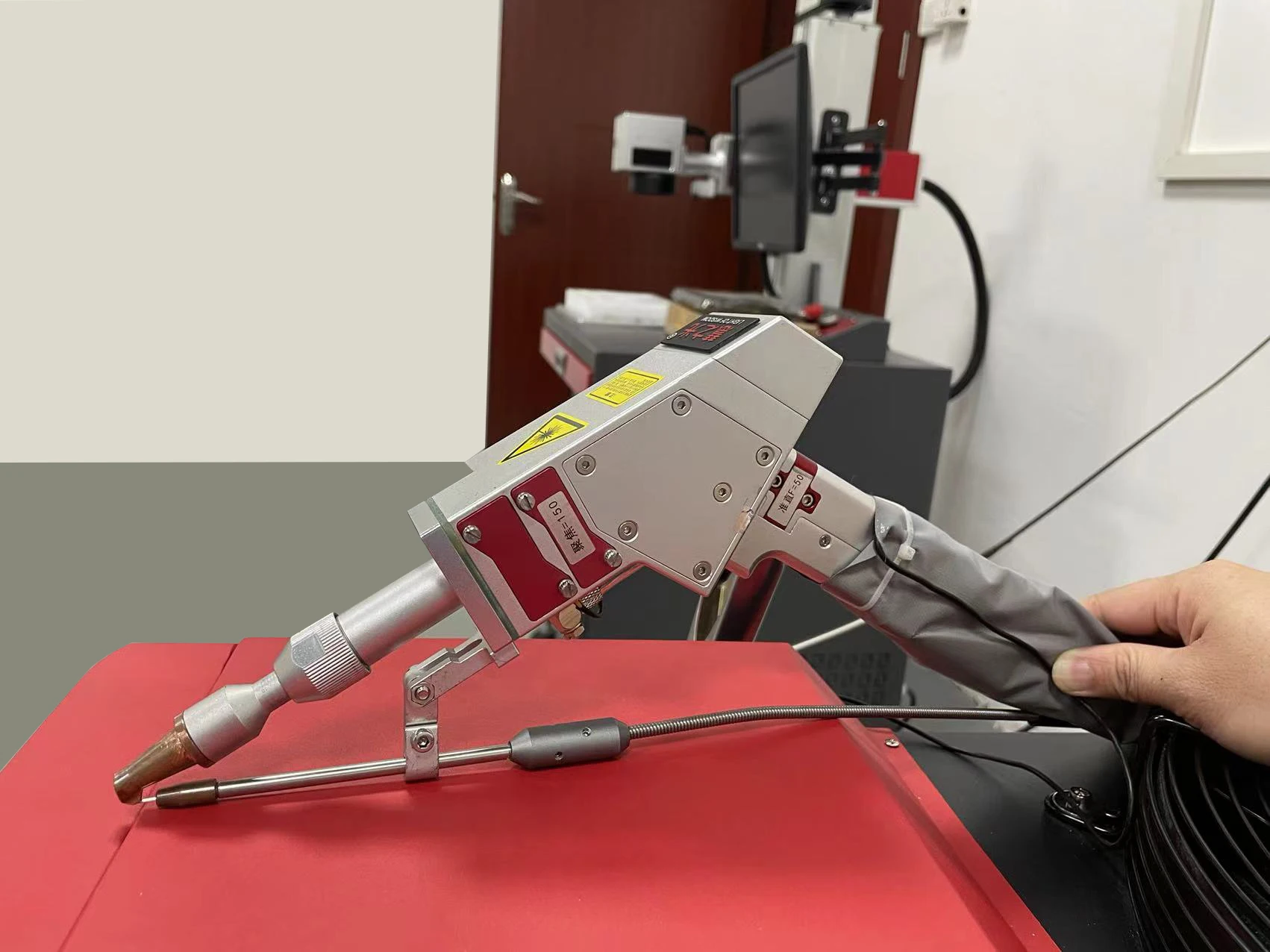

Laser welding gun
used for cutting and cleaning, and is a three-in-one pair.

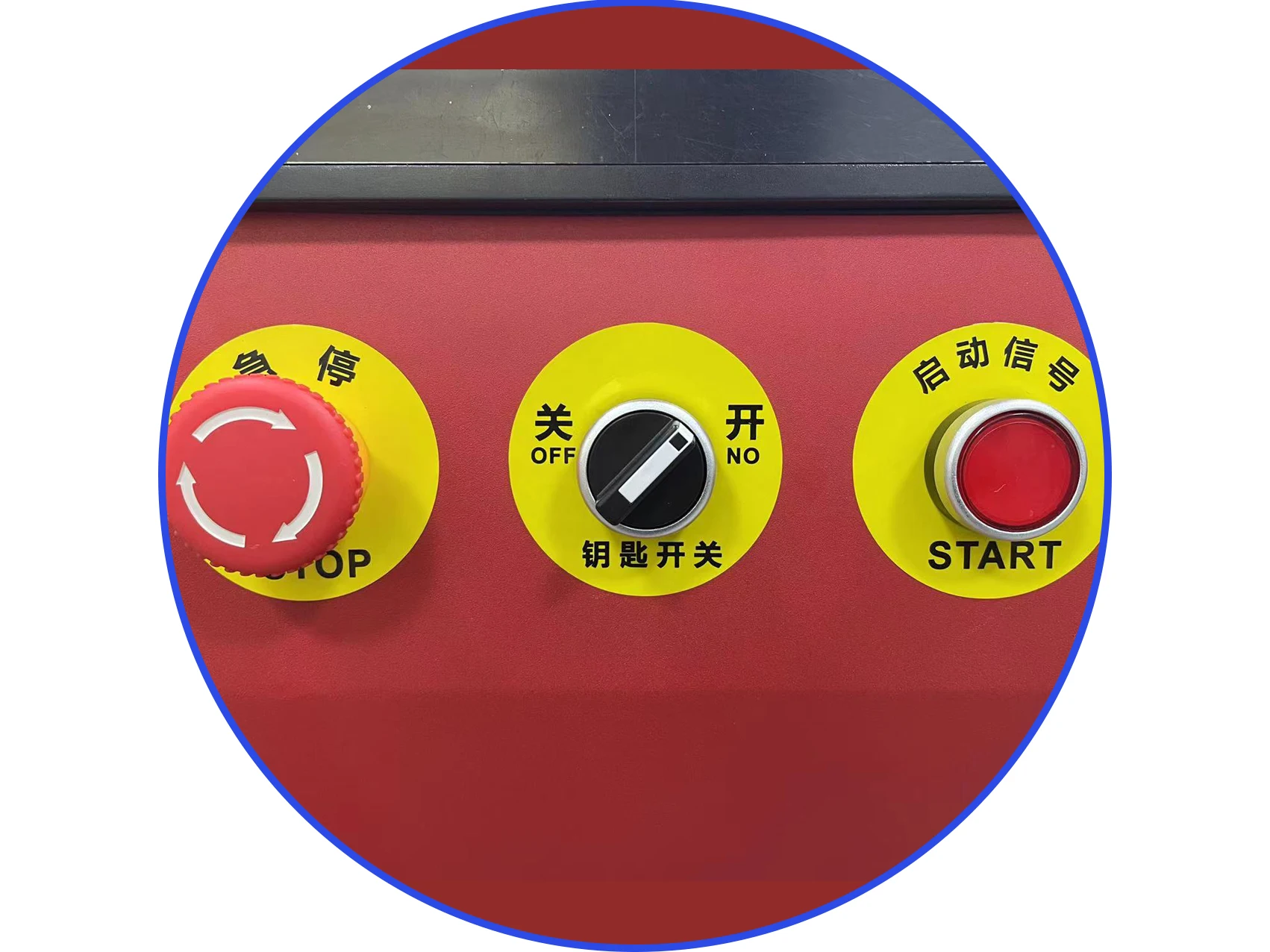

Control panel
device.

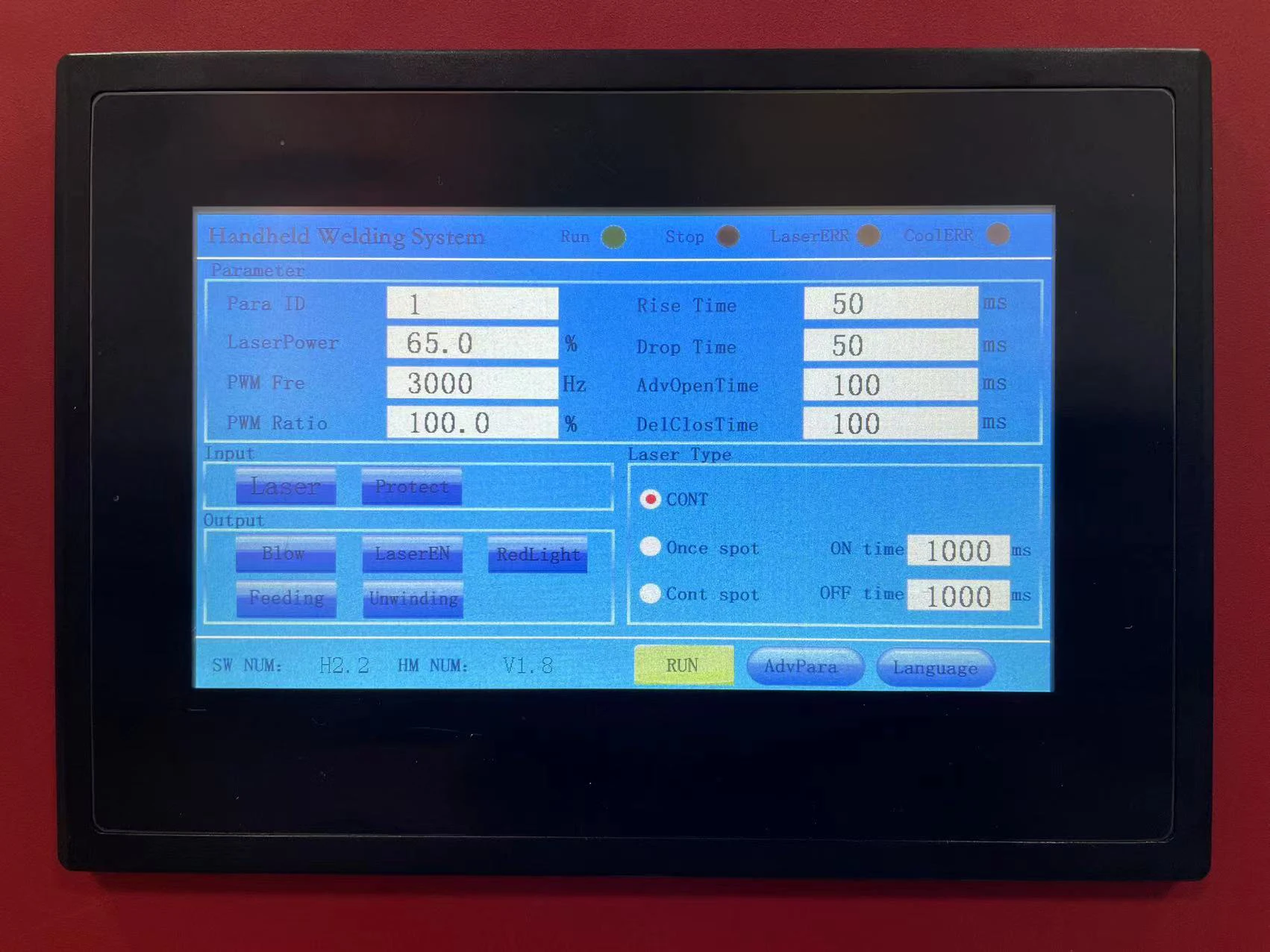

Control system
Set corresponding parameters
according to different materials to achieve the best welding effect.
according to different materials to achieve the best welding effect.

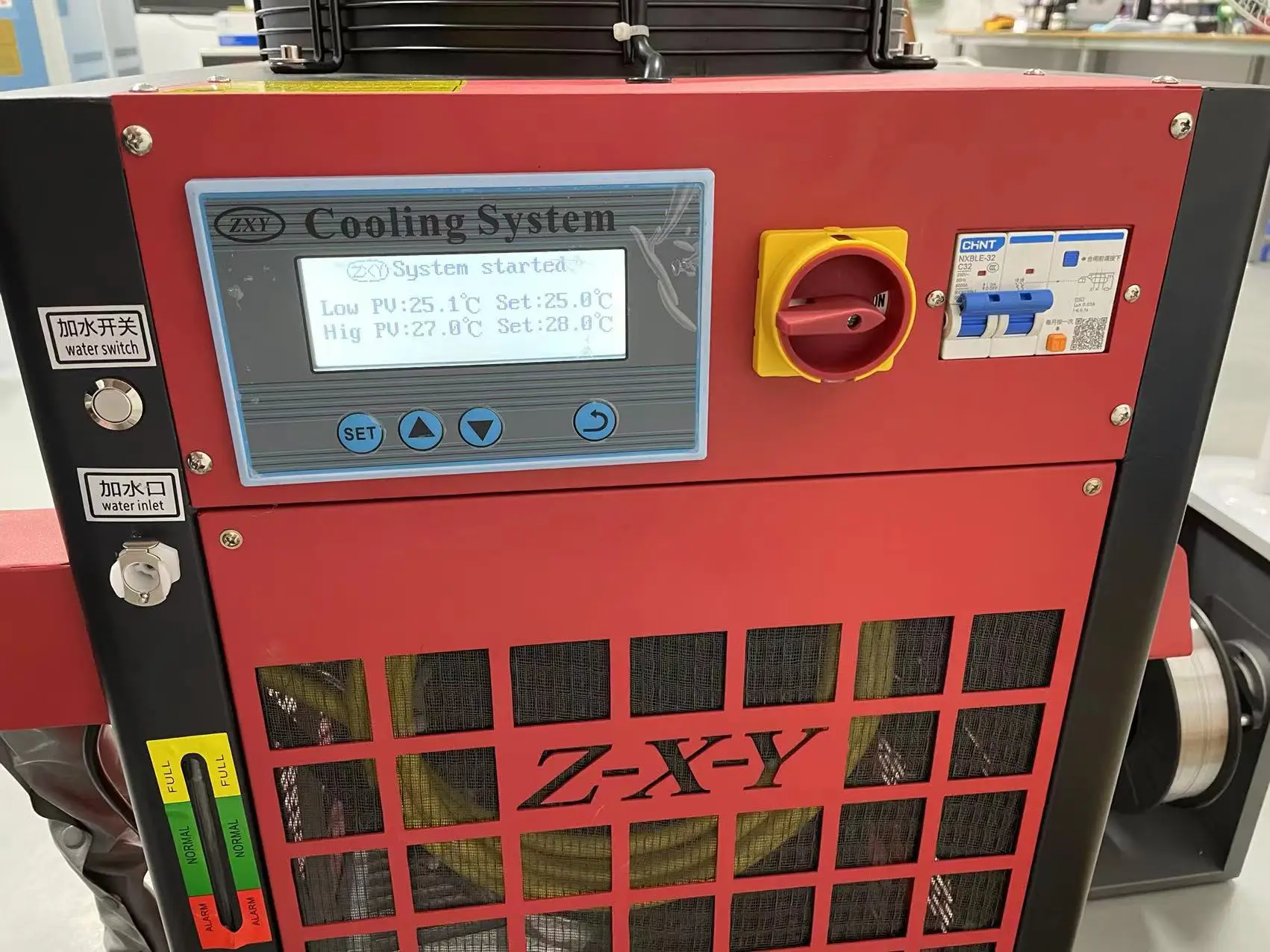

Chiller

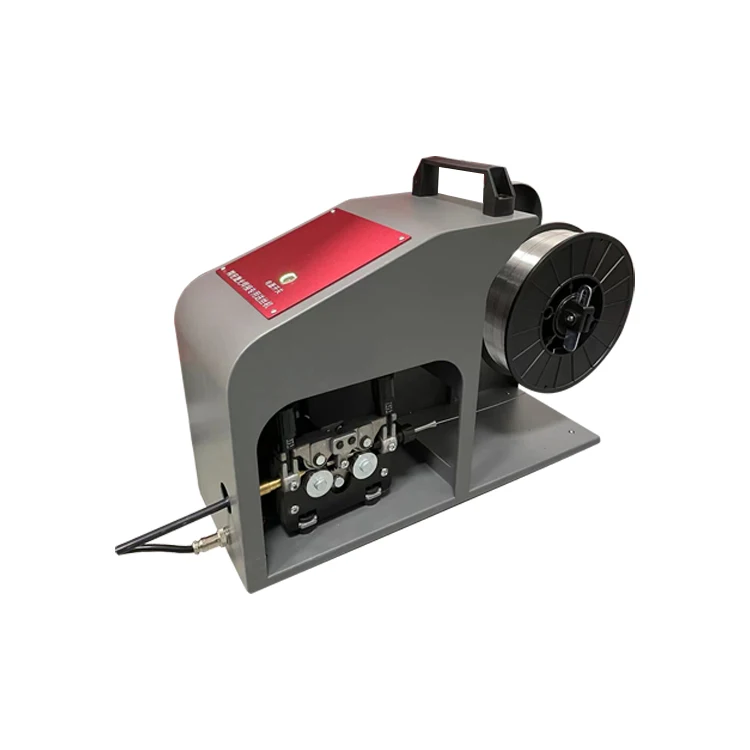

options It can effectively make up for the welding seam produced in the welding process and make the welding joint more tightly.

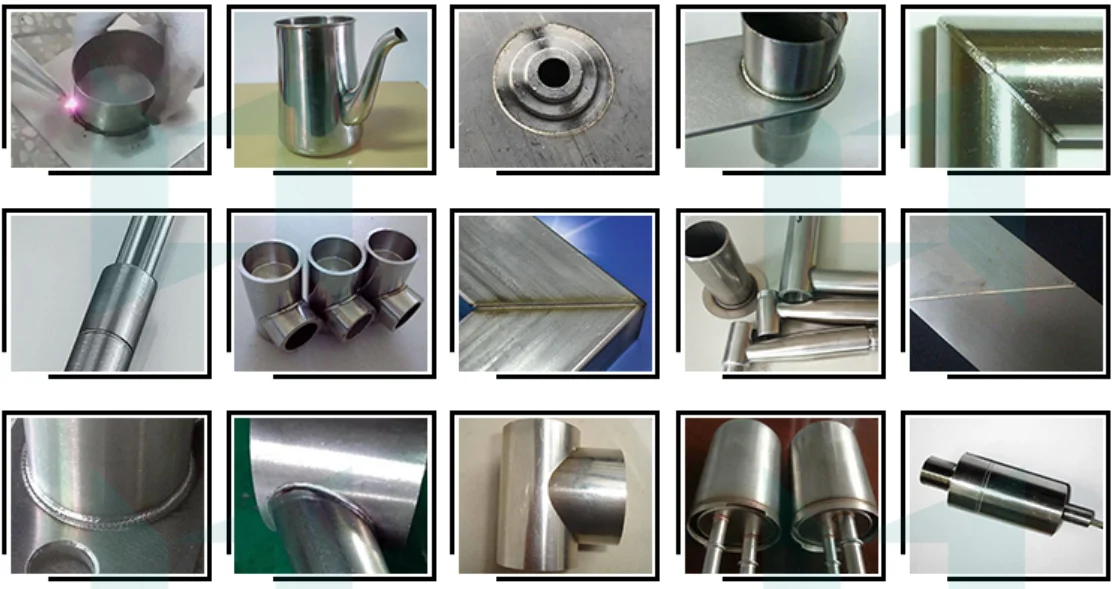

Welding sample
Packaging & Delivery
Standard transport wooden box, internal filling sponge to protect equipment
Packing Size:105*80*87cm
Net Weight:130KG
Gross Weight:150KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, toensure product quality!
Net Weight:130KG
Gross Weight:150KG
All equipment before delivery, after 100% aging test, ensure the function, reliable, security and durability of the product, toensure product quality!
