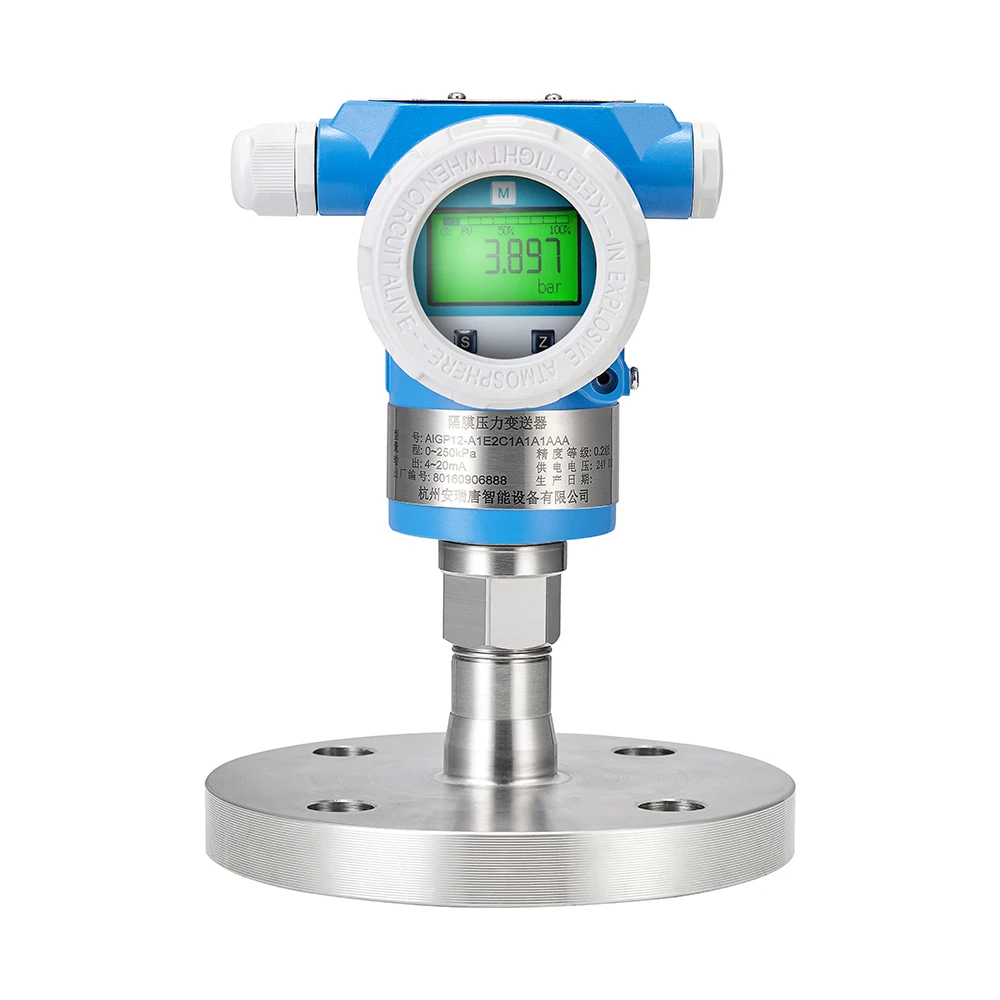

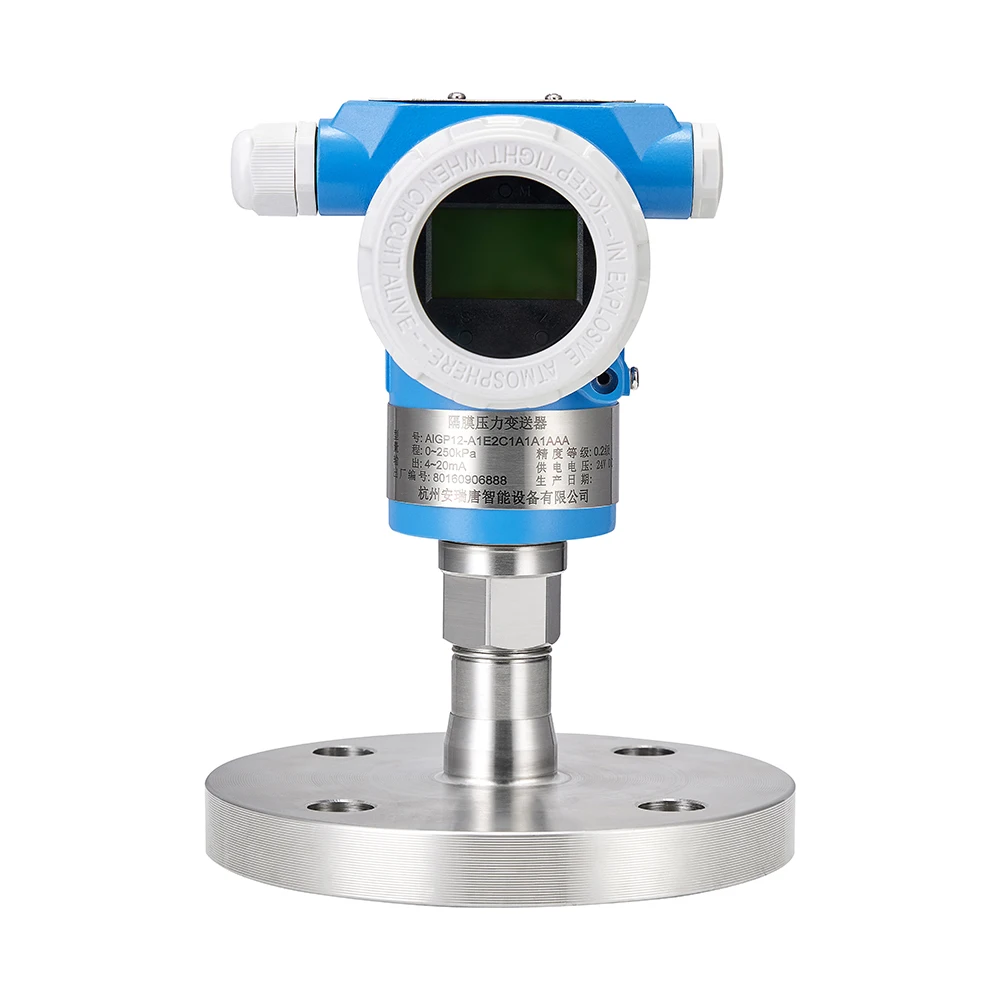

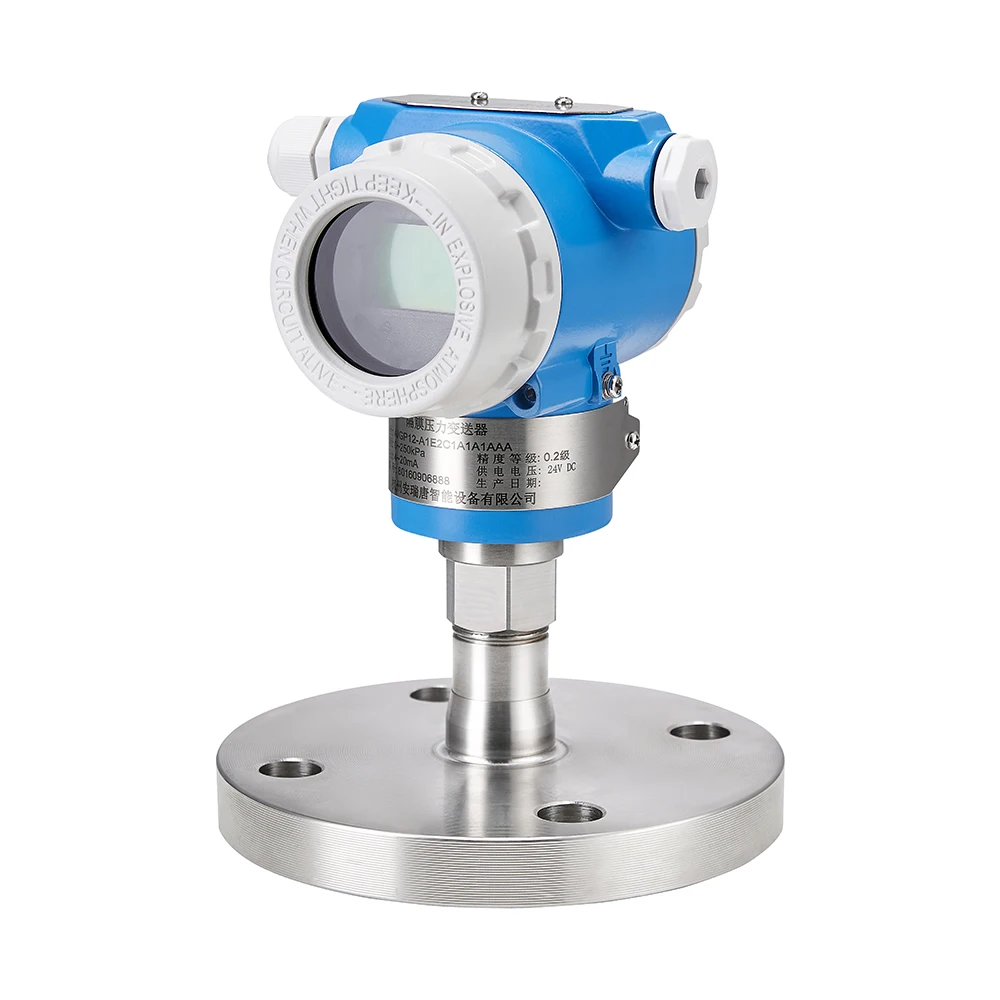

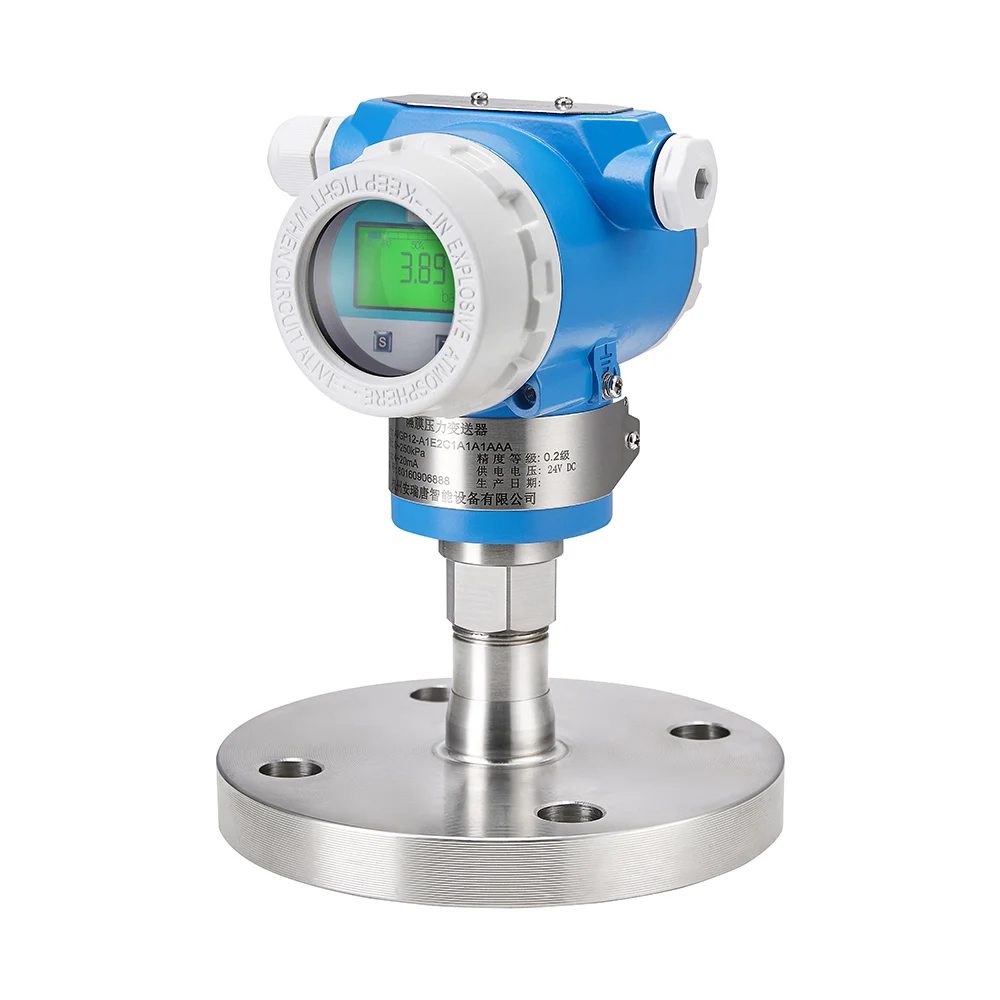

IP67 Explosion Proof 0 700 Bars 4 20ma Measuring Air Oil Water Level Compact Flange Monitor Absolute Pressure Sensor Transmitter
- Category: Pressure Measuring Instruments >>>
- Supplier: Hangzhou Jingtu Technology Co. Ltd.
Share on (1600484184185):
Product Overview
Description
Products Description
Model Number | AEG/AEA16 |
Application | Absolute Pressure, Gauge Pressure |
Process Connection | Thread or Flange |
Measuring Range | 0~40 Mpa |
Overload Pressure Limit (OPL) | max 70 Mpa |
Process Temperature | -40℃ ~ 315℃ |
Ambient Temperature | -40℃ ~ 85℃ or -20℃ ~ 70℃(with LCD) |
Accuracy | ± 0.2% URL or ± 0.1% URL or ± 0.075% URL(optional) |
Power Supply | 10 ~ 32 VDC |
Current Output | 4~20mA or 4!20mA+HART or MODBUS RS485 |
Certificate | CE |
Explosion-proof Certification | NEPSI |
Protection Grade | IP67 |
Features：

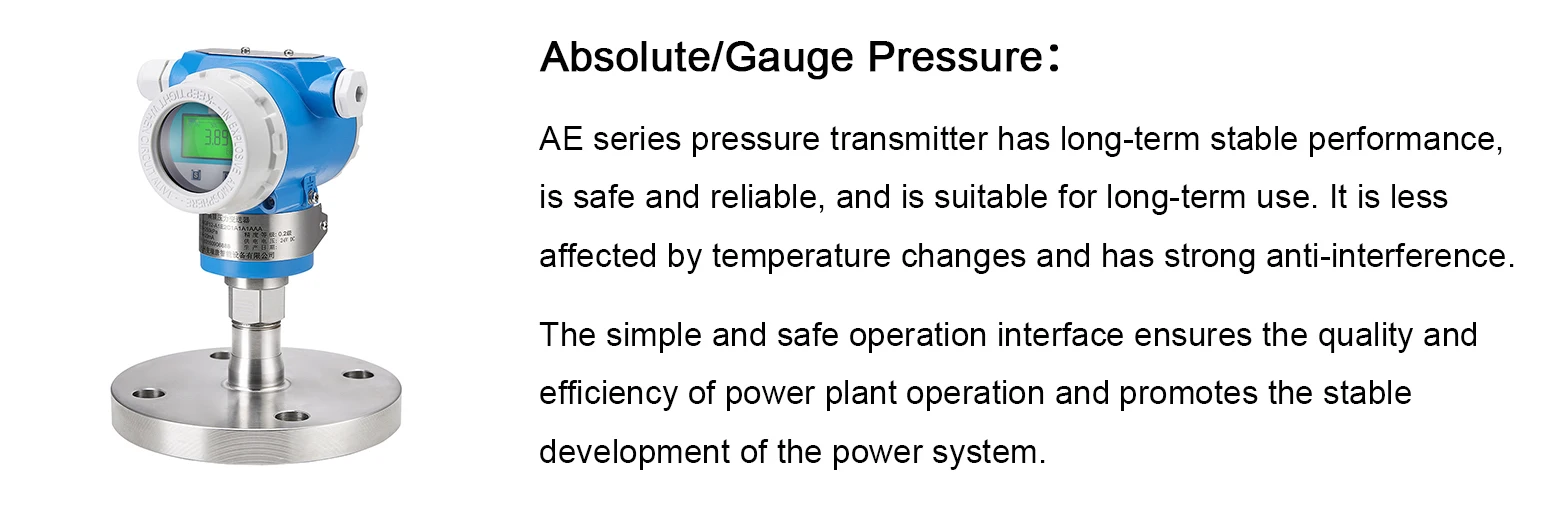

● Smart pressure transmitter for measuring pressure, level, etc.
● All welded metal diaphragm sensor.
● Threaded connection, compact. structure design, saving installation cost.
● Intuitive menus greatly simplify commissioning.
● All welded metal diaphragm sensor.
● Threaded connection, compact. structure design, saving installation cost.
● Intuitive menus greatly simplify commissioning.
Application：

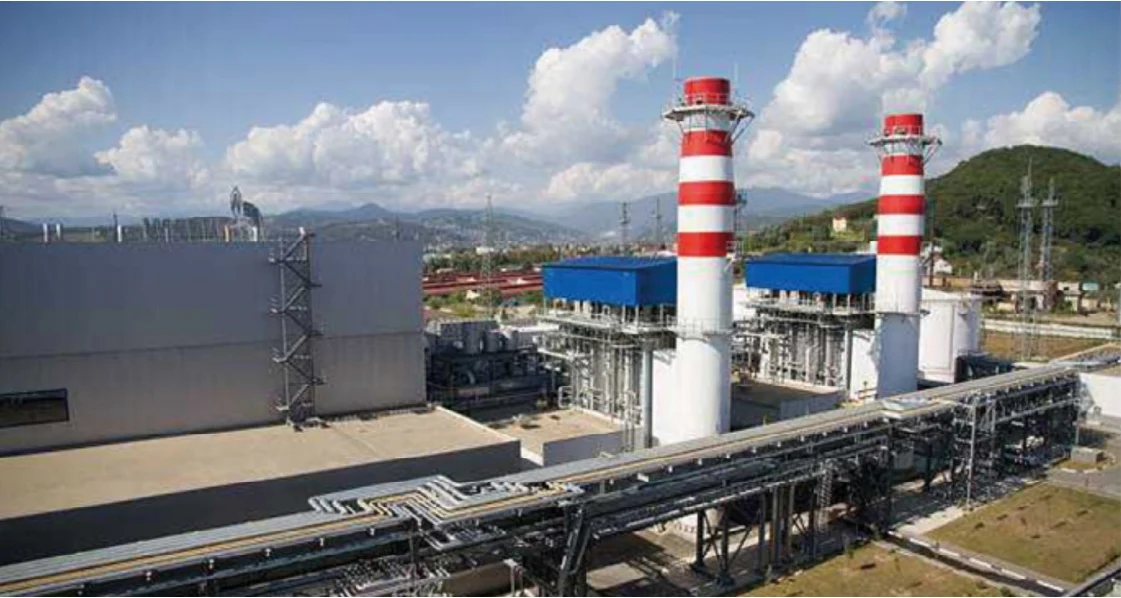

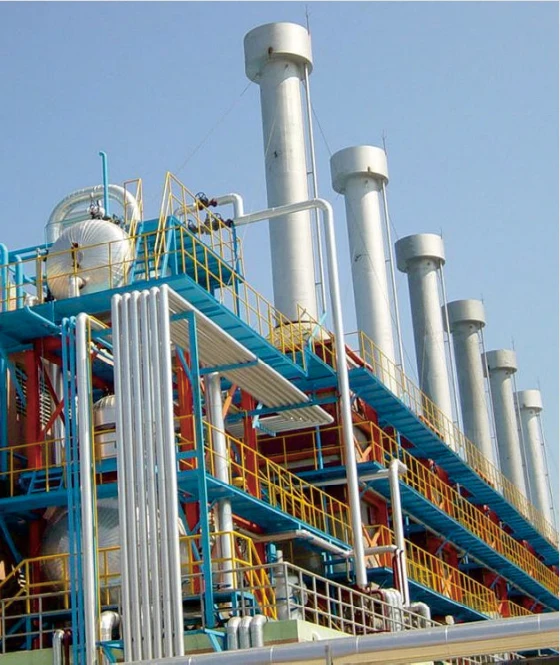

Typical Application - Pressure Measurement in Power Station Boiler:
The pressure transmitter is used to measure the pressure parameters of each part of the boiler, and transmit the signal to the PLC for display and control. Pressure transmitters provide support and guarantee for the control, use and safe operation of power station boilers.
The pressure transmitter is the main instrument used for the pressure parameter measurement and signal transmission of the boiler, we provide a variety of diaphragms (316L, AlloyC) and a variety of measurement methods (pressure, differential pressure, flow measurement) to ensure the stable and efficient operation of the boiler.
What We Have to Know before Quotation?
In order to purchase pressure transmitter accurately, please confirm the following parameters in advance:
● The temperature & pressure: different process environments require different standards.
● The connection method: such as flange, clamp, threaded.
● The medium: such as sludge, water, sewage, acid, alkali, ammonia, brine, sea water, sulfuric acid.
