Customized high brightness lcd screen 7.0 Inch 800x480 RGB 50pin TFT LCD module with lower price
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (1600484185397):
Product Overview
Description
Customized high brightness lcd screen 7.0 Inch 800x480 RGB 50pin TFT LCD module with lower price
Function Feature:
1. 800x480 7 inch tft lcd with RGB interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.
4. Application: Automotive display, Digital phone frame, Netbook PC, Tablet & Pad, MID UMPC
1. 800x480 7 inch tft lcd with RGB interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.
4. Application: Automotive display, Digital phone frame, Netbook PC, Tablet & Pad, MID UMPC

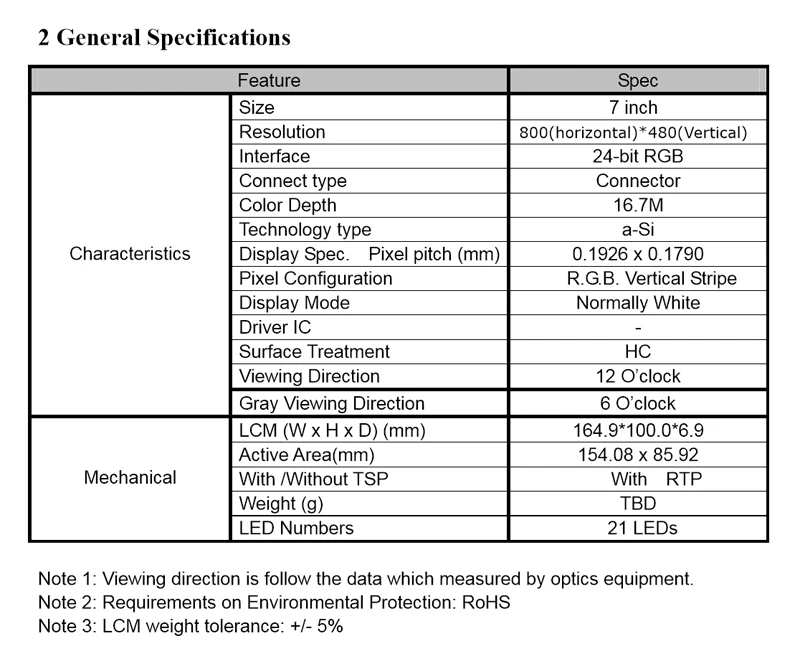

Product Paramenters
Manufacturer | |
Model Name | W070P50S1RN |
Screen Size | 7.0 inch |
Screen Type | LCM, a-Si TFT-LCD |
Pixel Number | 800(RGB)×480 , SVGA |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 154.08(W)×85.92(H) mm |

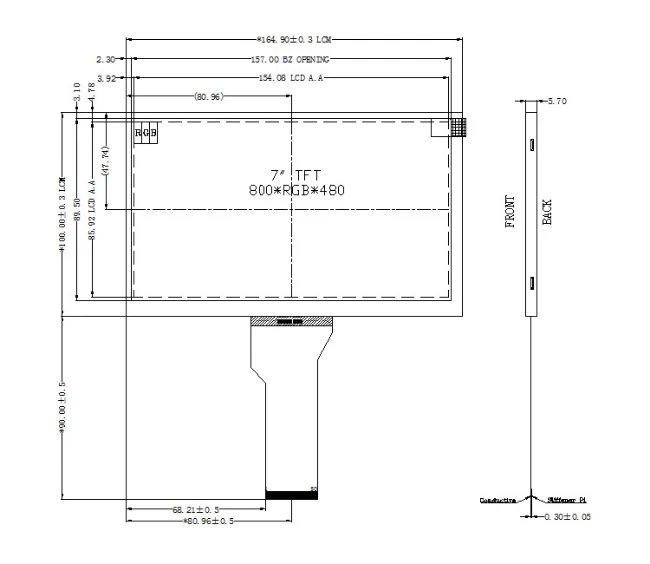

Outline(mm) | 164.9(W)×100(H) ×5.1(D) mm |
Bezel Area(mm) | 156.7(W)×89.1(H) mm |
Treatment | Anti-glare |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down |
Response | 25 (Typ.)(Tr/Td) ms |
Good View at | 6 O’CLOCK |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K , 50% NTSC |
Backlight | 3S9P WLED , 20K hours ,No Driver |
Net Weight | 154.0g (Typ.) |
Used for | Industrial Application |
operating frequency | 60Hz |
Touchscreen | without |
Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins , FPC |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
Package | 530×355×255 mm |

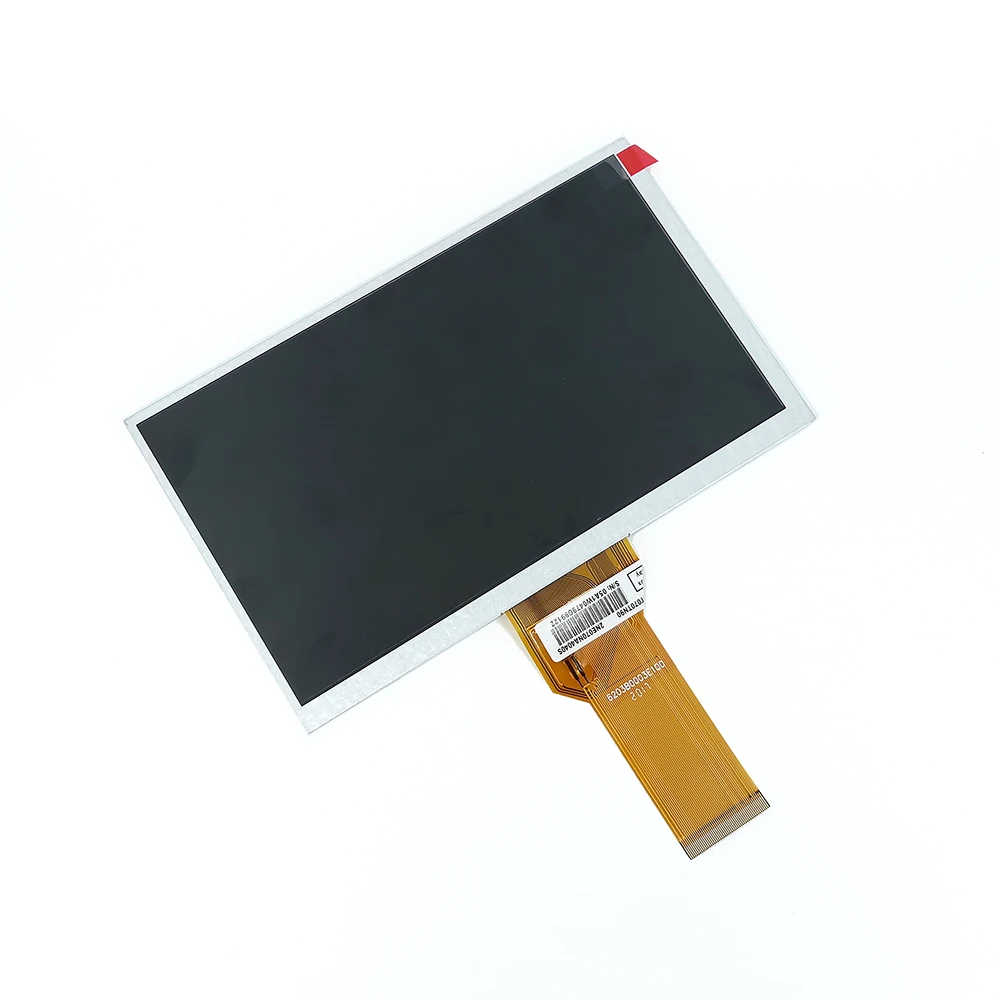

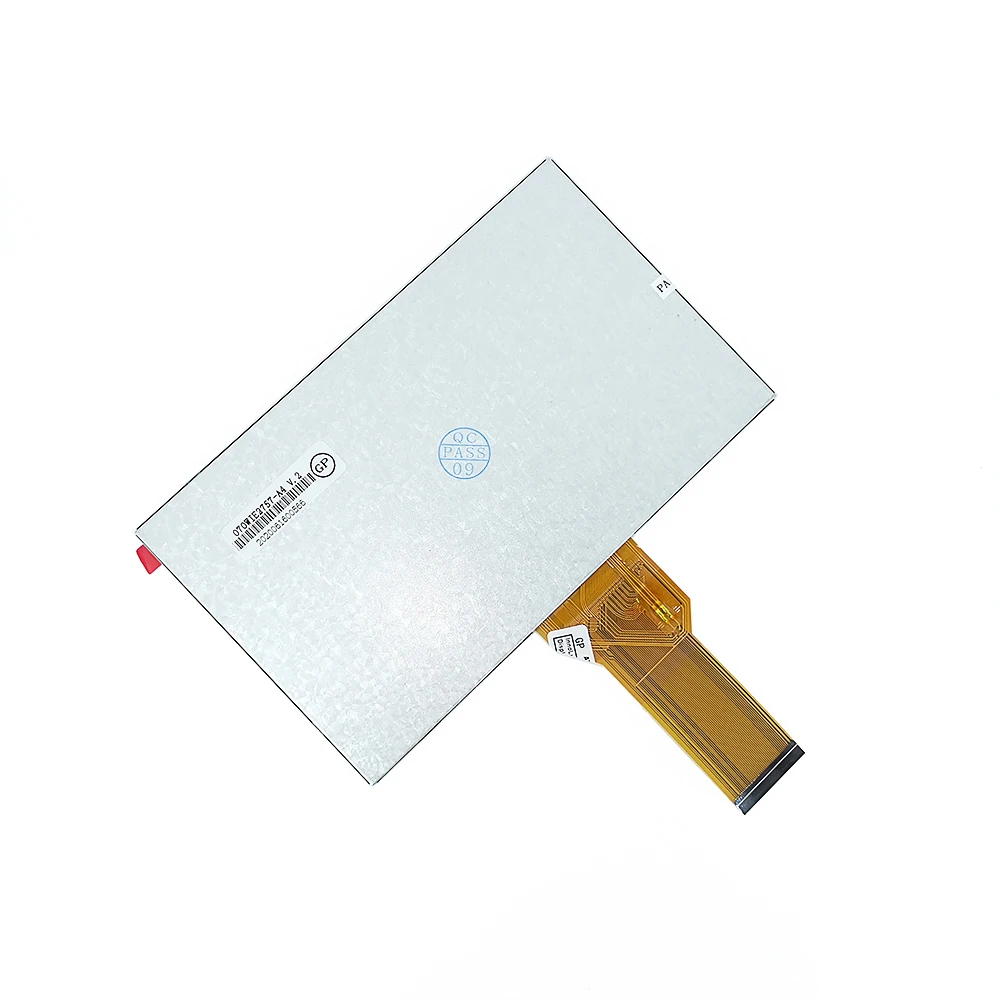

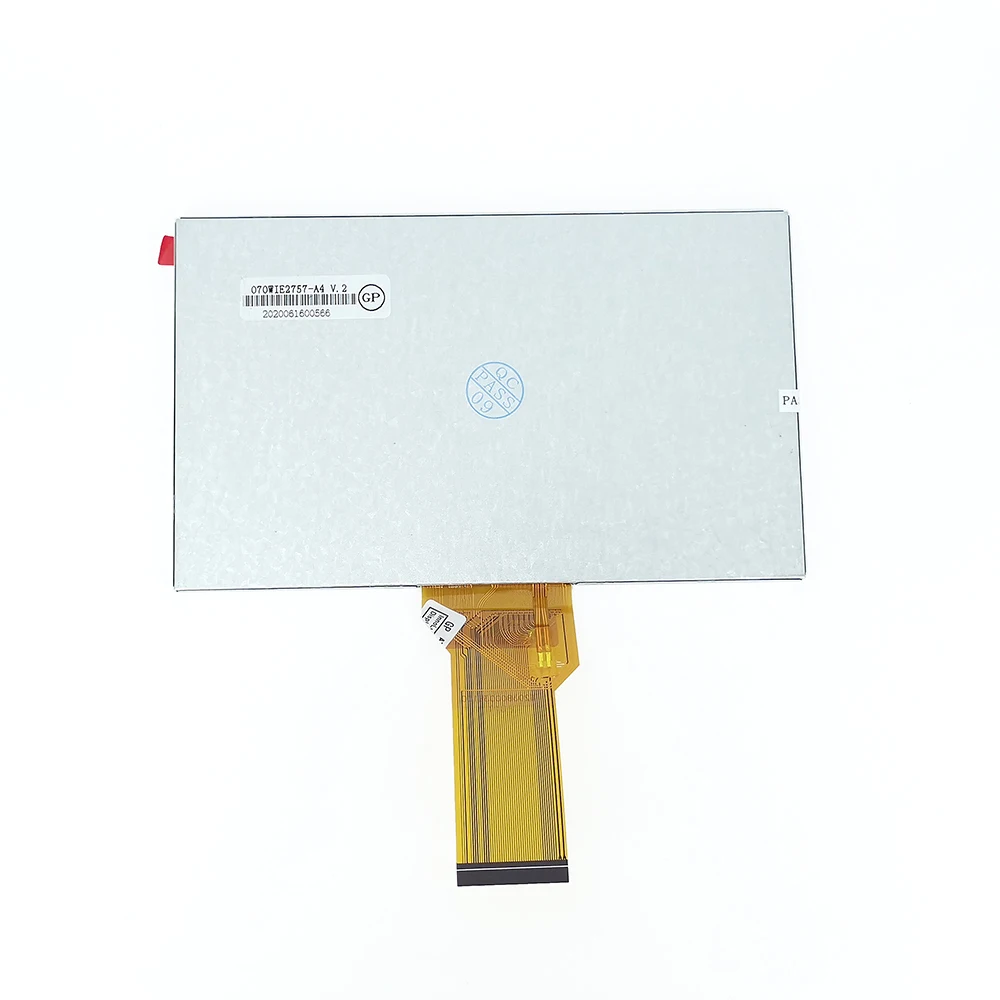

Details Images
Customized high brightness lcd screen 7.0 Inch 800x480 RGB 50pin TFT LCD module with lower price
Customized high brightness lcd screen 7.0 Inch 800x480 RGB 50pin TFT LCD module with lower price
Size and Feature | Model No | Resolution | Interface | Brightness | Viewing angle | Touch Screen |
0.96 inch OLED LCD Screen | MC096VX | 128x64 | IIC | 350 | All | nc |
1.54 inch LCD Screen | W015P18S1SI | 128128 | SPI | 200 | 6 O'clock | NC |
2.0 inch Sunlight readable IPS | W020P18S1SI | 240*320 | 4SPI+16-bit RGB interface | 1000 | All | Optional |
2.4 inch LCD Screen | W024P40S1RN | 240*320 | 8,9,16,18-bits MPU / 6,16,18-bits RGB / | 180 | 6 O'clock | Optional |
2.4 inch Sunlight Readable IPS | W024P37S1CI | 240*320 | 16-bits MPU | 200 | All | Optional |
2.8 inch IPS LCD Screen | W028P37S1CI | 240*320 | i80-system 8/16/18-bit MCU /SPI interface | 400 | All | Optional |
2.8 inch IPS LCD Screen | W028P37S1SI | 240*320 | 4-lines_8bit / 3-lines_9bit SPI | 200 | 12 O'clock | Optional |
3.2 inch LCD Screen | W032P37CR | 240*320 | MPU 8 / 16 bit | 160 | 6 O'clock | Optional |
3.34 inch' Round LCD Screen | W034P17MI | 320*320 | MIPI | 600 | 12 O'Clock | Optional |
3.4 inch Round With Driver Board | W034P17MIB | 800*800 | MIPI 3 lane | 350 | All | Optional |
3.5 inch LCD Screen | W035P54RN | 320*240 | 24BIT RGB+SPI | 290 | 12 O'Clock | Optional |
3.5 inch IPS LCD Screen | W035P54RI | 320*480 | RTB MPU 16-bit | 230 | All | Optional |
3.5 inch Sunlight Readable IPS | W035P54RI | 320*480 | 16-Bit MCU | 1000 | All | Optional |
3.5 inch Sunlight Readable IPS | 480*640 | SPI + RGB interface | 120 | All | Optional | |
4.3" | 480*272 | 24 BITS RGB | 280 | 12 O'Clock | Optional | |
4.3" IPS | 480*800 | 3-wire/4-wire SPI + RGB interface | 300 | All | Optional | |
4.3" Sunlight readable | 480*272 | 24-Bit RGB 8-Bit RGB | 800 | 12 O'clock | Optional | |
4.82'' Bar type | 480*1120 | MIPI DSI | 280 | All | Optional | |
5.0" OLED | 1080*1920 | MIPI-4 Lanes | 380 | All | Optional | |
5.0" Sunlight Readable With Driver Board | 800*480 | 24-bit Parallel RGB | 500 | 12 O'Clock | Optional | |
7.0" IPS | 800*1280 | MIPI-4 Lanes | 500 | All | Optional | |
7.0" IPS With Driver Board | 1024*600 | TTL(RGB interface) | 450 | All | Optional | |
7.0" Sunlight readable With Driver Board | 800*480 | 24-bit Parallel RGB Interface | 400 | 12 O'Clock | Optional | |
7.0" Sunlight readable With Driver Board | 800*480 | 24-bit Parallel RGB Interface | 300 | 12 O'clock | Optional | |
7.0" Sunlight Readable With Driver Board | 1024*600 | LVDS | 500 | 12 O'Clock | Optional | |
8.0" IPS | 800*1280 | MIPI 4 LANE | 380 | All | Optional | |
8.0" IPS | 1200*1920 | MIPI | 500 | All | Optional | |
10.1" IPS With Driver Board | 1280*800 | LVDS Interface | 350 | All | Optional | |
10.1" IPS | 800*1280 | MIPI VIDEO MODE | 330 | All | Optional | |
10.1" IPS | 1200*1920 | MIPI | 500 | All | Optional | |
10.1" IPS With Driver Board | 1280*800 | LVDS Interface | 500 | All | Optional | |
10.1" Sunlight Readable IPS | 1280*800 | LVDS Interface | 1000 | All | Optional | |
10.4'' Sunlight readable Bar Type With Driver Board | 1024*100 | TTL(RGB interface) | 950 | All | Optional |
Factory show
Applications

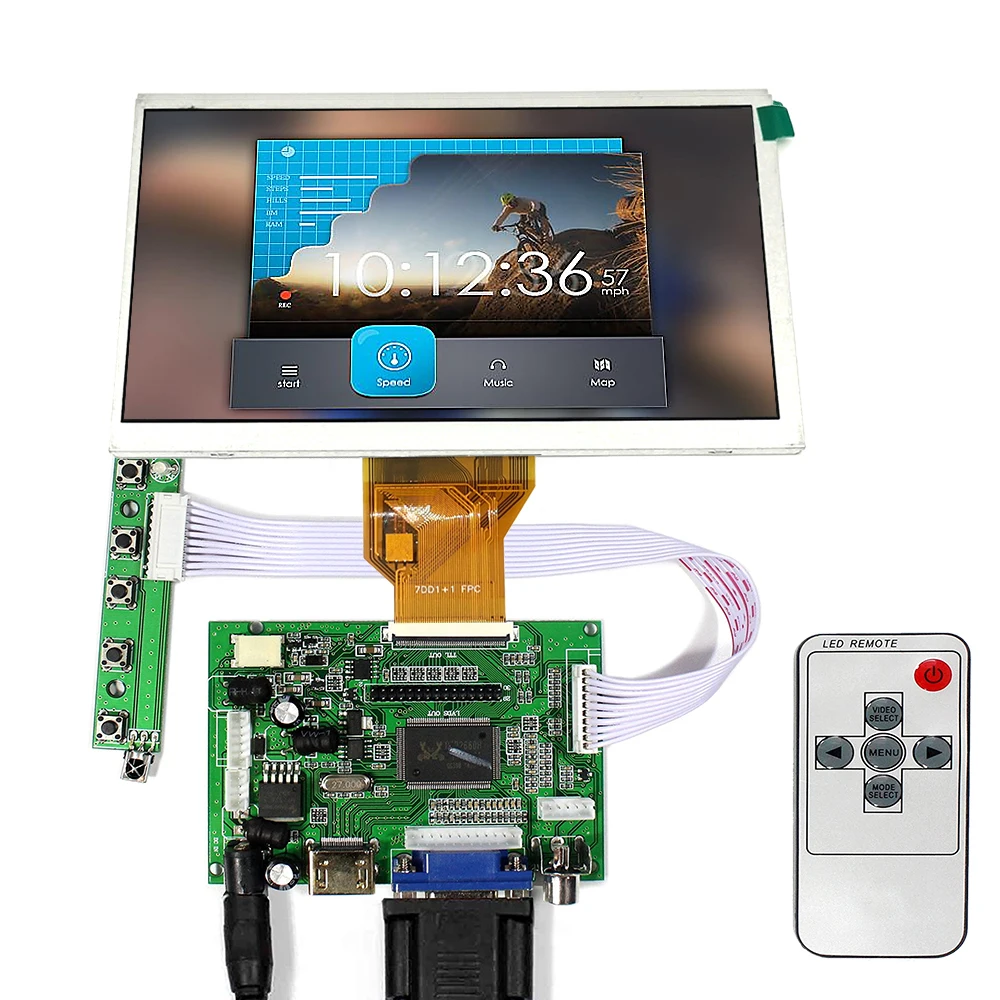

Drive control board Kit
Support resolution：
800*480, 800*600, 1024*600, 1024*768
800*480, 800*600, 1024*600, 1024*768
Signal input：
1. HD MI input x1
2. VGA input x1
3. AV input x1
4. keyboard
Power ：
1. DC 12V input.
Recommend Products
Our Advantages
Provide professional OEM / ODM
Product packaging
Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
