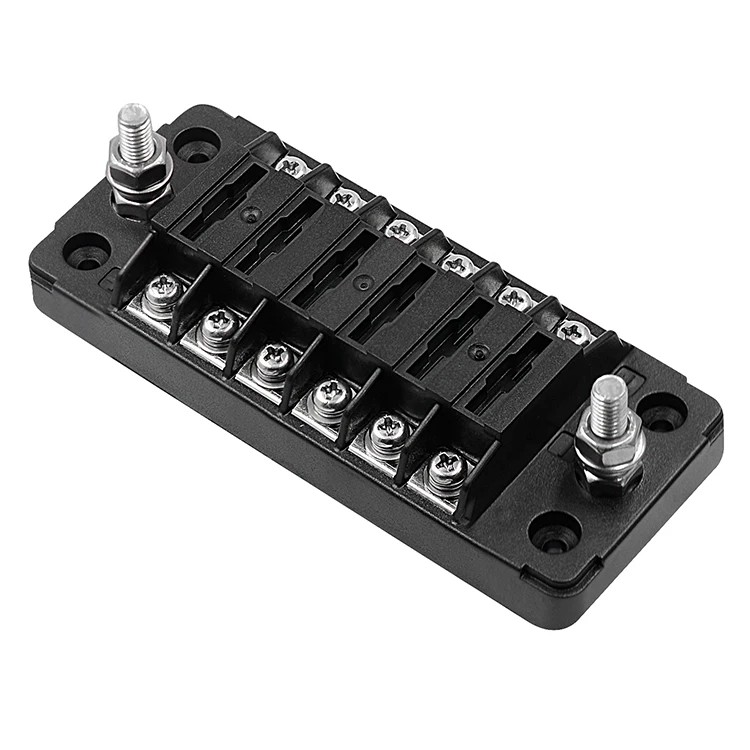

Car Truck RV Universal Independent Positive And Negative Electrodes Multiway Circuit Car Fuse Box With Led
- Category: Fuse Components >>>
- Supplier: Hangzhou Yancheng Technology Co. Ltd.
Share on (1600484272155):
Product Overview
Description
Products Description
Product Name | Long 6-way independent positive and negative fuse box with fuse |
Product Model | ZH-978A1 |
Net Weight | 189G |
Gross Weight | 193G |

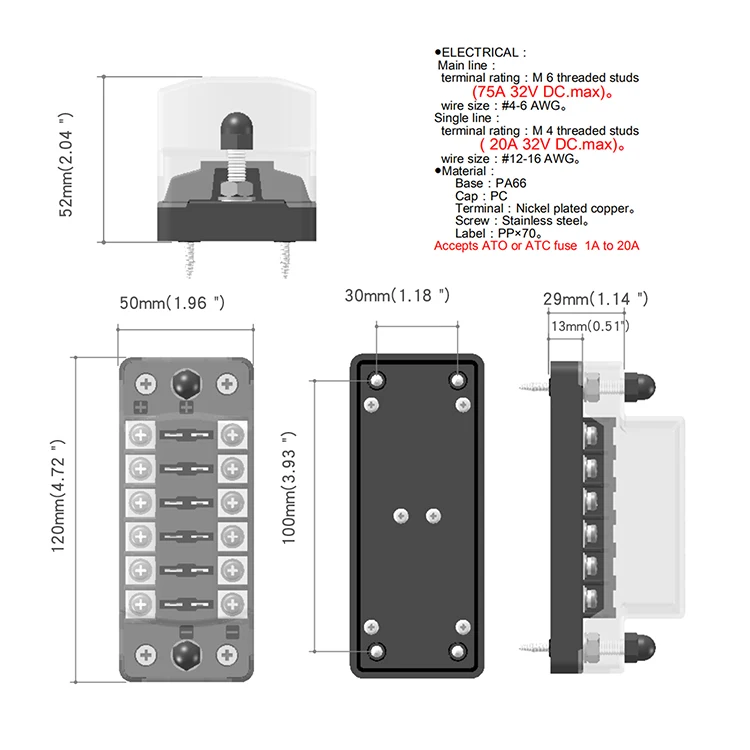

Product Size | 12*5*5.2cm |
Package Size Of Single Product | 18.5*13*5.5cm |
Packaging Method | Standard Pe Bag Packaging (Carton To Be Discussed Separately) |
Input Rated Voltage | 32V |
Input Rated Current | 75A |
Maximum Output Current | 20A For Each Circuit |
Product Material | PA 66 Body, PC Dust Cover, Nickel Plated Copper Terminal Block, Stainless Steel Screw, PP × 70 Stickers |
Main Line Terminal | M6 Threaded Stud (75A 32V DC Max.) |
Main Wire | #4-6AWG |
Single Wire Terminal | M4 Threaded Stud（20A 32V DC Max） |
Single Wire | #12-16AWG Accept ATO Or ATC Fuses From 1A To 20A |

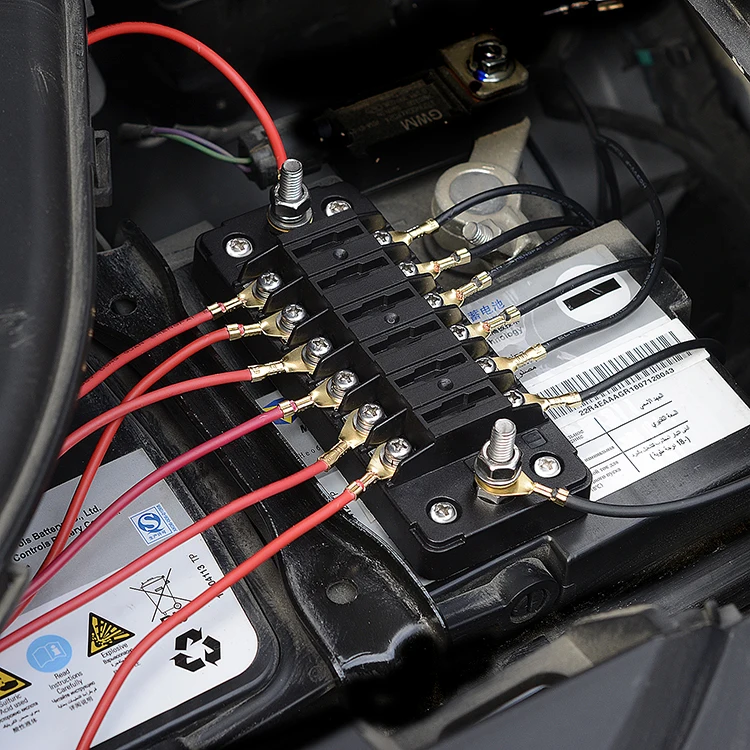

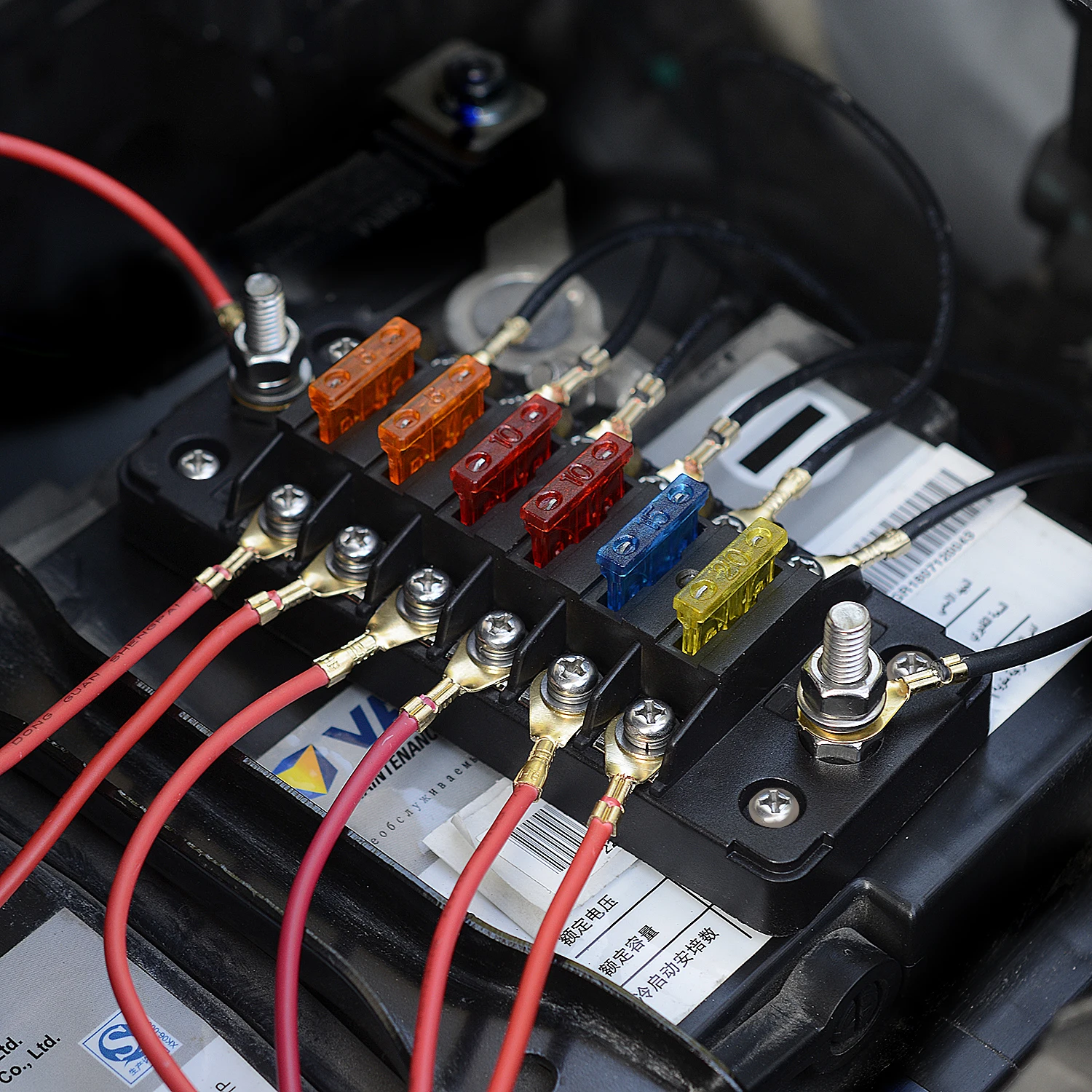

Installation Scope | It Can Be Installed On Cars, Suvs, Rv, Buses, Yachts, Boats, Etc |
Scope Of Use | It Can Be Directly Connected To The Line Of Any Electrical Appliance On The Vehicle / Ship Such As Roof Lamp, Car Headlamp, Side Marker Lamp, Fog Lamp, Warning Lamp, On-board Refrigerator, On-board Charger, On-board Fan, On-board Tv, Etc. |
Product Accessories | Sticker X2; Self Tapping Screw X4; 20a Fuse X4; 15a Fuse X2; 10a Fuse X2; 5a Fuse X4 |
Fuse Function | In Case Of Circuit Failure Or Abnormality, With The Continuous Increase Of Current, And The Increased Current May Damage Some Important Or Valuable Devices In The Circuit, Burn The Circuit Or Even Cause Fire. The Fuse Protects The Electronic Equipment From Current Damage And Can Also Avoid Serious Injury Caused By Internal Failure Of The Electronic Equipment. Therefore, Each Fuse Has A Rated Specification. When The Current Exceeds The Rated Specification, The Fuse Will Blow. If The Fuse Is Correctly Placed In The Circuit, The Fuse Will Fuse Itself And Cut Off The Current When The Current Abnormally Rises To A Certain Height And Temperature, So As To Protect The Safe Operation Of The Circuit |
Product Advantages | 【1】The Product Is Made Of PA66 Anti Flame Retardant, High And Low Temperature Resistant Environmental Protection Material, Which Fully Meets The Conditions Of [fuse Holder Must Have Good Mechanical Strength, Insulation, Heat Resistance And Flame Retardancy, And There Shall Be No Fracture, Deformation, Combustion And Short Circuit In Use; 【2】 All Fasteners Are Stainless Steel. The Input And Output Ends Of The Fuse Box Are Fixed With Tightening Screws, Which Can Be Installed More Quickly. Moreover, The Fuse Box Is Fixed With Self Tapping Screws, Which Makes The Installation Simpler And Safer. 【3】 The Product Is Provided With Stickers, Which Can Be Pasted On The Electrical Appliances We Connect According To The Name Marked On The Stickers. When The Fuse Is Broken, We Can Identify Which Electrical Appliance Has The Problem At The First Time, Saving Time And Effort 【4】 The Product Is Delivered With Double Fuses. When Applied, The Fuse Is Burned Out And Can Be Replaced From The Spare Fuse Immediately. Moreover, The Fuse Is Sent With Multiple Amps. The Fuse Of Amps Can Be Selected According To The Current Appliance |
