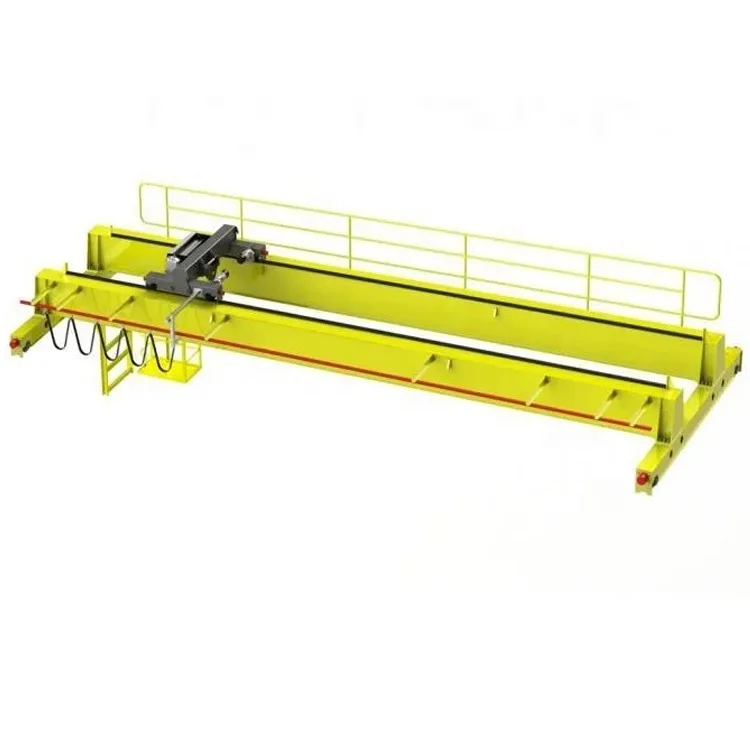

European design new factory traveling bridge crane

Product Overview

Description

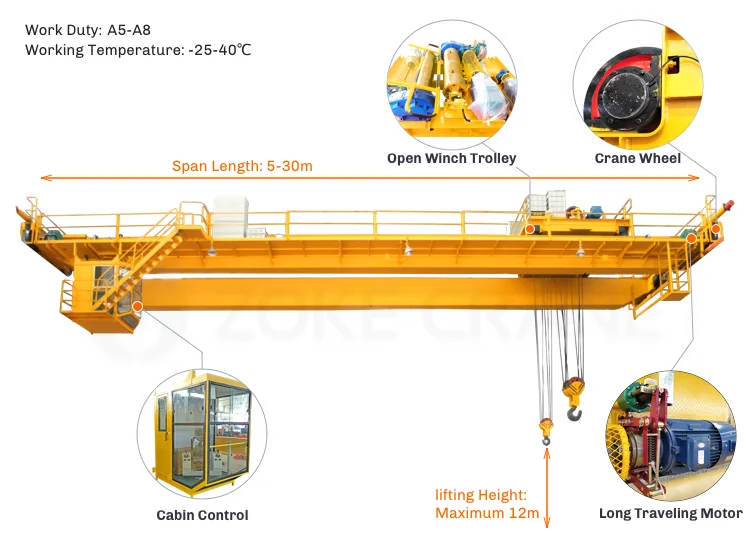

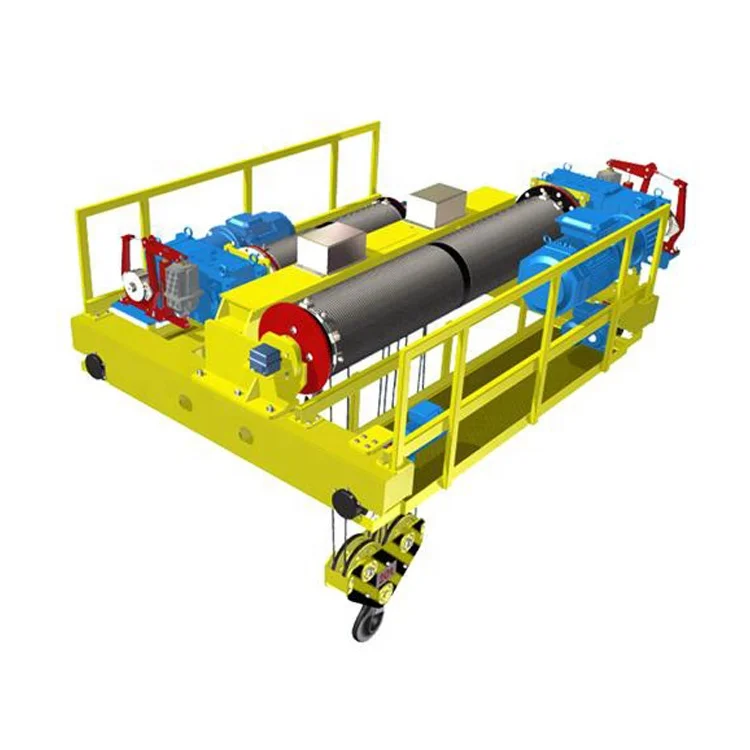

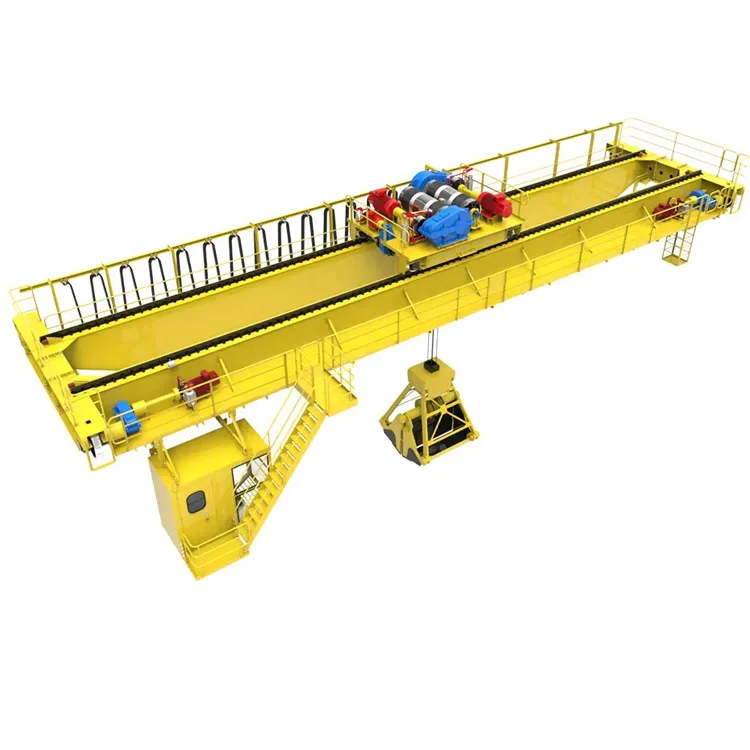

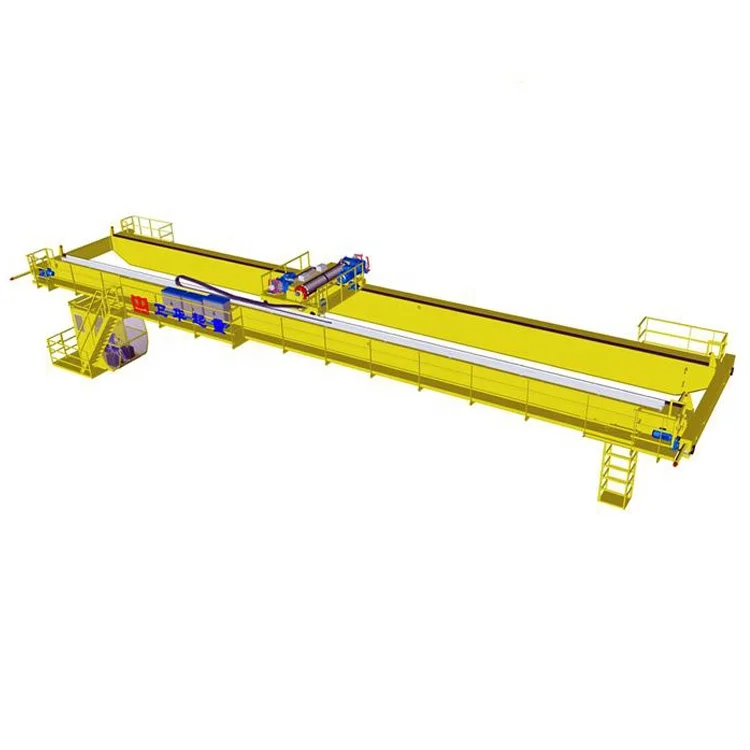

Double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.

Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.

There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.





Capacity/t	Span/m	Work duty/ISO	Lifting speed/ m/min	CT speed/ m/min	LT speed/ m/min	Rail
5	10~40	A5	13.3	30~40	40~80	P43
10	10~40	A5	8.5	30~40	40~80	P43
15	10~40	A5	7.9	30~40	40~80	P43
20	10~40	A5	7.5	30~40	40~80	P43
32	10~40	A5	6	30~40	40~80	QU70
50	10~40	A5	5.9	30~40	40~80	QU70
75	10~40	A5	4.5	30~40	40~80	QU100
100	10~40	A5	4.2	30~40	40~80	QU100
