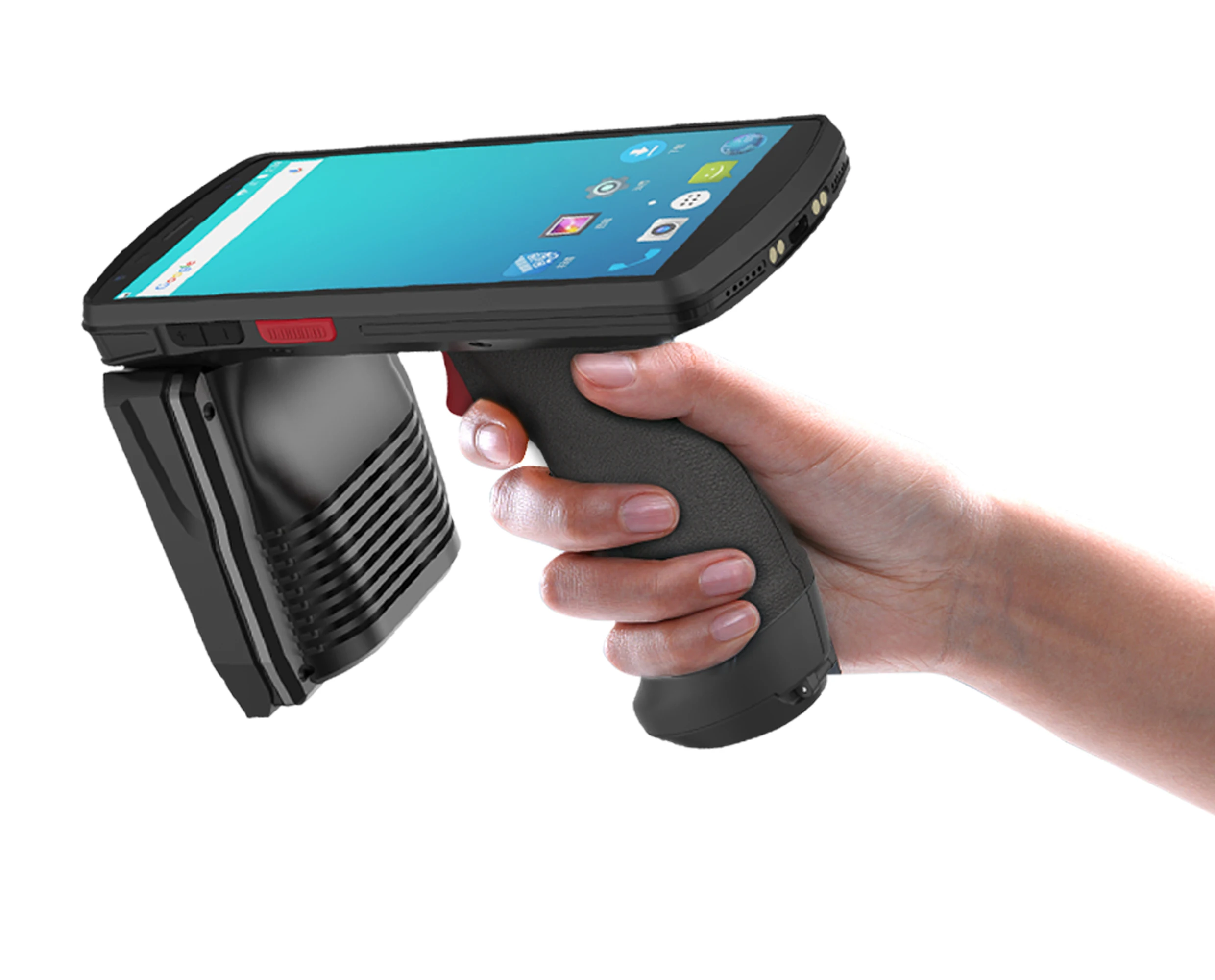

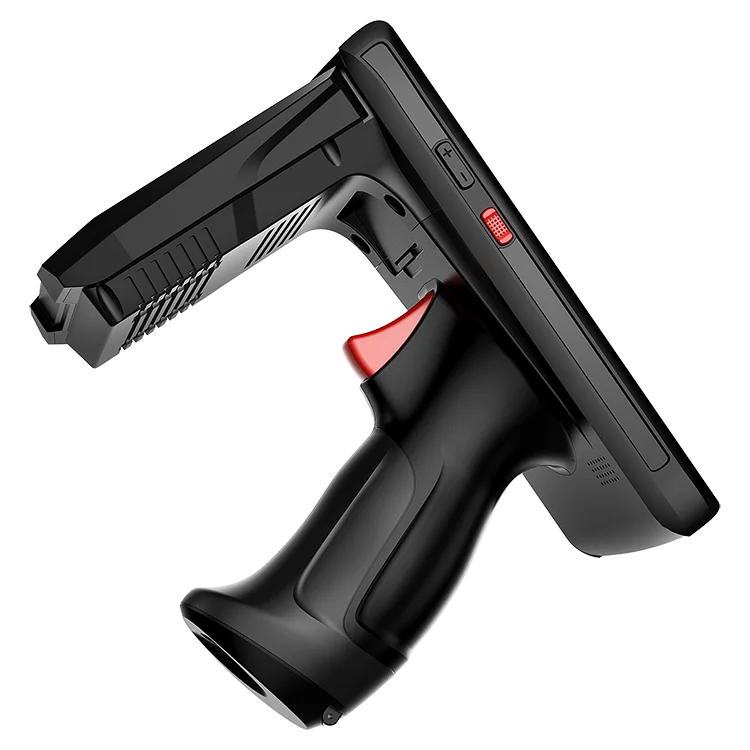

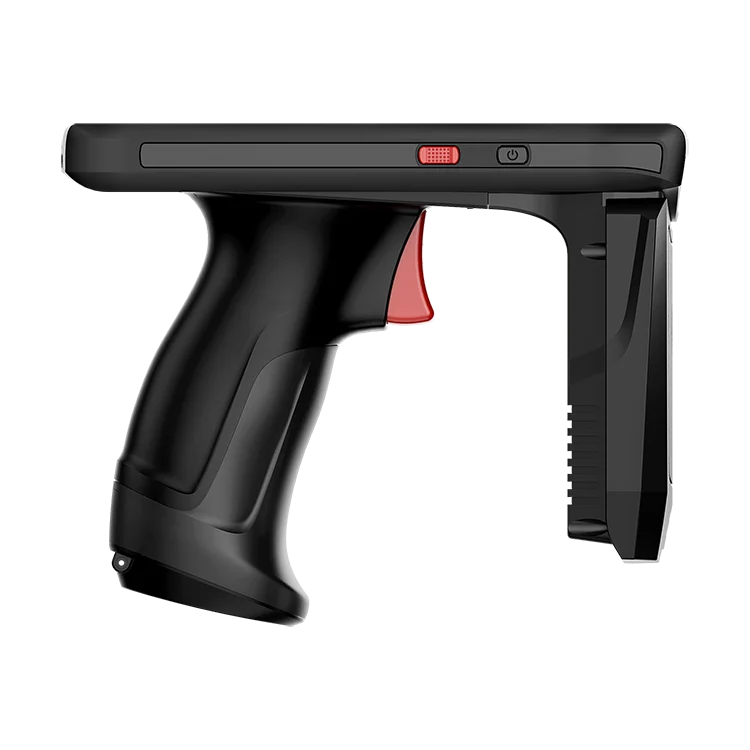

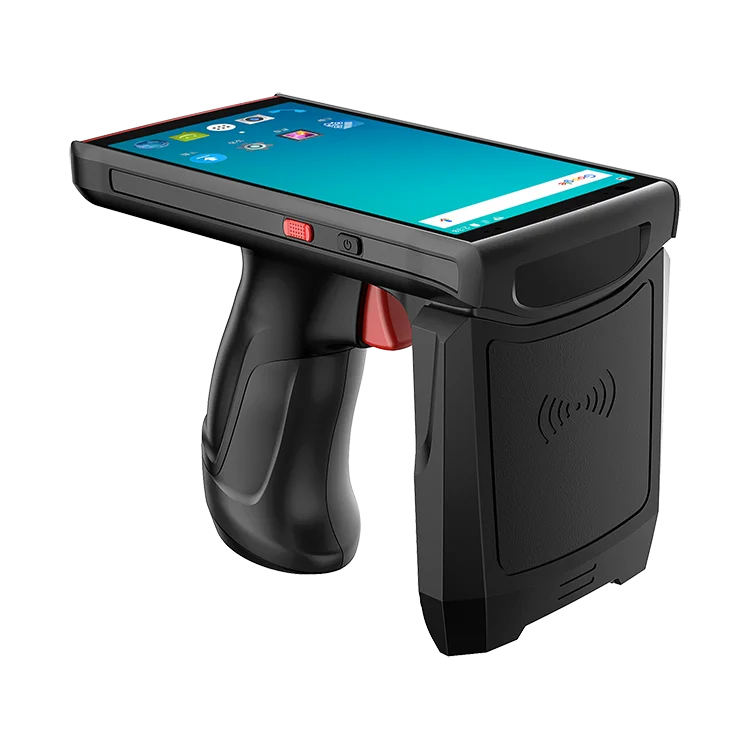

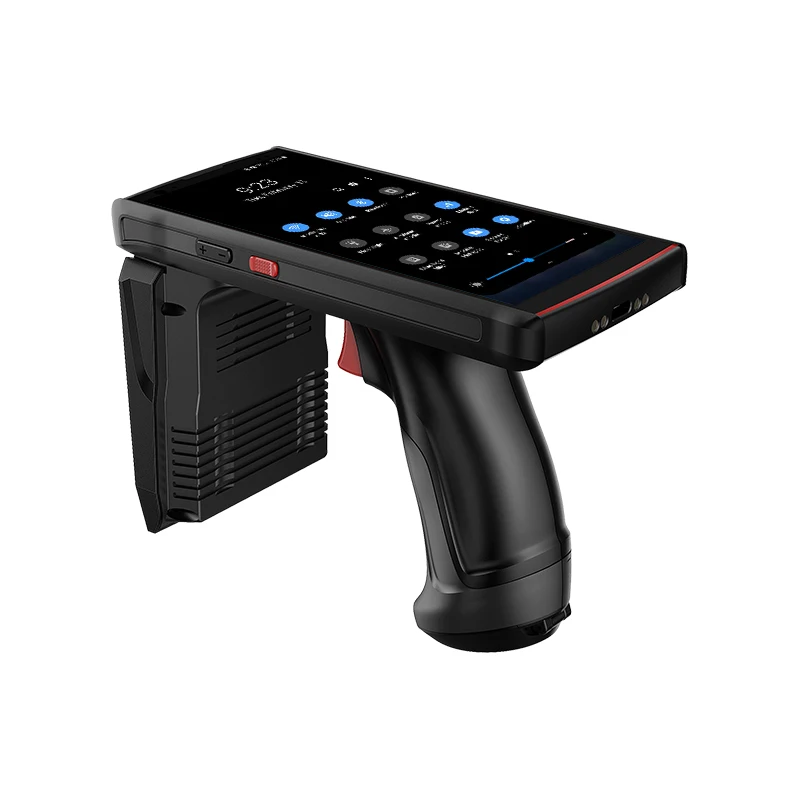

In stock 5 meter rfid uhf reader 865 928mhz EPC gen2 device uhf rfid reader java for clothing warehouse reading
- Category: >>>
- Supplier: Shenzhen Xiangyuxing Technology Co. Ltd.
Share on (1600484351071):
Product Overview
Description

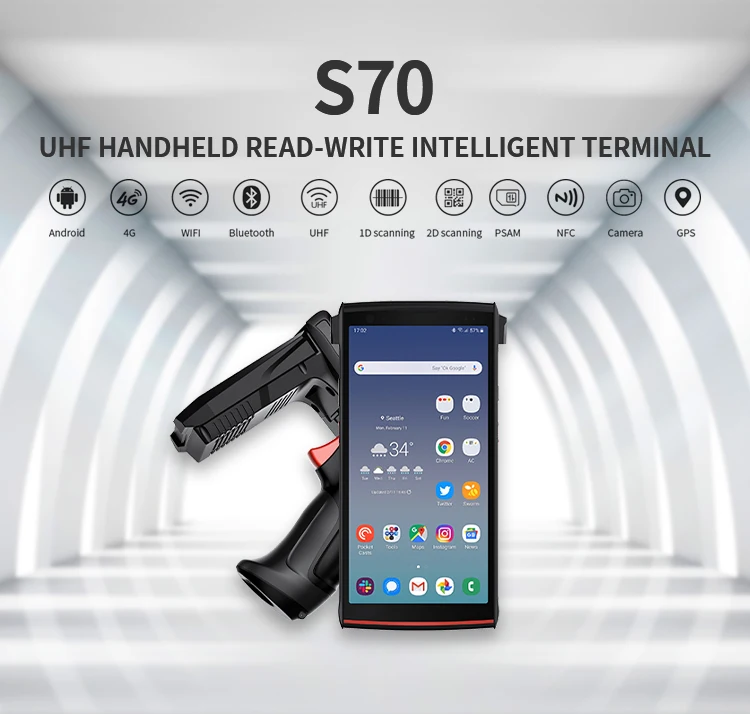

In stock 5 meter rfid uhf reader 865-928mhz EPC gen2 device uhf rfid reader java for clothing warehouse reading
Product Description
Product parameters | |
Performance | |
Octa core | |
CPU | Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor |
RAM+ROM | 3GB+32GB Supports up to 4GB+64GB |
System | Android 9.0 |
Data communication | |
WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
WWAN | 2G:GSM |
| 3G:WCDMA |
| 4G:FDD:B1/B3/B4/B7/B8/B12/B20 |
| TDD:B38/B39/B40/B41 |
Blue tooth | Support Blue tooth 2.1+EDR/3.0+HS/4.1+HS |
GNSS | Support Gps, Galileo, Glonass, Beidou |
Physical parameter | |
Dimensions | 159mm×75mm×124mm |

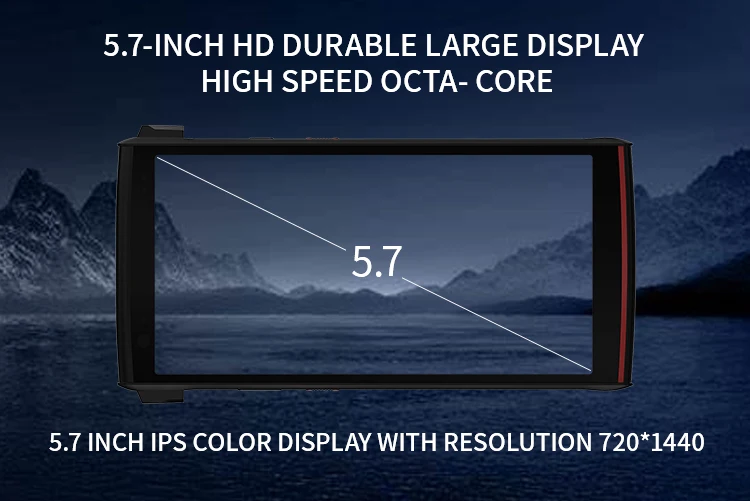

Display | 5.7 inch IPS color display |

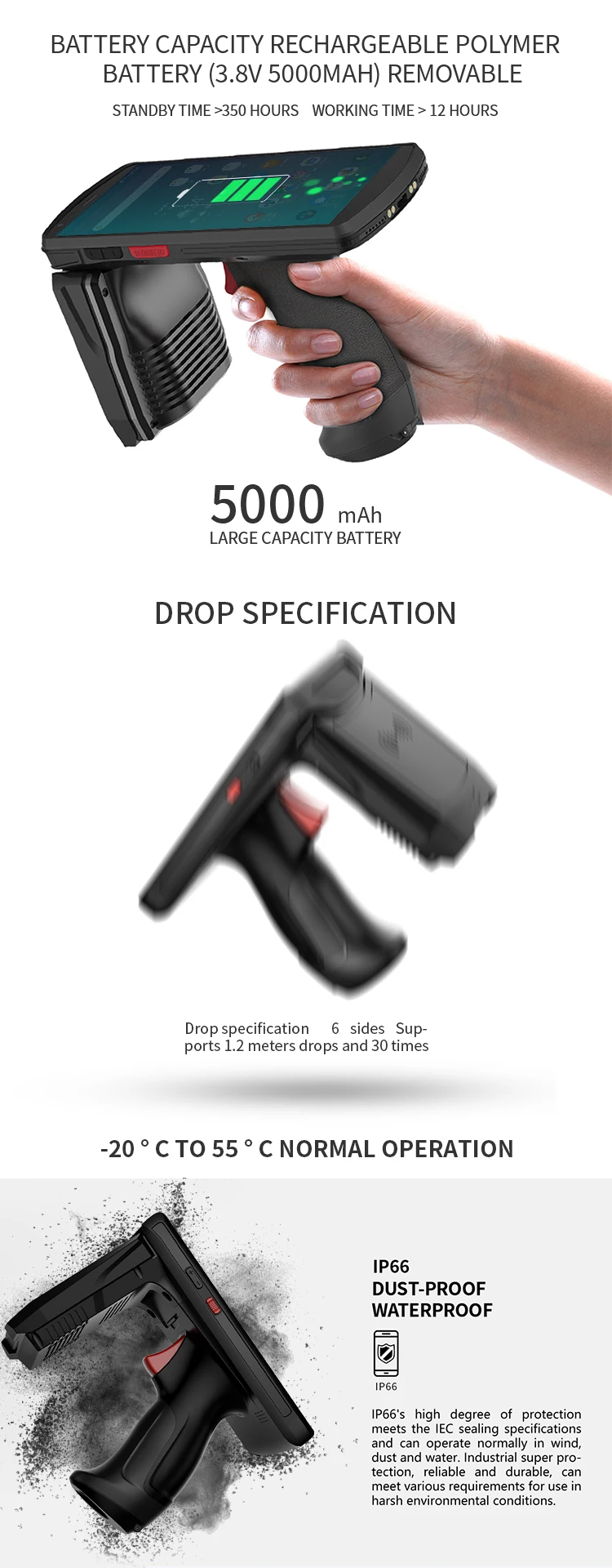

Battery capacity | (3.8V 5000MAh) |
| Standby time >350 hours |
| Working time > 12 hours |
| Charging time 3-4H, Using standard power adapter and data cable |
Communication interface | Type-C USB x 1, OTG |

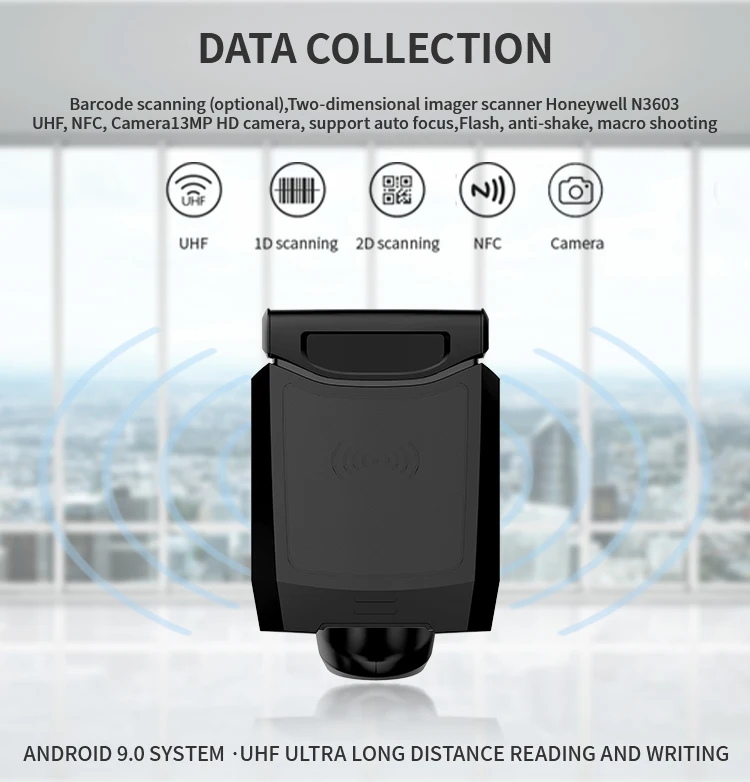

Data collection | |
Barcode scanning (Optional) | |
2D Imager scanner | Honeywell N3603 |
2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, Maxicode,Hanxin Code,etc. |
UHF | |
Engine | Engine CM2000-1, based on Impinj Indy R2000 |
Frequency(CHN) | 920-925MHz |
Frequency(USA) | 902-928MHz |
Frequency(EHR) | 865-868MHz(ETSI EN 302 208) |
Frequency(Other) | Other multinational frequency standards (can be customized) |
Protocol | EPC C1 GEN2 / ISO18000-6C/6B |
Antenna | Circularly polarized antenna (3dBi) |
Power | 30dBm, support +5dBm ~ +30dBm adjustment |
Distance | 0-13m |
Reading speed | >200 tags per second (circular polarization) |
NFC | |
Frequency | 13.56MHz |
Protocol | Support ISO14443A/B, 15693 agreement |
Distance | 2cm-5cm |
User environment | |
Operating temperature | -20℃ - 55℃ |
Storage temperature | -40℃ - 70℃ |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Sealing | IP66 |
