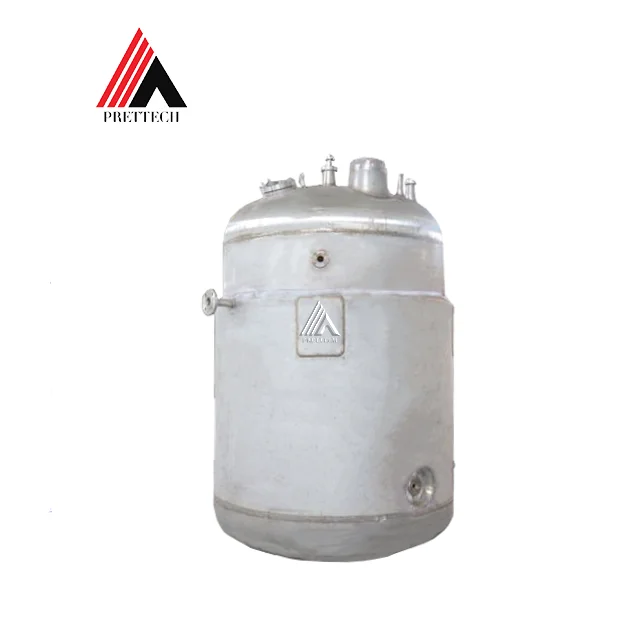

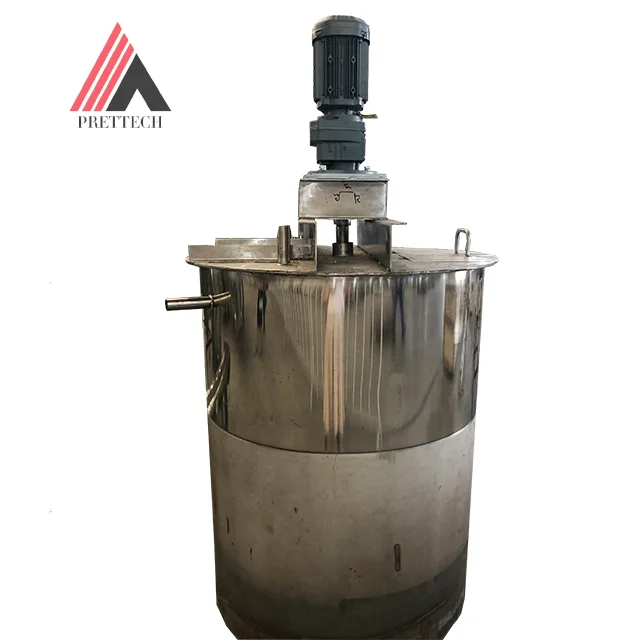

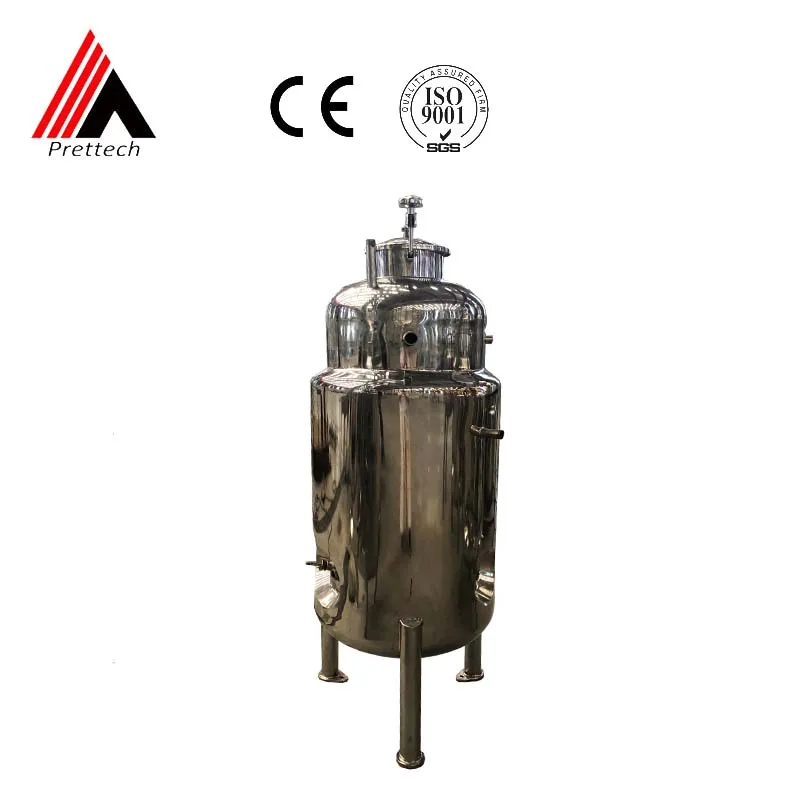

Best selling kettle reactor factory direct sale
- Category: >>>
- Supplier: Prettech Machinery Manufacturing Co. Ltd.
Share on (1600484594512):
Product Overview
Description
Products Description
Technical Parameters:
Material: SUS304 ;
Finish: exterior brushed, interior polished<0.4UM;
35%-40% head space;
Dished or conical top,
4 legs with adjustable feet;
Usually heated by gas,steam or electric;
Insulated by PU foam and 2mm cladding steel;

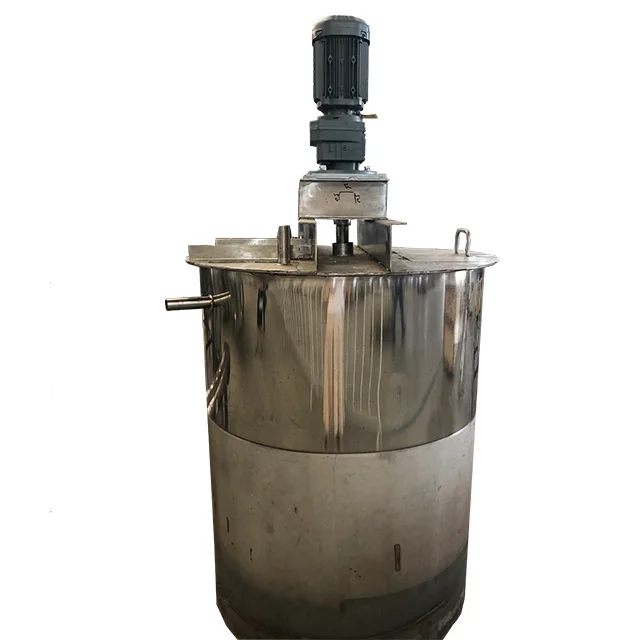

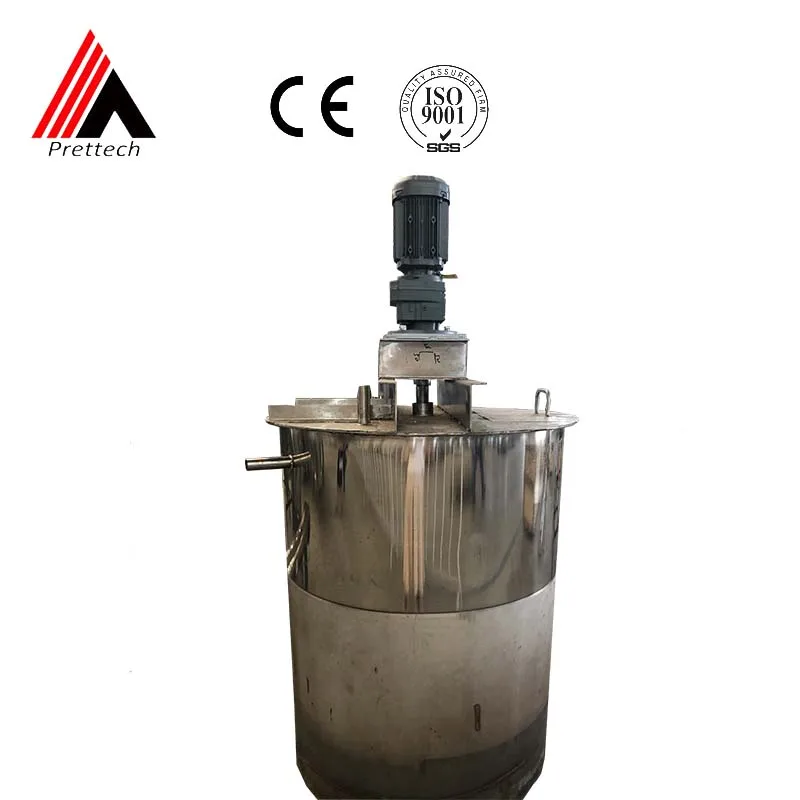

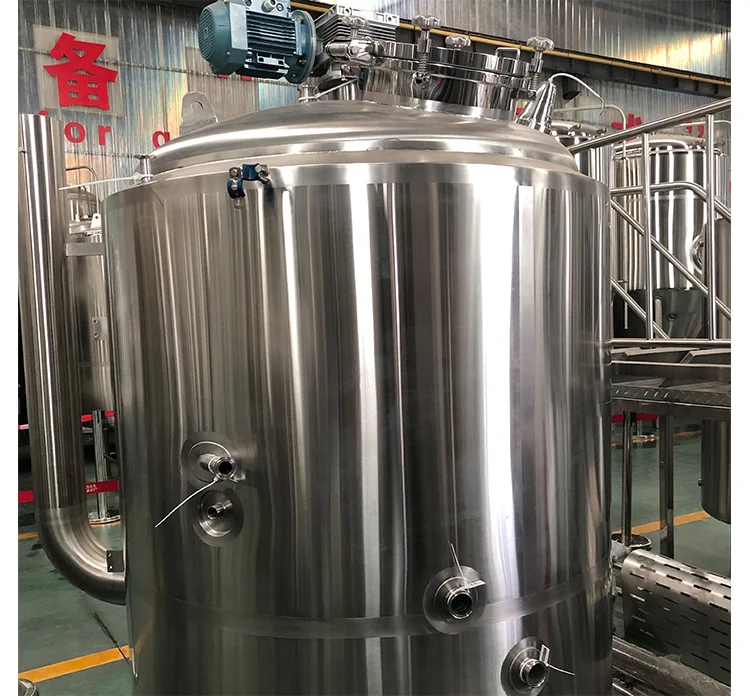

Top agitator with motor VFD control, slow speed 36rpm;
Condensening water device indoors or outdoors;

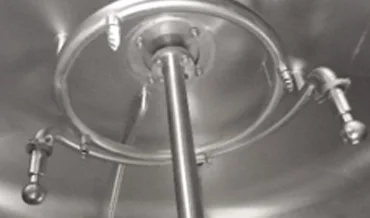

Accessories include spot light&glass manway on the top, thermometer, CIP, flowmeter.
Calandria heat exchanger optional.
Material: SUS304 ;
Finish: exterior brushed, interior polished<0.4UM;
35%-40% head space;
Dished or conical top,
4 legs with adjustable feet;
Usually heated by gas,steam or electric;
Insulated by PU foam and 2mm cladding steel;
Top agitator with motor VFD control, slow speed 36rpm;
Condensening water device indoors or outdoors;
Accessories include spot light&glass manway on the top, thermometer, CIP, flowmeter.
Calandria heat exchanger optional.
Specifications
Capacity | Overall dia.:mm | Overal height:mm |
100L | 620 | 1629 |
200L | 860 | 1704 |
200L | 860 | 1742 |
300L | 910 | 2037 |
300L | 910 | 2069 |
500L | 11600 | 2080 |
1000L | 1410 | 2327 |
1200L | 1560 | 2500 |
1500L | 1560 | 2600 |
2000L | 1710 | 2760 |
2500L | 1860 | 2776 |
3000L | 2100 | 2844 |
4000L | 2260 | 3000 |
5000L | 2160 | 4138 |
3.5BBL | 1060 | 2058 |
5BBL | 1160 | 2185 |
5BBL | 1360 | 2257 |
7BBL | 1360 | 2265 |
10BBL | 1560 | 2500 |
12BBL | 1660 | 2480 |
15BBL | 1660 | 2780 |
20BBL | 1860 | 2820 |
30BBL | 2200 | 2880 |
60HL | 2000 | 4000 |
Capacity (L) | 50L - 50,000L or customized |
Material | SS304, SS316L, SS321 or higher |
Design Pressure (Mpa) | -0.1-0.1mpa |
Design Temperature (°C) | AMB - 300°C or higher |
Heating | Electric heating, steam heating, water bath heating, heat conduction oil heating |
Cooling | Cool water |
Heat ex-changer type | Jacket/external half coil/internal coil |
Application | Coating, Paint, Adhesive, Resin, Ink, Lithium battery, Food additives, Medicine, Cosmetic, Pesticides, Dyes and Pigment, Construction materials, Essence, Paper making chemicals, Feeds, Lubricant oil, Organic silicone, Plastic, Surfactant, Oilfield chemicals, Electronic chemicals, etc. |
Product Advantages
A1:Prettech design and process microbrewery equipment for hotels, Brewpub and small to mid-sized breweries, capacity ranges from 50L to 5000L with 1-vessel compact system to 4-vessel full system, heated by gas, electricity or steam. The craft beer system is customized with high efficiency at competitive prices.

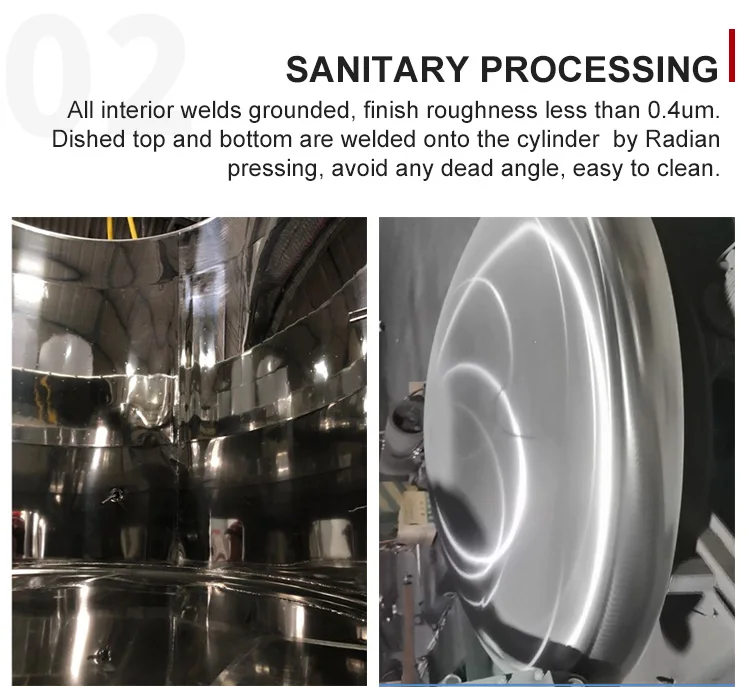

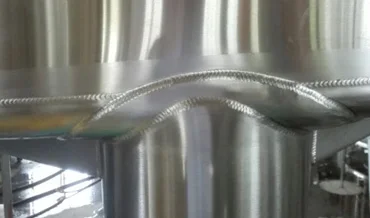

A2:All interior welds grounded, finish roughness less than 0.4um.Dished top and bottom are welded onto the cylinder by Radian pressing, avoid any dead angle, easy to clean.
A3:Temperature, motor or valves are operated by manual or automatic, brewmaster will feel comfortable to operate it.

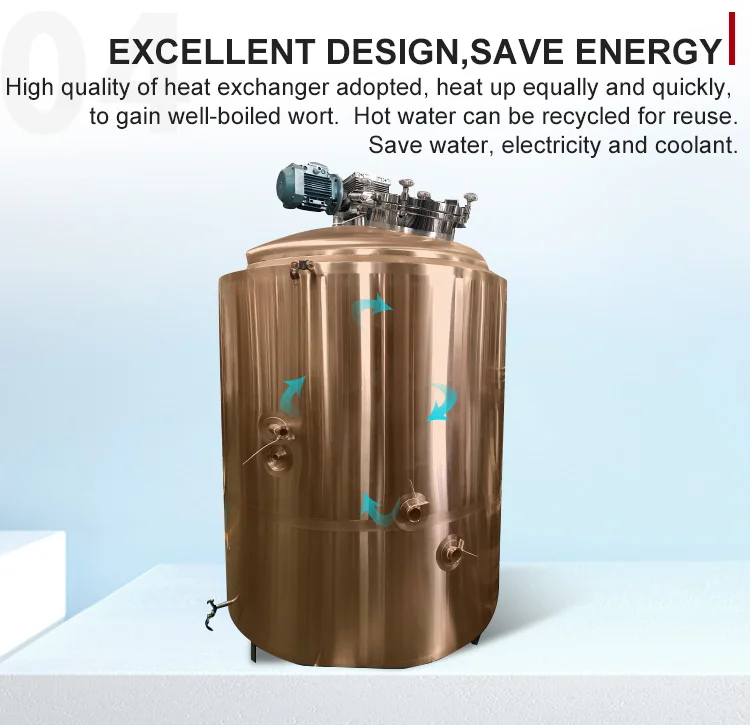

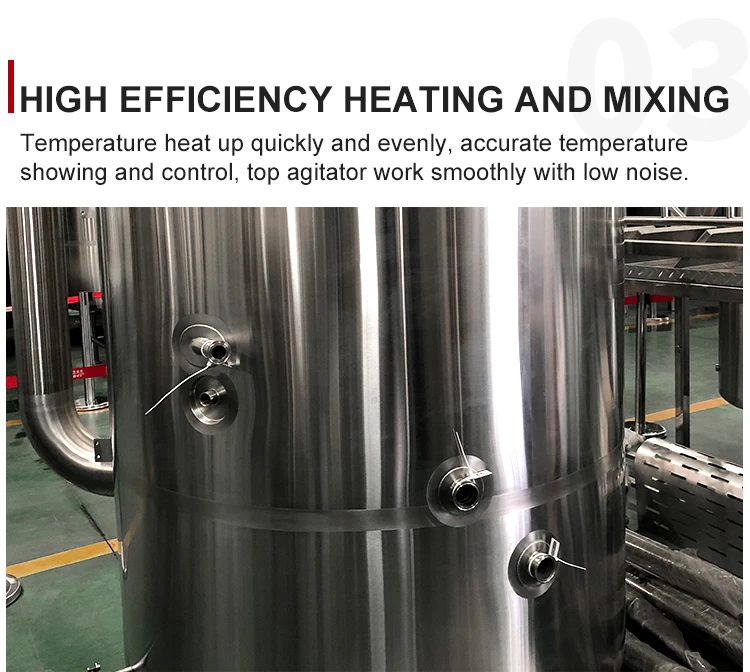

A4:High quality of heat exchanger adopted, heat up equally and quickly, to gainwell-boiled wort. Hot water can be recycled for reuse.Save water, electricity and coolant.
A4:All brewery equipment and the pipelines are marked signals before delivery, the installation and commission can be done both by Prettech or by customers easily. For the latter we will supply exact installation photos,video and drawings to make the local installation easy utmost, and will guide through mail, telephone or video.
Product details
Our Service
Company Profile
Prettech was established in 1971 and is now known as the top brand in the industry of stainless steel tank in China, especially for food&beverage, pharmacy, biochemicals and agriculture processing. Till 2015 total sales volume comes up to US$250 million, and total number of employee reaches 4500.
Our business range covers consulting, designing, fabricating, installation, commissioning &training. Product Range covers varied stainless steel tanks for liquid storage, fermenting, blending, temperature keeping, distilling,sterilizing,filtering and grain treatment.
Prettech stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
Prettech stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
Related Products
FAQ
Q: Can you produce tanks with S.S.316L?
A: Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q: What’s the lead time?
A: 35-50 working days depend on the order quantity.
Q: How do you ship the goods?
A: We usually ship by sea in containers or flat rack.
Q: Are you factory or trading company?
A: We are a manufacturer and export by ourselves.
Q: Can your factory produce products according to our samples or drawing?
A: Yes, we can do OEM and customization.
Q: What is your nearest port?
A: Qingdao port,China
Q: Do you supply door to door shipping?
A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q: How do you guarantee this machine normally operating?
A: Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q:Do you supply after-sale services?
A: Yes we do, if any defects occurred, Prettech would give instructions on how to handle, fast repair locally is avaible if needed.
Q: What inspections will you do before delivery in your factory?
A: All tanks would be tested by static pressure test, dye penetration or X-ray test if requested.
Q: What’s the lead time?
A: 35-50 working days depend on the order quantity.
Q: How do you ship the goods?
A: We usually ship by sea in containers or flat rack.
Q: Are you factory or trading company?
A: We are a manufacturer and export by ourselves.
Q: Can your factory produce products according to our samples or drawing?
A: Yes, we can do OEM and customization.
Q: What is your nearest port?
A: Qingdao port,China
Q: Do you supply door to door shipping?
A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q: How do you guarantee this machine normally operating?
A: Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q:Do you supply after-sale services?
A: Yes we do, if any defects occurred, Prettech would give instructions on how to handle, fast repair locally is avaible if needed.
Q: What inspections will you do before delivery in your factory?
A: All tanks would be tested by static pressure test, dye penetration or X-ray test if requested.
