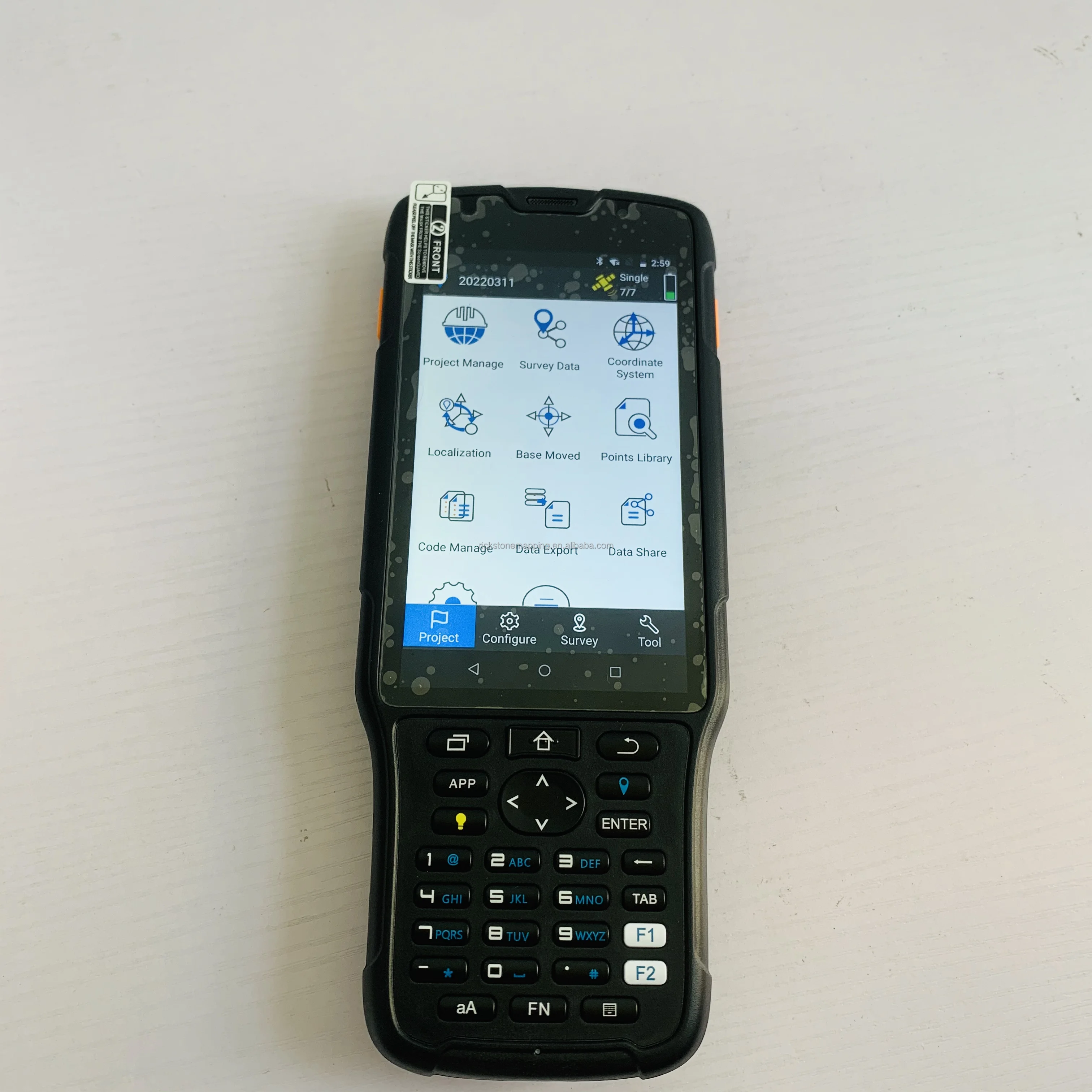

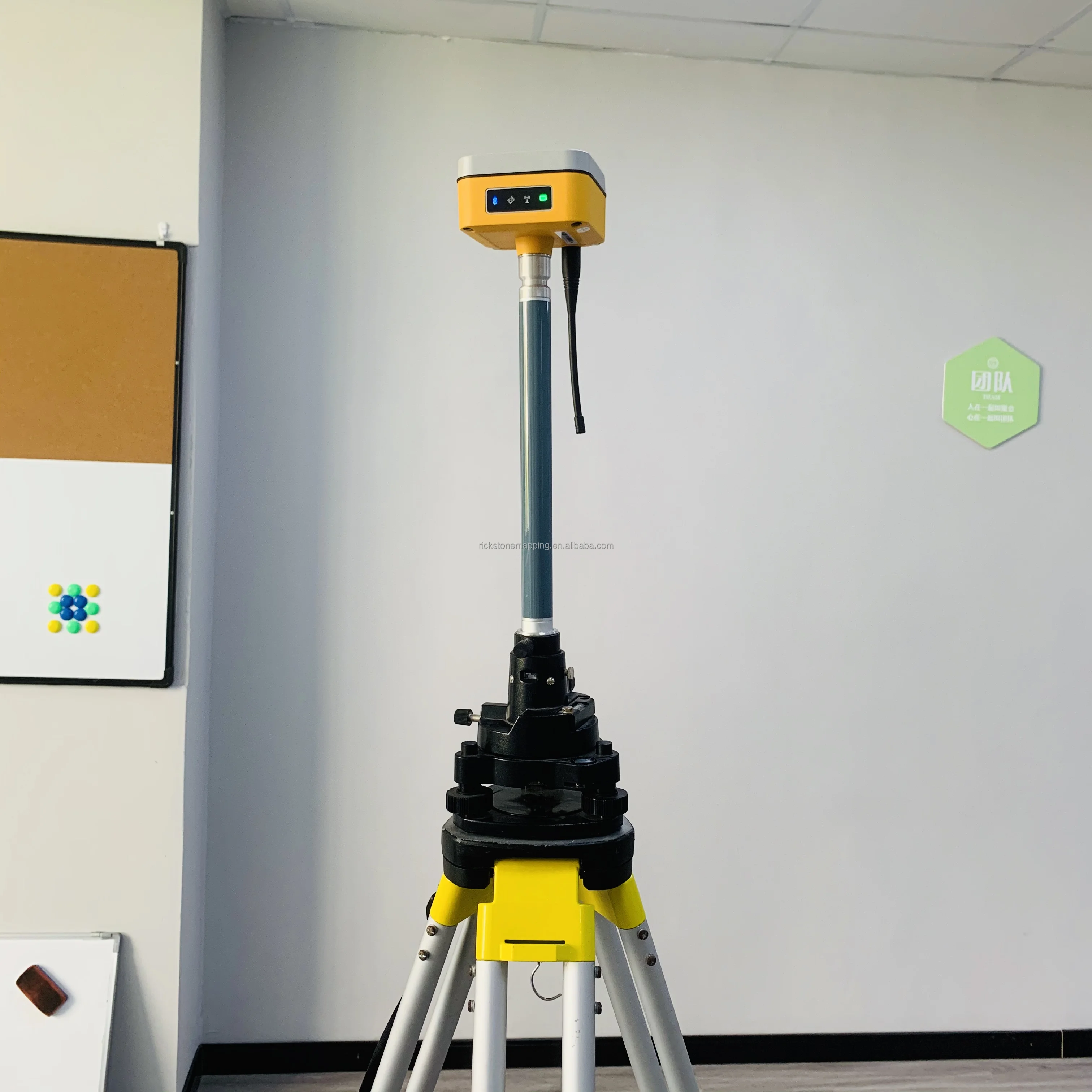

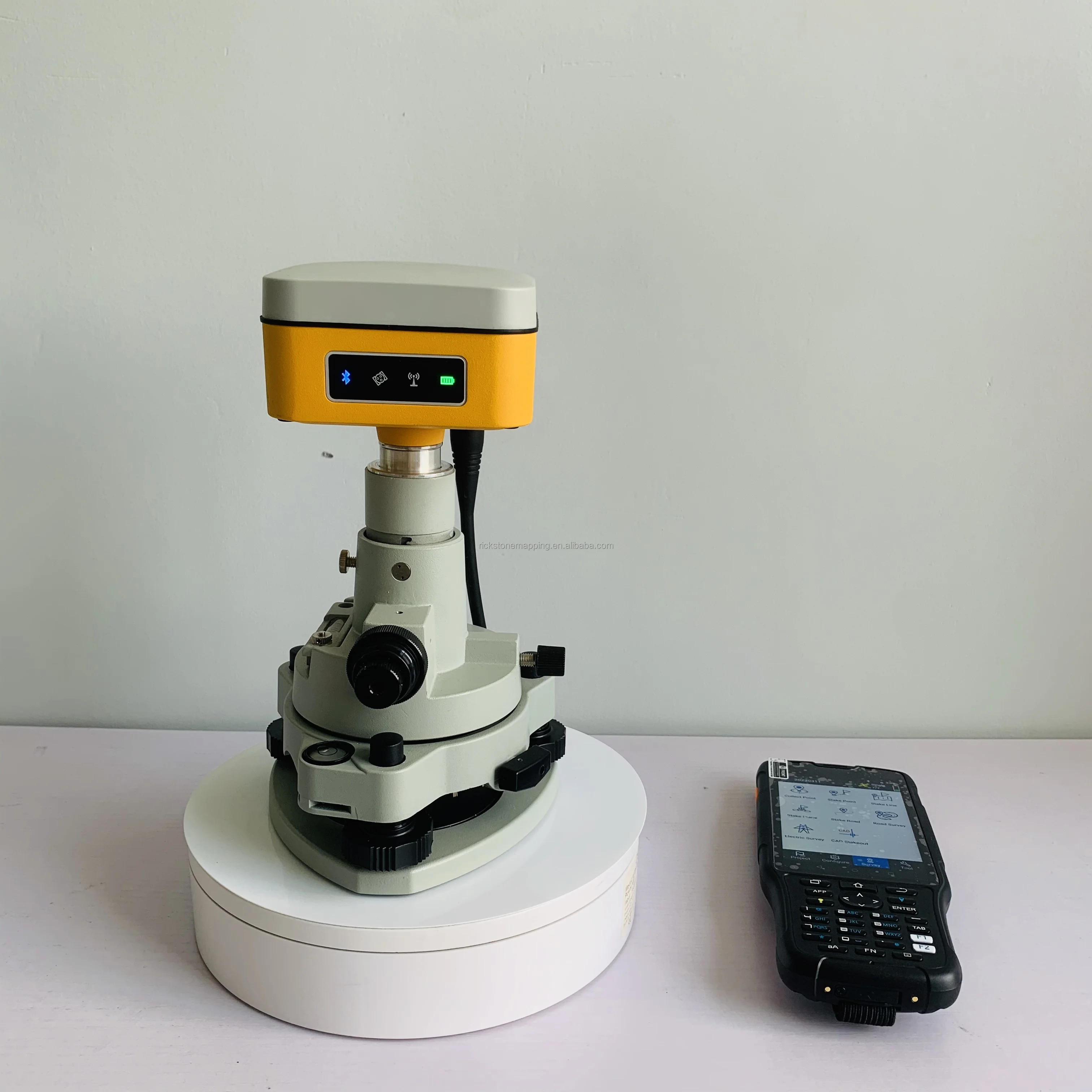

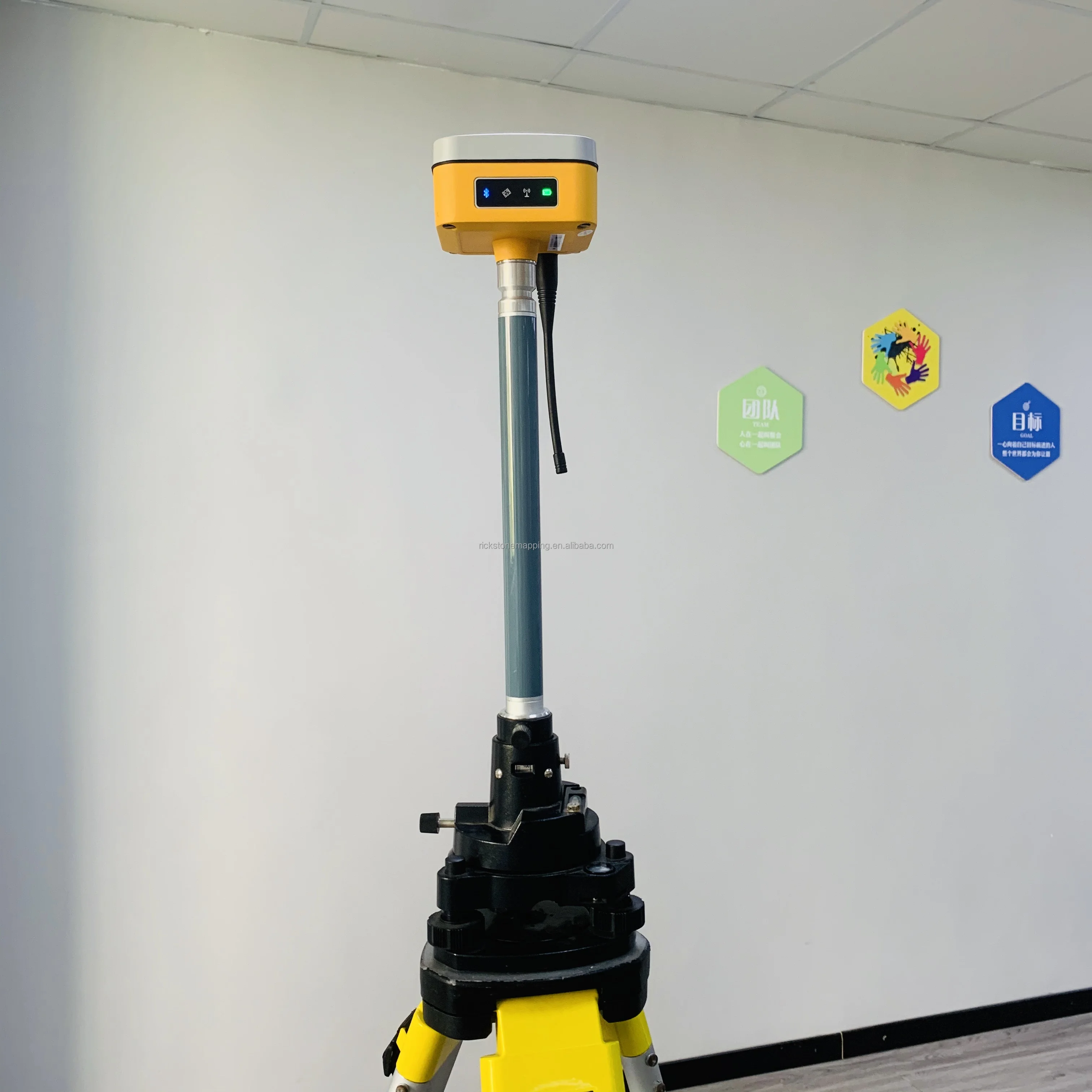

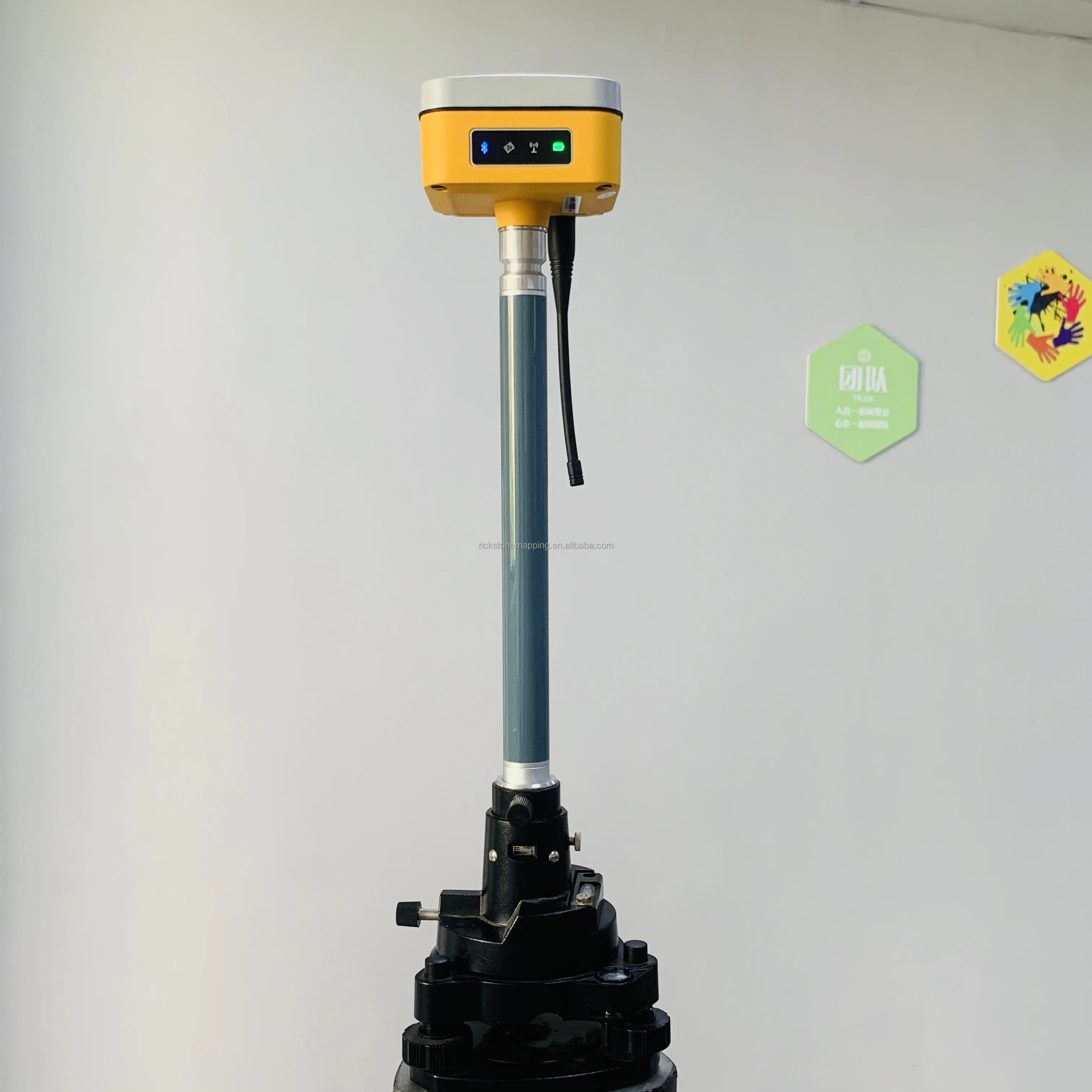

High performance Newest GNSS RTK Conwy C300 Base And Rover with PDA RTK GPS GNSS
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600484646172):
Product Overview
Description
Product Description
Features&Benefit
Linux+Qualcomm MDM9628 Cortex-A7 ntelligent system platform
Support BDS、GPS、GLONASS、 Galileo、QZSS and SBAS
Centimeter-level positioning
Supports tilt measurement, with positioning accuracy less than 2cm within a tilt range of 30°
Built-in large capacity lithium battery, long endurance
Industrial design, strong magnesium alloy case, IP65 design requirements, safe and reliable
Linux+Qualcomm MDM9628 Cortex-A7 ntelligent system platform
Support BDS、GPS、GLONASS、 Galileo、QZSS and SBAS
Centimeter-level positioning
Supports tilt measurement, with positioning accuracy less than 2cm within a tilt range of 30°
Built-in large capacity lithium battery, long endurance
Industrial design, strong magnesium alloy case, IP65 design requirements, safe and reliable
Specification
Hardware | Qualcomm MDM9628 Cortex-A7 | |
Software | Linux | |
GNSS | ||
GPS | L1、L2、L5 | |
GLONASS | L1、L2 | |
BDS | B1、B2、B3 | |
GALILEO | E1、E5a、E5b | |
QZSS | L1、L2、L5 | |
SBAS | L1 | |
Supported data formats | NMEA-0183 | |
Modification amount of I/O | RTCM 2.X、RTCM3.X | |
Data update rate | 1Hz(Customized MAX 20Hz) | |
Recapture time | <1s | |
Cold boot | <40s | |
Accuracy | ||
Point positioning（RMS） | Horizontal：1.5m ; Vertical：3.0m | |
DGPS（RMS） | Horizontal：0.4m ; Vertical：0.8m | |
RTK（RMS） | Horizontal：±（10mm+1ppm） | |
Vertical：±（15mm+1ppm） | ||
Time precision（RMS） | 20ns | |
Speed precision（RMS） | 0.03m/s | |
Tilt compensation(Within 30 °) | <2cm(Tilt function is optional) | |
System | ||
Bluetooth | V2.1+EDR / V4.0 | |
WIFI | 802.11 a/b/g/n/ac | |
Network | LTE FDD: B1/B3/B5/B8 | |
LTE TDD: B38/B39/B40/B41 | ||
TD-SCDMA: B34/B39 | ||
CDMA: BC0 | ||
WCDMA: B1/B8 | ||
GSM: 900/1800MHz | ||
Internal Storage | 32GB | |
Light | ||
Power lamp | power supply indicators | |

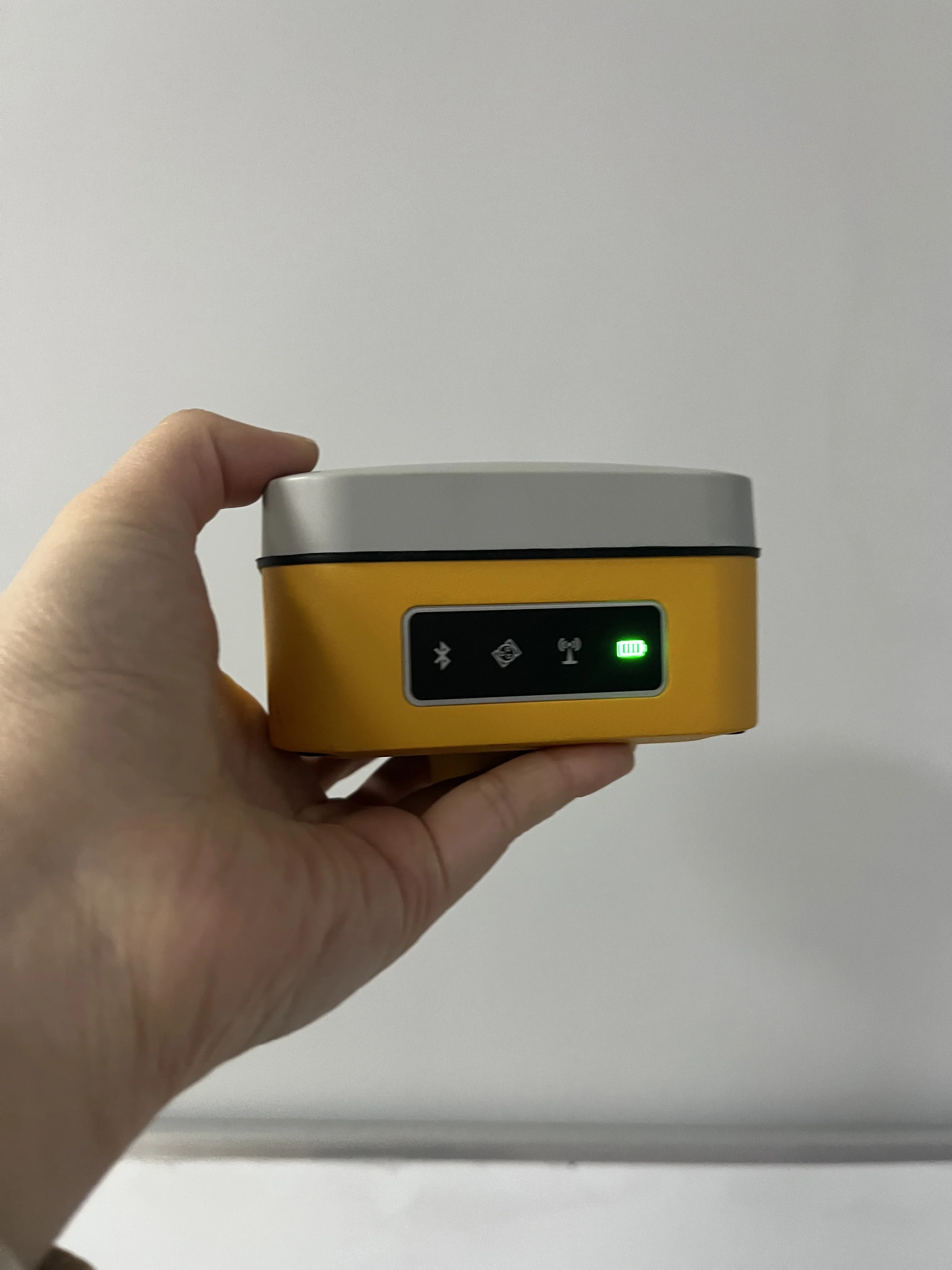

Satellite lamp | Blinking indicates active location | |
Bluetooth lamp | Bluetooth connection stay lights up | |
Data link lamp | Blink with a difference | |
Battery | ||
Specifications | 3.7V，9600mAh | |
Charge | Support MTK PE+ 1.1/2.0 9V/1.6A | |
Support USB PD 12V/1.25A | ||
Support 5V/2A | ||
Environment | ||
Operation temperature | ‘-20℃~+60℃ | |
Storage temperature | ’-40℃~+85℃ | |
Shock and vibration | Resistance to 1.5m drop with rod at normal temperature | |
Water / Dustproof | IP65 | |
Physical | ||
Material | Magnesium alloy casing+ABS／PC | |
Size | 100mm*100mm*61.5mm | |
Weight | ≤0.65kg | |
Accessories | ||

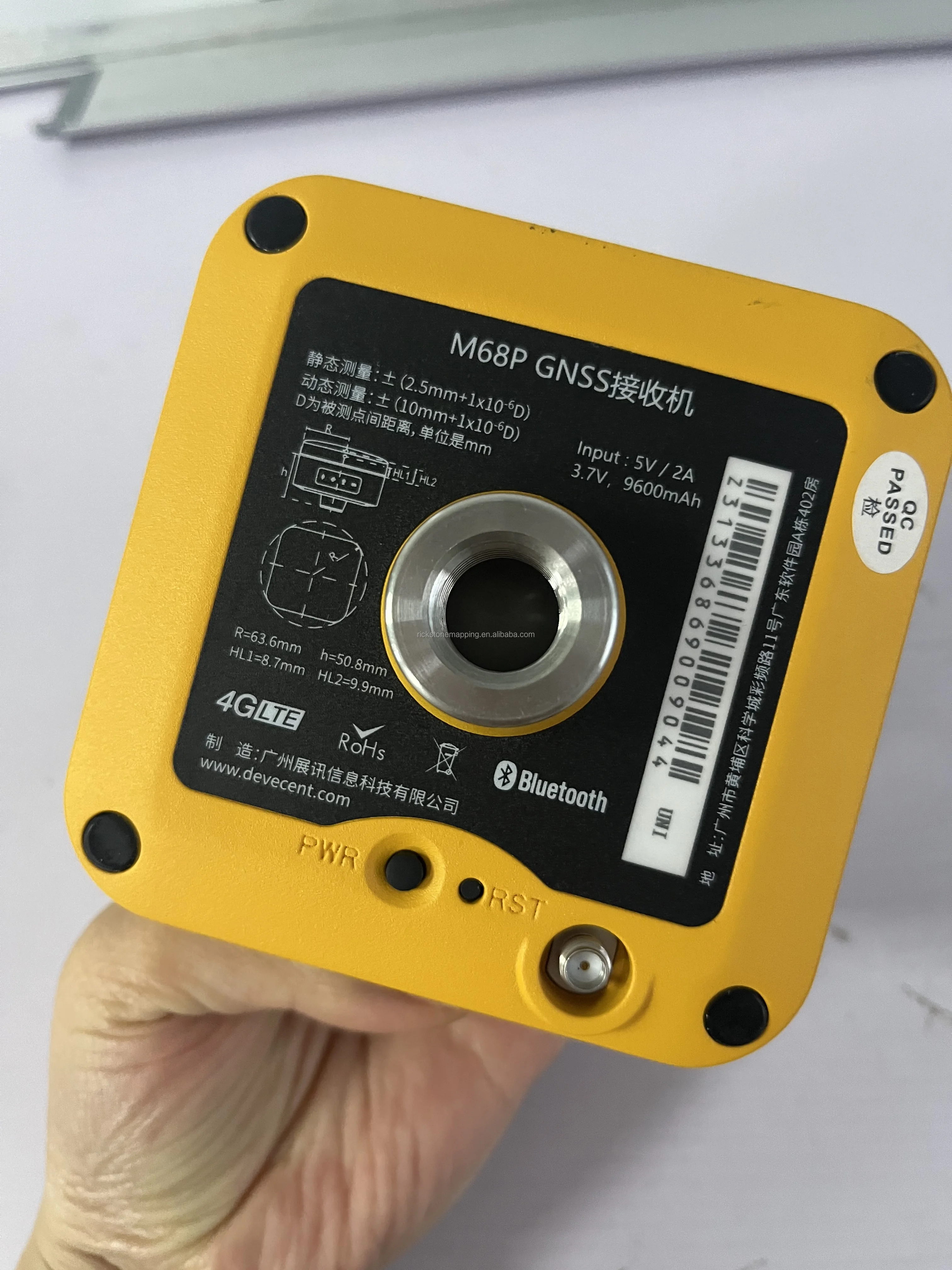

M68 receiver | X 1 | |
5V/2A USB power adapter | X 1 | |
USB A To Type-C cable | X 1 | |
Connector | X 1 | |
Product Details
Package&Shipping
COMPANY PROFILE
FAQ
Certificate

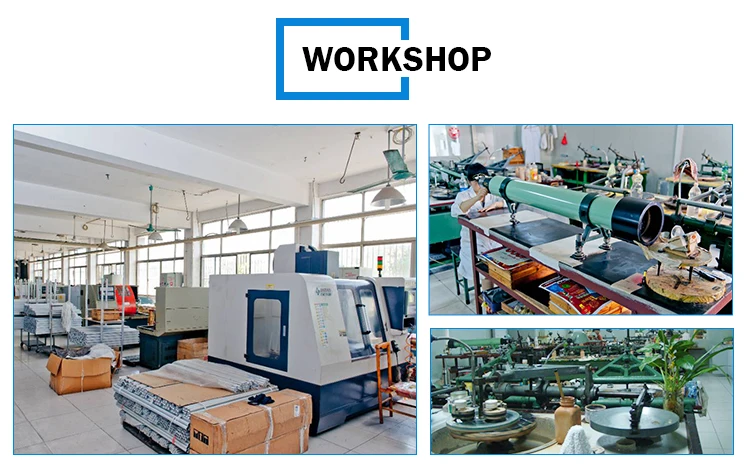

Workshop
